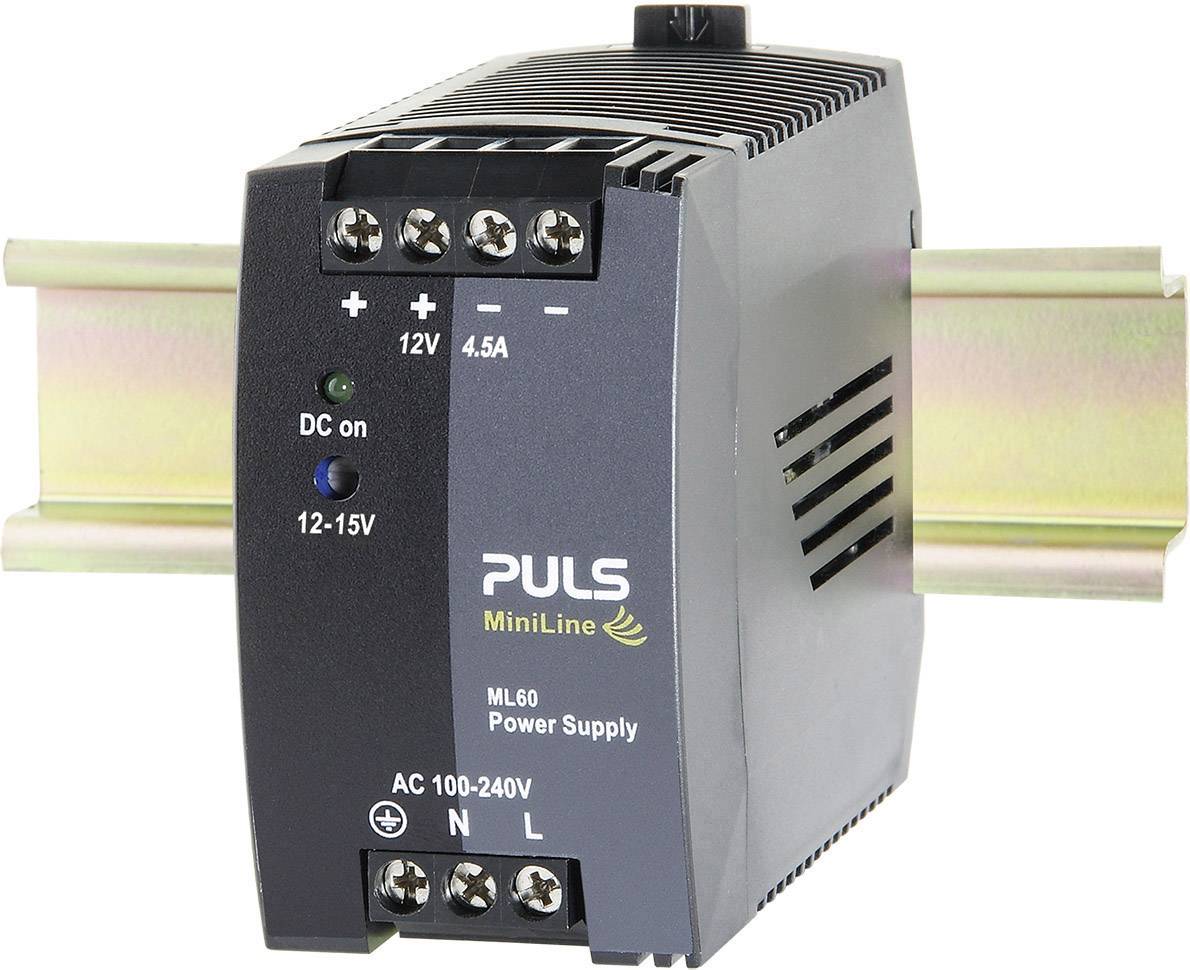

PULS ML60.122 Rail mounted PSU (DIN) 12 V DC 4.5 A 54 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
14-day return policy included
Highlights & Details
PULS ML60.122 Rail mounted PSU (DIN) 12 V DC 4.5 A 54 W No. of outputs:1 x Content 1 pc(s)
- 15 V DC / 4.5 A;54 W
- Input 1-phase
- Input voltage range 85 - 264 V/AC, 88 - 375 V DC;Connection (components): Screw terminal
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
88 - 375 V/DC
- Type
Switched Mode
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V AC
- Output voltage
12 V DC
- Inputs
1
- Input voltage
85 - 264 V/AC, 88 - 375 V DC
- Input voltage (max.)
240 V AC
- Max. output current
4.5 A
- Output current (max.) - rounded
4.5 A
54 W
- Phases
1
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Connection
Screw terminal
- Dim
(W x H x D) 45 x 75 x 91 mm
- Weight
250 g
- Output voltage (max.)
15 V DC
- Output voltage (min.)
12 V DC
- Manufacturer part #
ML60.122
- Content
1 pc(s)
- Width
45 mm
- Height
75 mm
- Max. temperature
+70 °C
- Type
MiniLine ML60.122
- Depth
91 mm
54 W
- Connections
Screw terminals
- Output rating
54 W
- Output current (details)
4.5 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 519019 PULS ML60.122 Rail mounted PSU (DIN) 12 V DC 4.5 A 54 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions 519019 PULS ML60.122 Rail mounted PSU (DIN) 12 V DC 4.5 A 54 W No. of outputs:1 x Content 1 pc(s)
Conformity certificate
Conformity certificate 519019 PULS ML60.122 Rail mounted PSU (DIN) 12 V DC 4.5 A 54 W No. of outputs:1 x Content 1 pc(s)
Description
A compact device for lower and middle performance ranges. The MiniLine power supply is particularly compact, extraordinarily reliable, and can be installed in seconds. The number of critical components has been significantly reduced, and only high-quality materials are used throughout. The ML60.122 is for an operation at temperatures up to -40 °C approved.
Features
- Spring-loaded connecting terminals
- Robust plastic housing
- World-wide approvals (UL, EN, CSA, CB Scheme) for industry and office/home
