Buy PULS ML60.241 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

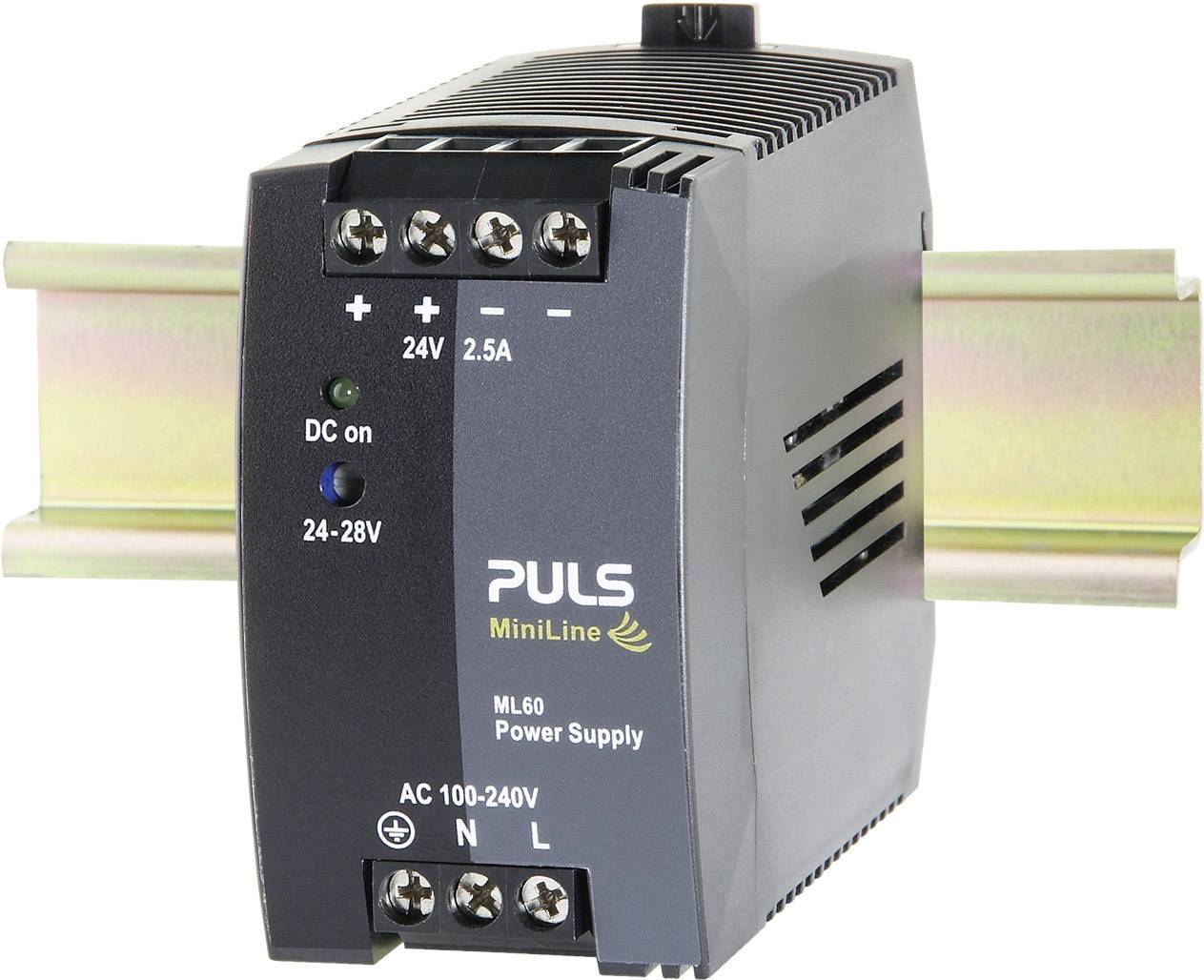

'PULS MiniLine' power supply unit, black-grey, DIN rail mounted. Input voltage: AC 100-240V, Output: 24V, 2.5A LED indicator.

Fast track dispatch on Mon, 5 Oct

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 70.58 / piece)

€ 70.58

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

PULS ML60.241 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

28 V DC / 2.5 A;60 W
Input 1-phase
Input voltage range 85 - 264 V/AC, 88 - 375 V DC;Connection (components): Screw terminal

Technical specifications

Nominal input voltage: 115 V/AC
230 V/AC
88 - 375 V/DC

Type: Switched Mode

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 24 V DC

Inputs: 1

Input voltage: 85 - 264 V/AC, 88 - 375 V DC

Input voltage (max.): 240 V AC

Max. output current: 2.5 A

Output current (max.) - rounded: 2.5 A

: 60 W

Output type (power supply units): Fixed voltage

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (W x H x D) 45 x 75 x 91 mm

Weight: 250 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Manufacturer part #: ML60.241

Content: 1 pc(s)

Width: 45 mm

Height: 75 mm

Max. temperature: +70 °C

Type: MiniLine ML60.241

Depth: 91 mm

: 60 W

Connections: Screw terminals

Output rating: 60 W

Output current (details): 2.5 A

Variants(All information is without VAT, plus shipping costs)

Power

Connection

Input voltage (max.)

Output voltage (nominal)

Output voltage

Output type (power supply units)

Nominal input voltage

Output current (max.) - rounded

Min. input voltage

PULS ML60.241 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Item no:519020

This article

60 W

Screw terminal

240 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC88 - 375 V/DC

2.5 A

100 V AC

PULS ML30.100 Rail mounted PSU (DIN) 24 V DC 1.3 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:511260

30 W

Spring-loaded terminal

264 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC85 - 375 V/DC

1.3 A

85 V AC

PULS ML30.101 Rail mounted PSU (DIN) 5 V DC 5 A 25 W No. of outputs:1 x Content 1 pc(s)

Item no:511261

25 W

Spring-loaded terminal

264 V AC

5 V DC

Fixed voltage

115 V/AC230 V/AC85 - 375 V/DC

5 A

85 V AC

PULS ML30.102 Rail mounted PSU (DIN) 12 V DC 2.5 A 30 W No. of outputs:1 x Content 1 pc(s)

Item no:511262

30 W

Spring-loaded terminal

264 V AC

12 V DC

Fixed voltage

115 V/AC230 V/AC85 - 375 V/DC

2.5 A

85 V AC

PULS ML30.106 Rail mounted PSU (DIN) 15 V DC 2.5 A 36 W No. of outputs:1 x Content 1 pc(s)

Item no:511263

36 W

Spring-loaded terminal

264 V AC

15 V DC

± 12/15 V DC

Fixed voltage

115 V/AC230 V/AC85 - 375 V/DC

2.5 A

85 V AC

PULS ML50.100 Rail mounted PSU (DIN) 24 V DC 2.1 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:511280

50 W

Spring-loaded terminal

264 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC85 - 375 V/DC

2.1 A

85 V AC

PULS ML50.102 Rail mounted PSU (DIN) 12 V DC 4.2 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:511281

50 W

Spring-loaded terminal

264 V AC

12 V DC

Fixed voltage

115 V/AC230 V/AC85 - 375 V/DC

4.2 A

85 V AC

PULS ML50.105 Rail mounted PSU (DIN) 48 V DC 1.05 A 50 W No. of outputs:1 x Content 1 pc(s)

Item no:511282

50 W

Spring-loaded terminal

264 V AC

48 V DC

Fixed voltage

115 V/AC230 V/AC85 - 375 V/DC

1.05 A

85 V AC

PULS ML70.100 Rail mounted PSU (DIN) 24 V DC 3 A 72 W No. of outputs:1 x Content 1 pc(s)

Item no:511283

72 W

Spring-loaded terminal

264 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC220 - 375 V/DC

3 A

85 V AC

PULS ML100.100 Rail mounted PSU (DIN) 24 V DC 4.2 A 100 W No. of outputs:1 x Content 1 pc(s)

Item no:511286

100 W

Spring-loaded terminal

264 V AC

24 V DC

Fixed voltage

115 V/AC230 V/AC220 - 375 V/DC

4.2 A

85 V AC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 519020 PULS ML60.241 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Conformity certificate

Conformity certificate 519020 PULS ML60.241 Rail mounted PSU (DIN) 24 V DC 2.5 A 60 W No. of outputs:1 x Content 1 pc(s)

Description

The PULS ML60.241 belongs to the manufacturer's MiniLine series, which covers lower power requirements in the range from 15W to 100W, the ML60.241 providing 60W. This MiniLine power supply has a rugged plastic housing, is highly efficient and compact at 45 mm x 75 mm x 91 mm. The PULS ML60.241 takes just seconds to install and offers superb reliability.

Features

Schraub-Anschlussklemmen
Robust plastic casing
