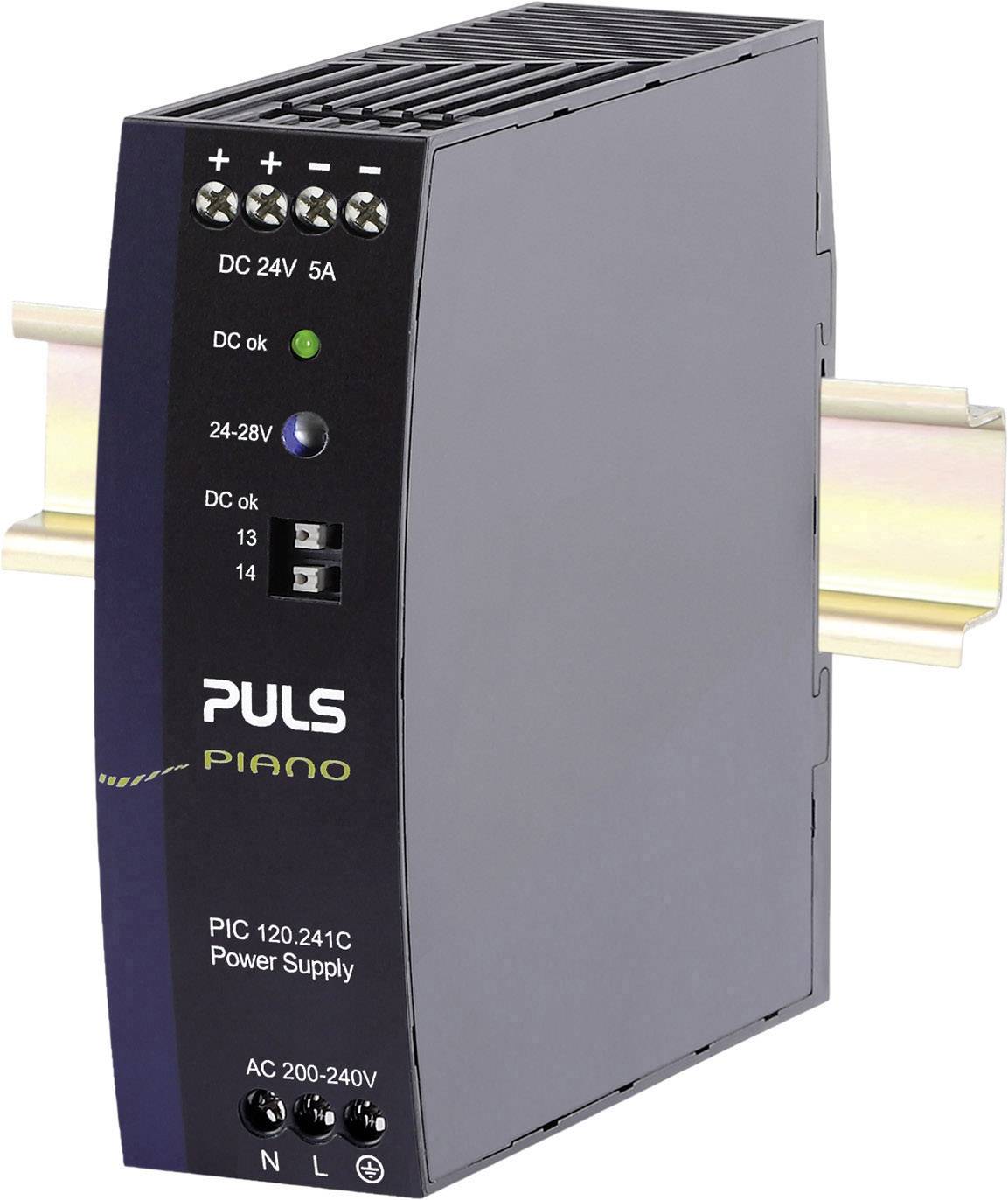

Buy PULS PIC120.241C Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 75.62 / piece)

€ 75.62

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Nominal input voltage: 230 V/AC

Type: Power Supply

Product type: Rail mounted PSU (DIN)

Min. input voltage: 200 V AC

Output voltage: 24 V DC

Inputs: 1

Input voltage: 200-240 V AC

Input voltage (max.): 240 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 120 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 124 x 39 x 124 mm

Weight: 350 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 70 °C

Operating temperature (min.): -10 °C

Manufacturer part #: PIC120.241C

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 39 mm

Height: 124 mm

Length: 124 mm

Max. temperature: +55 °C

Min. temperature: -10 °C

Type: Piano

Efficiency: 90.5 %

Depth: 124 mm

Connections: Screw terminals

Output current (details): 5 A

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1499786 PULS PIC120.241C Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1499786 PULS PIC120.241C Rail mounted PSU (DIN) 24 V DC 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Description

The DIN rail power supplies of the series PIANO are characterized by an extraordinary compactness and by focusing on the essential properties, which are required for today's industrial applications. In addition, the excellent price/performance ratio and also opens up many new possibilities, without having to compromise on quality and reliability. The sturdy die-cast housing is made of a high-quality, reinforced plastic, making the use of up to 70°C at ambient temperature. Thanks to the input voltage range of 200 - 240 V/AC, it is possible to simplify the circuit design and significant advantages in terms of reliability, efficiency and cost.

This text is machine translated.
