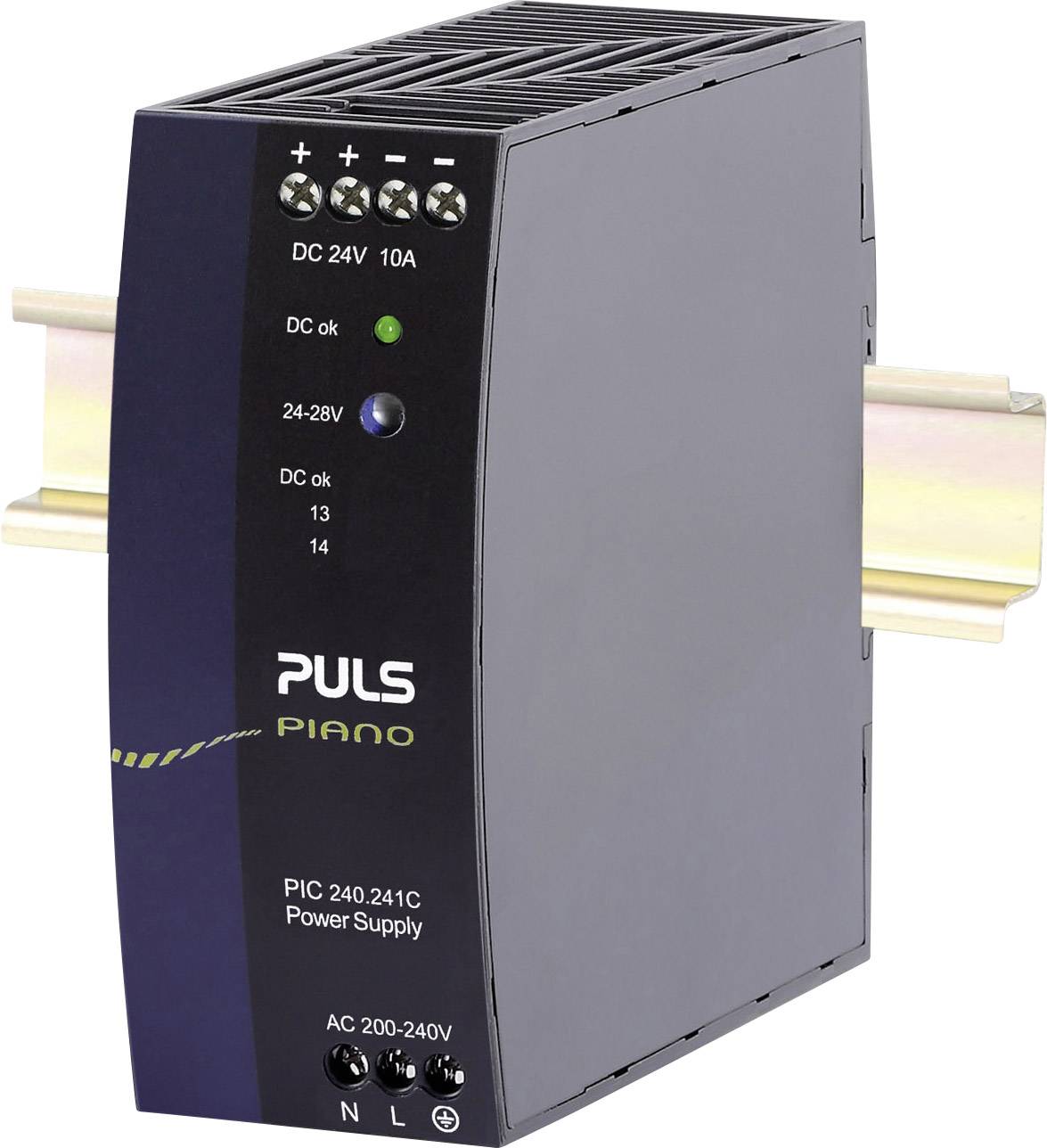

Buy PULS PIC240.241C Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Fast track dispatch on Tue, 6 Oct

27 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€ 117.64

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

Nominal input voltage: 230 V/AC

Type: Power Supply

Product type: Rail mounted PSU (DIN)

Min. input voltage: 200 V AC

Inputs: 1

Input voltage: 230 V AC

Input voltage (max.): 240 V AC

Max. output current: 10 A

Output current (max.) - rounded: 10 A

: 240 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Screw terminal

Dim: (L x W x H) 124 x 49 x 124 mm

Weight: 550 g

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): 55 °C

Operating temperature (min.): -10 °C

Manufacturer part #: PIC240.241C

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 49 mm

Height: 124 mm

Length: 124 mm

Max. temperature: +55 °C

Min. temperature: -10 °C

Type: Piano

Efficiency: 91.4 %

Depth: 124 mm

Connections: Screw terminal

Output current (details): 10 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1499789 PULS PIC240.241C Rail mounted PSU (DIN) 24 V DC 10 A 240 W No. of outputs:1 x Content 1 pc(s)

Description

The DIN rail power supplies of the series PIANO are characterized by an extraordinary compactness and by focusing on the essential properties, which are required for today's industrial applications. In addition, the excellent price/performance ratio and also opens up many new possibilities, without having to compromise on quality and reliability. The sturdy die-cast housing is made of a high-quality, reinforced plastic, regarding the use at ambient temperature from -10°C up to 55 °C enables. Thanks to the input voltage range of 100 - 240 V/AC, it is possible to simplify the circuit design and significant advantages in terms of reliability, efficiency and cost. Through the built-in DC-OK signal, the power supply is suitable for many industrial applications such as process automation and can thus avoid downtime by a preventive monitoring length.

This text is machine translated.
