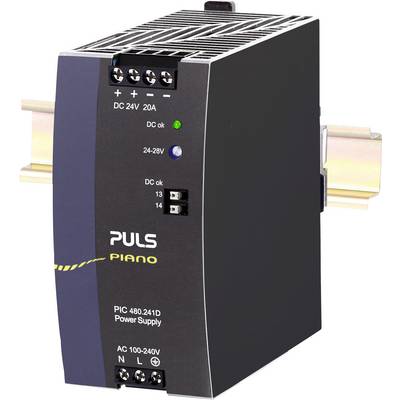

PULS PIC480.241D Rail mounted PSU (DIN) 24 V DC 480 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 214.29 / piece)
€ 218.49
€ 214.29
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Nominal input voltage
AC 100-240V
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
90 V AC
- Output voltage
28 V
20 A at 24 V
- Input voltage (max.)
264 V AC
480 W
- Output voltage (nominal)
24 V DC
- Connection
Screw terminal
- Dim
(L x W x H) 124 x 59 x 127 mm
- Output voltage (min.)
24 V
28 V
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+55 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
PIC480.241D
- Content
1 pc(s)
- MTBF
704000 h
- Width
59 mm
- Height
127 mm
- Length
124 mm
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Type
PIC480.241D
- Efficiency
95 %
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2376910 PULS PIC480.241D Rail mounted PSU (DIN) 24 V DC 480 W Content 1 pc(s)
Description
With the DIN rail power supplies of the Piano product family, the focus is on the basic functionality, without compromising on quality and reliability.
