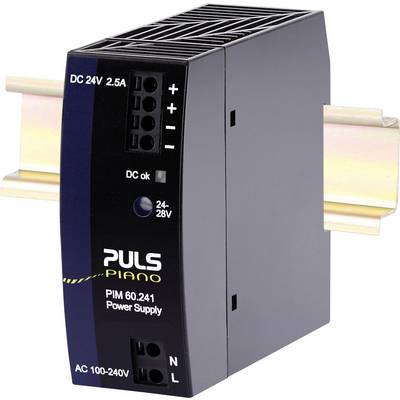

PULS PIM60.241 Rail mounted PSU (DIN) 24 V DC 60 W Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Nominal input voltage
AC 100-240V
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
90 V AC
- Output voltage
2.1 A at 28 V
2.5 A at 24 V
- Input voltage (max.)
264 V AC
60 W
- Output voltage (nominal)
24 V DC
- Connection
Push-in connector
- Dim
(L x W x H) 90 x 36 x 91 mm
- Output voltage (min.)
24 V
28 V
- Operating temperature (max.)
+70 °C
- Max. operating temperature (derating)
+60 °C
- Operating temperature (min.)
-10 °C
- Manufacturer part #
PIM60.241
- Content
1 pc(s)
- Width
36 mm
- Height
91 mm
- Length
90 mm
- Max. temperature
+70 °C
- Min. temperature
-10 °C
- Type
PIM60.241
- Efficiency
91.8 %
- UKCA
yes
Description
With the DIN rail power supplies of the Piano product family, the focus is on the basic functionality, without compromising on quality and reliability.
This text is machine translated.
This text is machine translated.
