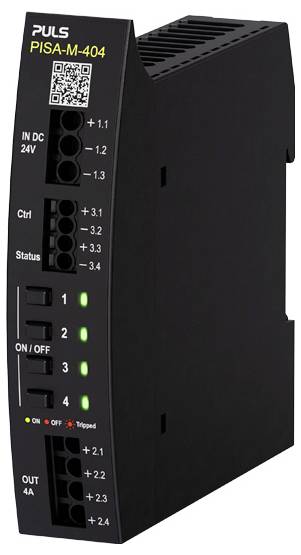

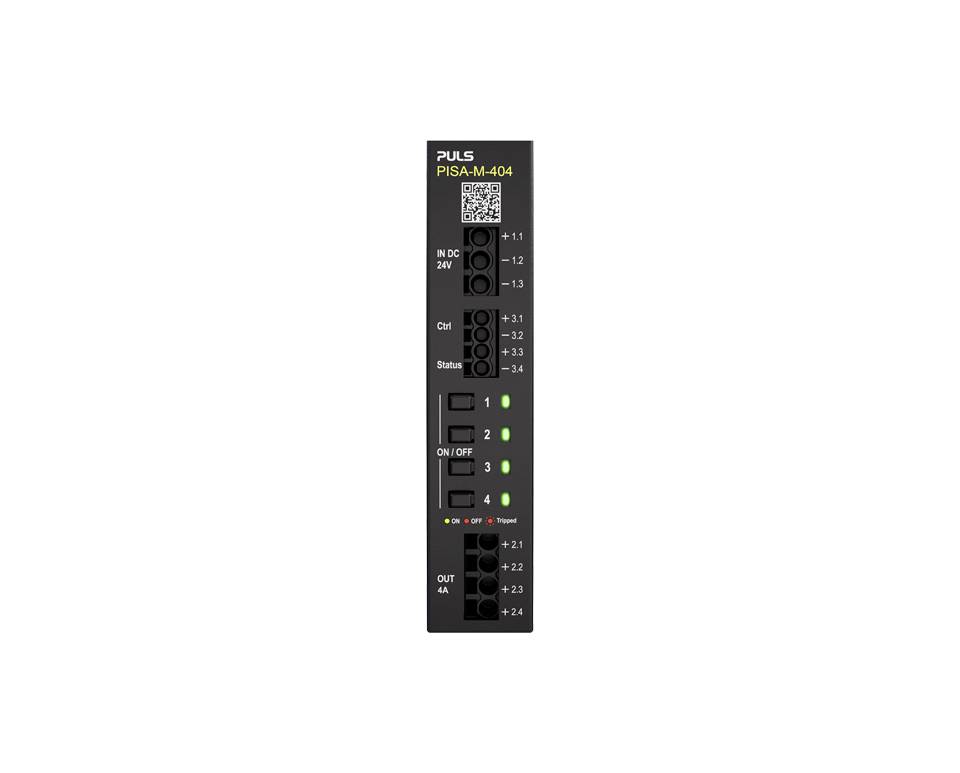

PULS PISA-M-404 RCCB 16 A 1 pc(s)
Part number:
Item no:
Product type
RCCB
Switching current (max.)
16 A
Connection
Push-in connector
Factory colour
Black
Min. temperature
-25 °C
Datasheet (PDF)
Number
Total (€ 114.39 / piece)
€ 114.39
plus VAT.
14-day return policy included
Highlights & Details
Electronic circuit breaker (electronic fuse) with 4x 4A fixed output channels
- Versions with fully adjustable and fixed output current
- Selective switching off of overloaded output channels
- Compatible even with large capacitive loads
- 24 V and 12 V operation
- Installation width only 22.5 mm
- Protective function with overloading of the power supply unit
- Local operation and reset (reset) via buttons
- Configurable signaling and communication interface
- ON/OFF function for each individual output channel
- Simple wiring through push-in terminals
Technical specifications
- Product type
RCCB
- Connection
Push-in connector
- Factory colour
Black
- Switching current (max.)
16 A
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP20
- Length
98 mm
- Width
22.5 mm
- Height
104 mm
- Content
1 pc(s)
- Type
PISA-M-404
- Dim
(L x W x H) 98 x 22.5 x 104 mm
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3787705 PULS PISA-M-404 RCCB 16 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3787705 PULS PISA-M-404 RCCB 16 A 1 pc(s)
Conformity certificate
Conformity certificate 3787705 PULS PISA-M-404 RCCB 16 A 1 pc(s)
Description
The PISA-M devices are miniature 4-channel protection modules for 24 V and 12 V systems that offer all the advantages of electronic circuit breakers in a compact housing for DIN rail mounting: Fully adjustable current tripping thresholds for 4 independent output channels in a single device – including selection of trip characteristic combined with various remote signaling and communication options, WAS allows remote configuration, monitoring and control.
The PISA-M supports several user-selectable signaling and communication methods that allow simple warning and reset functions to be selected.
All PISA-M devices are equipped with push-in terminals, which are optimized for automatic wiring and enable quick and secure installation.
