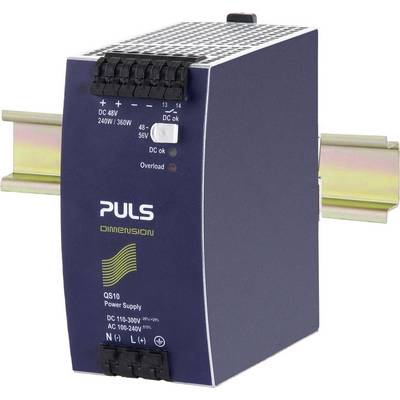

PULS QS10.481-D1 Rail mounted PSU (DIN) 48 V DC 5 A 240 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 281.51 / piece)
€ 281.51
plus VAT.
Only 4 Piece(s) available
Highlights & Details
QS10.481-D1; 1-phase input, 48V, 5A, DC input
- wide AC and DC-input range
- Efficiency up to 92%
- Negligibly low input inrush current
- 50% Power reserves available up to 4s
- Full output power between -25 and +60°C
- Spring-clamp terminals
Technical specifications
- Nominal input voltage
115 V/AC
230 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V AC
- Output voltage
48 V DC
- Inputs
1
- Input voltage
100 - 240 V AC
- Input voltage (max.)
240 V AC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
240 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
48 V DC
- No. of outputs
1 x
- Connection
Spring-loaded terminal
- Dim
(W x H x D) 60 x 124 x 117 mm
- Weight
900 g
- Output voltage (max.)
56 V DC
- Output voltage (min.)
48 V DC
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
QS10.481-D1
- Content
1 pc(s)
- PSU features
DC-to-DC converter
- Width
60 mm
- Height
124 mm
- Max. temperature
+70 °C
- Min. temperature
-25 °C
- Type
DIMENSION
- Efficiency
92 %
- Depth
117 mm
- Connections
Spring terminals
- Output current (details)
5 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1169061 PULS QS10.481-D1 Rail mounted PSU (DIN) 48 V DC 5 A 240 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions 1169061 PULS QS10.481-D1 Rail mounted PSU (DIN) 48 V DC 5 A 240 W No. of outputs:1 x Content 1 pc(s)
Description
The outstanding features of the DIN-rail power supply QS40.481 of the DIMENSION series are the extremely high degree of efficiency and compact design by synchronous, a bridge free PFC-switching and other unique development details can be achieved. A large power reserve of 150% and built-in large output capacitors support the run-heavy loads such as DC motors or capacitive loads. In many cases it enables the use of a device from a lower power class, which saves space and money. The high immunity to transients and surges as well as low electromagnetic interference emissions make the use in almost any environment possible. The built-in input fuse, as well as the inrush current of almost zero simplify installation and use. The diagnosis is through the DC-OK relay, a green DC-OK-LED and the red overload LED easier. Thanks to an extensive international approval package for a variety of applications, this device is suitable for almost any application.
This text is machine translated.
This text is machine translated.
Features
- Single-phase
- 20% power reserve (power boost)
- Adjustable output voltage
- Active power current limiting
- Full power from -25 to +60 °C
- Large screw terminals
