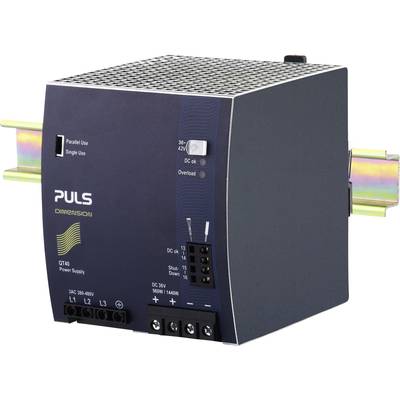

PULS QT40.361 Rail mounted PSU (DIN) 26.7 A 960 W Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 612.61 / piece)
€
Only 4 Piece(s) available
Highlights & Details
Din rail power supplies for 3-phase systems
- , 380-480 V wide input range, active PFC
- Efficiency up to 95.3%
- Negligible small inrush current
- 50% power reserve for 4 s available
- Full output power between -25 and +60 °C
- DC-OK relay contact, shut-down input
- This text is machine translated.
Technical specifications
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
380 V AC
- Input voltage (max.)
480 V AC
- Max. output current
26.7 A
- Output current (max.) - rounded
26.7 A
960 W
- Dim
(L x W x H) 127 x 110 x 124 mm
- Weight
1500 g
- Output voltage (max.)
42 V
- Output voltage (min.)
36 V
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
QT40.361
- Content
1 pc(s)
- Width
110 mm
- Height
124 mm
- Length
127 mm
- Type
DIMENSION
