PV fuse 2 A Schurter 1 pc(s)
Part number:
Item no:
Product type
PV fuse
Nominal current - rounded value
2 A
Content
1 pc(s)
Nominal current
2 A
Certification marks
IEC/UL 62368-1, IEC 61730-2
Datasheet (PDF)
Highlights & Details

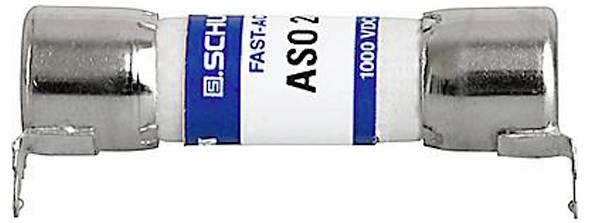

PV fuse 10.3x38 gPV 1000V 2A PCB
- G-fuse standard
- Characteristics gPV
- Meets the new UL and IEC solar standards
- UL approved for 1000V DC
- High breaking capacity of 20kA @ 1000V DC
- depth min. Switching capacity of 1.35xIN
- Meets the requirements of IEC 61730-2 for PV module safety
Technical specifications
- Series: ASO 10.3x38

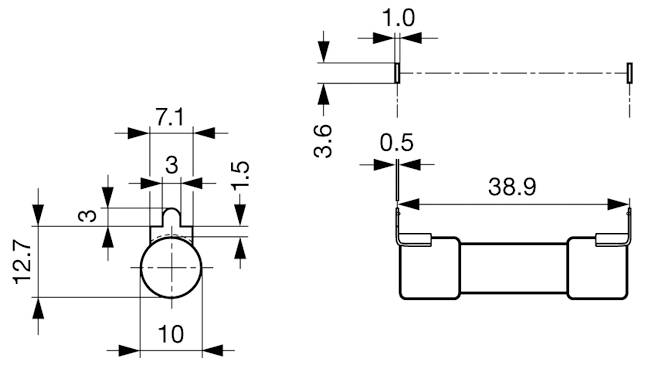

- 10.3 x 38 mm case
- Applications: Suitable for all photovoltaic applications, inverters, battery charge regulator, in-line protection, line protection
- Melting Integral: 4,755 A²/s.
- RATED VOLTAGE V/DC 1,000 V/DC
- Design: Photovoltaic
- Product type
PV fuse
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Certification marks
IEC/UL 62368-1, IEC 61730-2
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0090.1002
- Power dissipation
1.586 W
- Max. temperature
125 °C
- Min. temperature
-50 °C
Documents & Downloads
Datasheet
Datasheet 3738122 PV fuse 2 A Schurter 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3738122 PV fuse 2 A Schurter 1 pc(s)
Description
Schurter G-fuse link 10.3x38mm ASO 10.3X38 1.000VDC 2A photovoltaic
