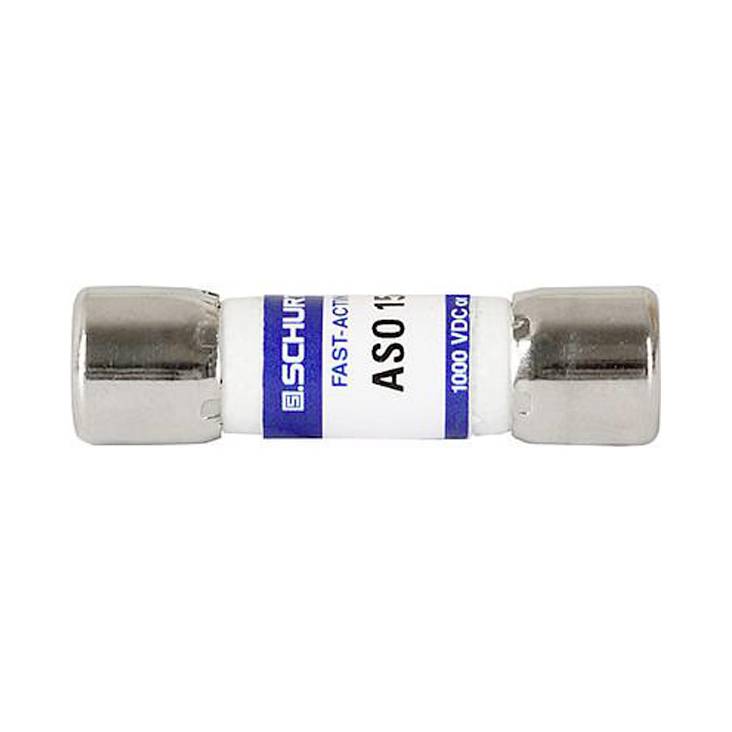

PV fuse (Ø x L) 10.3 mm x 38 mm 25.00 A 1000 V DC gPV Schurter 0090.0025 1 pc(s)
EAN:
Part number:
Item no:
Product type
PV fuse
Nominal voltage
1000 V DC
Nominal current - rounded value
25 A
Release characteristics
gPV
Length
38 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Technical specifications
- Series: ASO 10.3x38
- Nominal current: 25 A
- Approvals CE, cULus, CSA
- 10.3 x 38 mm case
- Applications: Suitable for all photovoltaic applications, inverters, battery charge regulator, in-line protection, line protection
- Weight 8.3 g
- Min. Operating temperature range -50 °C.
- Operating temperature range, max. 125 °C.
- Melting Integral: 2,371 A²/s.
- NOMINAL VOLTAGE V DC 1.000 V DC
- Power loss, max. 2.981 W.
- IEC 61730-2 standard
- Product type
PV fuse
- Nominal voltage
1000 V DC
- Dim
(Ø x L) 10.3 mm x 38 mm
- Nominal current
25.00 A
- Nominal current - rounded value
25 A
- Switch-off capacity
20 kA
- Release characteristics
gPV
- Length
38 mm
- (Ø)
10.3 mm
- Certification marks
IEC 61730-2
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
0090.0025
- Max. temperature
125 °C
- Min. temperature
-50 °C
Documents & Downloads
Datasheet
Datasheet 3156689 PV fuse (Ø x L) 10.3 mm x 38 mm 25.00 A 1000 V DC gPV Schurter 0090.0025 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3156689 PV fuse (Ø x L) 10.3 mm x 38 mm 25.00 A 1000 V DC gPV Schurter 0090.0025 1 pc(s)
Description
• G fuse
• Characteristics gPV
• Meets the new UL and IEC solar standards
• UL approved for 1000 VDC
• High breaking capacity of 20kA @ 1000V DC
• deep min. Switching capacity of 1.35xIN
• Meets the requirements of IEC 61730-2 for PV module safety
This text is machine translated.
• Characteristics gPV
• Meets the new UL and IEC solar standards
• UL approved for 1000 VDC
• High breaking capacity of 20kA @ 1000V DC
• deep min. Switching capacity of 1.35xIN
• Meets the requirements of IEC 61730-2 for PV module safety
