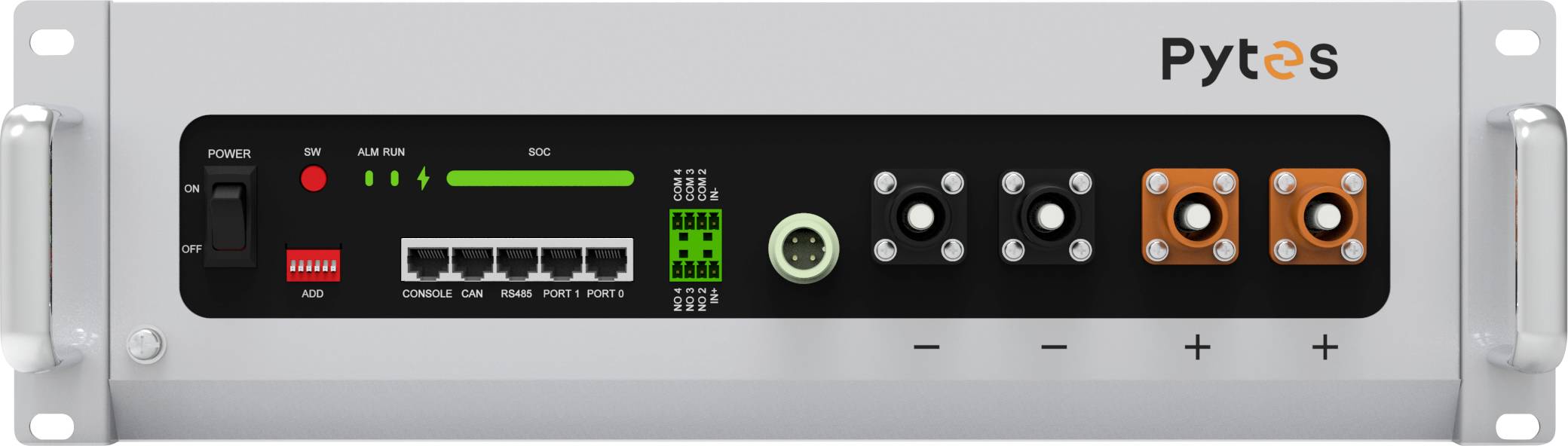

Pytes Non-standard battery (rechargeable) LiFePO4 51.2 V DC 100 Ah 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Battery lithium Pytes V5°A
- WLAN connection Remote monitoring and updating
- Scalable with 16 pieces in one group
- Heated cushion: Temperature rise: 10°C/ h Operating temperature: -18°C~10°C.
- Peak charge/discharge current: 101A~120A(3 minutes) ; 121A~180A(15 seconds)
Technical specifications
- 5120 Wh
- Voltage range 43.5...53.5 VDC
- Connection Amphenol
- Heating
- Cycles 6000
- Interface (CAN, RS485, WiFi dongle port)
- IP20
- Series/parallel connection 1S6x16P
- Product type
Non-standard battery (rechargeable)
- Technology
LiFePO4
- Dim
(W x H x D) 530 x 140 x 442 mm
- Voltage
51.2 V DC
- Capacity (mAh, Ah)
100 Ah
- Max. charging current
75 A
- Discharge current (max.)
75 A
- Min. temperature
-10 °C
- Max. temperature
50 °C
- Width
530 mm
- Height
140 mm
- Depth
442 mm
- Weight
44 kg
- Content
1 pc(s)
- Type
110402100134
- Rechargeable
Yes
Documents & Downloads
Datasheet
Datasheet 3451157 Pytes Non-standard battery (rechargeable) LiFePO4 51.2 V DC 100 Ah 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3451157 Pytes Non-standard battery (rechargeable) LiFePO4 51.2 V DC 100 Ah 1 pc(s)
Information
Test Summary Report 3451157 Pytes Non-standard battery (rechargeable) LiFePO4 51.2 V DC 100 Ah 1 pc(s)
Security datasheet
Security datasheet 3451157 Pytes Non-standard battery (rechargeable) LiFePO4 51.2 V DC 100 Ah 1 pc(s)
Description
The V5°a battery from PYTES Energy is a high-performance and reliable energy storage solution suitable for Ideal for private, commercial and industrial applications. With a nominal voltage of 51.2V and a nominal capacity of 100Ah, the battery provides a nominal energy of 5.12kWh, which ensures a constant and efficient energy supply. The recommended continuous charge and discharge current is 75A, while the maximum charge and discharge current is 100A. For short-term peak loads, the V5°a can deliver up to 120A for 15 seconds, WAS makes them especially flexible for demanding applications.
With a cycle life of over 6000 cycles at 90% discharge depth (DOD), the V5°a offers exceptional durability and reliability. Its high efficiency in round-trip travel of over 95% ensures that almost all stored energy is used, and WAS reduces the total cost of energy supply. In addition, the V5°a remote monitoring and updating via WLAN WAS makes the administration and control of the system easy and convenient.
The battery is suitable for operation in a wide temperature range from -10°C to 50°C and is highly scalable, so that it can be easily integrated into larger energy storage systems. V5°a is the ideal choice for efficient and long-term energy storage combining high performance, flexibility and sustainability.
This text is machine translated.
With a cycle life of over 6000 cycles at 90% discharge depth (DOD), the V5°a offers exceptional durability and reliability. Its high efficiency in round-trip travel of over 95% ensures that almost all stored energy is used, and WAS reduces the total cost of energy supply. In addition, the V5°a remote monitoring and updating via WLAN WAS makes the administration and control of the system easy and convenient.
The battery is suitable for operation in a wide temperature range from -10°C to 50°C and is highly scalable, so that it can be easily integrated into larger energy storage systems. V5°a is the ideal choice for efficient and long-term energy storage combining high performance, flexibility and sustainability.
This text is machine translated.
Hints
Amphenol cables must be ordered separately
What kind of Rechargeables (Non-standard) are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
