Qantek Quartz crystal QC5B10.0000F12B12M SMD 10.0000 MHz 12 pF 5.0 mm 3.2 mm 1.0 mm 250 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Quartz crystal
Enclosure
SMD
Nominal frequency
10.0000 MHz
Width
3.2 mm
Datasheet (PDF)
Total (€ 0.67 / piece)
€ 168.06
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Type
QC5B10.0000F12B12M
- Product type
Quartz crystal

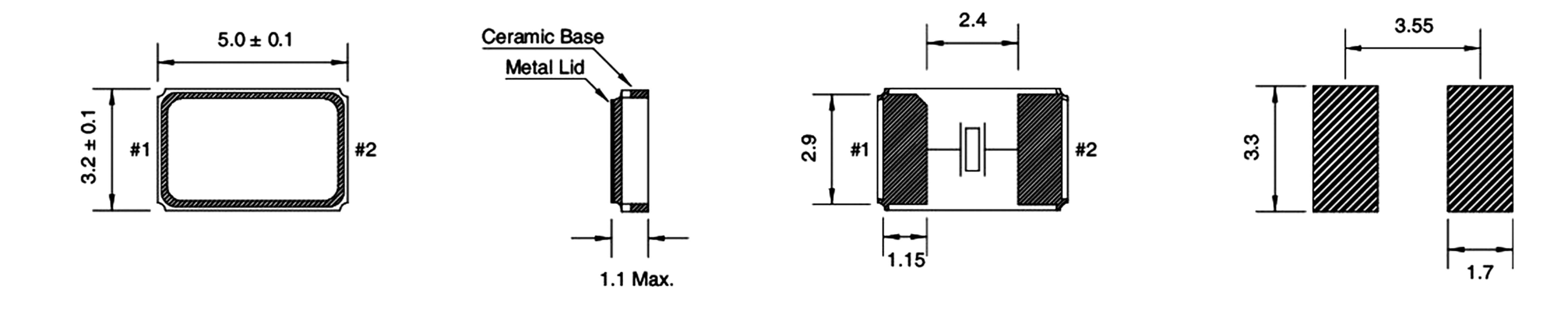

- Dim
(L x W x H) 5.0 x 3.2 x 1.0 mm
- Enclosure
SMD
- Manufacturer
Qantek
- Nominal frequency
10.0000 MHz
- Frequency stability
+20 ppm
-20 ppm
- Width
3.2 mm
- Height
1.0 mm
- Length
5.0 mm
- Capacitance
12 pF
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
250 pc(s)
Documents & Downloads
Datasheet
Datasheet 1733814 Qantek Quartz crystal QC5B10.0000F12B12M SMD 10.0000 MHz 12 pF 5.0 mm 3.2 mm 1.0 mm 250 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 1733814 Qantek Quartz crystal QC5B10.0000F12B12M SMD 10.0000 MHz 12 pF 5.0 mm 3.2 mm 1.0 mm 250 pc(s) Tape on Full reel
Information
Information 1733814 Qantek Quartz crystal QC5B10.0000F12B12M SMD 10.0000 MHz 12 pF 5.0 mm 3.2 mm 1.0 mm 250 pc(s) Tape on Full reel
Description
· Vollkeramisches Epoxy sealed SMD housing
· Low height, suitable for thin devices
· Narrow tolerance and stability available
This text is machine translated.
· Low height, suitable for thin devices
· Narrow tolerance and stability available
This text is machine translated.
Hints
Special order, no right of withdrawal.
