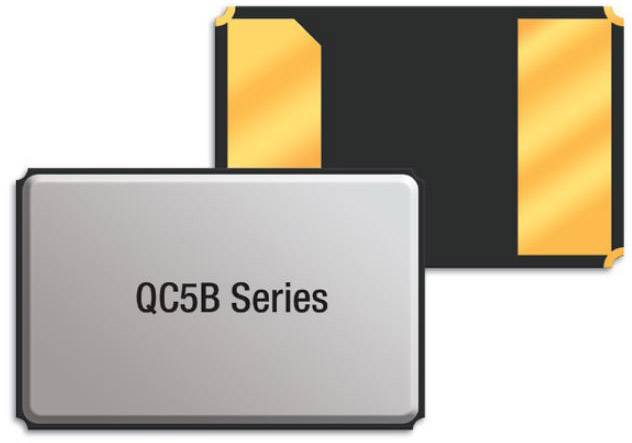

Qantek Quartz crystal QC5B28.63636F18B12M SMD 28.63636 MHz 18 pF 5.0 mm 3.2 mm 1.0 mm 250 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Datasheet (PDF)
Show alternatives
Sales and shipping:
Total (€ 0.55 / piece)
€
Technical specifications
- Packaging type
Tape on Full reel
- Type
QC5B28.63636F18B12M
- Enclosure
SMD
- Manufacturer
Qantek
- Nominal frequency
28.63636 MHz
- Frequency stability
+20 ppm
-20 ppm
- Width
3.2 mm
- Height
1.0 mm
- Length
5.0 mm
- Capacitance
18 pF
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
250 pc(s)
- Dim
(L x W x H) 5.0 x 3.2 x 1.0 mm
- Product type
Quartz crystal
Documents & Downloads
Datasheet
Datasheet 1733718 Qantek Quartz crystal QC5B28.63636F18B12M SMD 28.63636 MHz 18 pF 5.0 mm 3.2 mm 1.0 mm 250 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 1733718 Qantek Quartz crystal QC5B28.63636F18B12M SMD 28.63636 MHz 18 pF 5.0 mm 3.2 mm 1.0 mm 250 pc(s) Tape on Full reel
Information
Information 1733718 Qantek Quartz crystal QC5B28.63636F18B12M SMD 28.63636 MHz 18 pF 5.0 mm 3.2 mm 1.0 mm 250 pc(s) Tape on Full reel
Description
· Vollkeramisches Epoxy sealed SMD housing
· Low height, suitable for thin devices
· Narrow tolerance and stability available
This text is machine translated.
· Low height, suitable for thin devices
· Narrow tolerance and stability available
This text is machine translated.
