Qantek Quartz crystal QC5CB24.5760F12B23R SMD 24.5760 MHz 12 pF 5.0 mm 3.2 mm 1.0 mm 1000 pc(s) Tape on Full reel
EAN:
Part number:
Item no:
Packaging type
Tape on Full reel
Product type
Quartz crystal
Enclosure
SMD
Nominal frequency
24.5760 MHz
Width
3.2 mm
Datasheet (PDF)
Total (€ 0.50 / piece)
€ 503.36
plus VAT.
14-day return policy included
Highlights & Details
Our service for you
Technical specifications
- Packaging type
Tape on Full reel
- Type
QC5CB24.5760F12B23R
- Product type
Quartz crystal

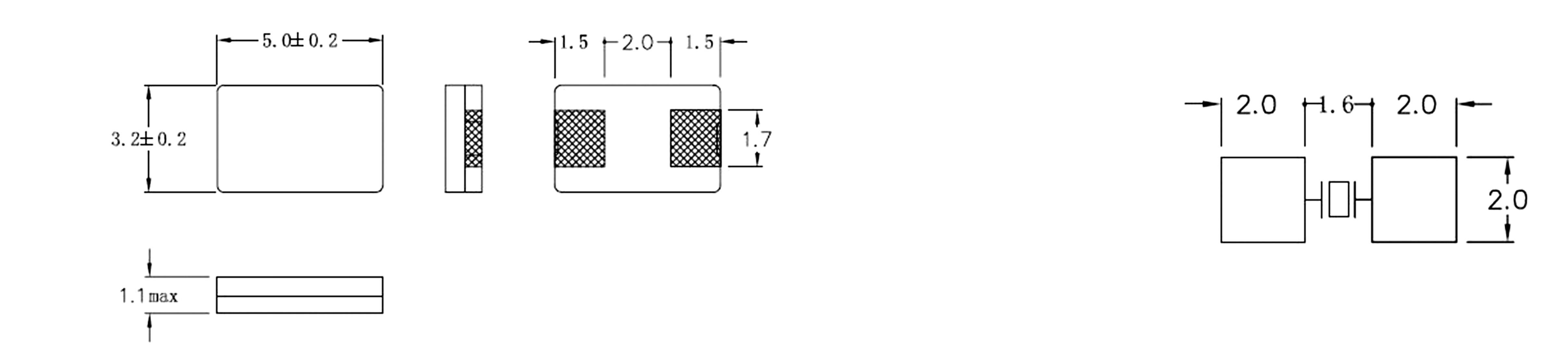

- Dim
(L x W x H) 5.0 x 3.2 x 1.0 mm
- Enclosure
SMD
- Manufacturer
Qantek
- Nominal frequency
24.5760 MHz
- Frequency stability
+30 ppm
-30 ppm
- Width
3.2 mm
- Height
1.0 mm
- Length
5.0 mm
- Capacitance
12 pF
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+85 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1000 pc(s)
Documents & Downloads
Datasheet
Datasheet 1733604 Qantek Quartz crystal QC5CB24.5760F12B23R SMD 24.5760 MHz 12 pF 5.0 mm 3.2 mm 1.0 mm 1000 pc(s) Tape on Full reel
User & Safety Instructions
User & Safety Instructions 1733604 Qantek Quartz crystal QC5CB24.5760F12B23R SMD 24.5760 MHz 12 pF 5.0 mm 3.2 mm 1.0 mm 1000 pc(s) Tape on Full reel
Information
Information 1733604 Qantek Quartz crystal QC5CB24.5760F12B23R SMD 24.5760 MHz 12 pF 5.0 mm 3.2 mm 1.0 mm 1000 pc(s) Tape on Full reel
Description
· Vollkeramisches Epoxy sealed SMD housing
· Low height, suitable for thin devices
· Narrow tolerance and stability available
This text is machine translated.
· Low height, suitable for thin devices
· Narrow tolerance and stability available
This text is machine translated.
Hints
Special order, no right of withdrawal.
