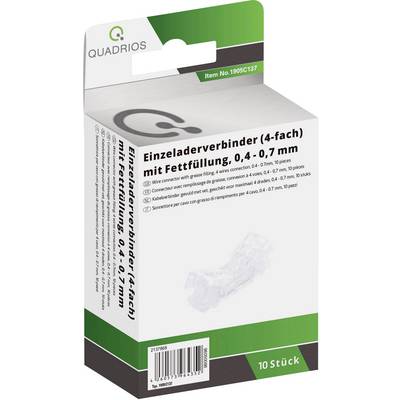

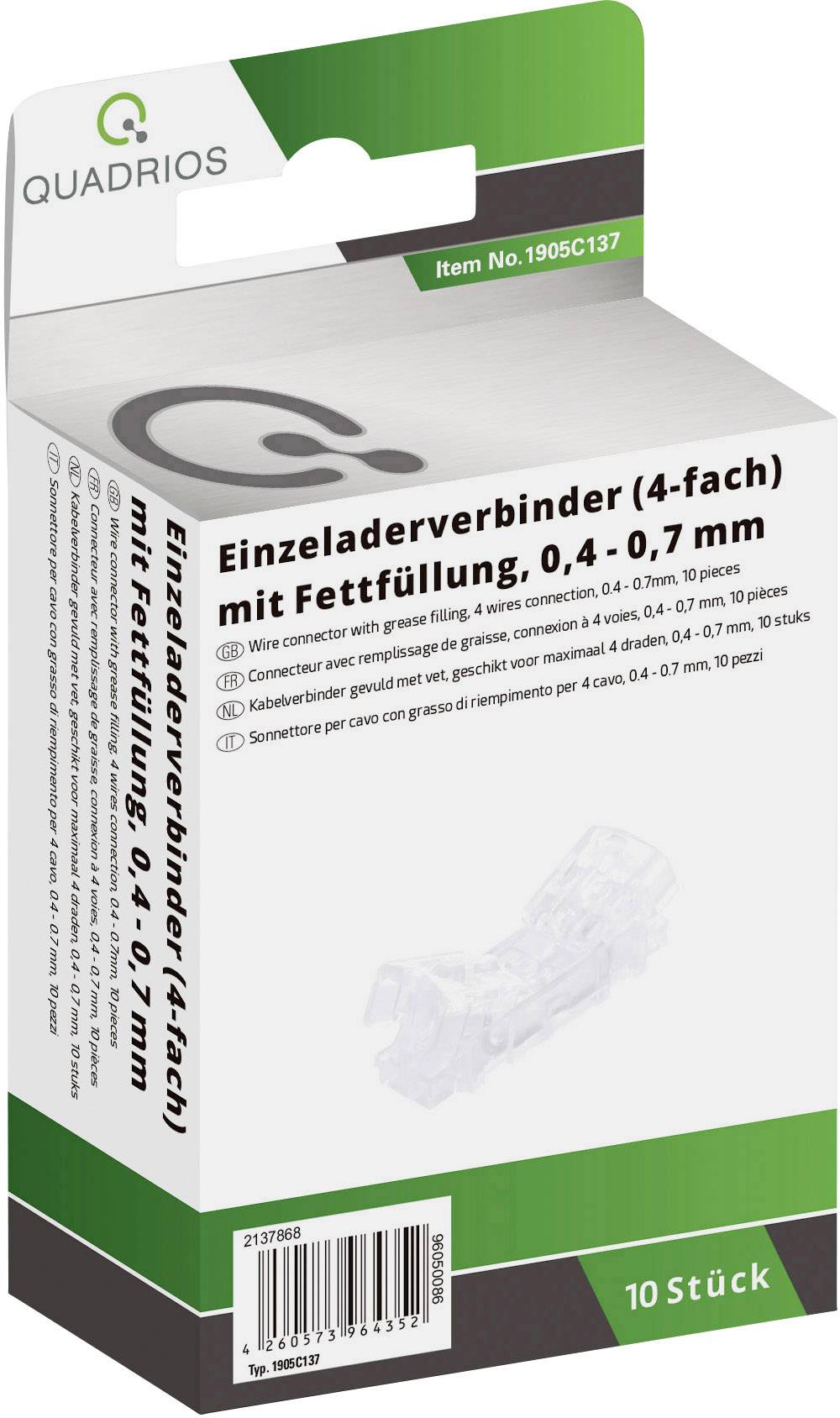

Quadrios 1905C137 Core connector flexible: 0.40-0.70 mm² fixed: 0.40-0.70 mm² Number of pins: 4 10 pc(s) Transparent
EAN:
Part number:
Item no:
Product type
Core connector
Cross section (flexible) (min.)
0.40 mm²
Cross section (flexible) (max.)
0.70 mm²
Cross section (inflexible) (min.)
0.40 mm²
Cross section (inflexible) (max.)
0.70 mm²
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Highlights & Details
Single wire connector
- With gel filling: Moisture-resistant
- Stock set with 10 transparent 4-pin wire connectors
- Self-stripping, for cable outer diameter of up to 1.4 mm
Technical specifications
- Product type
Core connector
- Cross section (flexible) (min.)
0.40 mm²
- Cross section (flexible) (max.)
0.70 mm²
- Cross section (inflexible) (min.)
0.40 mm²
- Cross section (inflexible) (max.)
0.70 mm²
- Number of pins
4
- Factory colour
Transparent
- Series
1905C
- Content
10 pc(s)
- Manufacturer part #
1905C137
26-21
- Connection
Cut & Clip
- Insulation material
PP
- Contact material
Bronze
- Temperature range
-30℃- +70 °C
- Connector clip features
Insulated
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2137868 Quadrios 1905C137 Core connector flexible: 0.40-0.70 mm² fixed: 0.40-0.70 mm² Number of pins: 4 10 pc(s) Transparent
User & Safety Instructions
User & Safety Instructions 2137868 Quadrios 1905C137 Core connector flexible: 0.40-0.70 mm² fixed: 0.40-0.70 mm² Number of pins: 4 10 pc(s) Transparent
Description
These useful single wire connectors in the set are optimally suitable for applications in which humidity or adverse ambient conditions play a role, such as telephone wires, door intercommunication systems or in harsh industrial environments in measurement technology, signal and control applications. Through a gel filling of the connector, the contact is best protected against liquid media in the long term and ensures a secure connection of signal lines or for voltages up to 75 V/DC or 50 V/AC. The cables are stripped during the crimping process and the electrical contact is made, during this process some gel can escape from the clamp - which depends on the diameter of the cables used and is completely normal.
For crimping, a parallel closing crimping pliers is optimally suitable for wire connectors. The correctly manufactured connection is mechanically firm, moisture resistant, electrically safe and vibration resistant.
