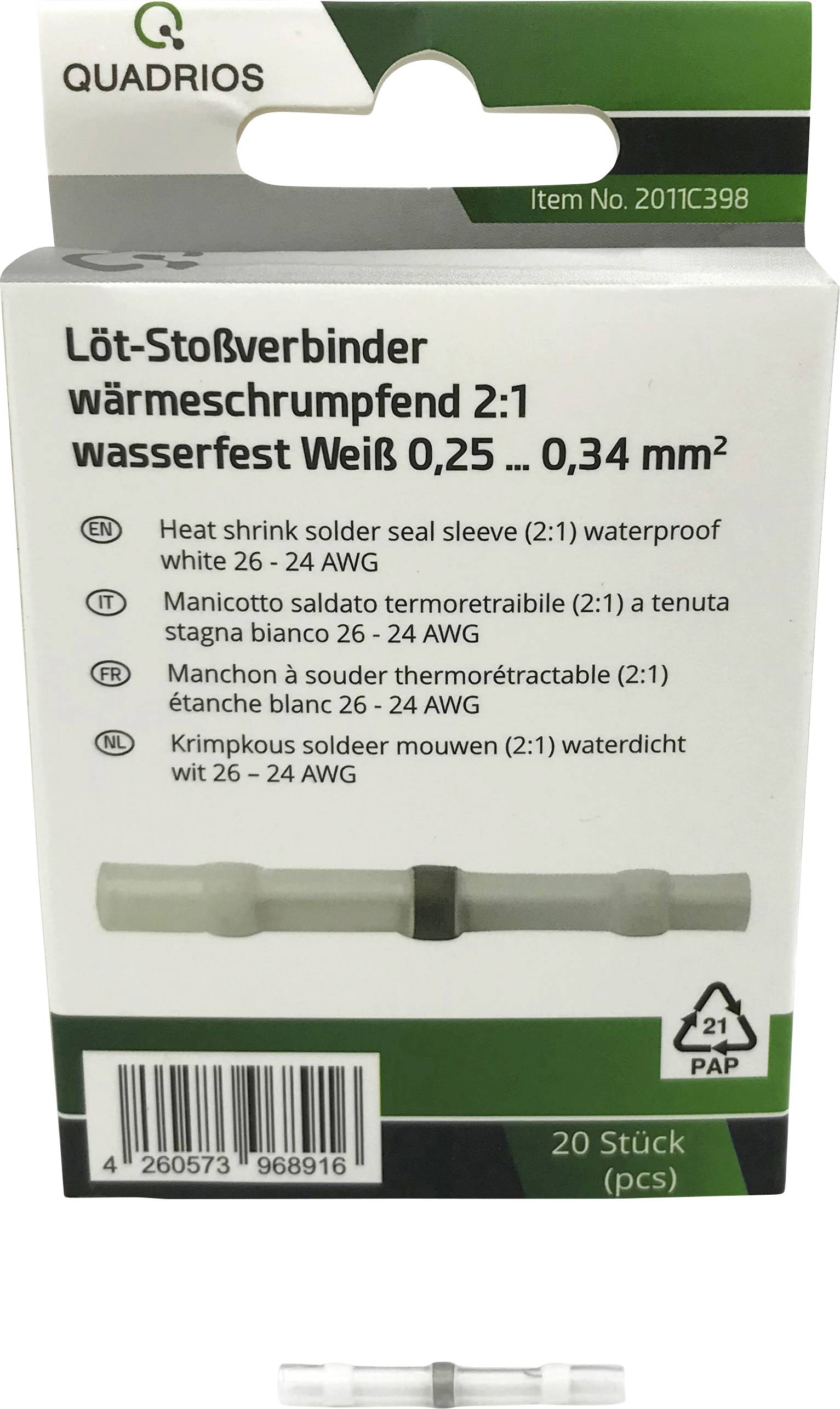

Quadrios 2011C398 Butt joint 0.25 mm² 0.34 mm² Insulated White 20 pc(s)

This soldering connector is particularly suitable for hobbyists, craftsmen, field service, service workshops, electronics engineers and the laboratory requirements.

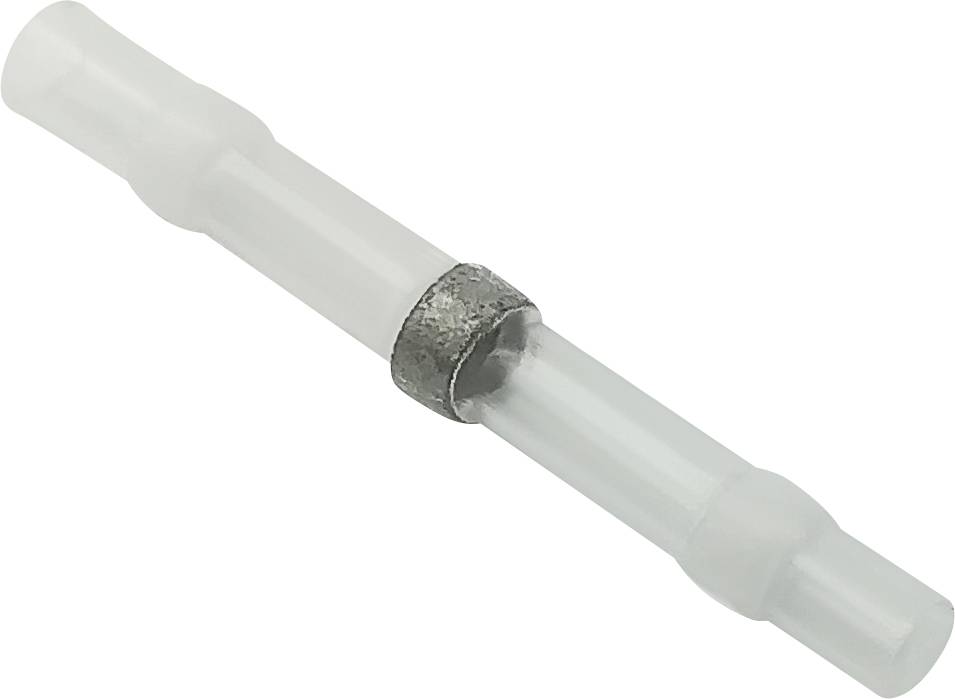

You receive a 20-piece premium butt connector set in a range of applications for cable cross-sections from 0.25 to 0.34 qmm, transparent with white ring color. The hot-melting inner adhesive closes waterproof when the overlap is correct – the solder ring connects the two conductors during the shrinking and melting process! The advantage of a transparent design is that you can recognize the covered object. Ideal for repairing cables and ladders, service, manufacturing or hobby.

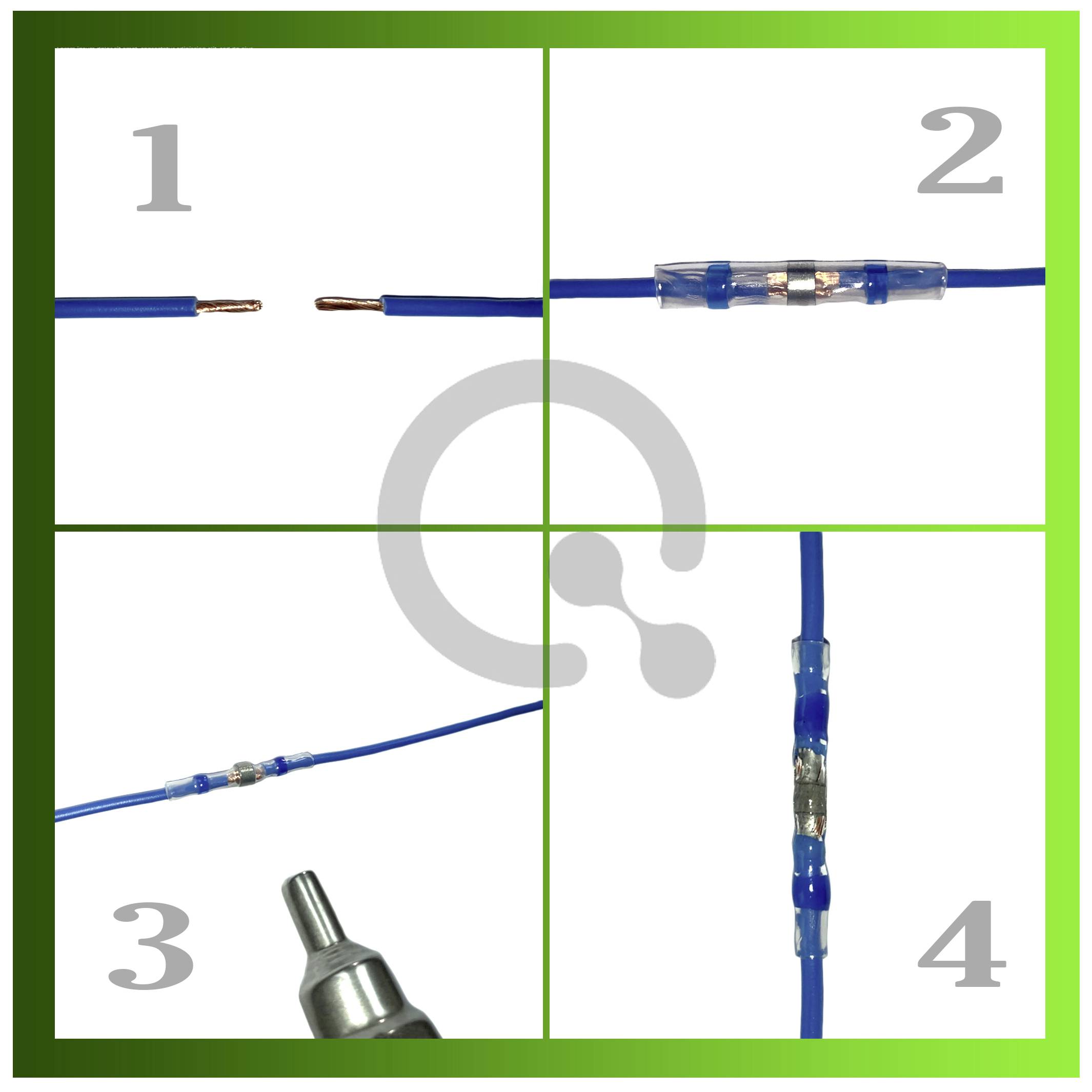

The application is very simple: Strip the cable and insert it into the connector on both sides until the stripped cable ends overlap under the solder ring or twist. Uniform heating in the melting temperature range until the solder is melted – optimally done with a hot air gun or hot air gun. The maximum current is limited by the conductor cross-section of the cable used, its conductor material and the quality of the solder joint.


Technical data: Shrink temperature of hose/adhesive (min.): 80 °C, melting temperature of solder: Approx. 160 °C, operating temperature: -55 °C to +125 °C, dielectric strength (max.): 600 V, ring color: White. If used correctly, the connection is waterproof.
