Quadrios 201711P003 201711P003 Carbon film resistor (set) Axial lead 0.5 W 5 % 400 pc(s)
EAN:
Part number:
Item no:
Product type
Carbon film resistor (set)
Type
Axial lead
Power rating
0.5 W
Tolerance ±
5 %
Content
400 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
6% = € 0.65
€ 11.11
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 400 pc(s))
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
14-day return policy included
Highlights & Details

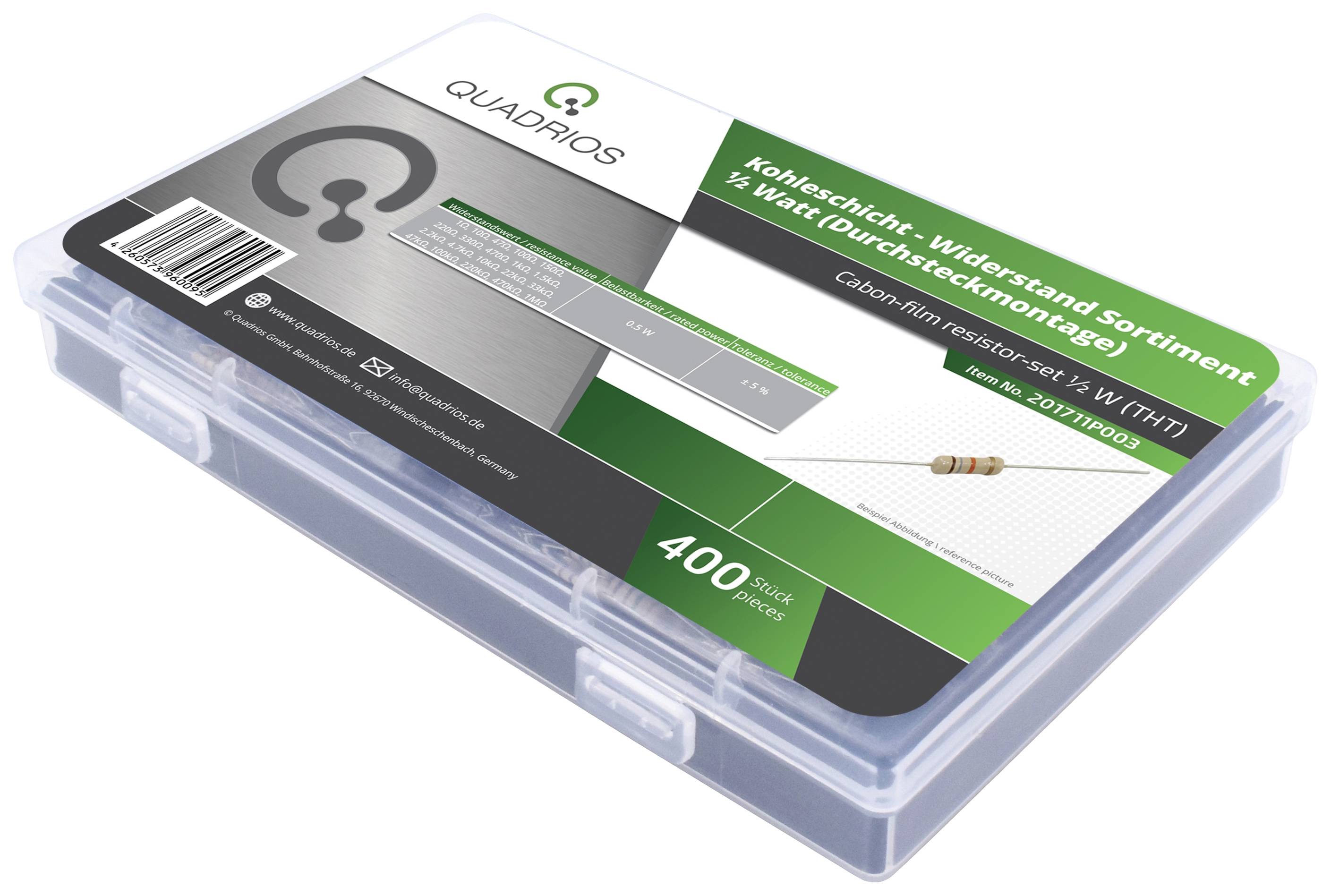

Carbon film resistor set 0.5 watts 400-piece
- High quality resistors with all common valuesA total of at least 400 partsCapacity 0.5 wattsResistance tolerance: ±5%
Technical specifications
- Product type
Carbon film resistor (set)
- Type
Axial lead
- Power rating
0.5 W
- Tolerance ±
5 %
- Temperature coefficient
700 ppm/°C
- Length
9 mm
- Height
26 mm
- (Ø)
3.2 mm
- Content
400 pc(s)
- Dim
(Ø x H) 3.2 mm x 26 mm
- Type
201711P003
- Voltage (max.)
350 V
- Max. temperature
150 °C
- Min. temperature
-50 °C
Documents & Downloads
Datasheet
Datasheet 2705908 Quadrios 201711P003 201711P003 Carbon film resistor (set) Axial lead 0.5 W 5 % 400 pc(s)
User & Safety Instructions
User & Safety Instructions 2705908 Quadrios 201711P003 201711P003 Carbon film resistor (set) Axial lead 0.5 W 5 % 400 pc(s)
Description
Whether in the lab, in workshops, development offices or also for hobby, leisure and education: You are always well equipped with this high-quality resistor assortment. Wired carbon film resistors (through-hole mounting) belong to the standard components within electronics and technology and are indispensable in the practical handling of this material. It contains 20 different standard values. By series or parallel connection or Combinations, any intermediate values can be formed. Therefore this set is also ideally suited for learning purposes and is often also used in educational institutions. Basic technical data such as resistance value and color code are printed on the inside of the cover.
This text is machine translated.
This text is machine translated.
Scope of delivery

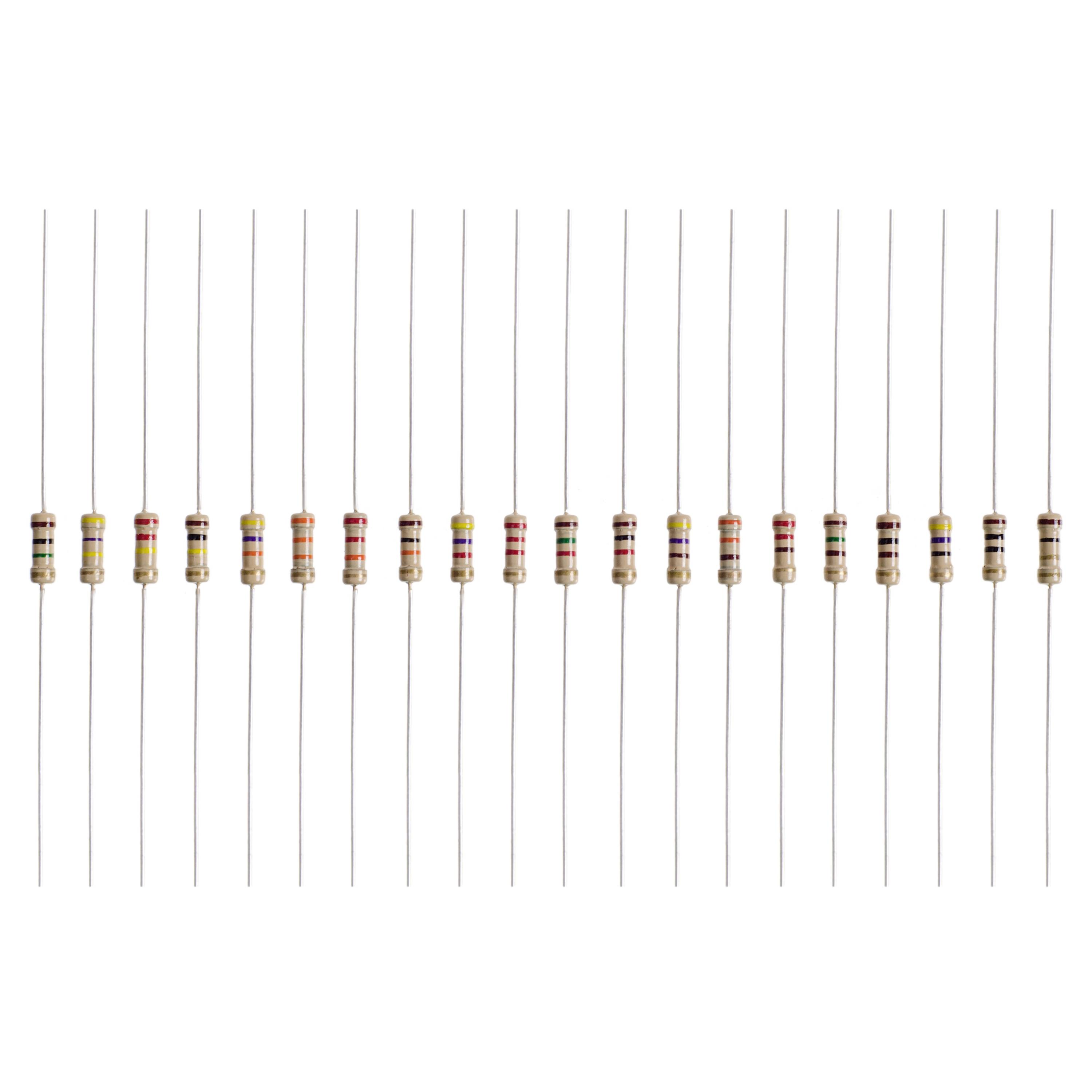

- Transparent assortment box, 0.5 Watt carbon film resistors 1Ω, 10Ω, 47Ω, 100Ω, 150Ω, 220Ω, 330Ω, 470Ω, 1kΩ, 1,5kΩ, 2,2kΩ, 4,7kΩ, 10kΩ, 22kΩ, 33kΩ, 47kΩ, 100kΩ, 220kΩ, 470kΩ, 1MΩ (and 20 pieces.
