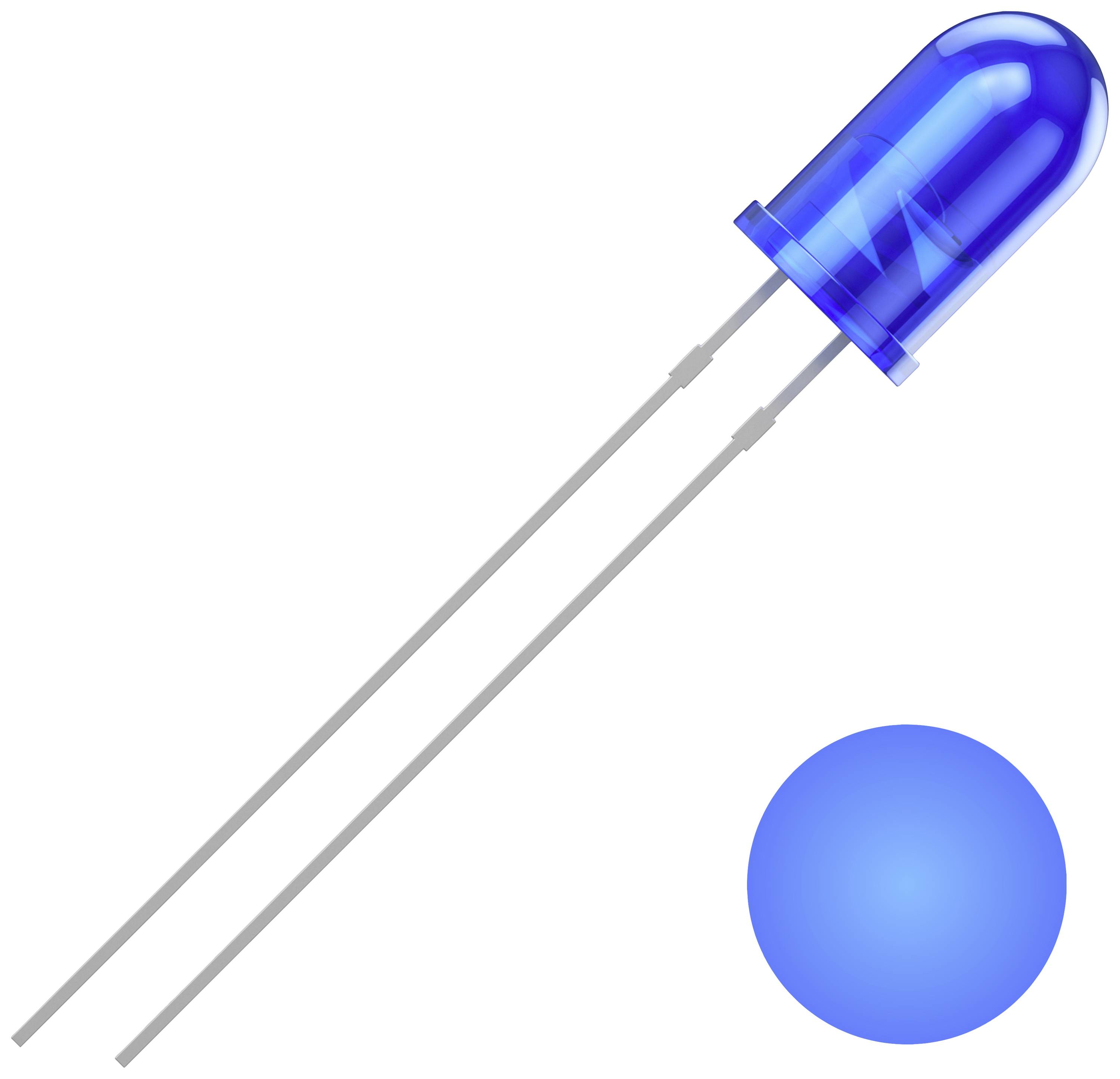

Quadrios 2111O156 LED wired Blue Circular 5 mm 1300 mcd 30 ° 20 mA 3 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
50
-
€ 0.05
150
20% = € 0.01
€ 0.04
250
40% = € 0.02
€ 0.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 50
Total (€ 0.05 / piece)
€
Technical specifications
- Factory colour
Blue
- Forward voltage U(F)
3 V
- Forward current I(F)
20 mA

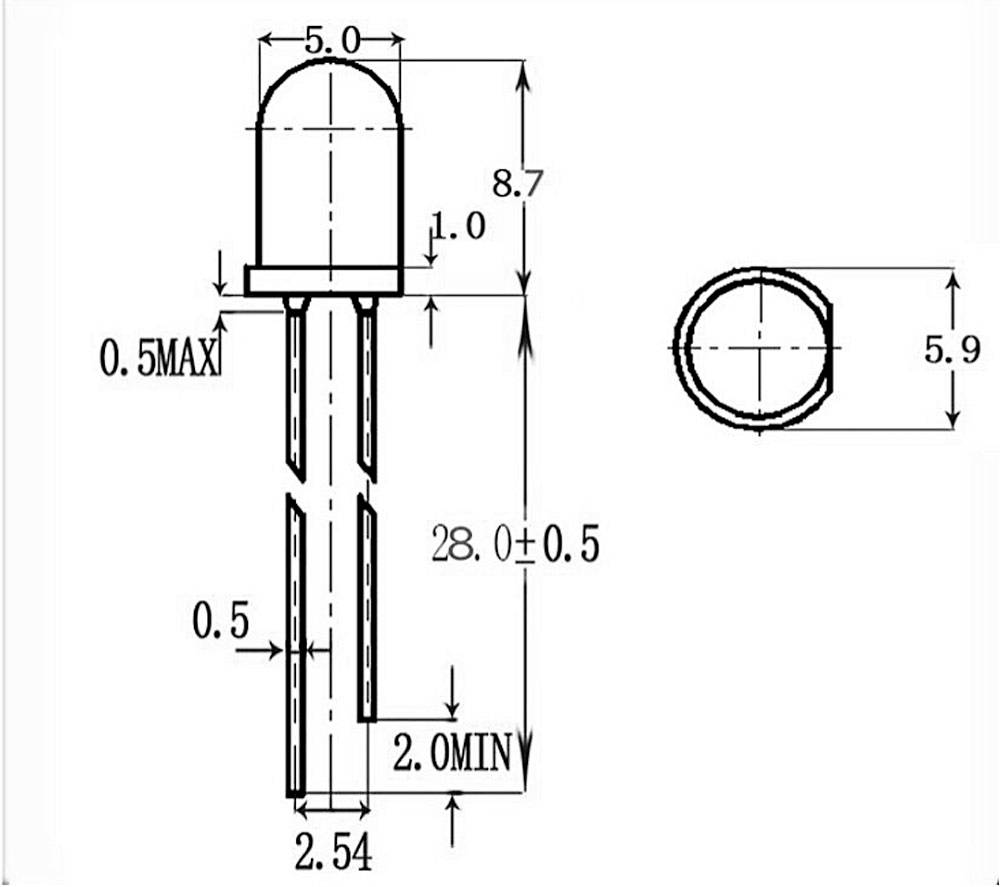

- Casing
5 mm
- Type
Radial lead
- Light intensity I(V)
1300 mcd
- Wavelength
460 nm
- Radiation angle
30°
- Type (LEDs)
Diffused
- Lens type
Circular
- Dim
- RoHS-compliant
- Content
1 pc(s)
- Product type
LED wired
Documents & Downloads
Datasheet
Datasheet 2583897 Quadrios 2111O156 LED wired Blue Circular 5 mm 1300 mcd 30 ° 20 mA 3 V
User & Safety Instructions
User & Safety Instructions 2583897 Quadrios 2111O156 LED wired Blue Circular 5 mm 1300 mcd 30 ° 20 mA 3 V
Description
This wired LED is ideal for common applications and experiments in the field of semiconductor light and indication. As a standard 2.54 pitch component, the connection of the cathode to which the negative potential is applied is shortened. LEDs must always be operated in the forward direction and current limited to the maximum permissible milliampere value in order to prevent damage. This can be achieved with a constant current source or a suitable series resistor. LEDs are generally characterized by a high degree of efficiency, low energy consumption, long life/robustness and a directional light emission.
This text is machine translated.
This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
