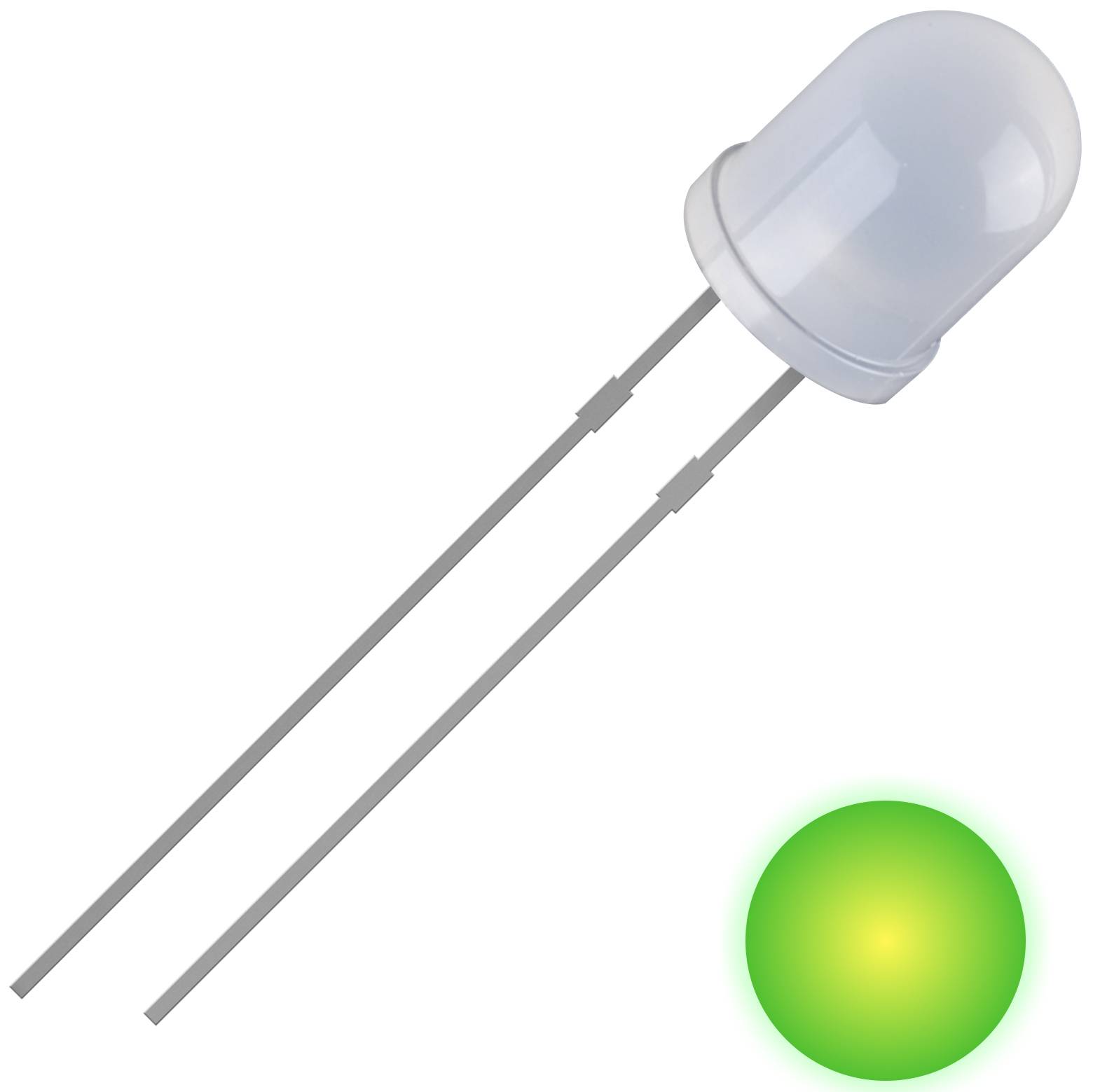

Quadrios 2111O170 LED wired Yellow-green Circular 5 mm 700 mcd 30 ° 20 mA 2 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2 V
Forward current I(F)
20 mA
Casing
5 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
50
-
€ 0.04
250
25% = € 0.01
€ 0.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 50
Total (€ 0.04 / piece)
€ 2.00
plus VAT.
14-day return policy included
Technical specifications
- Product type
LED wired
- Factory colour
Yellow-green
- Forward voltage U(F)
2 V
- Forward current I(F)
20 mA
- Operating voltage
2 V
- Operating current
20 mA

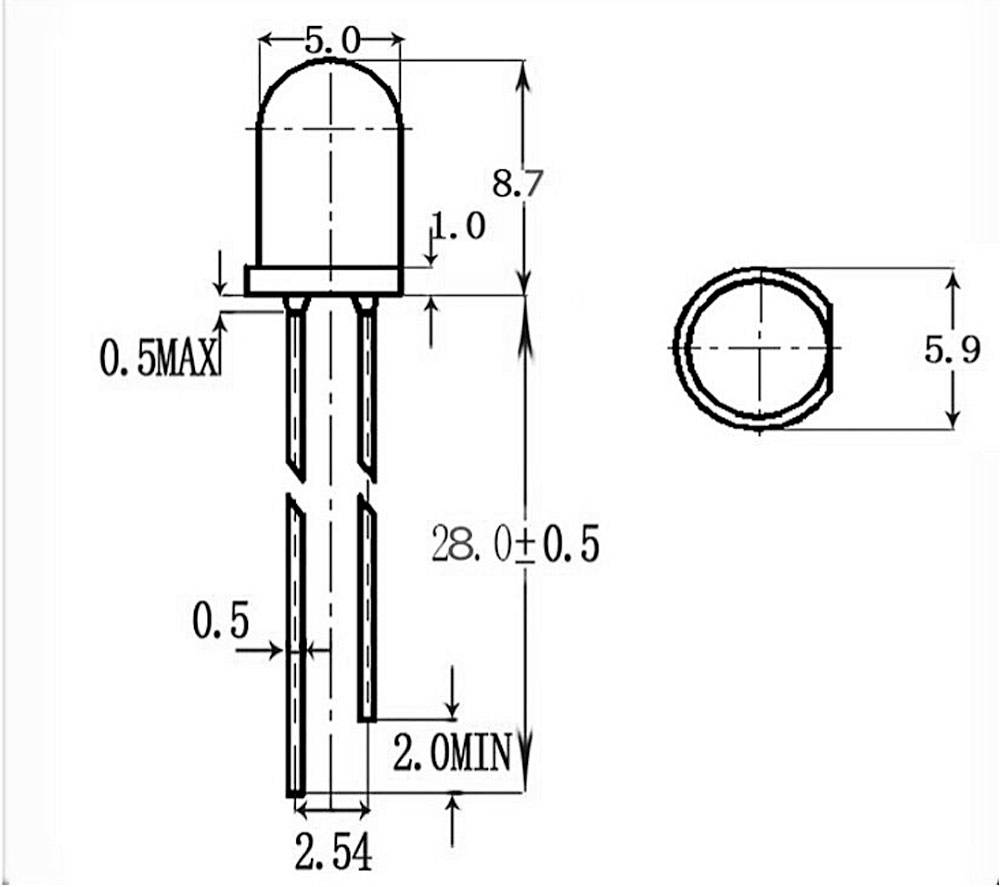

- Casing
5 mm
- Type
Radial lead
- Light intensity I(V)
700 mcd
- Wavelength
569 nm
- Radiation angle
30°
- Type (LEDs)
Diffused
- Lens type
Circular
- Dim
(Ø) 5 mm
- (Ø)
5 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2583911 Quadrios 2111O170 LED wired Yellow-green Circular 5 mm 700 mcd 30 ° 20 mA 2 V
User & Safety Instructions
User & Safety Instructions 2583911 Quadrios 2111O170 LED wired Yellow-green Circular 5 mm 700 mcd 30 ° 20 mA 2 V
Description
This wired LED is ideal for common applications and experiments in the field of semiconductor light and indication. As a standard 2.54 pitch component, the connection of the cathode to which the negative potential is applied is shortened. LEDs must always be operated in the forward direction and current limited to the maximum permissible milliampere value in order to prevent damage. This can be achieved with a constant current source or a suitable series resistor. LEDs are generally characterized by a high degree of efficiency, low energy consumption, long life/robustness and a directional light emission.
This text is machine translated.
This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
