Buy Quadrios 22C470 Ferrule set 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm² Partially insulated White,

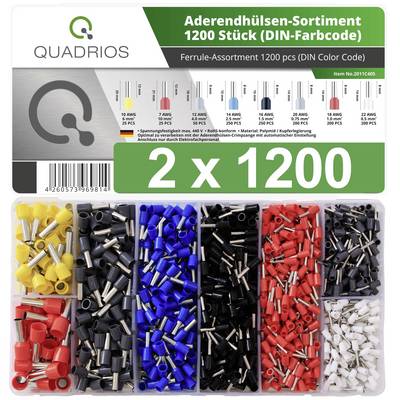

'Ferrule Assortment 1200 Pieces (DIN Colour Code)', Box with colour-coded ferrules, totalling 1200 pieces.

'A person is holding a cable without insulation next to a cable end ferrule.'

A red wire stripping tool with a purple cable shows size specifications from 0.5 mm² to 10 mm² in the background.

'Male hand inserting a blade into a large, black industrial scissors. Text above: Industrial Quality.'

'Cross-section (mm²)' diagram shows wire end ferrules with sizes ranging from 0.5 to 10 mm². Quantities vary from 50 to 500 depending on size.

Plastic box containing 1,200 colourful cable end ferrules on a table. Various sizes and colours. Packaging with a square, green label.

'Overview of cross-sectional sizes and DIN Standard 46228 for ferrules: 0.5 mm² to 6.0 mm² in white, grey, red, black, blue, yellow colours.'

1/7

Datasheet (PDF)

54 Set(s)

Sales and shipping:

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 2400 pc(s))

Set(s)

Total (€ 22.68 / piece)

€

Report legal concerns

Highlights & Details

Wire-end sleeves-set 2400 piece DIN-color-code

White, Grey, Red, Black, Blue, Yellow

Technical specifications

Cross section: 0.5 – 10 mm²

Content: 2400 pc(s)

Factory colour: White
Grey
Red
Black
Blue
Yellow

Country colour code: DIN

Cross section per core: 0.5 mm²
0.75 mm²
1 mm²
1.5 mm²
2.5 mm²
4 mm²
6 mm²
10 mm²

Cross-section x Length: 0.5 mm²

Insulation type: Partially insulated

Manufacturer part #: 22C470

Type: 22C470

AWG max.: 7

AWG (min.): 20

Insulation material: PA

Contact material: Copper

Temperature range: +105 °C

Product type: Ferrule set

Documents & Downloads

Datasheet

Datasheet 2705911 Quadrios 22C470 Ferrule set 0.5 mm², 0.75 mm², 1 mm², 1.5 mm², 2.5 mm², 4 mm², 6 mm², 10 mm² Partially insulated White,

Description

These wire end sleeves are particularly suitable for hobbyists, professionals, field service, service workshops, electronics and laboratory use.You get two 1200-piece premium wire end sleeve sets (DIN-color-code) for an application range of cable cross-sections from 0.5 to 10 qmm. Optimum for use with suitable wire-end sleeve crimping pliers.Technical data: Dielectric strength (max.) 440 V, material: Polyamide, copper alloy.Further technical data for the included components are stated in the data sheet. Installation only by electricians.

This text is machine translated.

Scope of delivery

Practical assortment box, 2x 25 wire-end sleeves yellow 6 mm2 (10 AWG), 2x 25 wire-end sleeves red 10 mm2 (7 AWG), 2x 50 wire-end sleeves gray 4 mm2 (12 AWG), 2x 250 wire-end sleeves blue 2.5 mm2 (14 AWG), 2x 250 wire-end sleeves black 1.5 mm2 (16 AWG), 2x 200 wire-end sleeves gray 0.75 mm2 (20 AWG), 2x 200 wire end sleeves red 1 mm2 (18 AWG), 2x 200 wire end sleeves white 0.5 mm2 (22 AWG).
