Buy Quadrios 22C482 Ferrule set 0.5 mm², 0.75 mm², 1 mm², 2.5 mm² Partially insulated 400 pc(s)

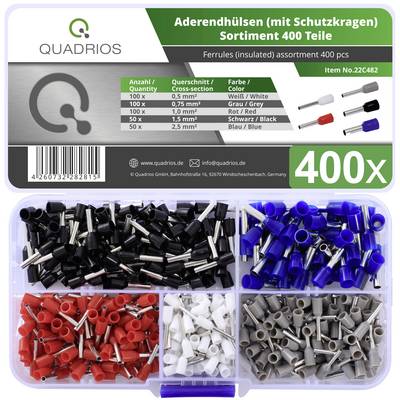

'Ferrule assortment with 400 pieces in various colours and sizes, including packaging with a clear display of contents.'

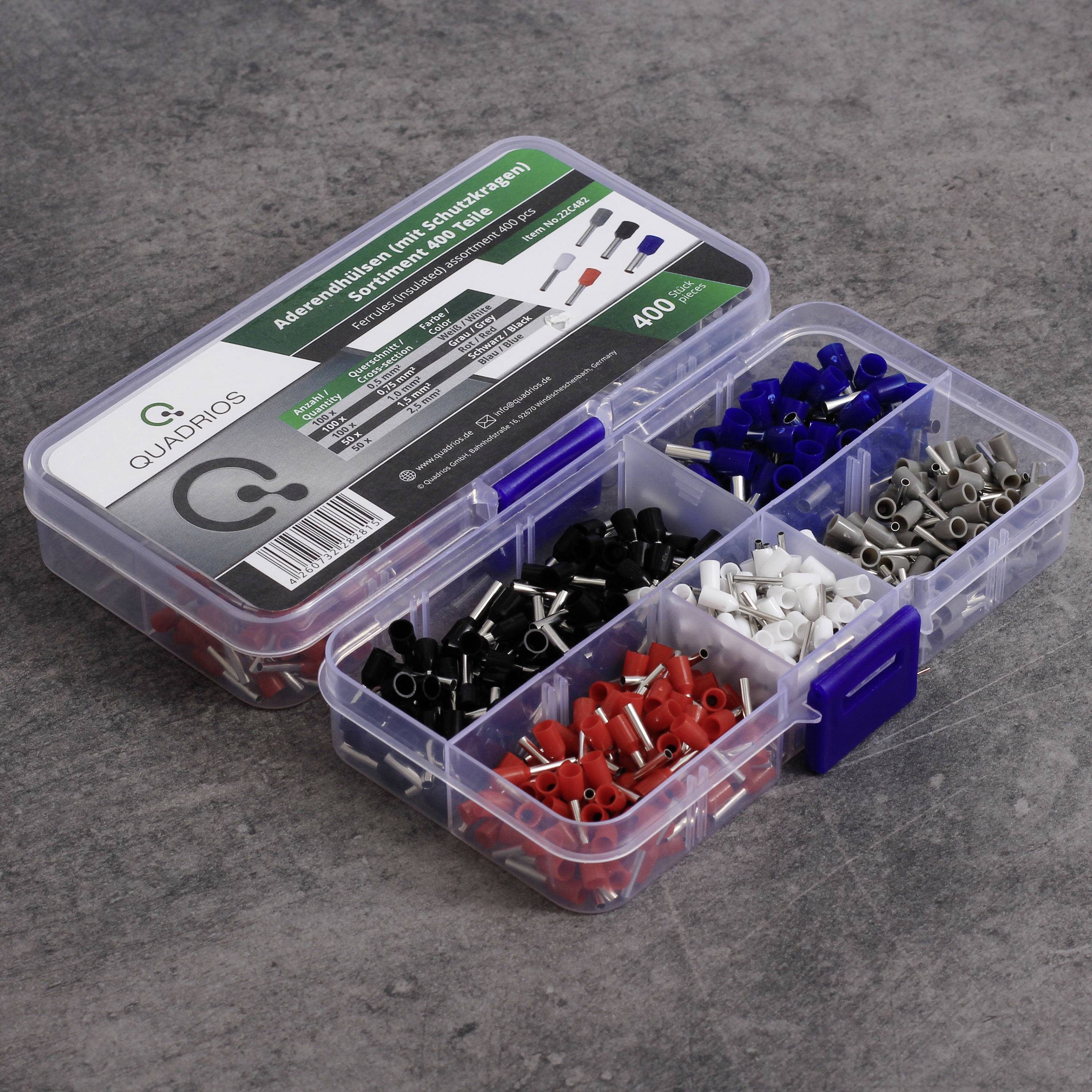

A plastic box with coloured cable shoes in different compartments shows red, black, blue, white, and grey connections.

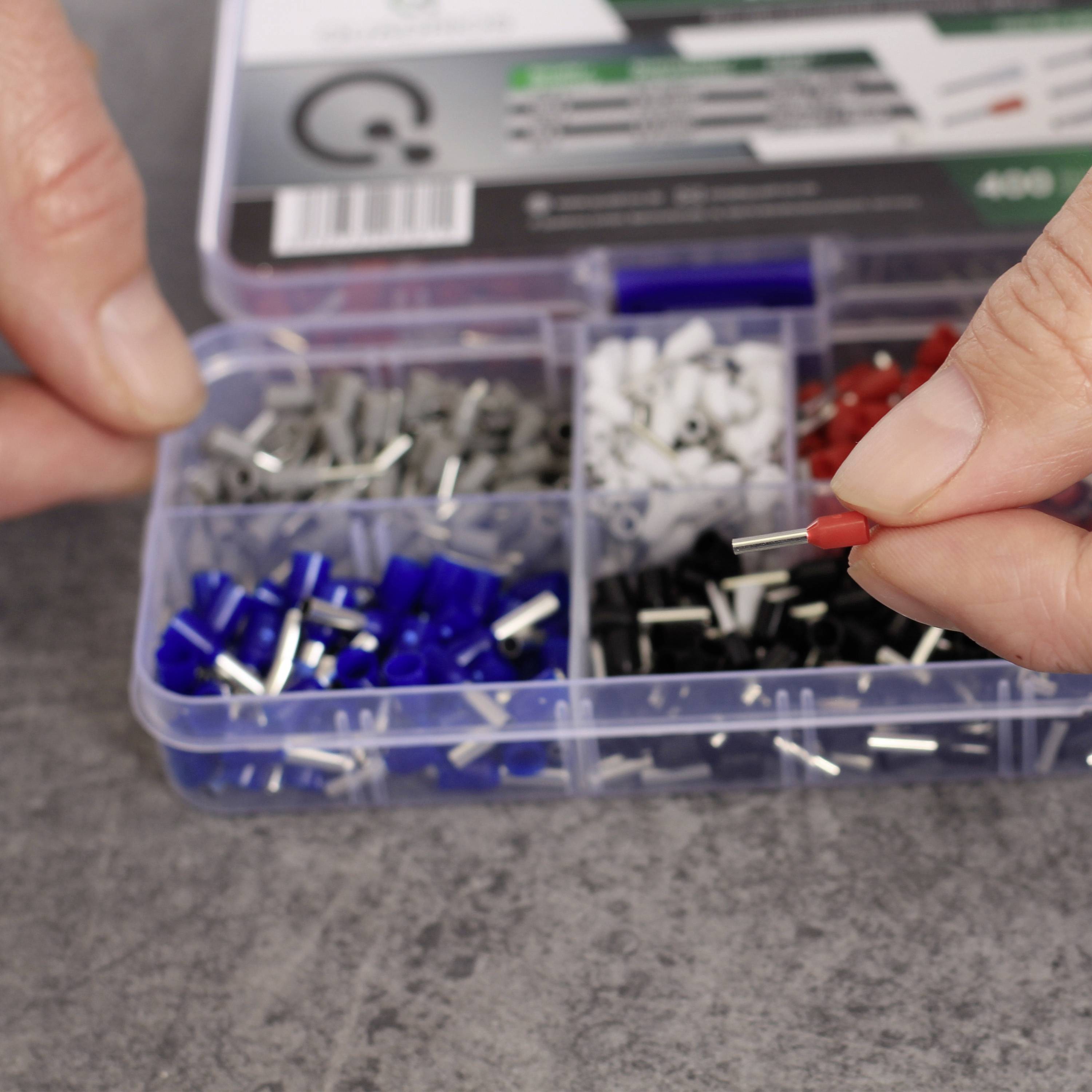

A person is holding a small red connector over an open box containing various coloured connector compartments.

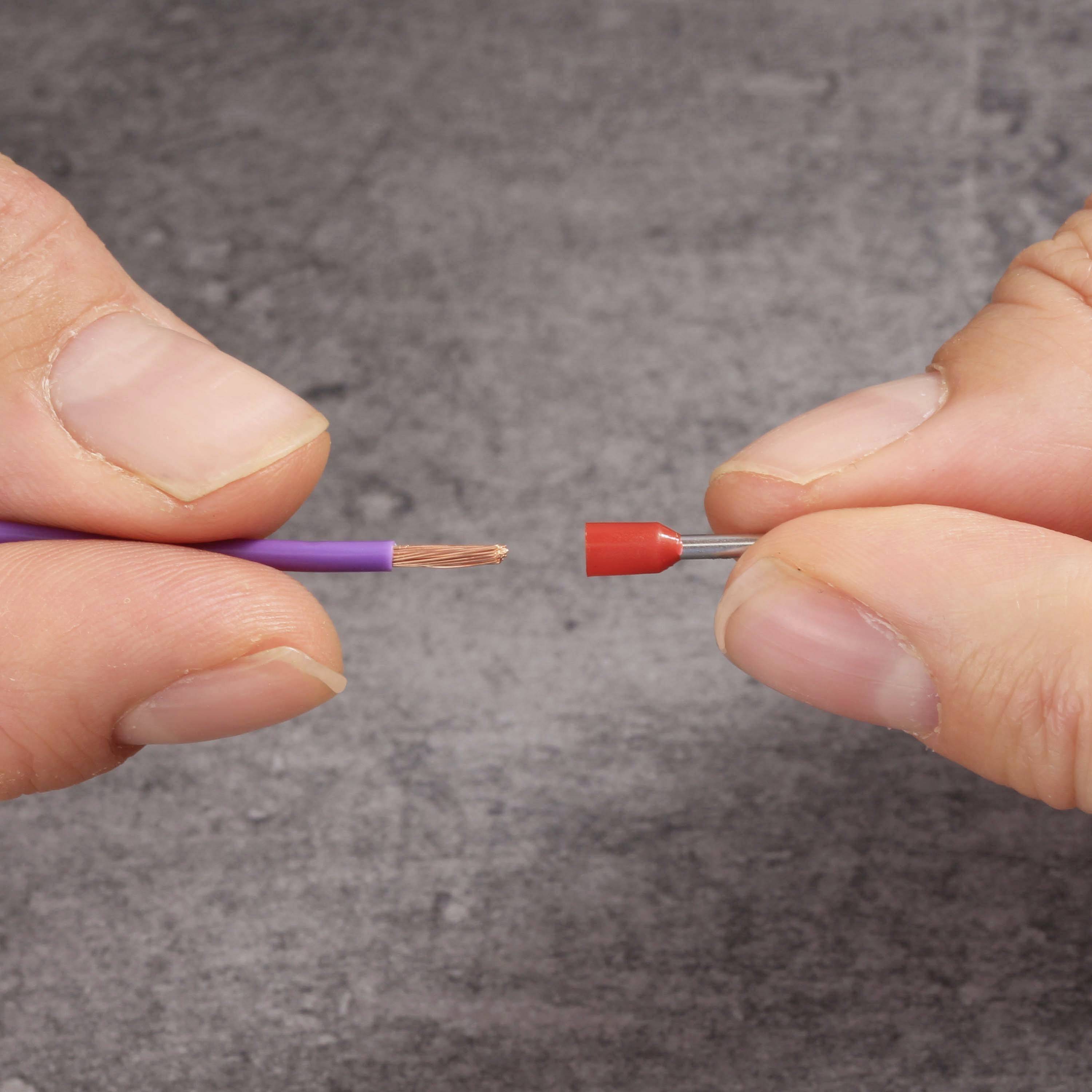

Two hands are holding a purple copper cable and a red cable end ferrule, ready for connection. Focus on cable connection preparation.

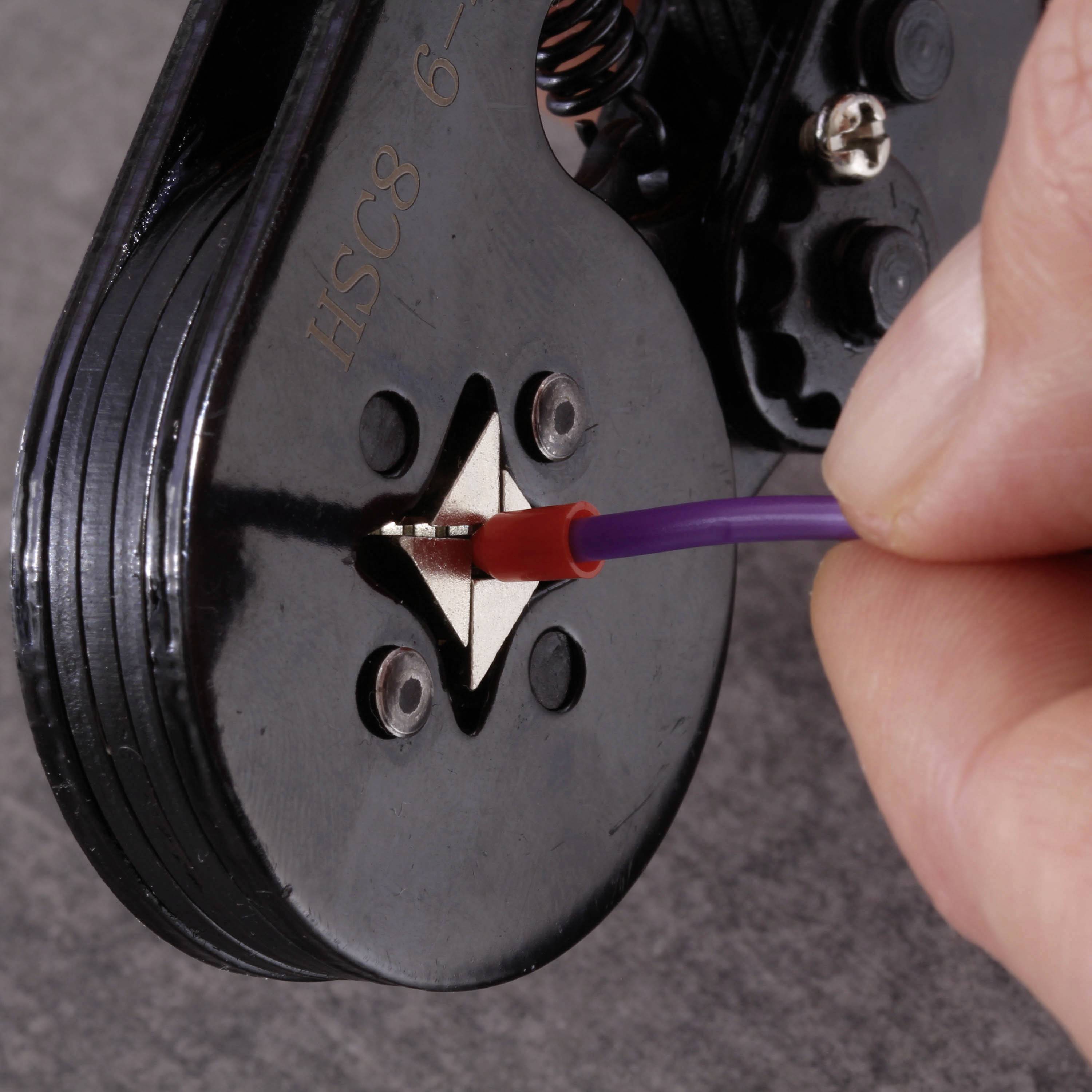

A hand holds a wire which is being inserted into a crimping tool with a wire end ferrule to create electrical connections.

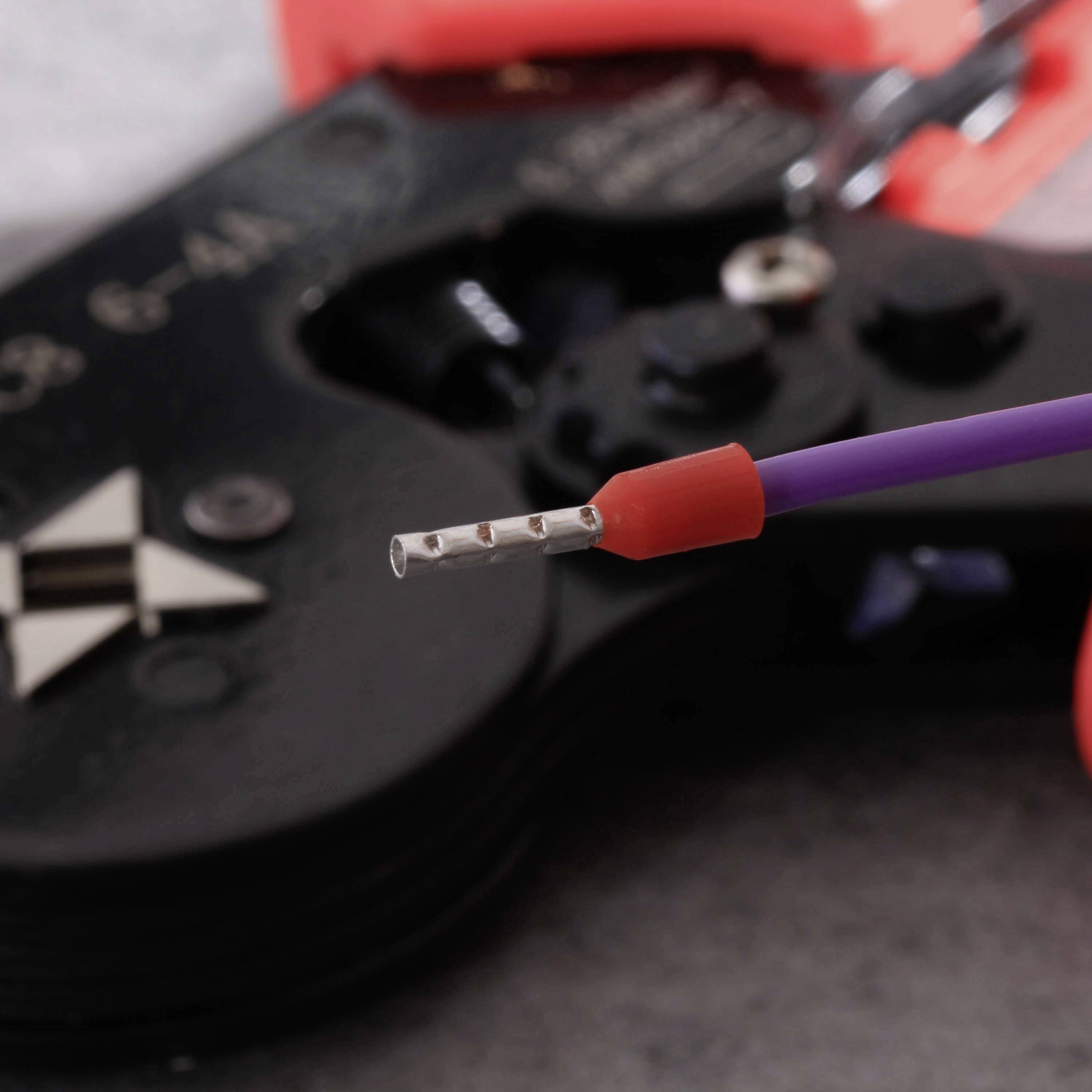

Close-up shot of a cable end ferrule with a red insulation sleeve on a purple wire. A blurred crimping tool is visible in the background.

1/6

Product type

Ferrule set

Cross section per core

0.5 mm²

0.75 mm²

1 mm²

2.5 mm²

Sleeve length

8 mm

Insulation type

Partially insulated

Content

400 pc(s)

Datasheet (PDF)

Fast track dispatch on Mon, 6 Jul

33 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 400 pc(s))

Set(s)

Total (€ 5.45 / piece)

€ 5.45

plus VAT.

Report legal concerns

Technical specifications

Product type: Ferrule set

Cross section per core: 0.5 mm²
0.75 mm²
1 mm²
2.5 mm²

Sleeve length: 8 mm

Insulation type: Partially insulated

Country colour code: DIN

Content: 400 pc(s)

Contact material: Copper silver plated

AWG max.: 14

Manufacturer part #: 22C482

Cross-section x Length: 0.5 mm² x 8 mm

RoHS-compliant: Yes

Type: 22C482

Documents & Downloads

Datasheet

Datasheet 2870586 Quadrios 22C482 Ferrule set 0.5 mm², 0.75 mm², 1 mm², 2.5 mm² Partially insulated 400 pc(s)

User & Safety Instructions

User & Safety Instructions 2870586 Quadrios 22C482 Ferrule set 0.5 mm², 0.75 mm², 1 mm², 2.5 mm² Partially insulated 400 pc(s)

Description

Quadrios wire-end sleeves guarantee optimum crimp connections together with suitable crimping tools. High-quality design of common types in a tidy assortment box with wire-end sleeves made from high-purity copper with tin-coating. The wire-end sleeves are especially suitable for hobbyists, professionals, field technicians, service workshops and laboratory use. Optimum for use with suitable wire-end sleeve crimping pliers.
Delivery scope
50x 1.5 mm²,Length 8 mm, Black
50 x 2.5 mm², length 8 mm, blue
100x 1.0 mm², length 8 mm, red
100x 0.5 mm²,Length 8 mm, White
100x 0.75 mm²,Length 8 mm, Grey

This text is machine translated.
