Buy Quadrios 22T015 22T015 Crimper set Ferrules, Blade terminal receptacles, PV connector 0.25 up to 6 mm²

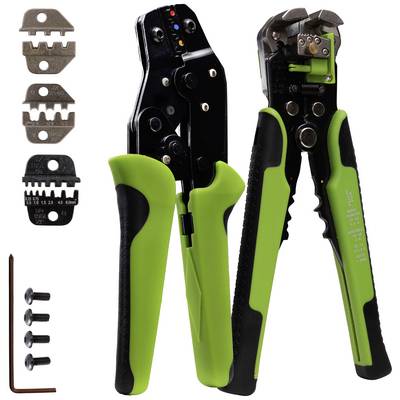

Two green hand tools for stripping and crimping cables, shown with interchangeable jaws and screws.

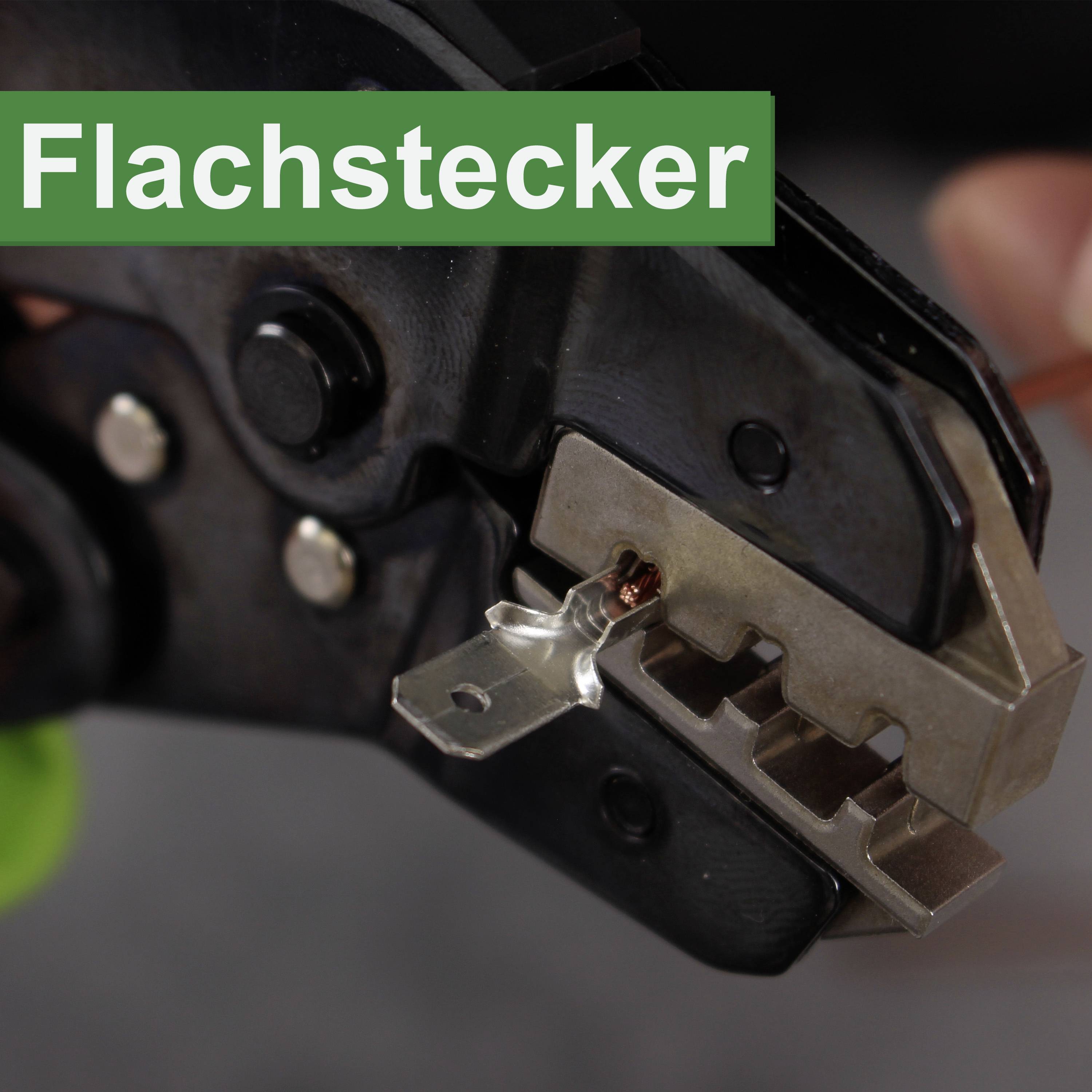

A flat connector is being secured to a cable with pliers.

A hand is using a tool to crimp a solar connector. In the background, a blurred table is visible. Text: 'Solar Connector'.

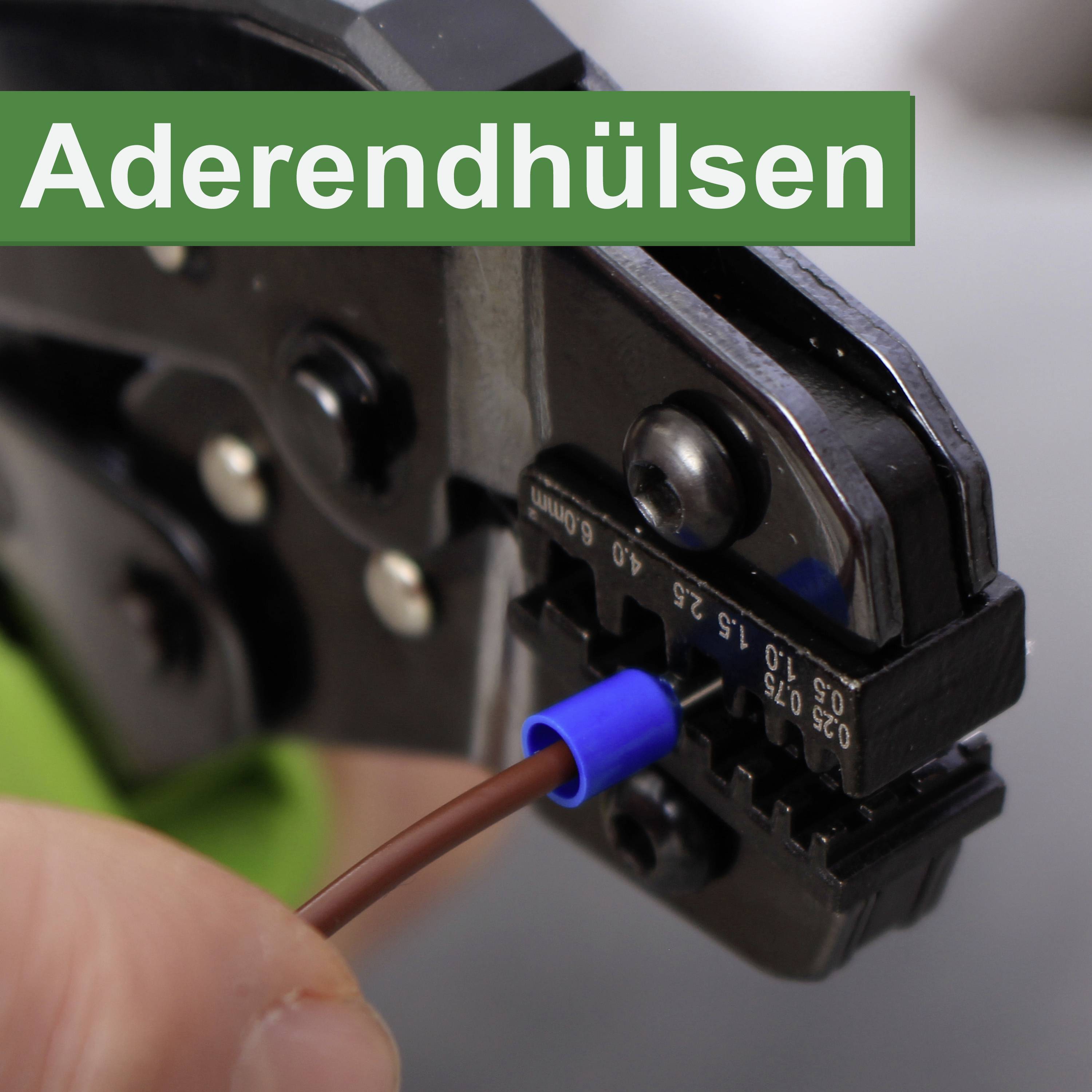

A hand uses a crimping tool to crimp a blue wire end ferrule onto a brown cable. At the top, the text reads 'Wire End Ferrules'.

1/4

Datasheet (PDF)

Fast track dispatch on Wed, 23 Sep

10 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (€ 45.37 / piece)

€ 45.37

plus VAT.

Only 10 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Q-1601-01 crimping pliers incl. attachment set and Q-1301 multifunction stripping pliers

Multifunction crimping pliersComplete set with crimp attachmentsMultifunctional wire stripping pliers

Technical specifications

Product type: Crimper set

Manufacturer part #: 22T015

Range of uses: Ferrules
Blade terminal receptacles
PV connector

Crimp area: 0.25 up to 6 mm²

Crimp area (min.): 0.25 mm²

Crimp area (max.): 6 mm²

Material: Steel

Operating range (cross section) (max.): 6 mm²

Working area cross section (min.): 0.25 mm²

Documents & Downloads

Datasheet

Datasheet 2620429 Quadrios 22T015 22T015 Crimper set Ferrules, Blade terminal receptacles, PV connector 0.25 up to 6 mm²

User & Safety Instructions

User & Safety Instructions 2620429 Quadrios 22T015 22T015 Crimper set Ferrules, Blade terminal receptacles, PV connector 0.25 up to 6 mm²

Description

Crimping pliers for different uses made of carbon-steel S50C (grip PP/TPR). Crimp function for cable lugs (insulated) 0.25 mm² ... 2.5 mm². Fine-tuning possible for actuating force. In addition, are interchangeable inserts for wire end sleeves 0.25 ... 6 mm², insert for flat-pin connectors/flat-pin connectors (insulated) 0.5 mm² ... 1.5 mm², insert for MC4 solar plugs 2.5 mm² ... 6 mm², one Allen key and 4 x spare screws and the Q-1301 multi-function wire stripper are included.

This text is machine translated.

Scope of delivery

Multifunctional wire stripping pliers
Crimping pliers with insert for wire-end sleeves (insulated) 0.25 mm² ... 2.5 mm².
Insert for wire-end sleeves (uninsulated) 0.25 ... 6 mm².
Insert for flat plug/flat plug (insulated) 0.5 mm² ... 1.5 mm².
Use for MC4 solar plugs 2.5 mm² ... 6 mm².
Allen key
4 pieces - spare screws
