Highlights & Details

Attachment set for crimping pliers Q-1601

Optimally suitable for crimping pliers Manuf.-part no.: 22T013

Technical specifications

Product type: Spare sleeve feeder

Manufacturer part #: 22T022

Range of uses: Ferrules
Blade terminal receptacles
PV connector

Crimp area (min.): 0.25 mm²

Crimp area (max.): 6 mm²

Crimp area: 0.25 up to 6 mm²

Material: Steel

Operating range (cross section) (max.): 6 mm²

Working area cross section (min.): 0.25 mm²

Documents & Downloads

Datasheet

Datasheet 2620431 Quadrios 22T022 22T022 Spare sleeve feeder Ferrules, Blade terminal receptacles, PV connector 0.25 up to 6 mm²

User & Safety Instructions

User & Safety Instructions 2620431 Quadrios 22T022 22T022 Spare sleeve feeder Ferrules, Blade terminal receptacles, PV connector 0.25 up to 6 mm²

Description

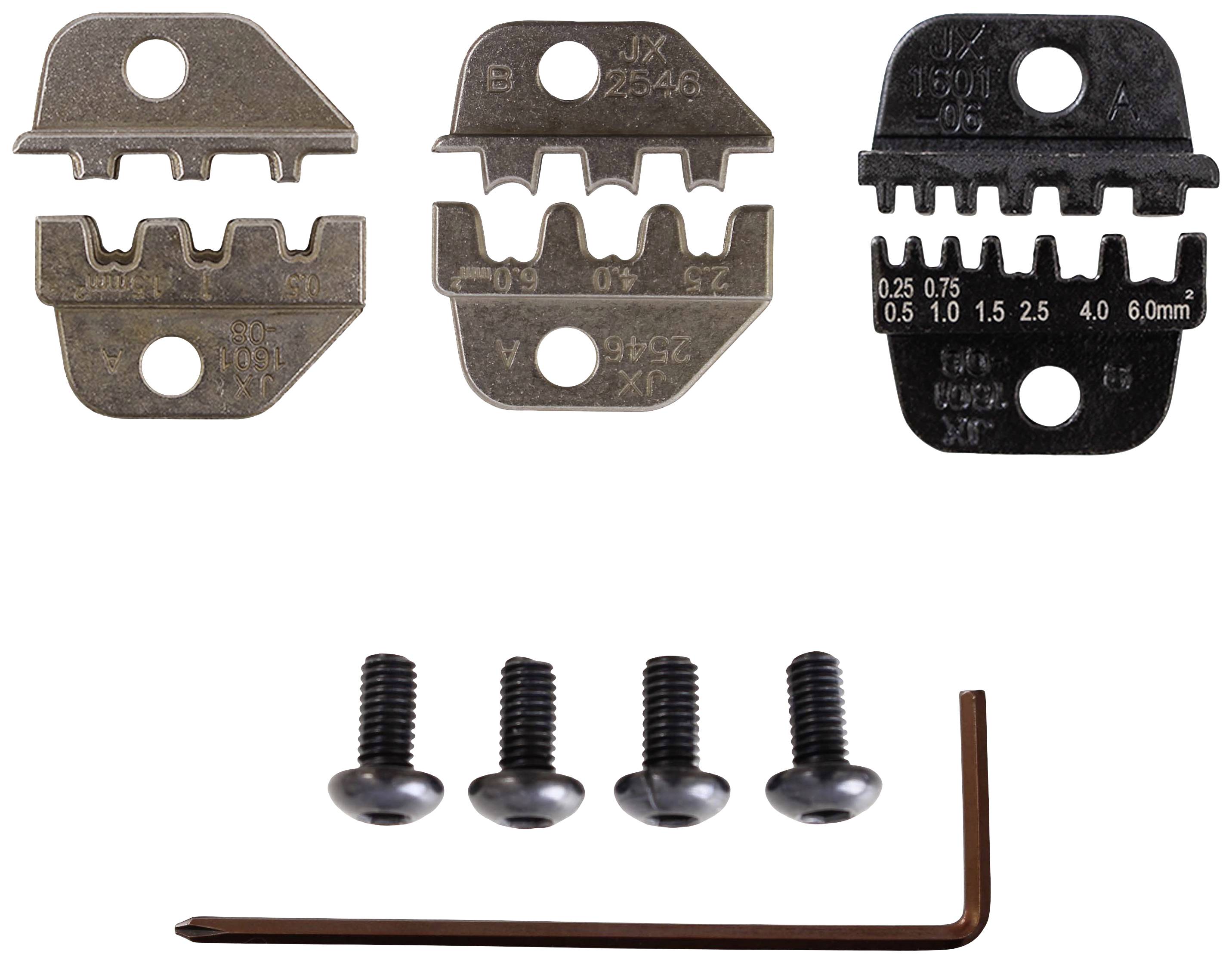

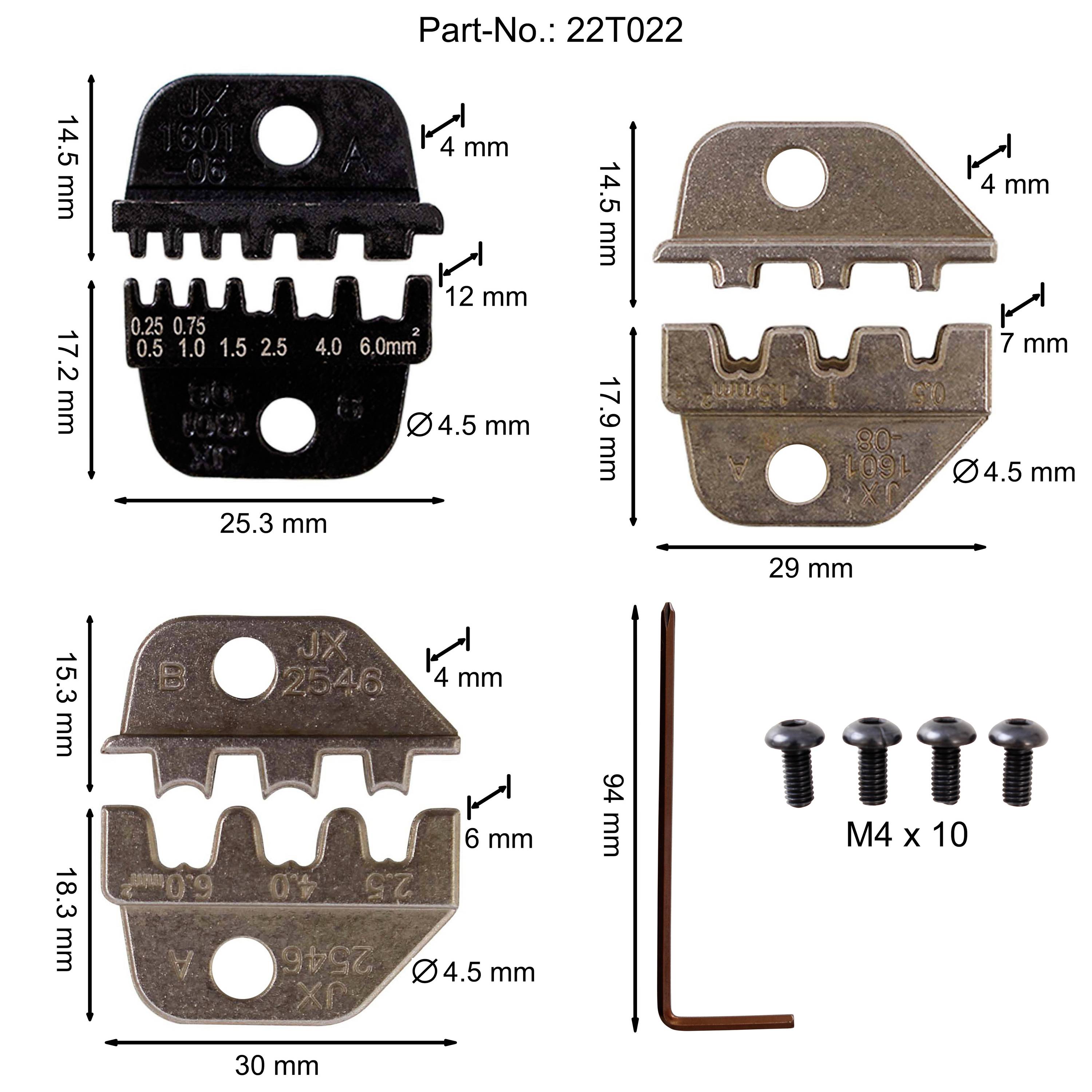

Replacement insert set for 22T013 crimping pliers: Insert for wire end sleeves 0.25 ... 6 mm², insert for flat-pin connectors/flat-pin connectors (insulated) 0.5 mm² ... 1.5 mm², insert for MC4 solar plugs 2.5 mm² ... 6 mm², Allen key • 4 x spare screws.

This text is machine translated.

Scope of delivery

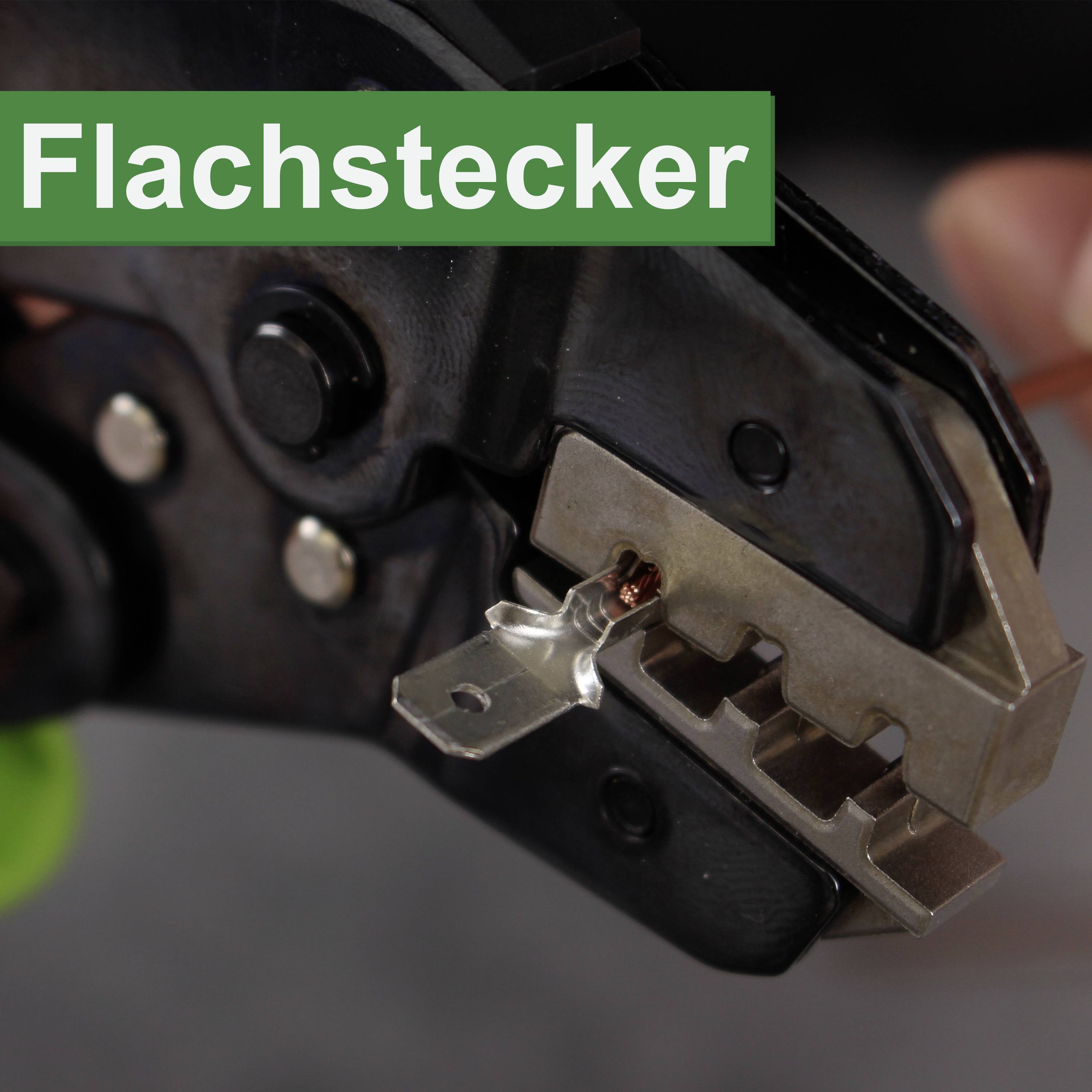

Insert for flat plug/flat plug (insulated) 0.5 mm² ... 1.5 mm².

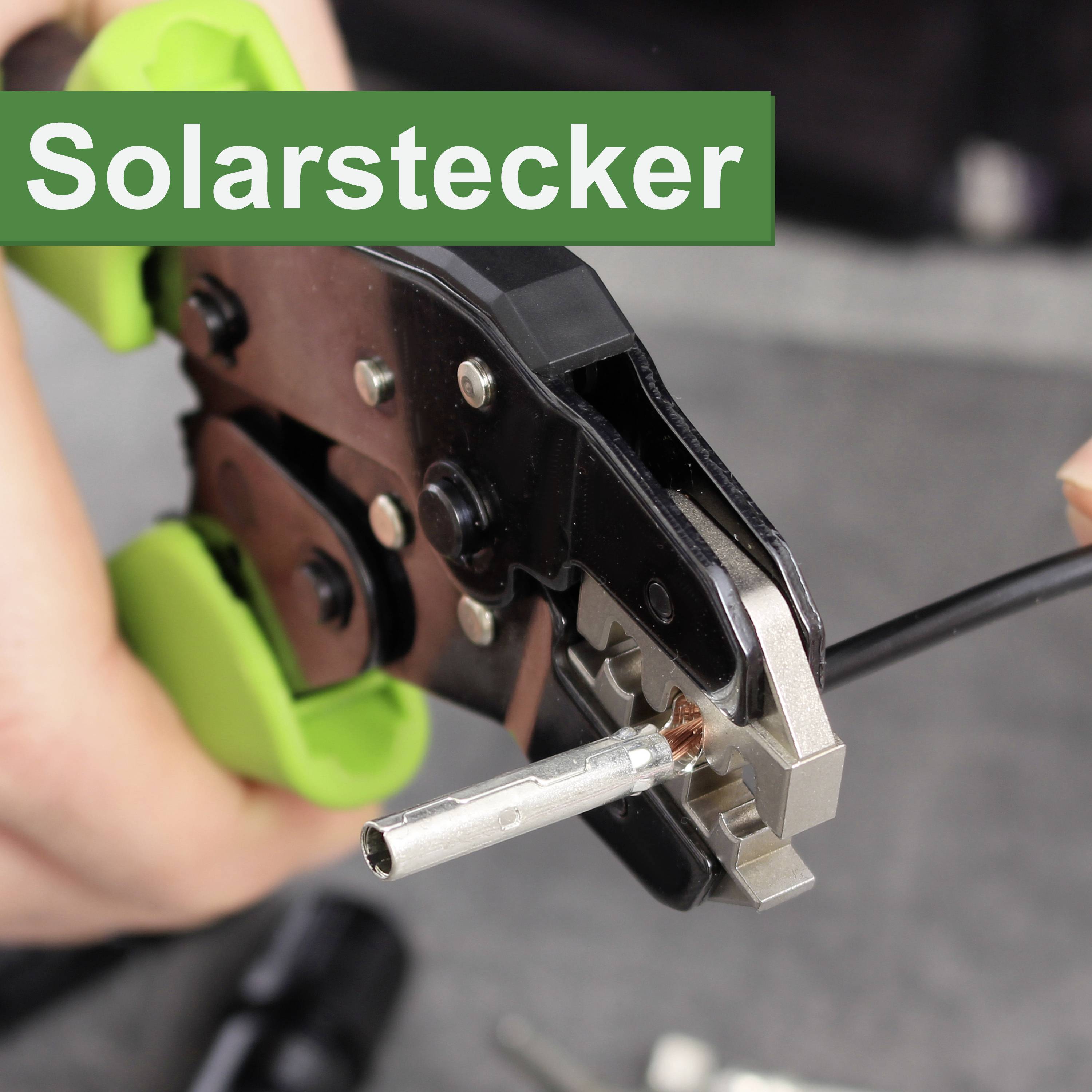

Use for MC4 solar plugs 2.5 mm² ... 6 mm².
Allen key
4 pieces - spare screws

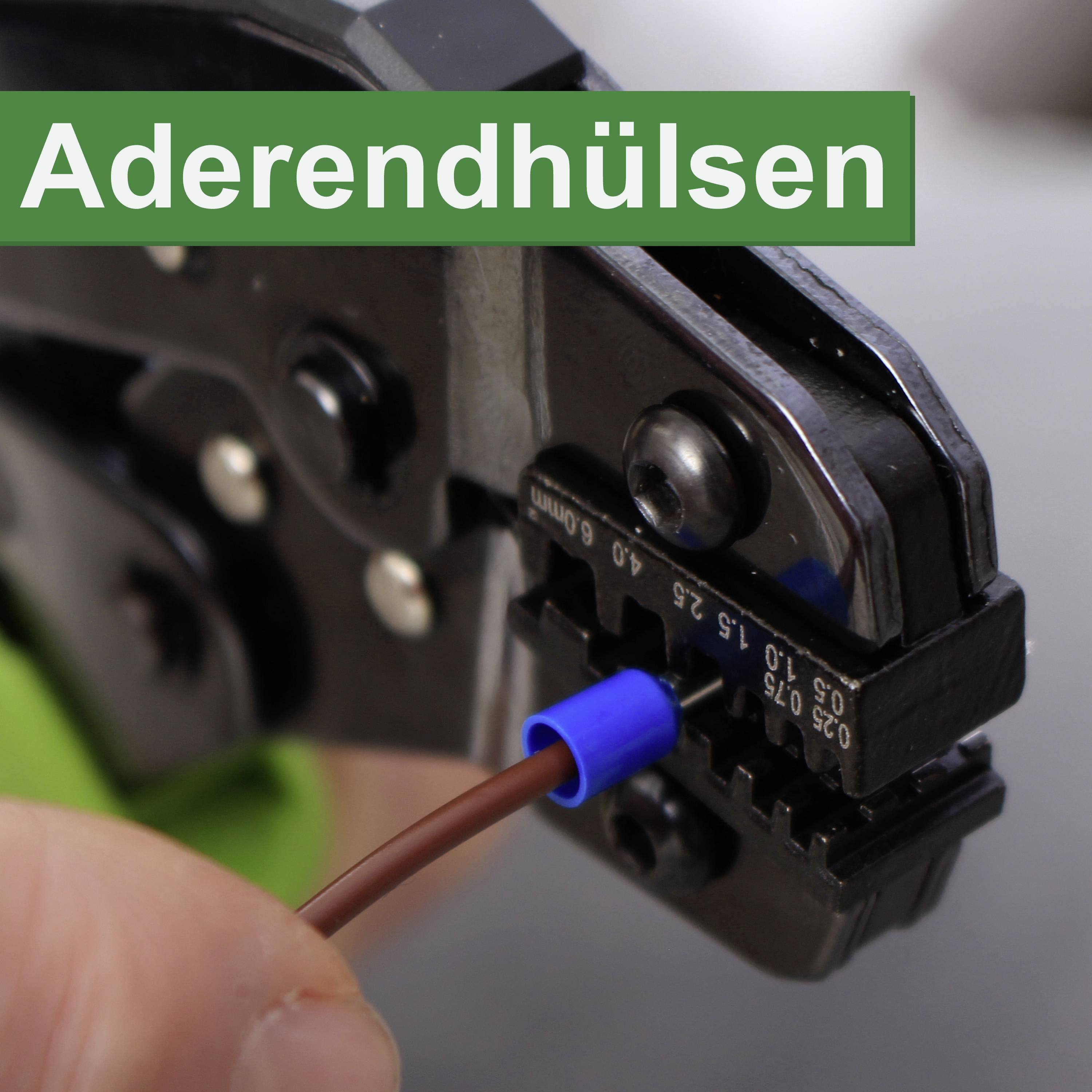

Insert for wire-end sleeves
