Buy Quadrios 23C509 Ring terminal Cross section (max.)=4 mm² Hole Ø=8.5 mm Not insulated 100 pc(s)

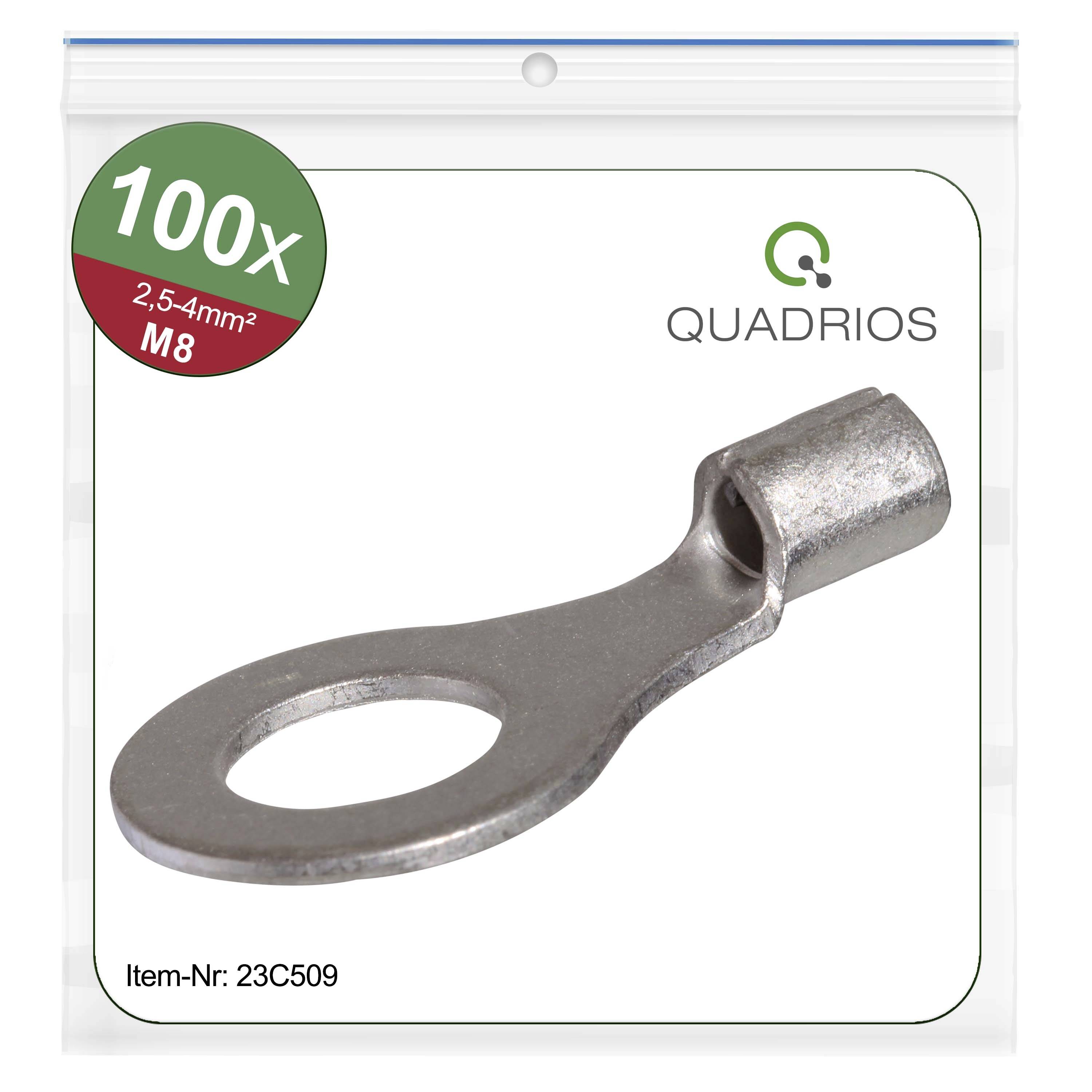

Quadrios 23C509 Ring terminal Cross section (max.)=4 mm² Hole Ø=8.5 mm Not insulated 100 pc(s)-0

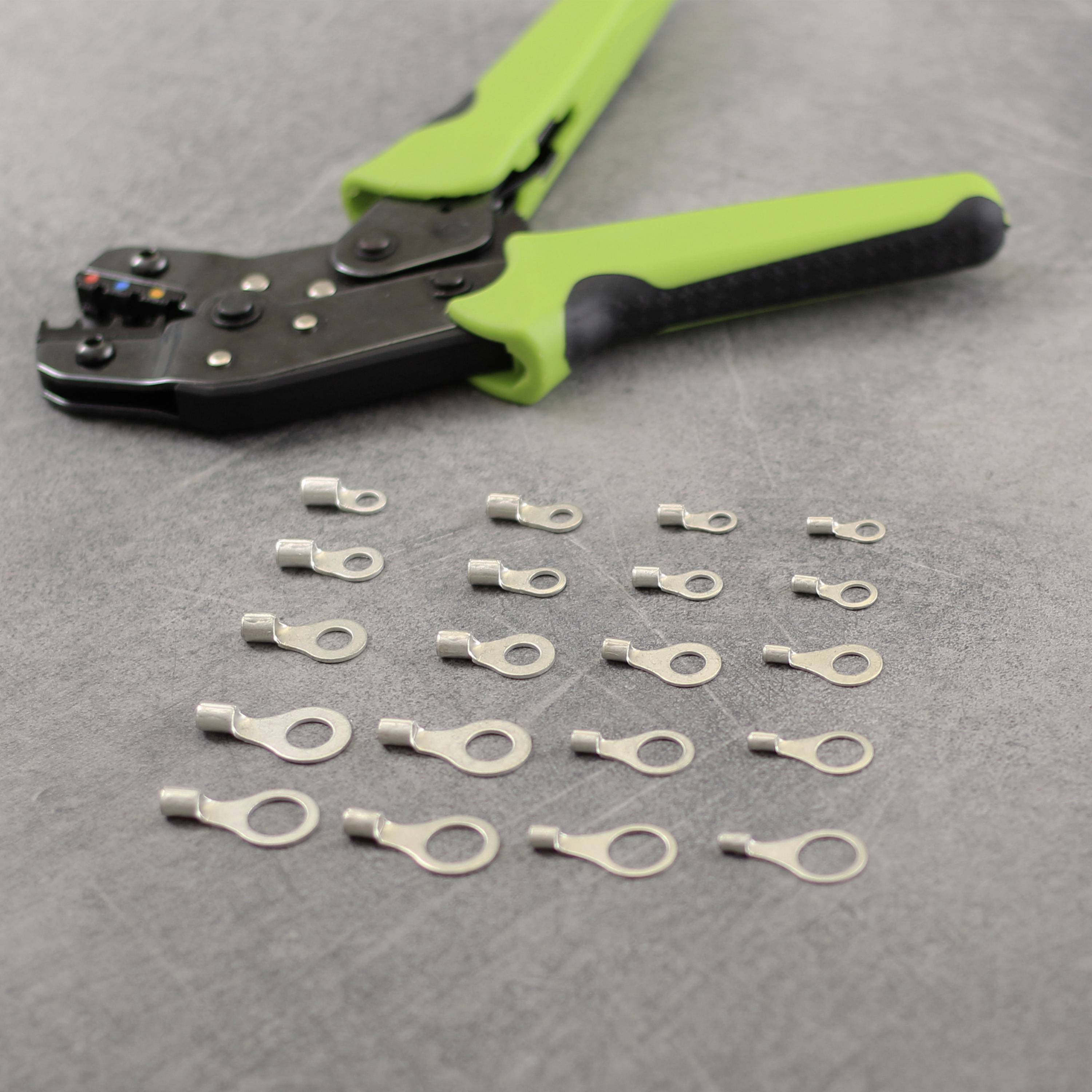

A crimping plier with a green handle is lying on a grey surface. Beside it, 16 silver cable lugs of varying sizes are distributed.

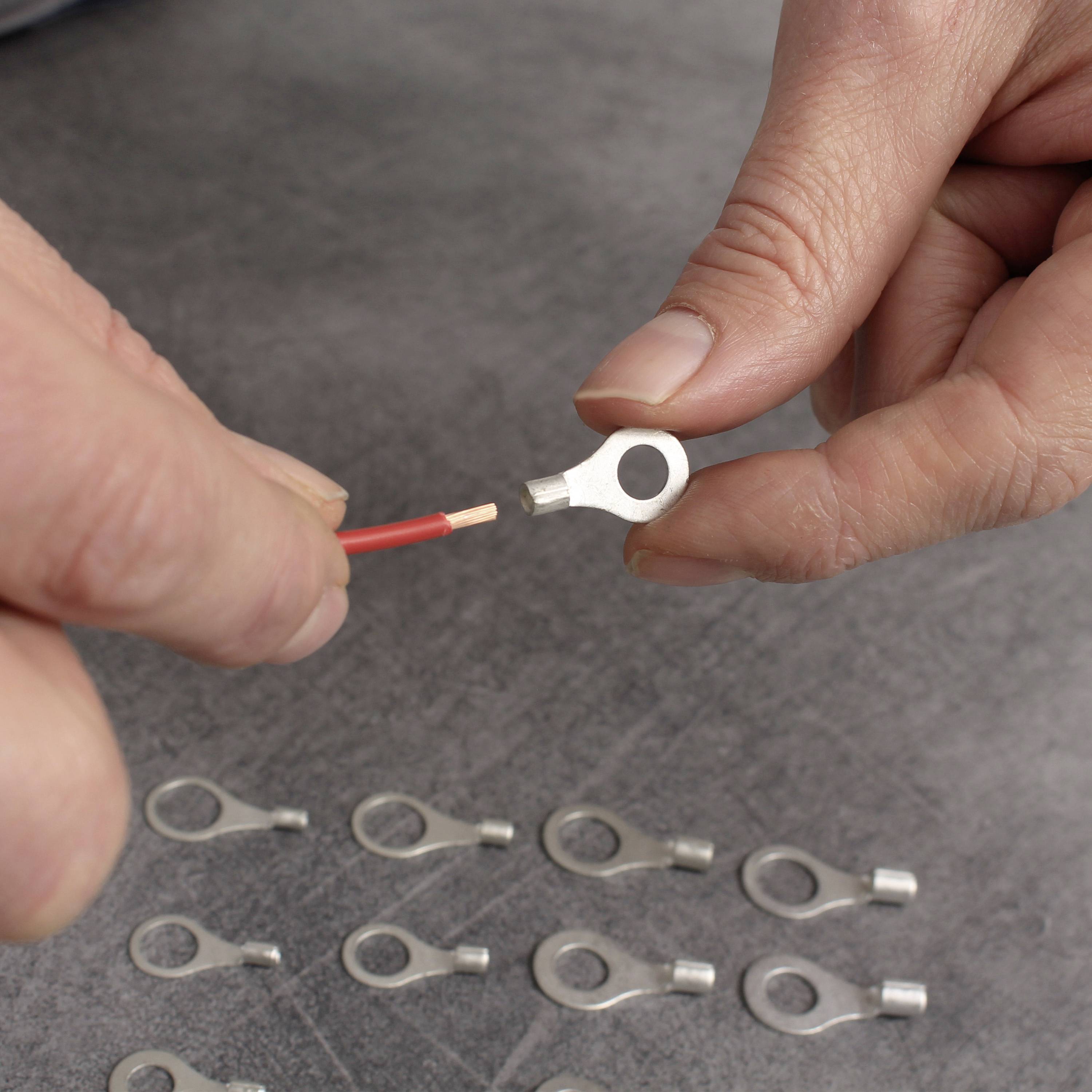

Two hands are connecting a red cable with a ring cable lug. Several ring cable lugs are lying on a grey surface.

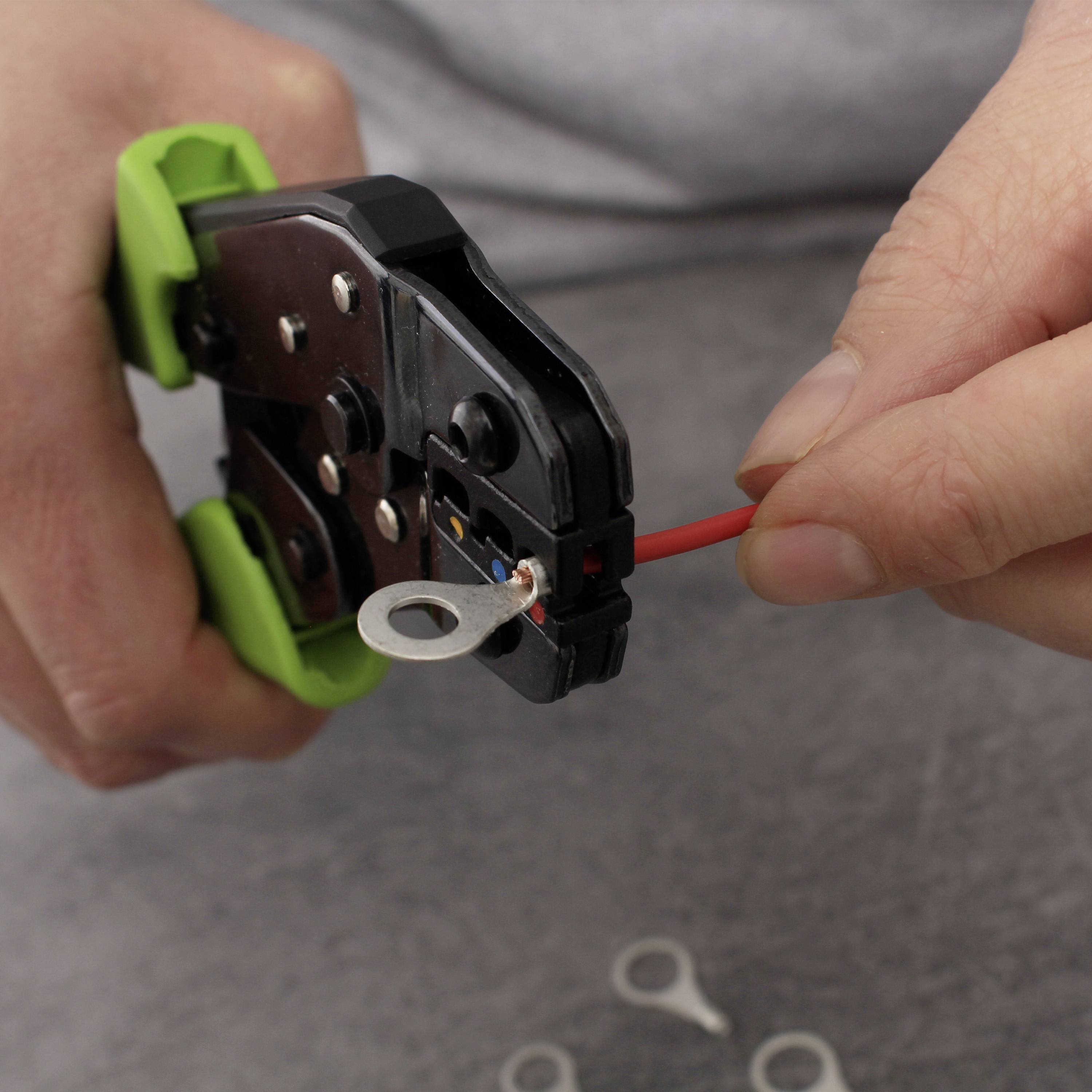

A person is using a crimping tool to secure a cable with a ring terminal. Hands and tools are in focus.

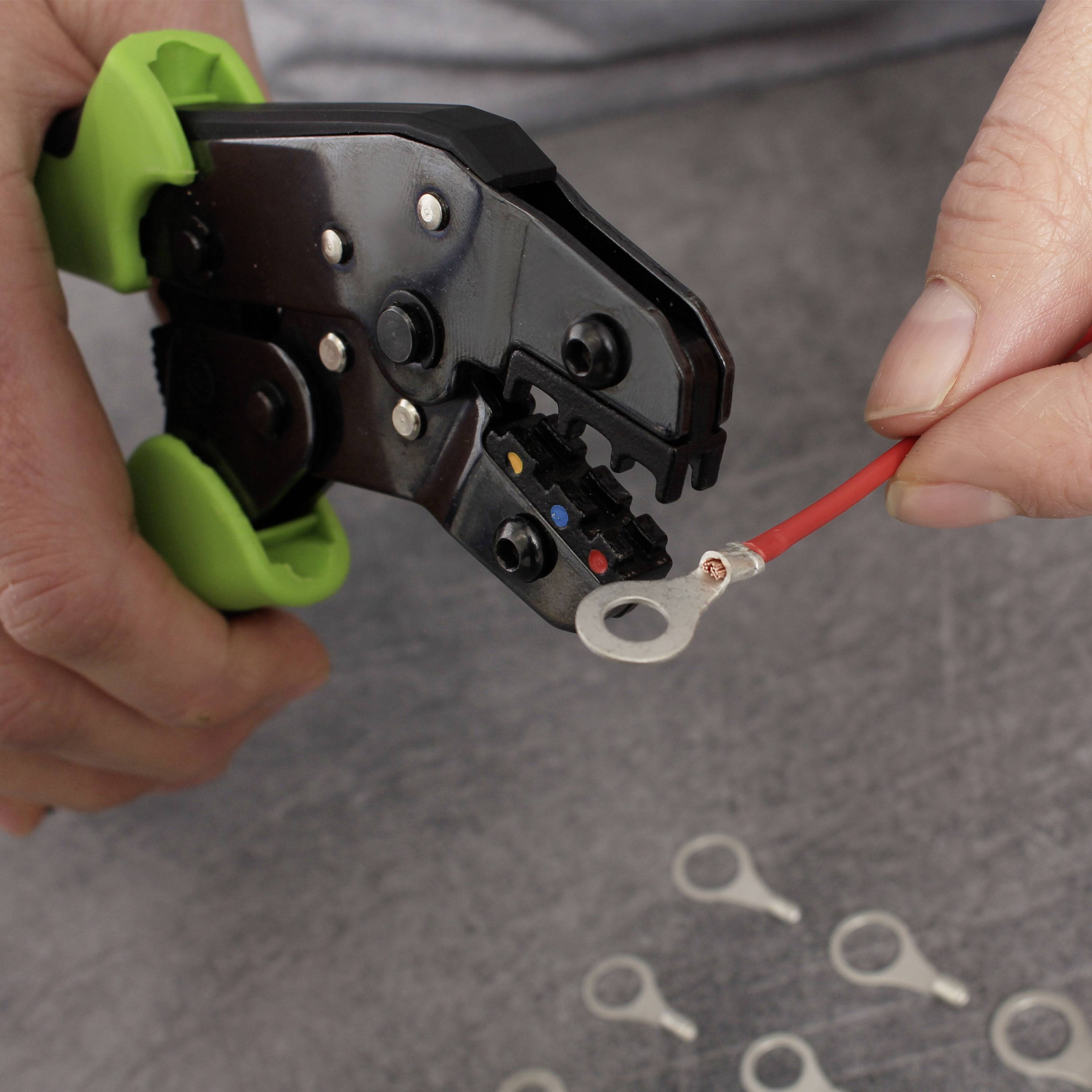

A person is using a crimping tool to attach a ring terminal to a red cable. Several ring terminals are lying nearby.

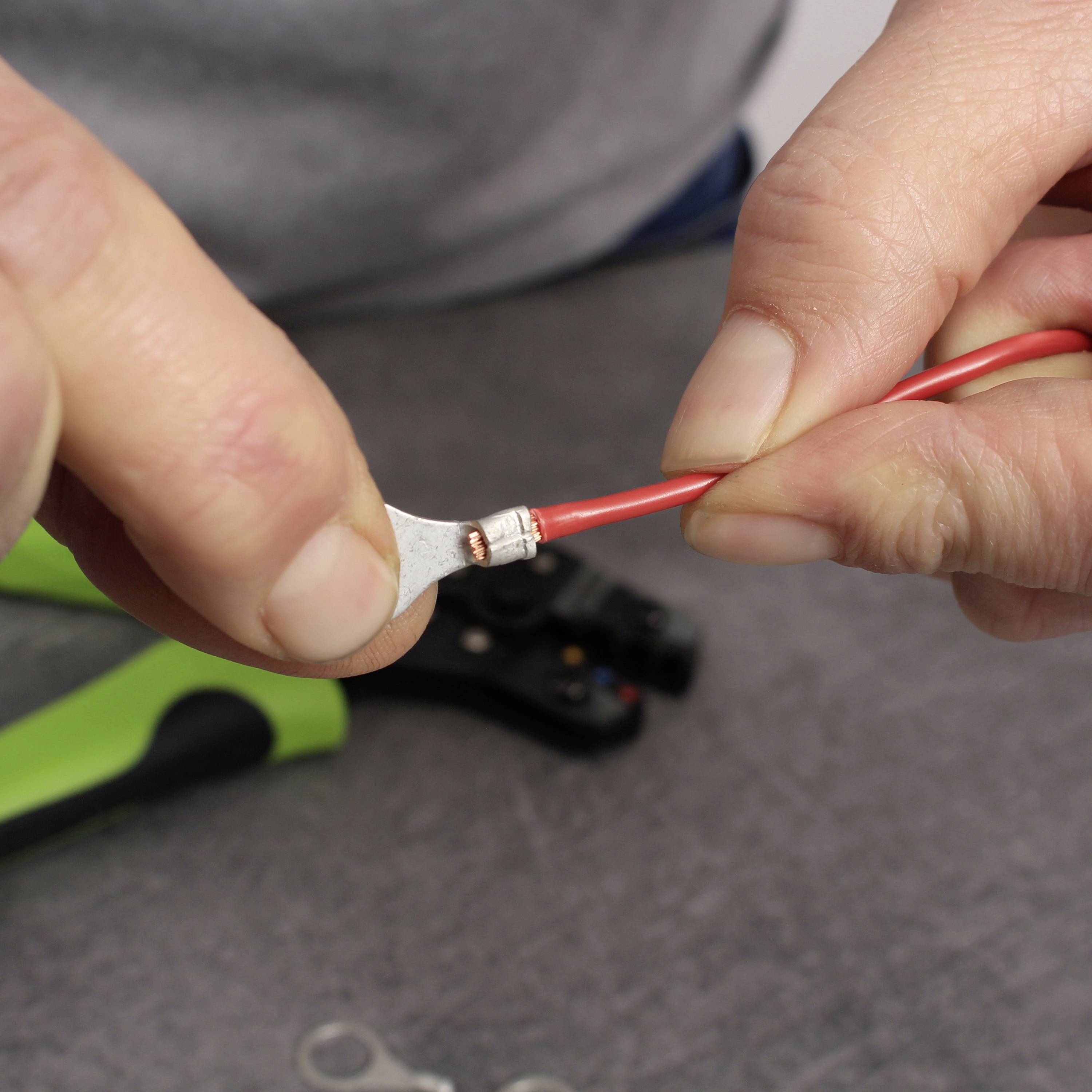

A hand holds a red cable with a metal connector, while another hand uses a crimping tool.

1/6

Product type

Ring terminal

Thread size

Hole Ø

8.5 mm

Insulation type

Not insulated

Content

100 pc(s)

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

3 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 100 pc(s))

Set(s)

Total (€ 18.48 / piece)

€ 18.48

plus VAT.

Only 3 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Ring terminals 100 pce. M8 uninsulated, 2,5-4 mm2

2.5 - 4 mm²

Technical specifications

Product type: Ring terminal

Thread size: M8

Hole Ø: 8.5 mm

Insulation type: Not insulated

Content: 100 pc(s)

Contact material: Copper silver plated

Manufacturer part #: 23C509

Type: 23C509

max. cross section: 4 mm²

Min. cross section: 2.5 mm²

Cross-section range: 2.5 - 4 mm²

Voltage: 600 V

Documents & Downloads

Datasheet

Datasheet 3019612 Quadrios 23C509 Ring terminal Cross section (max.)=4 mm² Hole Ø=8.5 mm Not insulated 100 pc(s)

User & Safety Instructions

User & Safety Instructions 3019612 Quadrios 23C509 Ring terminal Cross section (max.)=4 mm² Hole Ø=8.5 mm Not insulated 100 pc(s)

Description

Quadrios non-insulated ring terminals guarantee optimal electrical and mechanical connections in connection with suitable crimping tools. This product range includes a variation of the most common sizes, perfect for daily use. The ring terminals are particularly suitable for hobbyists, professionals, field service, service workshops, electronics and laboratory use. Ideal for use with suitable ring-cable crimp pliers.
