Quadrios 23O191 LED set Red, Green, Yellow, Blue, White 3 mm 8000 mcd 20 mA 2 V, 3 V
EAN:
Part number:
Item no:
Product type
LED set
Forward voltage U(F)
2 V
3 V
Forward current I(F)
20 mA
Casing
3 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 500 pc(s))
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Highlights & Details

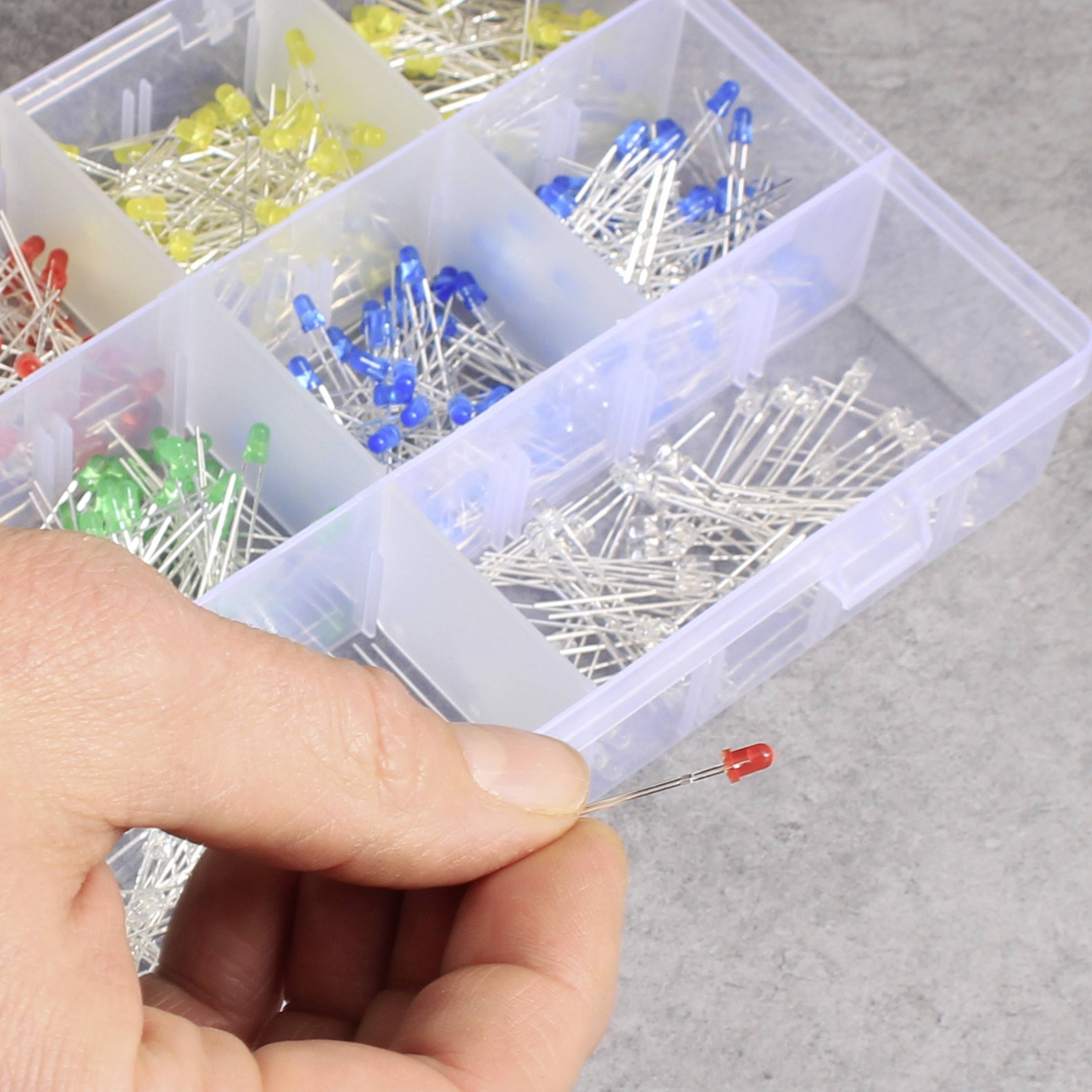

LED-Box 3 mm 500 pcs. (5 colors)
- Super bright standard light emitting diodes 3 mm housing diameter
- Content: Red/green/yellow/blue/white, 100 pieces
- LEDs can be purchased separately
Technical specifications
- Product type
LED set
- Factory colour
Red
Green
Yellow
Blue
White
- Forward voltage U(F)
2 V
3 V
- Forward current I(F)
20 mA
- Operating voltage
3 V
- Operating current
20 mA
- Casing
3 mm
- Type
Radial lead
- Light intensity I(V)
8000 mcd
- Wavelength
460 nm
- Type (LEDs)
Diffused
- Dim
(Ø) 3 mm
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- (Ø)
3 mm
- Content
500 pc(s)
Documents & Downloads
Datasheet
Datasheet 3450138 Quadrios 23O191 LED set Red, Green, Yellow, Blue, White 3 mm 8000 mcd 20 mA 2 V, 3 V
User & Safety Instructions
User & Safety Instructions 3450138 Quadrios 23O191 LED set Red, Green, Yellow, Blue, White 3 mm 8000 mcd 20 mA 2 V, 3 V
Description

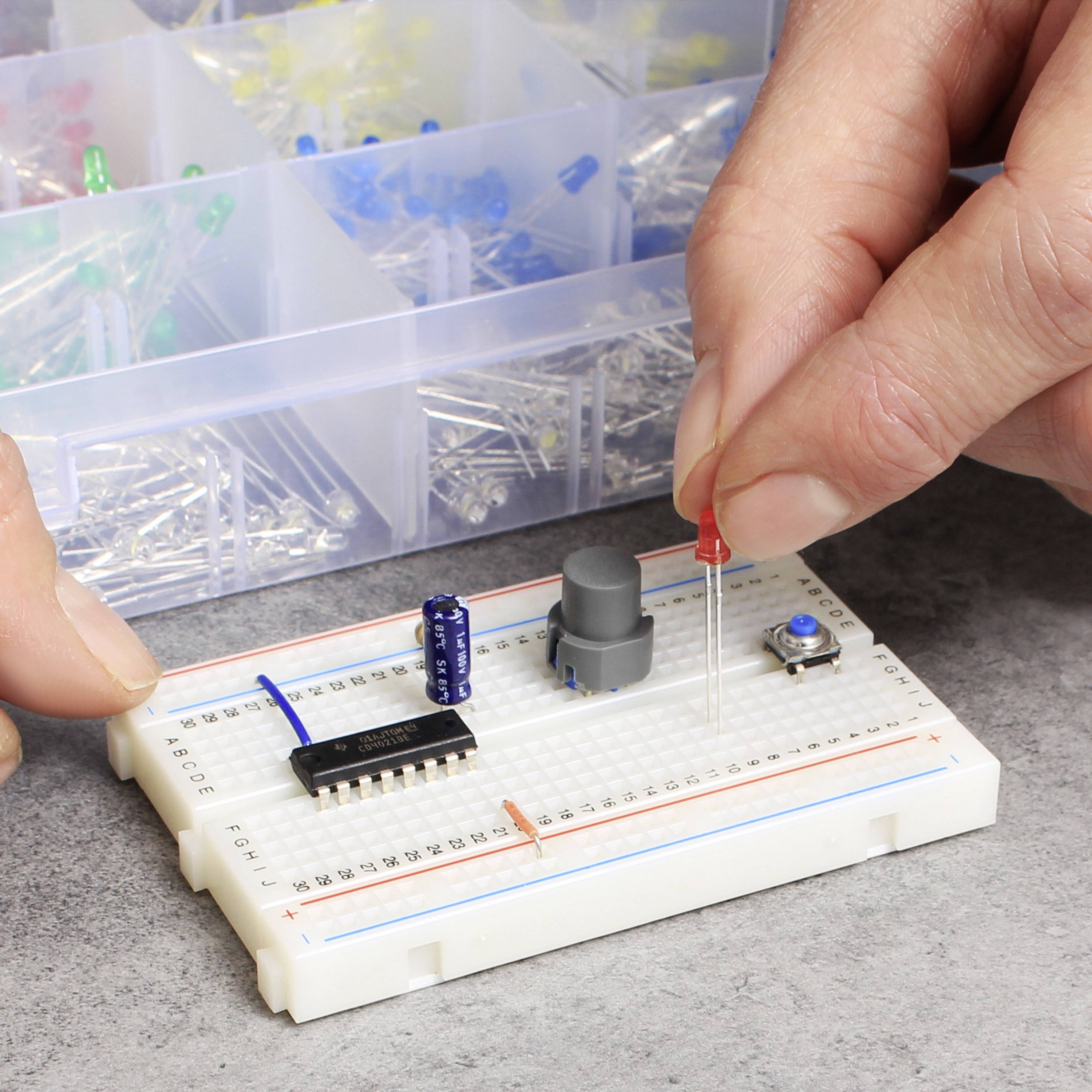

This experimental and practical assortment with super-bright standard LEDs in a diameter of 3 mm is ideally suited for immediate start in experiments with semiconductor light. The data sheet in the download area contains useful information about the assortment - as also important technical details about the contained components. This is the only way to ensure that the LEDs can be operated in their specific operating parameters because the components are clearly specified. Please note that LEDs must always be operated with current limitation, WAS can be realized by a constant current source or the use of series resistors.

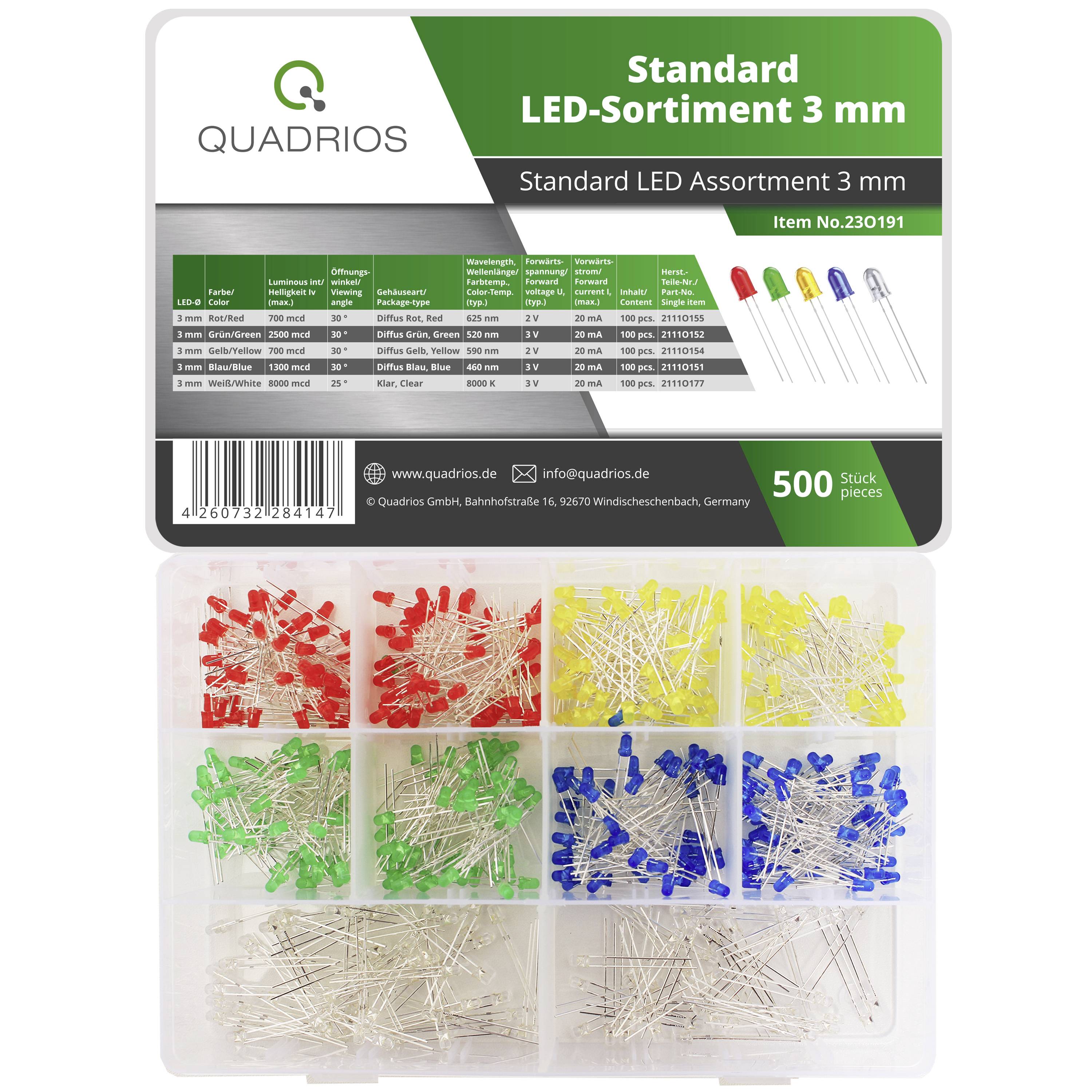

Content: 100 LEDs each in the housing variant 3 mm in red (housing diffuse, wavelength 625 nm, brightness 700 mcd), green (housing diffuse, wavelength 520 nm, Brightness 2500 mcd), Yellow (Enclosure Diffuse, Wavelength 590 nm, Brightness 700 mcd), Blue (Enclosure Diffuse, Wavelength 460 nm, brightness 1300 mcd), white (clear housing, color temperature 8000 K, brightness 8000 mcd).
This text is machine translated.
Content: 100 LEDs each in the housing variant 3 mm in red (housing diffuse, wavelength 625 nm, brightness 700 mcd), green (housing diffuse, wavelength 520 nm, Brightness 2500 mcd), Yellow (Enclosure Diffuse, Wavelength 590 nm, Brightness 700 mcd), Blue (Enclosure Diffuse, Wavelength 460 nm, brightness 1300 mcd), white (clear housing, color temperature 8000 K, brightness 8000 mcd).
This text is machine translated.
Scope of delivery

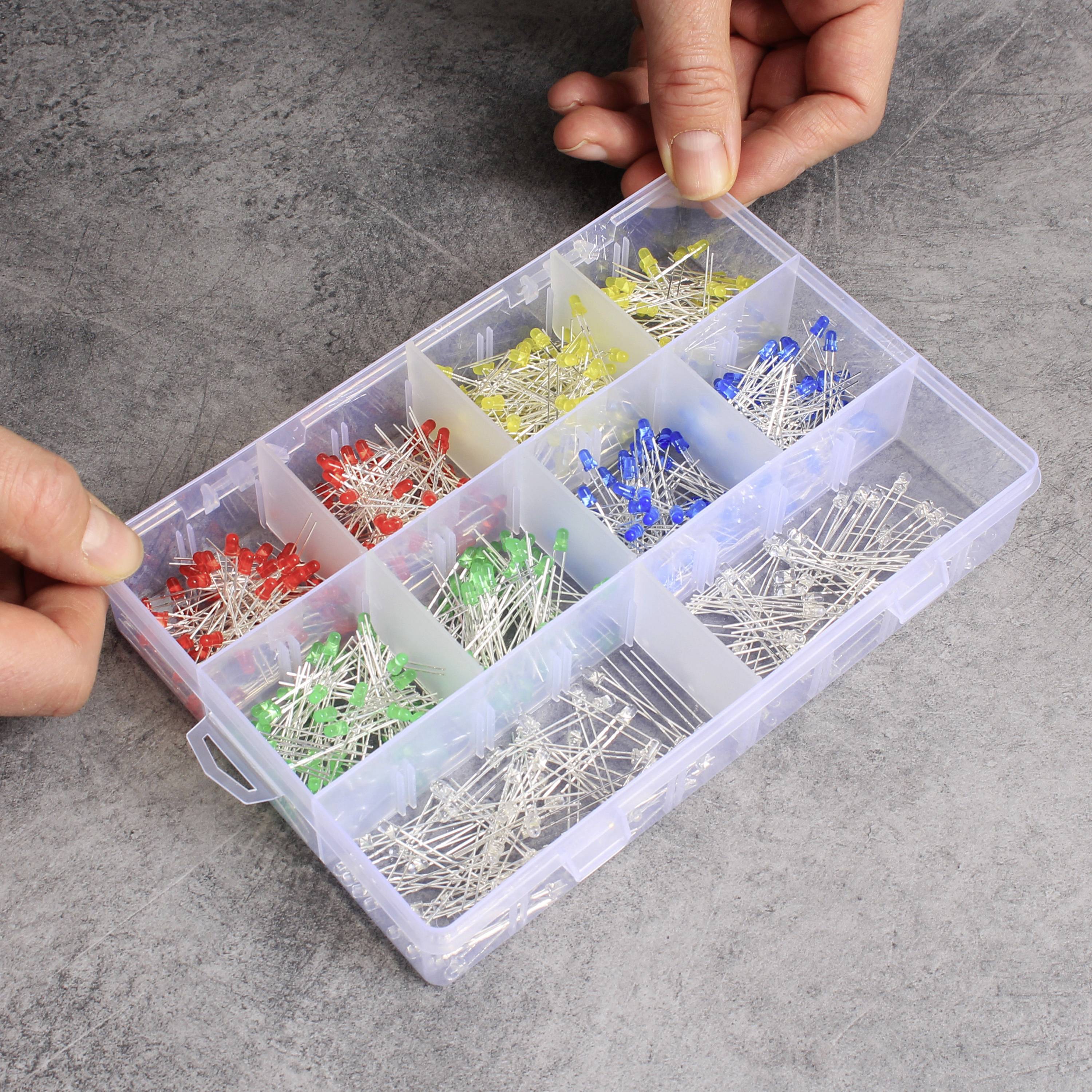

- 500 x LEDs 3 mm
- Assortment box
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
