Quadrios 23T032 23T032 Electrical & precision engineering Stripper side cutter combo 14 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
14-day return policy included
Highlights & Details

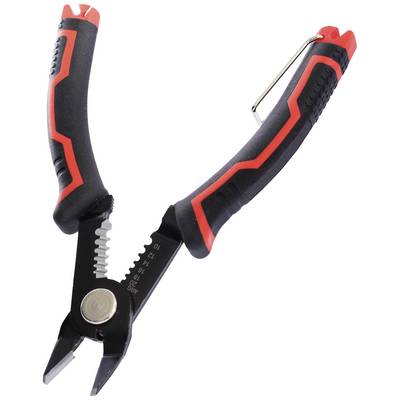

Cutting pliers with stripping function 0,75-6 mm²
- Highly precise cutting pliers with blunt-tip thereby optimum guiding even in narrow spaces.
- Stripping function 0.75 to 6 mm² Cable and strands (AWG 20 – 10) in metric marking Cross-section in mm² (EU) and AWG (USA)
- The spring is integrated in the joint and thus is not exposed to dirt and does not disturb

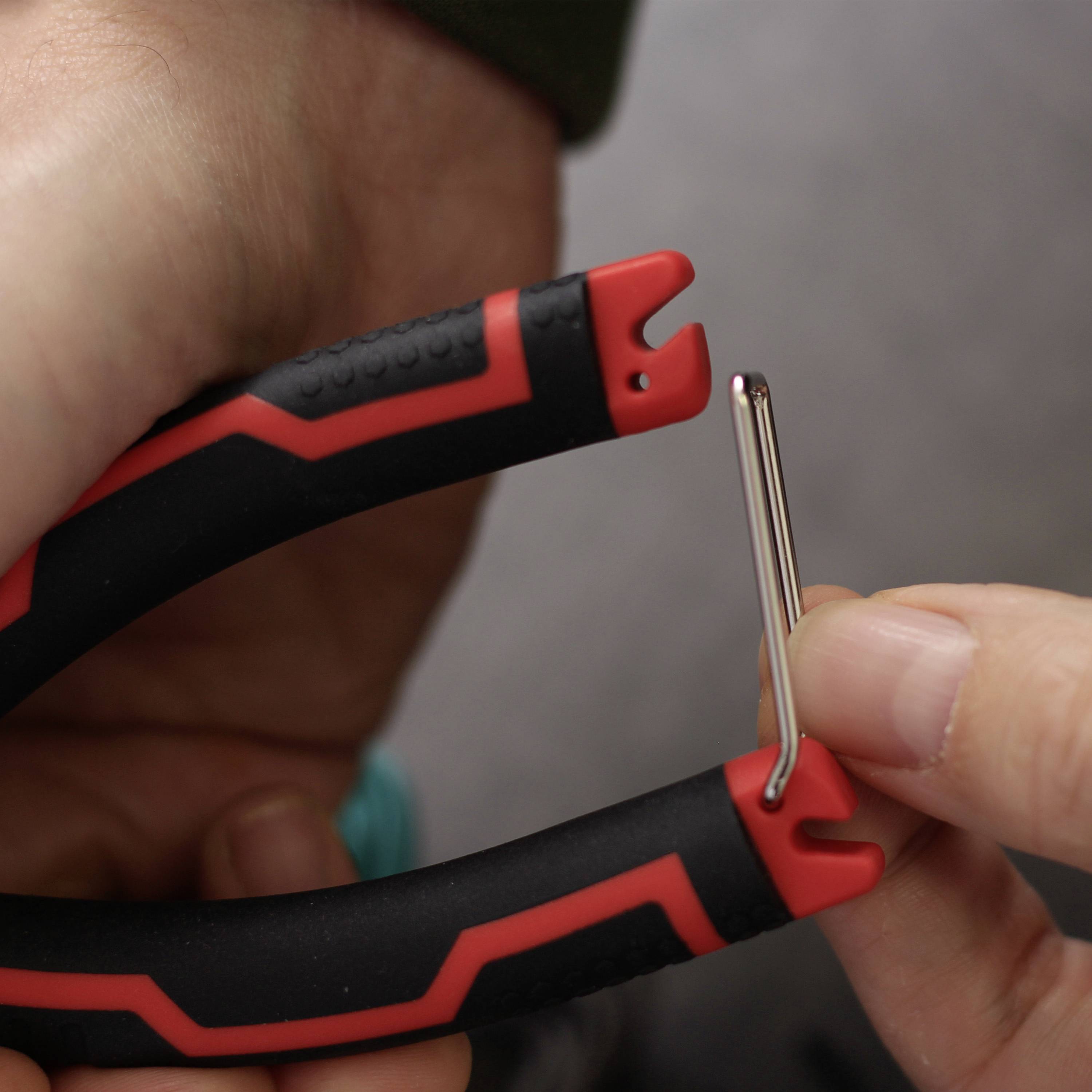

- A bracket at the end of the grip serves for locking - thus the cutting edge is closed and there is nothing in the way of a problem-free transport!
Technical specifications
- Product type
Stripper side cutter combo
- Manufacturer part #
23T032
- Range of use
Electrical & precision engineering
- Length
14 mm
- Material
Steel
- Weight
113 g
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2870608 Quadrios 23T032 23T032 Electrical & precision engineering Stripper side cutter combo 14 mm
User & Safety Instructions
User & Safety Instructions 2870608 Quadrios 23T032 23T032 Electrical & precision engineering Stripper side cutter combo 14 mm
Description
These cutting pliers are particularly suitable for hobbyists, professionals, field service, service workshops, electronics and laboratory use. Designed for high precision and reliability, it is a true companion and extremely long life.

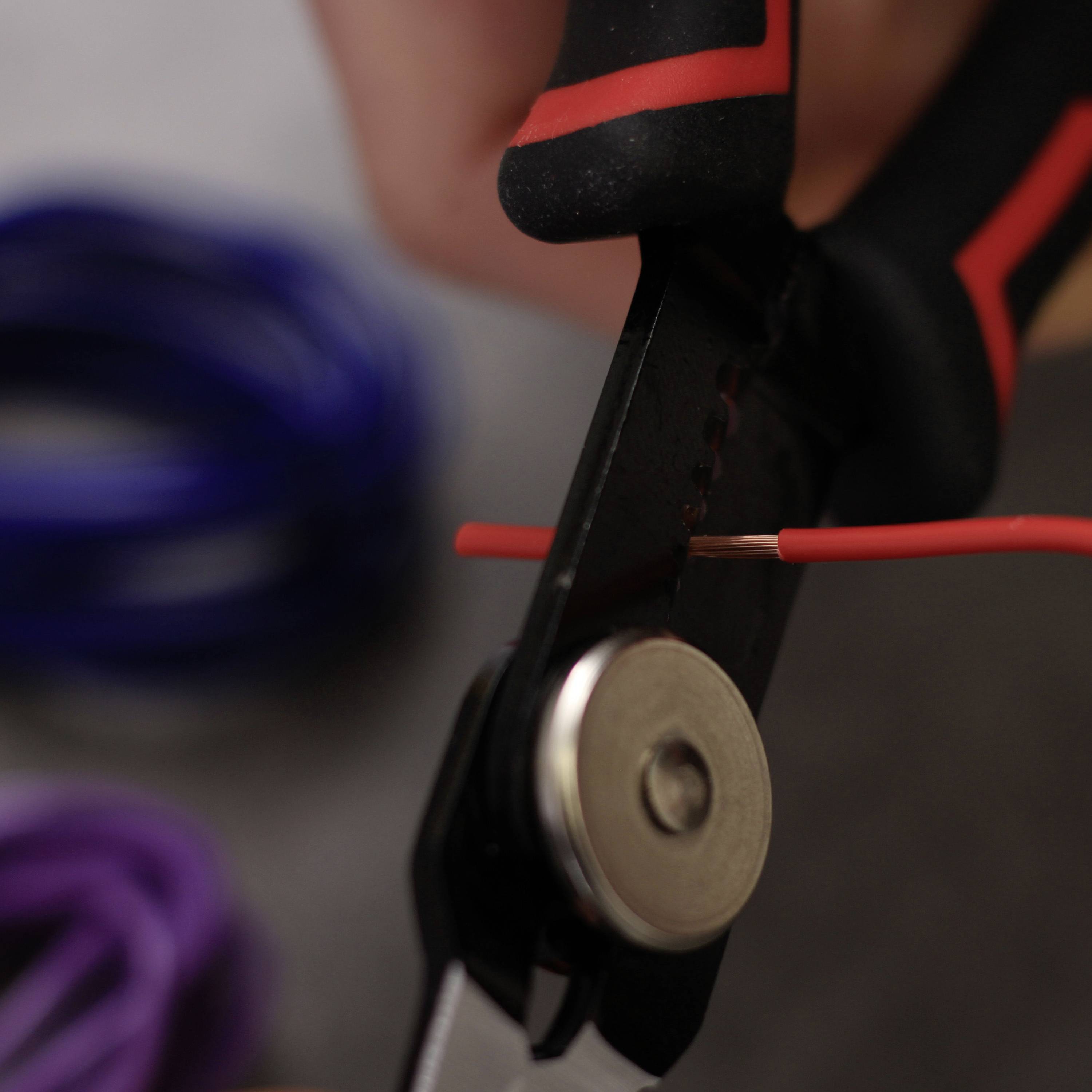

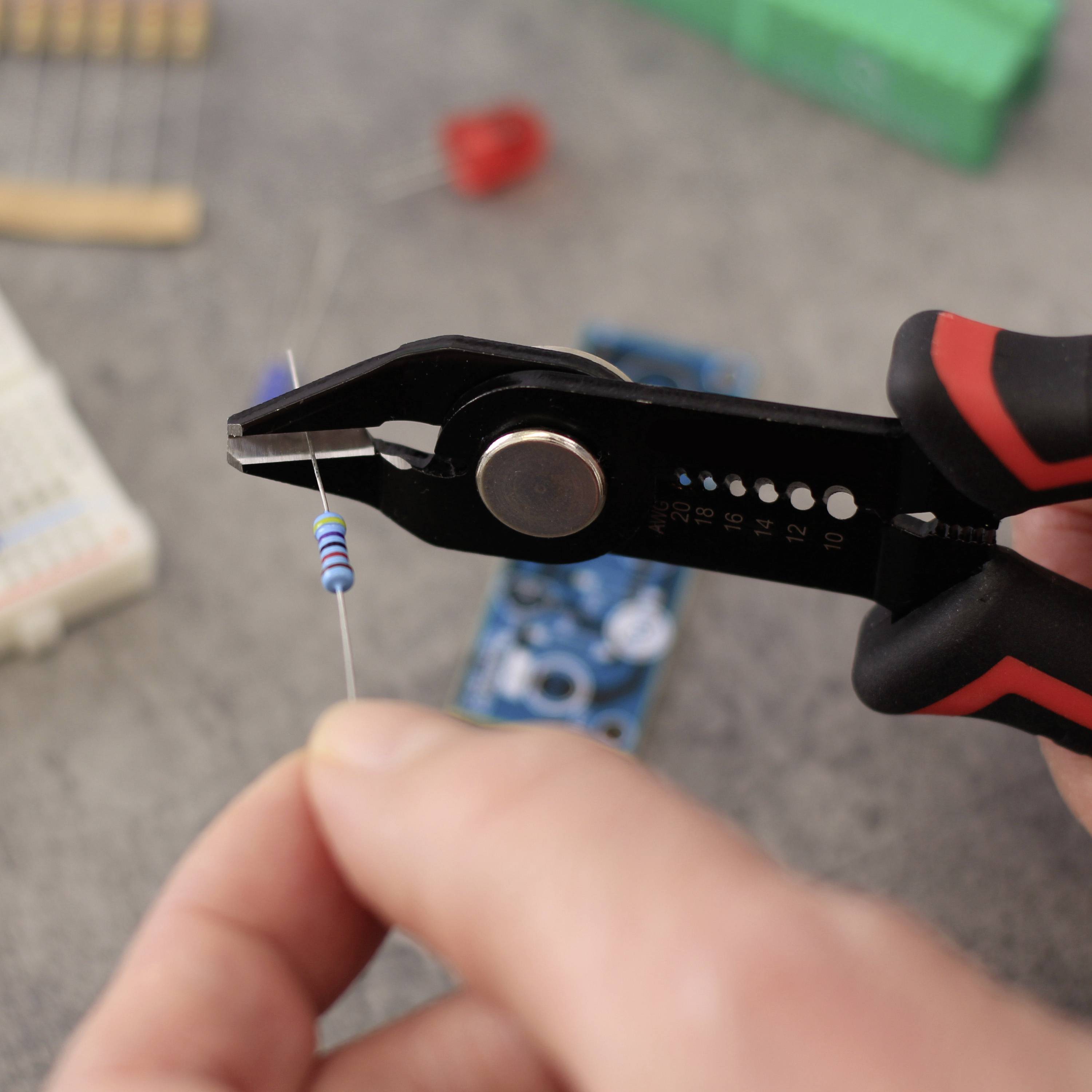

The side cutter is sharp and cut and designed for fine work. The length of the blade is approx. 14 mm. A blunt tip increases guiding primarily on printed circuit boards and in difficult to reach areas.

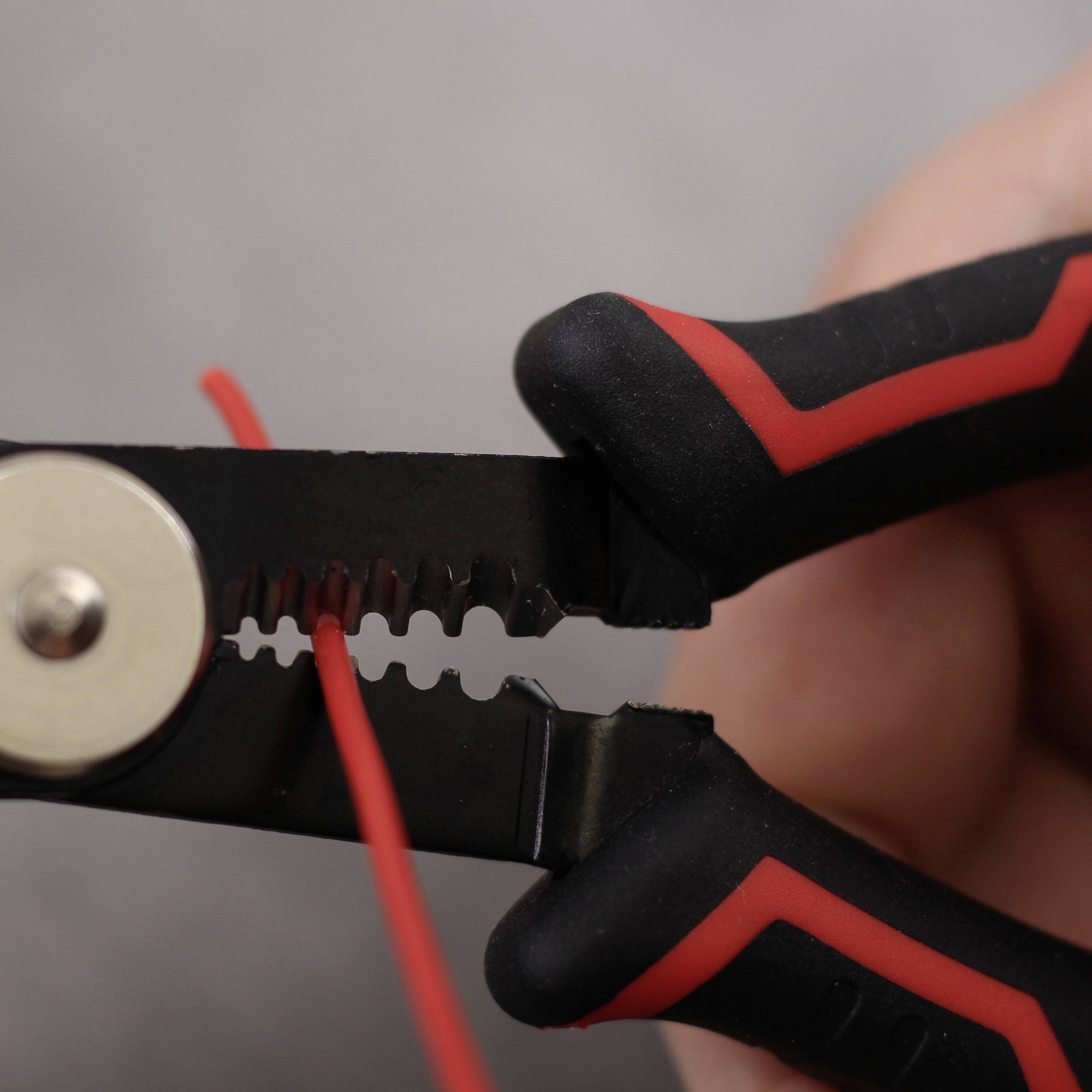

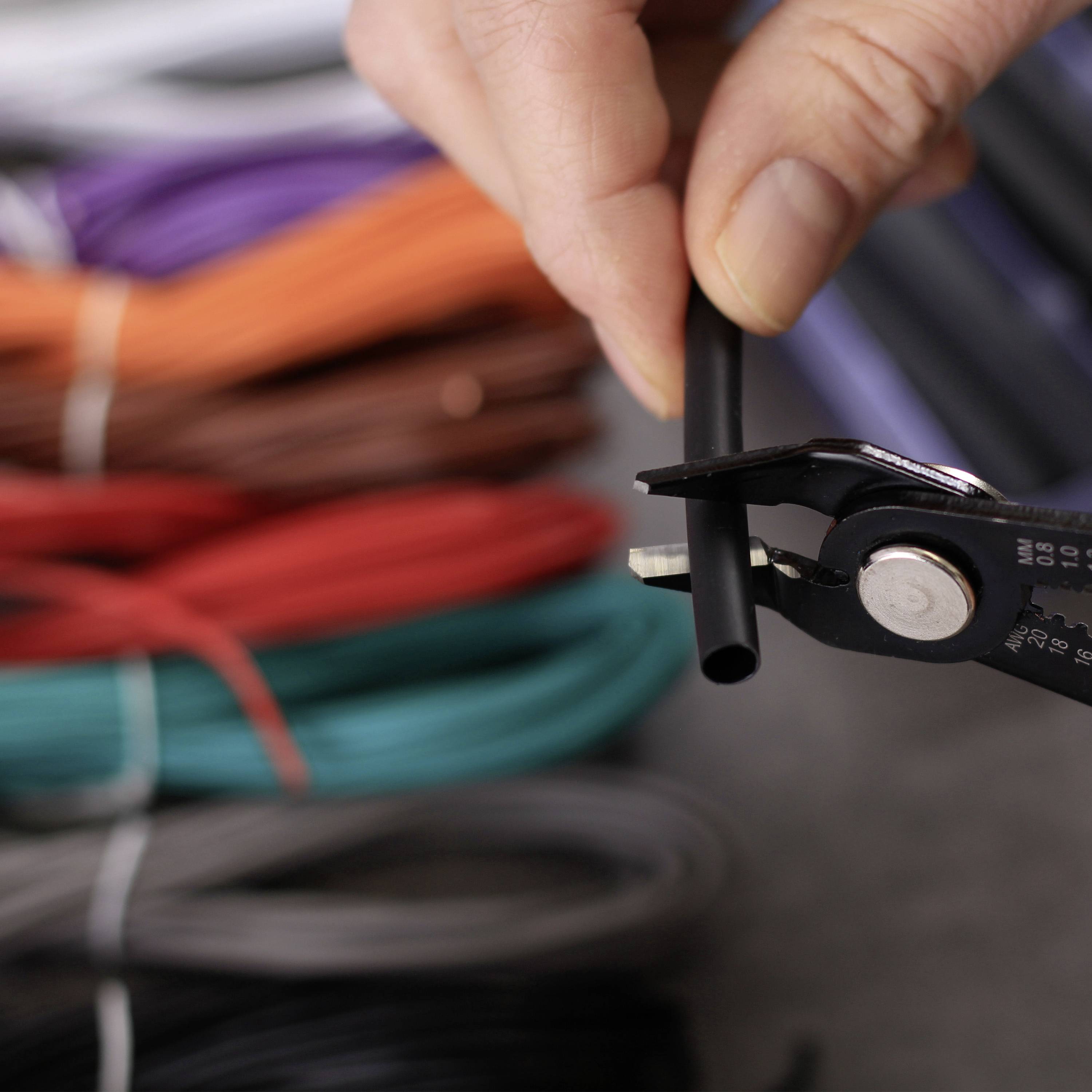

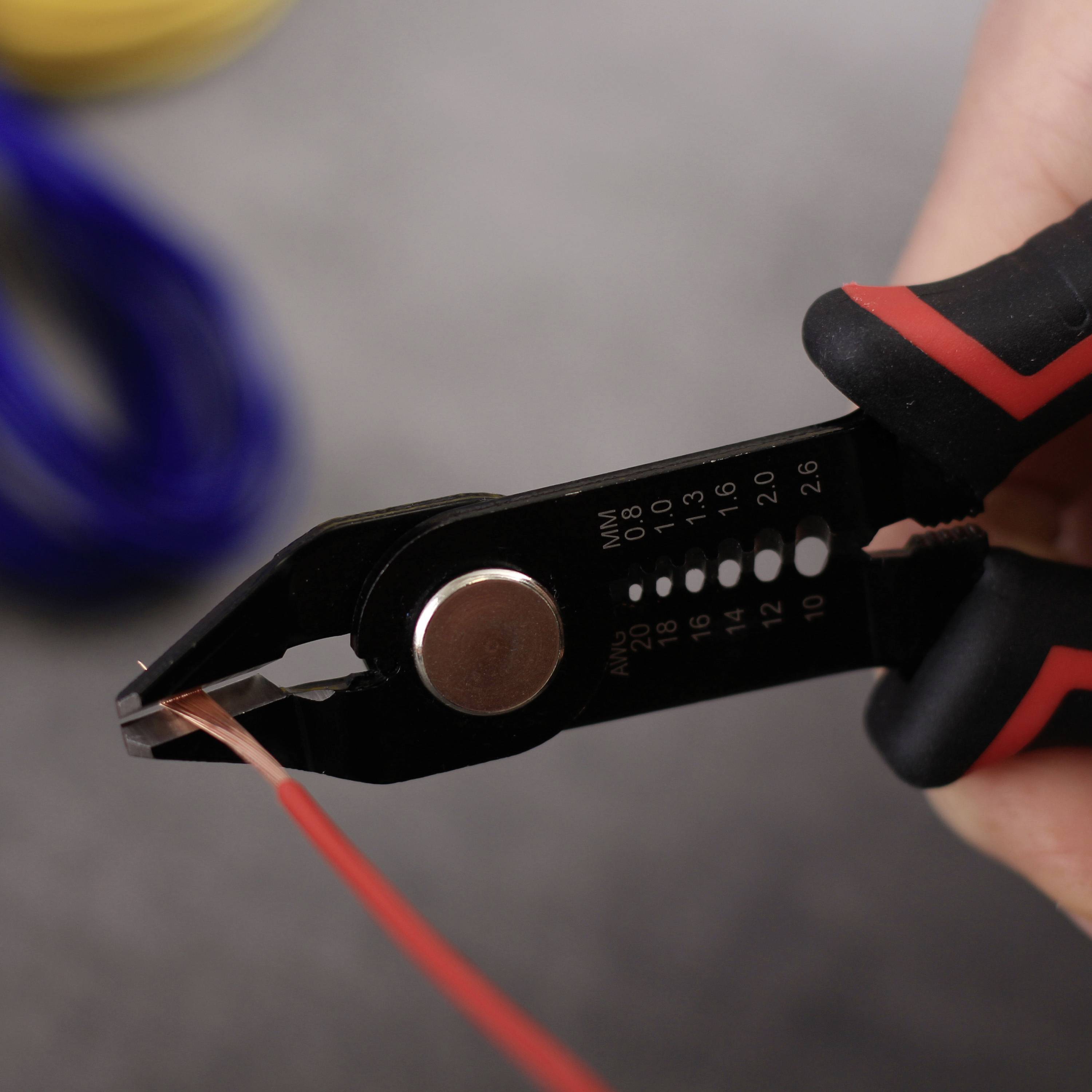

As an additional function the pliers have 6 cutouts for quick stripping of rigid cables or stranded wires in the common cross sections of 0.75 to 6 mm² or AWG 20 - 10, WAS cable diameters from approx. 0.8 to 2.6 mm correspond. The ergonomic grip lies well in the hand and allows a good "grip". The pliers have a locking handle, in order to hold them as compact as possible when not in use and to protect the blade or unoccupied objects that could be transported with it. The spring mechanism is invisibly integrated in the joint. Its low weight of just 113 g guarantees you'll work effortlessly.
Range of delivery: Side-cutting pliers with stripping function.
This text is machine translated.
The side cutter is sharp and cut and designed for fine work. The length of the blade is approx. 14 mm. A blunt tip increases guiding primarily on printed circuit boards and in difficult to reach areas.
As an additional function the pliers have 6 cutouts for quick stripping of rigid cables or stranded wires in the common cross sections of 0.75 to 6 mm² or AWG 20 - 10, WAS cable diameters from approx. 0.8 to 2.6 mm correspond. The ergonomic grip lies well in the hand and allows a good "grip". The pliers have a locking handle, in order to hold them as compact as possible when not in use and to protect the blade or unoccupied objects that could be transported with it. The spring mechanism is invisibly integrated in the joint. Its low weight of just 113 g guarantees you'll work effortlessly.
Range of delivery: Side-cutting pliers with stripping function.
This text is machine translated.
Scope of delivery
- Side-cutting pliers with stripping function
