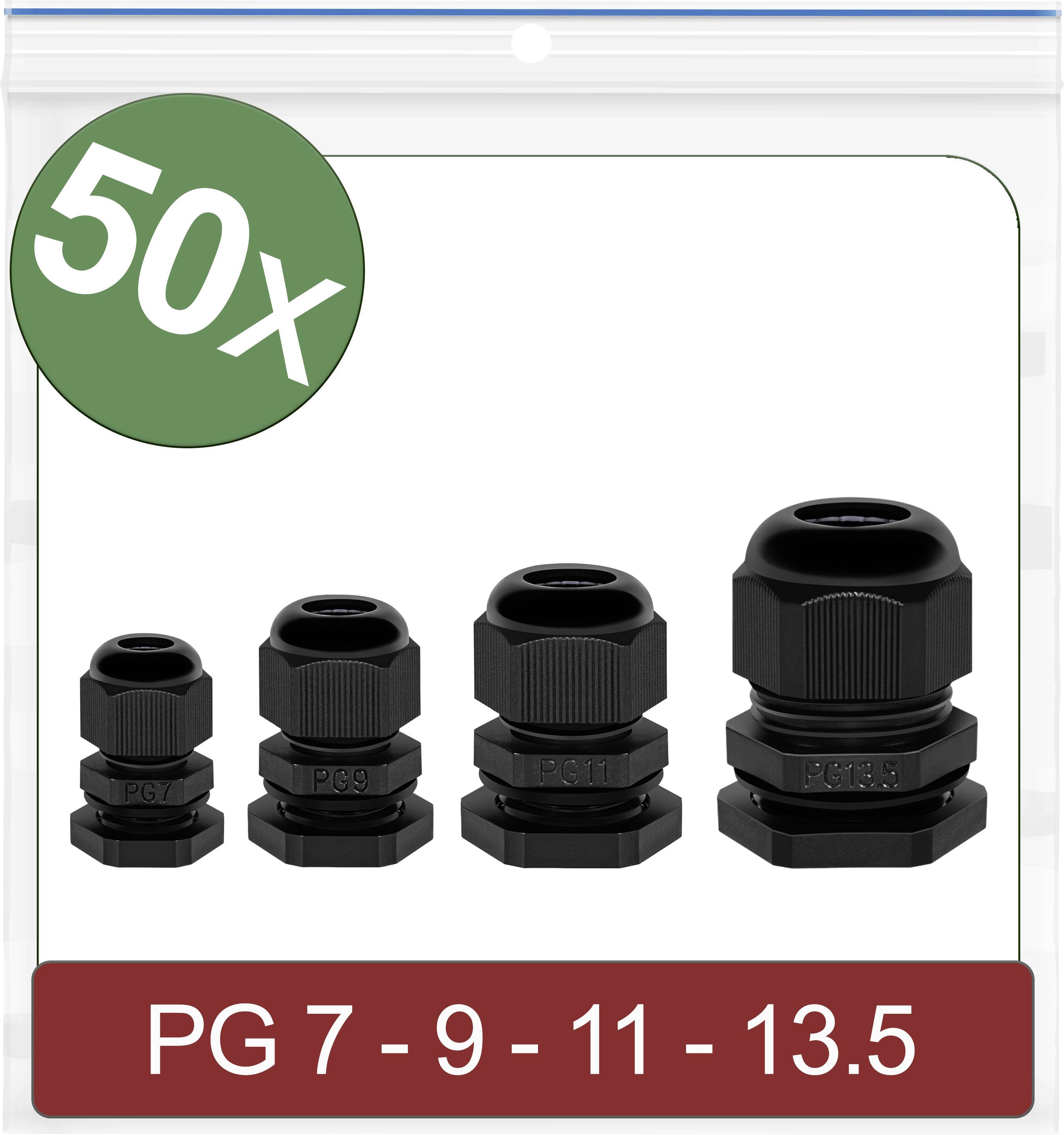

Quadrios 24CA389 Cable gland PG7, PG9, PG11, PG13.5 Polyamide Black 50 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
PG7
PG9
PG11
PG13.5
Material
Polyamide
Clamp Ø
3.5 mm
Terminal Ø (max.)
12 mm
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Only 6 Set(s) available
Highlights & Details
Screwed cable glands PG7 PG7 PG7 PG9 PG11 PG13.5 black 50 PCs
- PG cable fittings made of polyamide
- Colour: black
- Set with 50 cable glands
Our service for you
Technical specifications
- Colour: Black
- Min. Temperature: -20°C.
- Max. Temperature 80°C.
- Material: Polyamide
- EXTERNAL THREAD: PG7;PG9;PG11;PG13.5
- Protection class: IP68
- Clamp-Ø (min.) 3.5 mm
- Clamp-Ø (max.) 12 mm
- Thread length 6 - 8 mm
- Product type
Cable gland
- Factory colour
Black
- External thread
PG7
PG9
PG11
PG13.5
- Material
Polyamide
- Clamp Ø
3.5 mm
- Terminal Ø (max.)
12 mm
- Min. temperature
-20 °C
- Max. temperature
80 °C
IP68
- Content
50 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
24CA389
- Type
24CA389
Documents & Downloads
Datasheet
Datasheet 3362062 Quadrios 24CA389 Cable gland PG7, PG9, PG11, PG13.5 Polyamide Black 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3362062 Quadrios 24CA389 Cable gland PG7, PG9, PG11, PG13.5 Polyamide Black 50 pc(s)
Description
Cable fittings in PG version (steel reinforced duct thread according to DIN40430) enable safe installation and execution of cables from housings or machines. They protect the transition from the interior to the external area against dirt, dust and humidity and at the same time form a strain relief for the cable. The polyamide 6.6 design is very resistant to external influences and can cover a large operating temperature range.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 20 x PG7 cable glands black
- 10 x PG9 cable fittings, black
- 10 x cable glands PG11 black
- 10 x cable glands PG13.5 black
