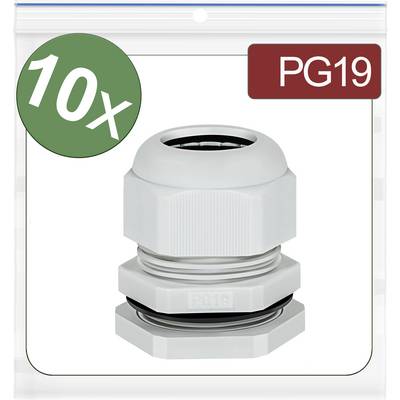

Quadrios 24CA396 Cable gland Polyamide Grey 10 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
Material
Polyamide
Clamp Ø
12 mm
Terminal Ø (max.)
15 mm
Factory colour
Grey
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 6.29 / piece)
€ 6.29
plus VAT.
Highlights & Details
Cable glands PG19 GRAY 10 PCs
- PG cable fittings made of polyamide
- Colour grey.
- Set with 10 cable glands
Technical specifications
- Colour: Grey
- Min. Temperature: -20°C.
- Max. Temperature 80°C.
- Material: Polyamide
- External thread: PG19
- Protection class: IP68
- Clamp-Ø (min.) 12 mm
- Clamp-Ø (max.) 15 mm
- Thread length 9.5 mm
- Product type
Cable gland
- Factory colour
Grey
- Material
Polyamide
- Clamp Ø
12 mm
- Terminal Ø (max.)
15 mm
- Thread length
9.5 mm
- Min. temperature
-20 °C
- Max. temperature
80 °C
IP68
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
24CA396
- Type
24CA396
Documents & Downloads
Datasheet
Datasheet 3362067 Quadrios 24CA396 Cable gland Polyamide Grey 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3362067 Quadrios 24CA396 Cable gland Polyamide Grey 10 pc(s)
Description
Cable fittings in PG version (steel reinforced duct thread according to DIN40430) enable safe installation and execution of cables from housings or machines. They protect the transition from the interior to the external area against dirt, dust and humidity and at the same time form a strain relief for the cable. The polyamide 6.6 design is very resistant to external influences and can cover a large operating temperature range.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 x cable glands PG19 gray
