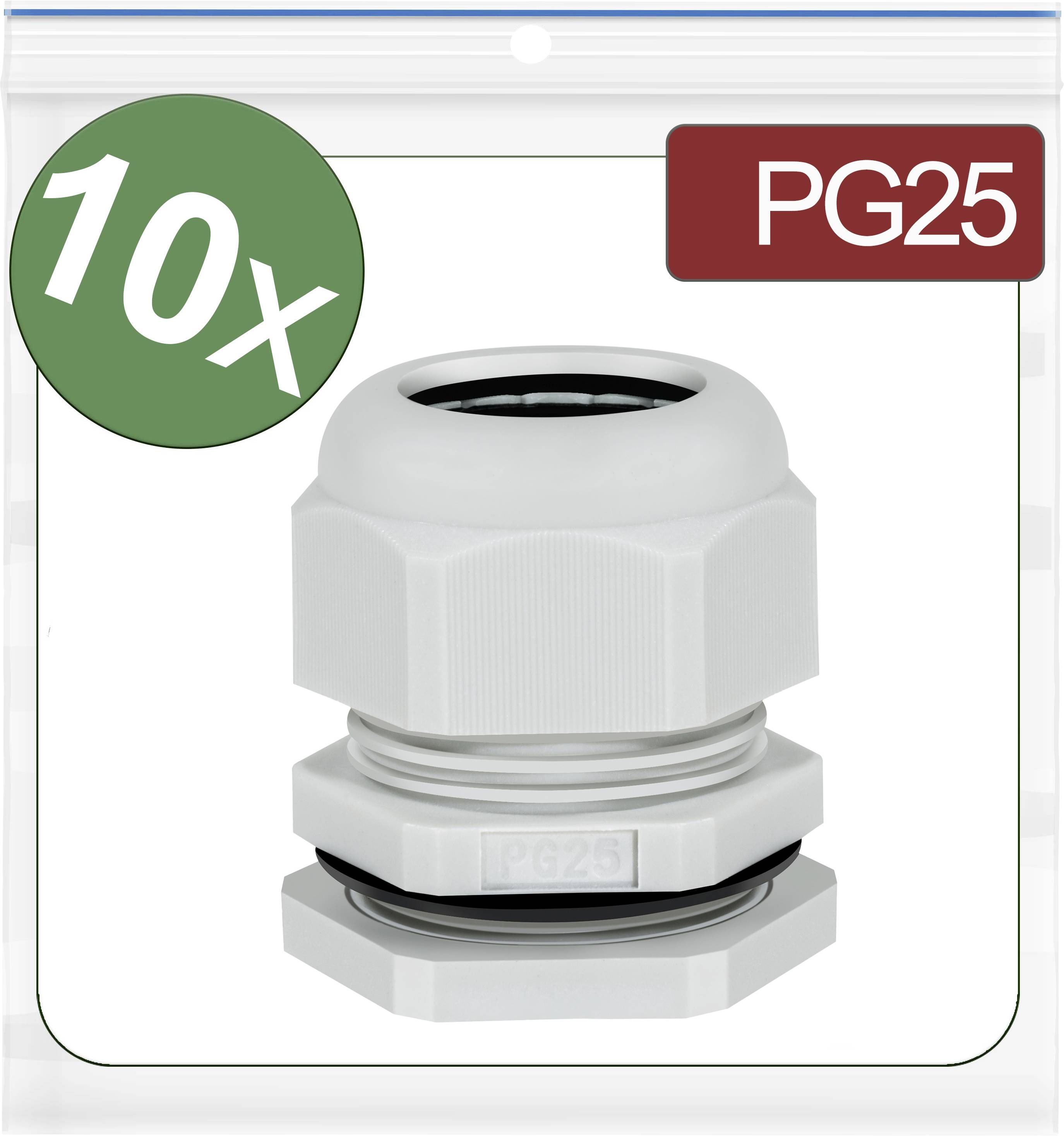

Quadrios 24CA398 Cable gland PG25 Polyamide Grey 10 pc(s)
EAN:
Part number:
Item no:
Product type
Cable gland
External thread
PG25
Material
Polyamide
Clamp Ø
15 mm
Terminal Ø (max.)
22 mm
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 7.97
5
6% = € 0.48
€ 7.49
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 10 pc(s))
Total (€ 7.97 / piece)
€ 7.97
plus VAT.
14-day return policy included
Highlights & Details
Screwed cable glands PG25 GRAY 10 PCs
- PG cable fittings made of polyamide
- Colour grey.
- Set with 10 cable glands
Our service for you
Technical specifications
- Colour: Grey
- Min. Temperature: -20°C.
- Max. Temperature 80°C.
- Material: Polyamide
- External thread PG25
- Protection class: IP68
- Clamp-Ø (min.) 15 mm
- Clamp-Ø (max.) 22 mm
- Thread length 10 mm
- Product type
Cable gland
- Factory colour
Grey
- External thread
PG25
- Material
Polyamide
- Clamp Ø
15 mm
- Terminal Ø (max.)
22 mm
- Thread length
10 mm
- Min. temperature
-20 °C
- Max. temperature
80 °C
IP68
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
24CA398
- Type
24CA398
Documents & Downloads
Datasheet
Datasheet 3362069 Quadrios 24CA398 Cable gland PG25 Polyamide Grey 10 pc(s)
User & Safety Instructions
User & Safety Instructions 3362069 Quadrios 24CA398 Cable gland PG25 Polyamide Grey 10 pc(s)
Description
Cable fittings in PG version (steel reinforced duct thread according to DIN40430) enable safe installation and execution of cables from housings or machines. They protect the transition from the interior to the external area against dirt, dust and humidity and at the same time form a strain relief for the cable. The polyamide 6.6 design is very resistant to external influences and can cover a large operating temperature range.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 x cable glands PG25 gray
