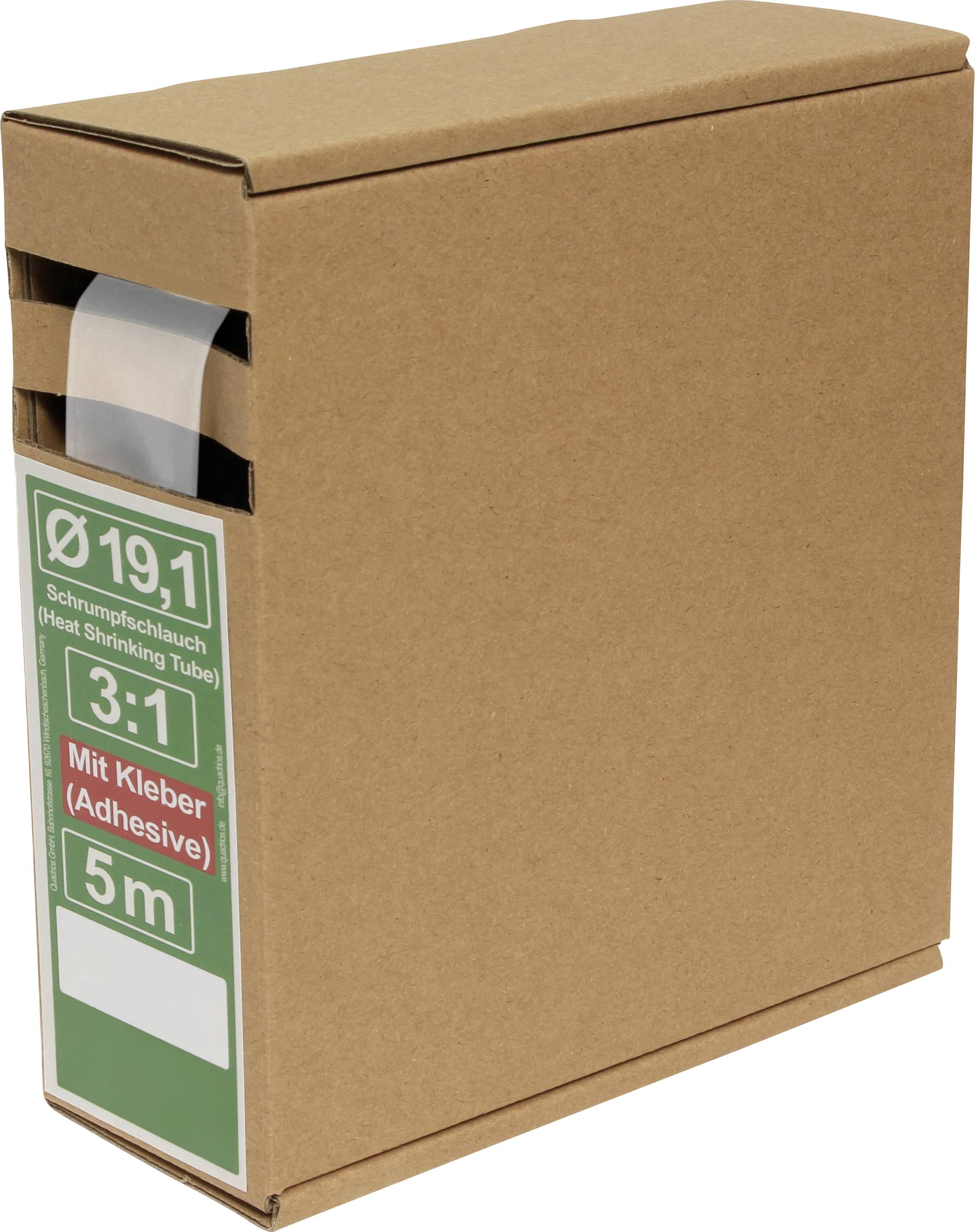

Quadrios 25CA505 Heatshrink + adhesive Transparent 19.1 mm 6.4 mm Shrinkage:3:1 5 m
EAN:
Part number:
Item no:
Product type
Heatshrink + adhesive
Nominal inside diameter (pre-shrinkage)
19.1 mm
Nominal diameter (post-shrinkage)
6.4 mm
Heatshrink features
Dispenser
Content
5 m
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 4.54
€ 22.68
3
1 M = € 4.34
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 4.54)
€ 22.68
plus VAT.
Only 4 Set(s) available
Highlights & Details
Shrink sleeve transparent ⌀ 19.1 mm 3:1 with adhesive 5 m
- 5 m
- Shrinkage: 3:1
- Transparent
- Nominal inside diameter (pre-shrinkage): 19.1 mm
Technical specifications
- Product type
Heatshrink + adhesive
- Nominal inside diameter (pre-shrinkage)
19.1 mm
- Nominal diameter (post-shrinkage)
6.4 mm
- Factory colour
Transparent
- Shrinkage
3:1
- Heatshrink features
Dispenser
- Content
5 m
- Material
PE
- Shrink temperature (min.)
90 °C
- Shrink temperature (max.)
125 °C
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Manufacturer part #
25CA505
- Halogen-free
Yes
- Type
25CA505
Documents & Downloads
Datasheet
Datasheet 3450008 Quadrios 25CA505 Heatshrink + adhesive Transparent 19.1 mm 6.4 mm Shrinkage:3:1 5 m
User & Safety Instructions
User & Safety Instructions 3450008 Quadrios 25CA505 Heatshrink + adhesive Transparent 19.1 mm 6.4 mm Shrinkage:3:1 5 m
Description
These high-quality heat shrink tubing is ideal for service workshops, electronics enthusiasts and laboratory use. In a dispenser box the transparent heat-shrink tubing is located respectively at the piece and can be shortened individually in different nominal diameters. With hot-melting inner adhesive: With correct overlap and application water-proof!
Material: PE, shrink temperature (min.): 90 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 sec.), industrial quality. All hoses fulfill RoHS guidelines and are lead-free and halogen-free.
This text is machine translated.
Material: PE, shrink temperature (min.): 90 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 sec.), industrial quality. All hoses fulfill RoHS guidelines and are lead-free and halogen-free.
This text is machine translated.
Scope of delivery
- 5 m Shrink hose ⌀ 19.1 mm 3:1 with adhesive
