Buy Quadrios 25CW114 Wire LiFY 0.75 mm² Black, Red, White, Blue, Yellow-green, Brown, Grey 1 Set

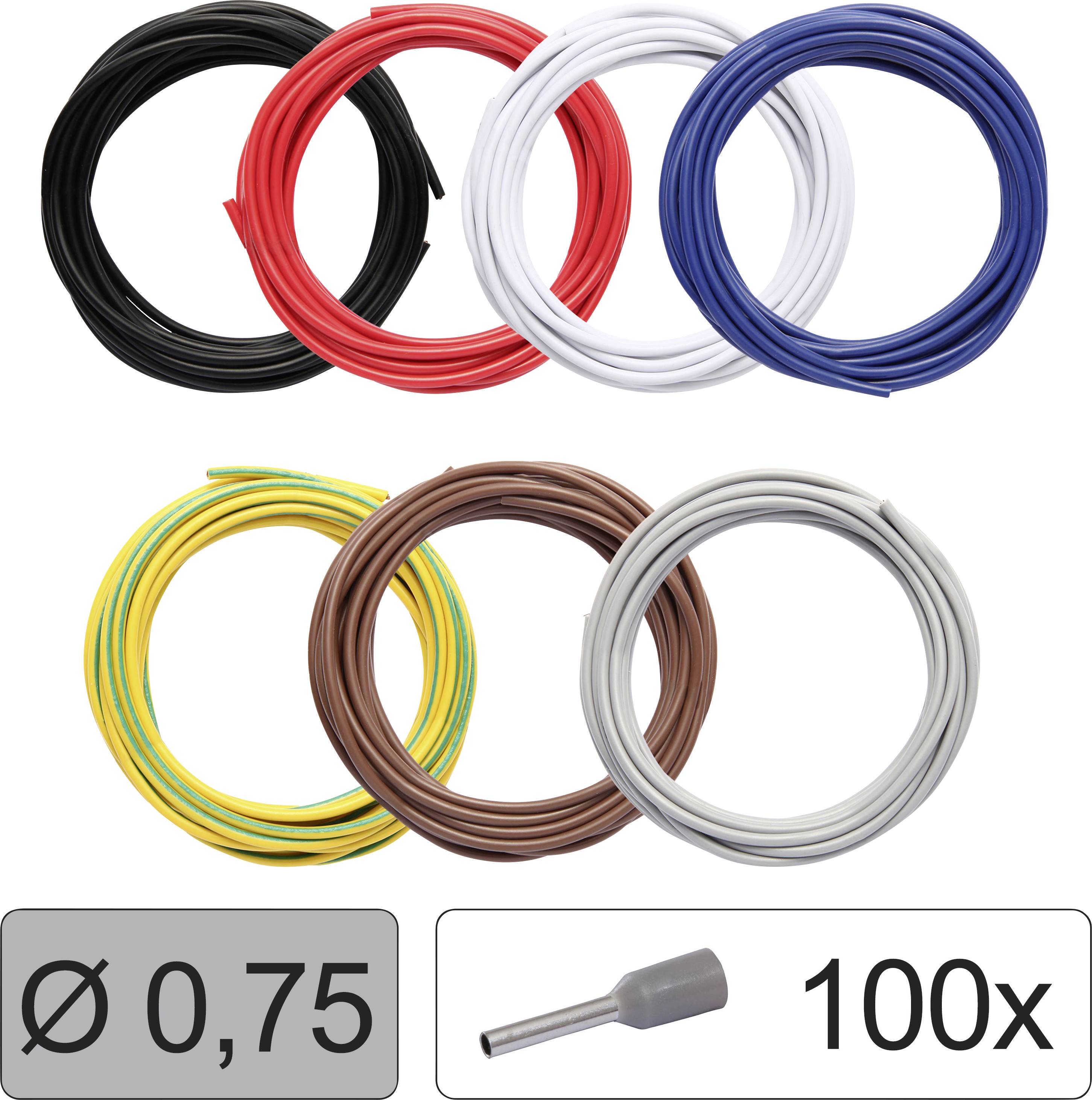

'Set of multicoloured cables with 0.75 mm diameter, including 100 wire end ferrules. Colours: Black, Red, Blue, White, Yellow-Green, Brown, Grey.'

Product type

Wire

Cross section (each core)

0.75 mm²

Cable type

LiFY

Outside Ø

2.2 mm

Content

1 Set

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

4 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Unit Price

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (1 m = € 1.16)

€ 24.36

plus VAT.

Only 4 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Stranded set 7 colors 0.75 mm² 7 x 3 m

Ideal for data lines or for wiring, switching signals, model construction, handicrafts, experiments, Repairs, research and development, etc.
Highly flexible, durable and stable - the structure allows very tight bending radii.
Can be easily stripped
Convenient supply set including 100 matching cable end sleeves (DIN color code)

Technical specifications

Product type: Wire

Content: 1 Set

Cross section (each core): 0.75 mm²

Cable type: LiFY

Outside Ø: 2.2 mm

Halogen-free: Yes

Manufacturer part #: 25CW114

Factory colour: Black
Red
White
Blue
Yellow-green
Brown
Grey

Insulation: PVC

Core layout: 0.1 mm x 96

Nominal voltage U0: 300 V

Cross section: 0.75 mm²

Max. temperature range (flexible installation): 80 °C

Min. temperature range (flexible installation): -15 °C

Max. temperature range (fixed installation): 80 °C

Min. temperature range (fixed installation): -15 °C

Type: 25CW114

Documents & Downloads

Datasheet

Datasheet 3400855 Quadrios 25CW114 Wire LiFY 0.75 mm² Black, Red, White, Blue, Yellow-green, Brown, Grey 1 Set

User & Safety Instructions

User & Safety Instructions 3400855 Quadrios 25CW114 Wire LiFY 0.75 mm² Black, Red, White, Blue, Yellow-green, Brown, Grey 1 Set

Description

High-quality LiFY copper wire for laboratories, workshops, development offices and hobbies.

PVC sheath for high dielectric strength and simple distinction.

High purity copper with excellent solderability for a wide range of applications.

This high-quality copper wire is the optimal solution for multiple applications. The PVC sheath provides good dielectric strength and easy distinction of the cables. The highly pure copper braid can be soldered very well and the solid PVC sheath can be easily stripped. The copper braid is highly flexible, has a long life and is sturdy and meets all normative requirements.
