Quadrios 25CW129 Wire LiFY 2.5 mm² Red, Black 1 Set
EAN:
Part number:
Item no:
Product type
Wire
Cross section (each core)
2.5 mm²
Cable type
LiFY
Outside Ø
3.5 mm
Content
1 Set
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 3.36
€ 20.16
3
1 M = € 3.19
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 3.36)
€ 20.16
plus VAT.
14-day return policy included
Highlights & Details
Strands set red black 2.5 mm² 2 x 3 m
- Ideal for data lines or for wiring, switching signals, model construction, handicrafts, experiments, Repairs, research and development, etc.
- Highly flexible, durable and stable - the structure allows very tight bending radii.
- Can be easily stripped
- Convenient supply set including 100 matching cable end sleeves (DIN color code)
Technical specifications
- Product type
Wire
- Content
1 Set
- Cross section (each core)
2.5 mm²
- Cable type
LiFY
- Outside Ø
3.5 mm
- Halogen-free
Yes
- Manufacturer part #
25CW129
- Factory colour
Red
Black
- Insulation
PVC
- Core layout
0.16 mm x 125
- Nominal voltage U0
300 V
- Cross section
2.5 mm²
- Max. temperature range (flexible installation)
80 °C
- Min. temperature range (flexible installation)
-15 °C
- Max. temperature range (fixed installation)
80 °C
- Min. temperature range (fixed installation)
-15 °C
- Type
25CW129
Documents & Downloads
Datasheet
Datasheet 3400870 Quadrios 25CW129 Wire LiFY 2.5 mm² Red, Black 1 Set
User & Safety Instructions
User & Safety Instructions 3400870 Quadrios 25CW129 Wire LiFY 2.5 mm² Red, Black 1 Set
Description
High-quality LiFY copper wire for laboratories, workshops, development offices and hobbies.
PVC sheath for high dielectric strength and simple distinction.
High purity copper with excellent solderability for a wide range of applications.
This high-quality copper wire is the optimal solution for multiple applications. The PVC sheath provides good dielectric strength and easy distinction of the cables. The highly pure copper braid can be soldered very well and the solid PVC sheath can be easily stripped. The copper braid is highly flexible, has a long life and is sturdy and meets all normative requirements.
This text is machine translated.
PVC sheath for high dielectric strength and simple distinction.
High purity copper with excellent solderability for a wide range of applications.
This high-quality copper wire is the optimal solution for multiple applications. The PVC sheath provides good dielectric strength and easy distinction of the cables. The highly pure copper braid can be soldered very well and the solid PVC sheath can be easily stripped. The copper braid is highly flexible, has a long life and is sturdy and meets all normative requirements.
This text is machine translated.

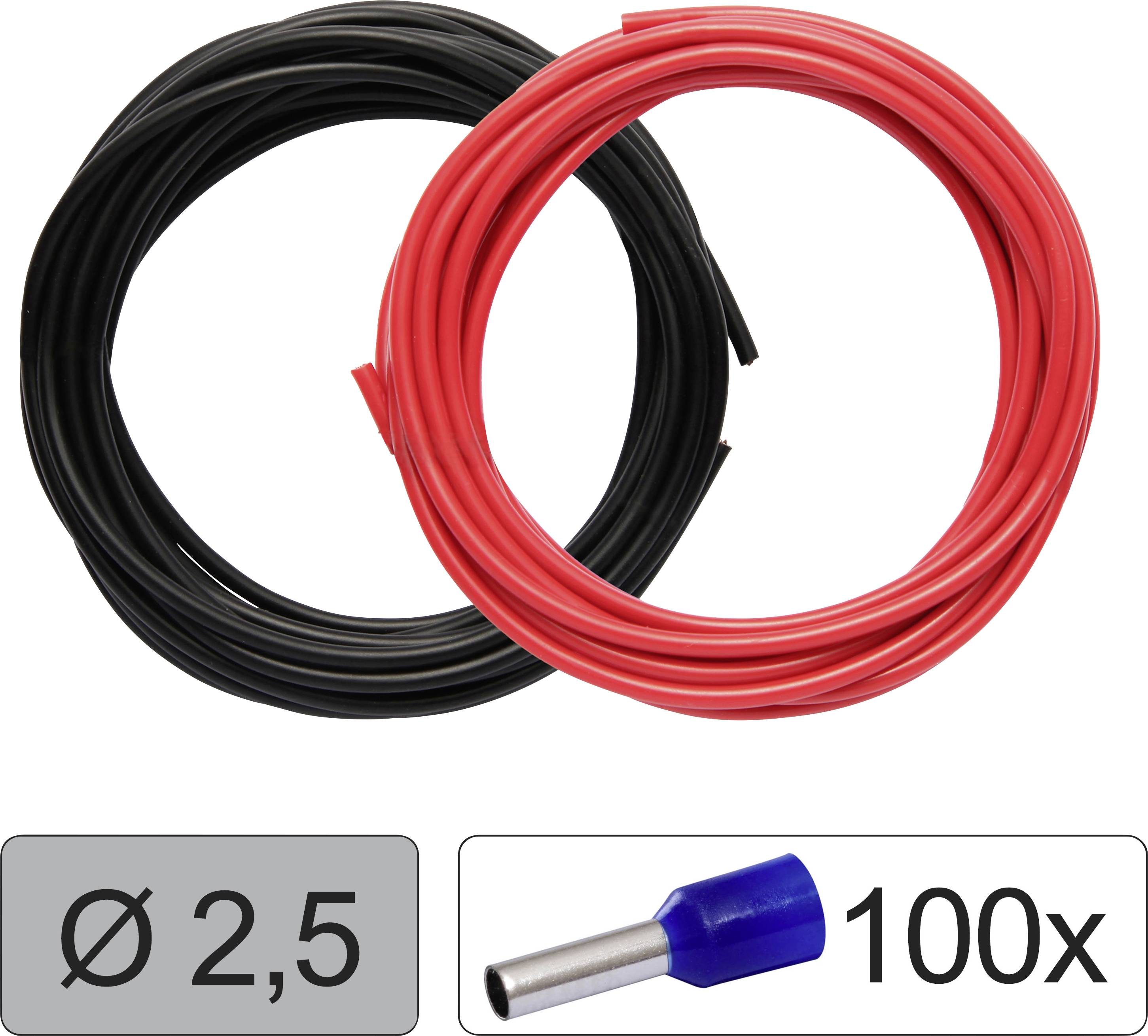

Scope of delivery
- 100 x Wire end sleeves 2.5 mm2, protective collar blue
- 3 m LiFY-stranded wire black, 2.5 mm²
- 3 m LiFY-stranded wire, red 2.5 mm²
