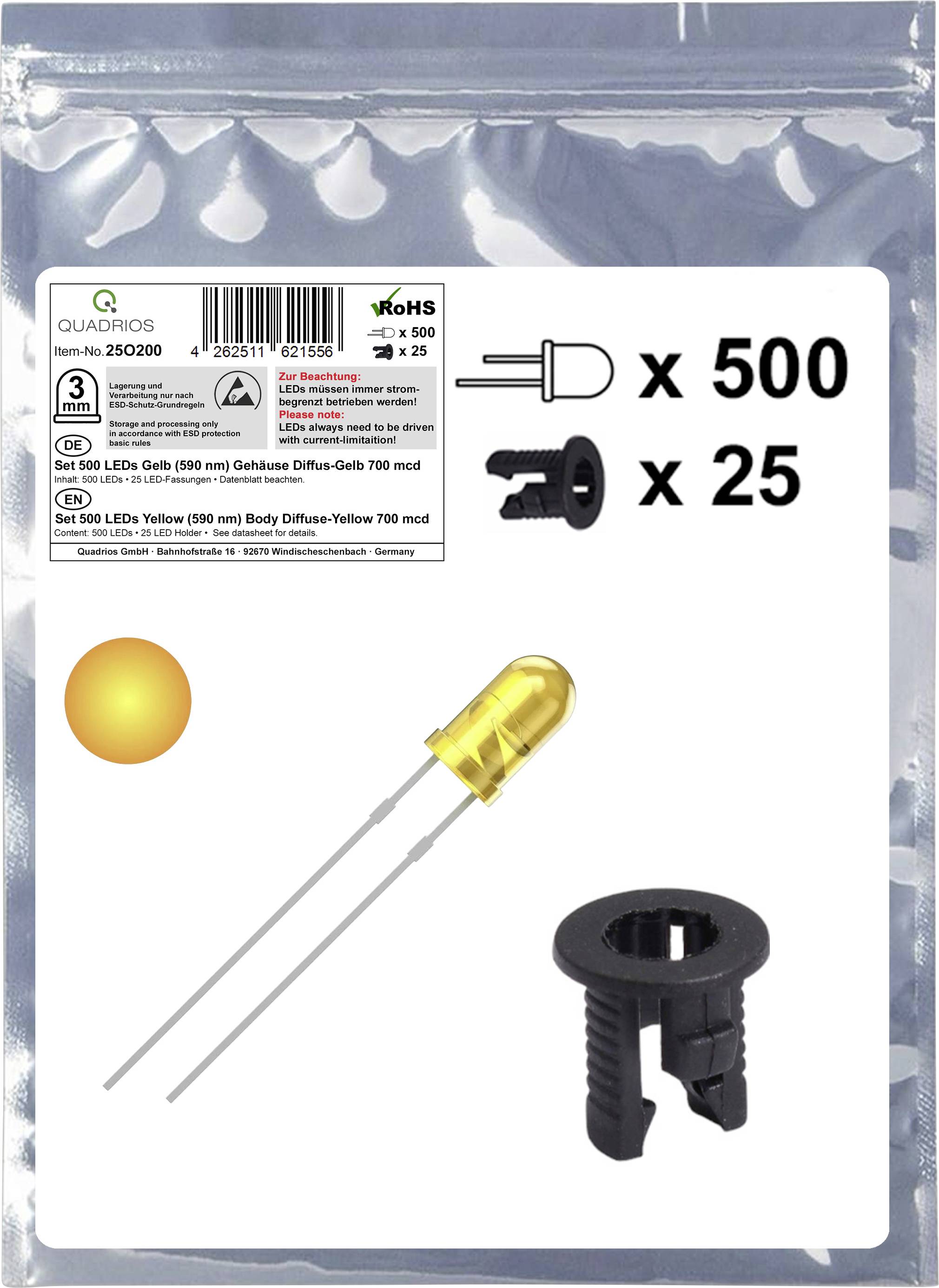

LED set package showing components: 500 yellow LEDs with diffused bodies and 25 plastic holders, product label, and safety icons.

Product type

LED set

Forward voltage U(F)

2.0 V

Forward current I(F)

20 mA

Casing

3 mm

Type

Radial lead

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

8 Set(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 525 Parts)

Set(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

Only 8 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

LED set 500 pc. Yellow housing 3 mm Diffus yellow with 25 LED clips

LEDs yellow 3 mm incl. LED-clips 500 pieces
LED clip holder made of 25 black plastic

Technical specifications

Product type: LED set

Factory colour: Yellow

Forward voltage U(F): 2.0 V

Forward current I(F): 20 mA

Operating voltage: 2.0 V

Operating current: 20 mA

Casing: 3 mm

Type: Radial lead

Light intensity I(V): 700 mcd

Wavelength: 590 nm

Type (LEDs): Diffused

LED features: LED 3 mm

Lens type: Circular

Dim: (Ø) 3 mm

(Ø): 3 mm

Content: 525 Parts

Documents & Downloads

Datasheet

Datasheet 3450071 Quadrios 25O200 LED set Yellow Circular 3 mm 700 mcd 20 mA 2.0 V

User & Safety Instructions

User & Safety Instructions 3450071 Quadrios 25O200 LED set Yellow Circular 3 mm 700 mcd 20 mA 2.0 V

Description

These wired LEDs are ideally suited for common applications and experiments in semiconductor light and display applications. As a common standard component in grid dimension 2.54, the connection of the cathode, to which the negative potential is applied, is shortened. Light diodes must always be operated in forward direction and current limit to the maximum permissible milliampere value to prevent damage. This can be achieved with a constant current source or a suitable series resistor. LEDs are generally characterized by a high degree of efficiency, low energy consumption, long life/robustness and a directed light emission.
25 suitable LED clip sockets for snap-in mounting types are also included, with which LEDs can be mounted in front panels.
Note:
All standard LED chips require a current-limiting resistor/constant current power source.
