Quadrios 26CA772 Heatshrink w/o adhesive Black 10 mm 5 mm Shrinkage:2:1 10 m
EAN:
Part number:
Item no:
Product type
Heatshrink w/o adhesive
Nominal inside diameter (pre-shrinkage)
10 mm
Nominal diameter (post-shrinkage)
5 mm
Heatshrink features
Dispenser
Content
10 m
Datasheet (PDF)
Quantity (Set(s))
Unit Price
Package size (plus VAT.)
1
1 M = € 1.43
€ 14.28
3
1 M = € 1.35
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m = € 1.43)
€ 14.28
plus VAT.
14-day return policy included
Highlights & Details

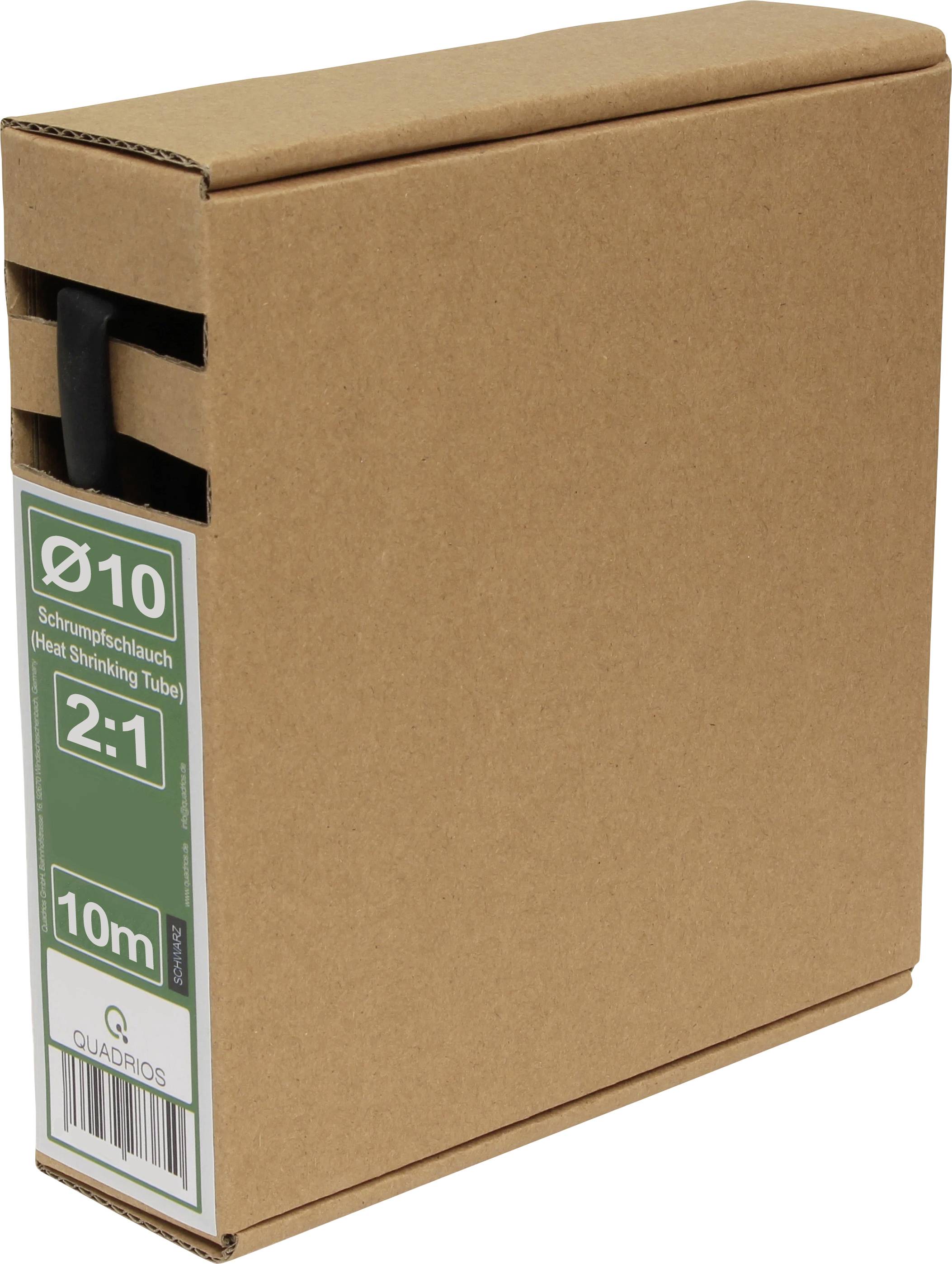

Shrink tubing black 2:1 10 mm in dispenser box 10 m
- 10 m
- Shrinkage: 2:1
- Black
- Nominal inside diameter (pre-shrinkage): 10 mm
Technical specifications
- Product type
Heatshrink w/o adhesive
- Nominal inside diameter (pre-shrinkage)
10 mm
- Nominal diameter (post-shrinkage)
5 mm
- Factory colour
Black
- Shrinkage
2:1
- Heatshrink features
Dispenser
- Content
10 m
- Material
PE
- Shrink temperature (min.)
90 °C
- Shrink temperature (max.)
125 °C
- Min. temperature
-40 °C
- Max. temperature
+125 °C
- Manufacturer part #
26CA772
- Halogen-free
Yes
- Length
10 m
- Type
26CA772
Documents & Downloads
Datasheet
Datasheet 3731403 Quadrios 26CA772 Heatshrink w/o adhesive Black 10 mm 5 mm Shrinkage:2:1 10 m
User & Safety Instructions
User & Safety Instructions 3731403 Quadrios 26CA772 Heatshrink w/o adhesive Black 10 mm 5 mm Shrinkage:2:1 10 m
Description
These high-quality heat shrink tubing is ideal for service workshops, electronics enthusiasts and laboratory use. In a dispenser box the black shrink tube is located respectively at the piece and can be shortened individually in different nominal diameters.
Material: PE, shrink temperature (min.): 90 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 sec.), industrial quality. All hoses fulfill RoHS guidelines and are lead-free and halogen-free.
This text is machine translated.
Material: PE, shrink temperature (min.): 90 °C, shrink temperature (max.): 125 °C, operating temperature: -40 °C to +125 °C, tensile strength (min.): 10.4 MPa, dielectric strength 15 kV/mm (30 sec.), industrial quality. All hoses fulfill RoHS guidelines and are lead-free and halogen-free.
This text is machine translated.
Scope of delivery
- 10 m shrink hose 2:1 black Ø 10 mm
