Quadrios ESD bench mat Green (L x W) 65 mm x 50 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
Only 2 Piece(s) available
Highlights & Details
ESD-work surface 65 x 50 cm
- High quality ESD work surface with two push button connections 65 x 50 cm
- Meets the requirements of the "ESD Standard" DIN EN 61340-5-1
- Suitable for left-handed and right-handed persons
- Grate with both grooves and low-reflection green surface for fatigue-free working
Technical specifications
- Product type
ESD bench mat
- Factory colour
Green
- Connection
10 mm stud and socket
- Type
anti-static
- Leak resistance
10 MΩ
- Length
65 mm
- Width
50 mm
- Dim
(L x W) 65 mm x 50 mm
- Range of use
ESD
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3450101 Quadrios ESD bench mat Green (L x W) 65 mm x 50 mm
User & Safety Instructions
User & Safety Instructions 3450101 Quadrios ESD bench mat Green (L x W) 65 mm x 50 mm
Description

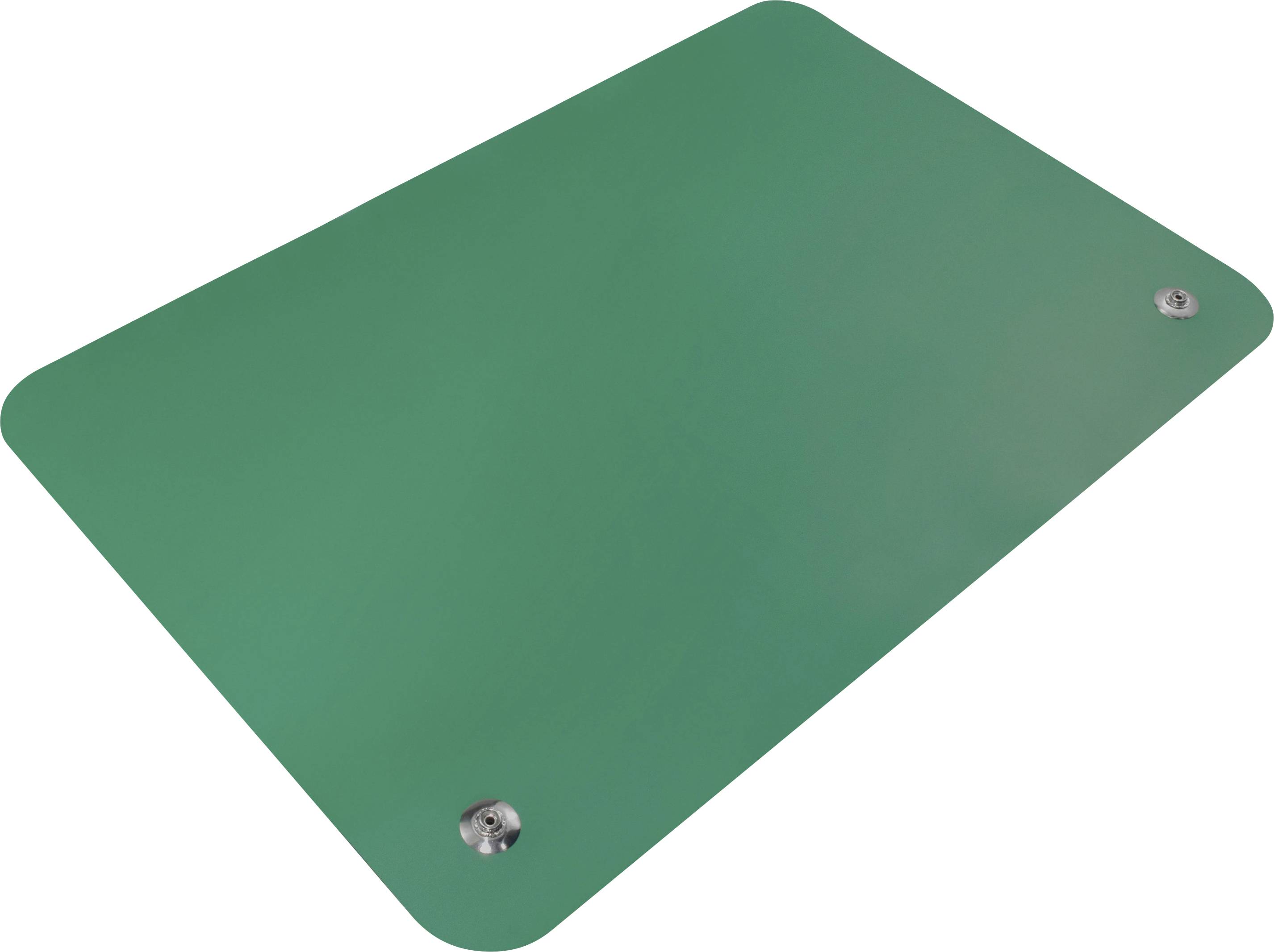

This anti-static working mat has a non-reflective, ribbed and non-slip green surface with a surface resistance of 10⌃7 - 10⌃9 Ω. It is resistant to abrasion and ideal for ESD applications. The practical size and shape of the mat proves to be advantageous while working - in the left and right corner there is a 10 mm push-button terminal, on which the base can be integrated in the work place concept.
Another very important feature is the conformity with the legal requirements of DIN EN 61340-5-1 (requirements for protection against electrostatic phenomena). This is the only way to ensure that the device also performs the functions: Avoid electrostatic charges and protect sensitive components or modules against electric shocks.
Design: Table top 60 x 120 cm. Design with two push-button connections.
This text is machine translated.
Another very important feature is the conformity with the legal requirements of DIN EN 61340-5-1 (requirements for protection against electrostatic phenomena). This is the only way to ensure that the device also performs the functions: Avoid electrostatic charges and protect sensitive components or modules against electric shocks.
Design: Table top 60 x 120 cm. Design with two push-button connections.
This text is machine translated.
Scope of delivery
- 1 x ESD-work surface 65 x 50 cm
