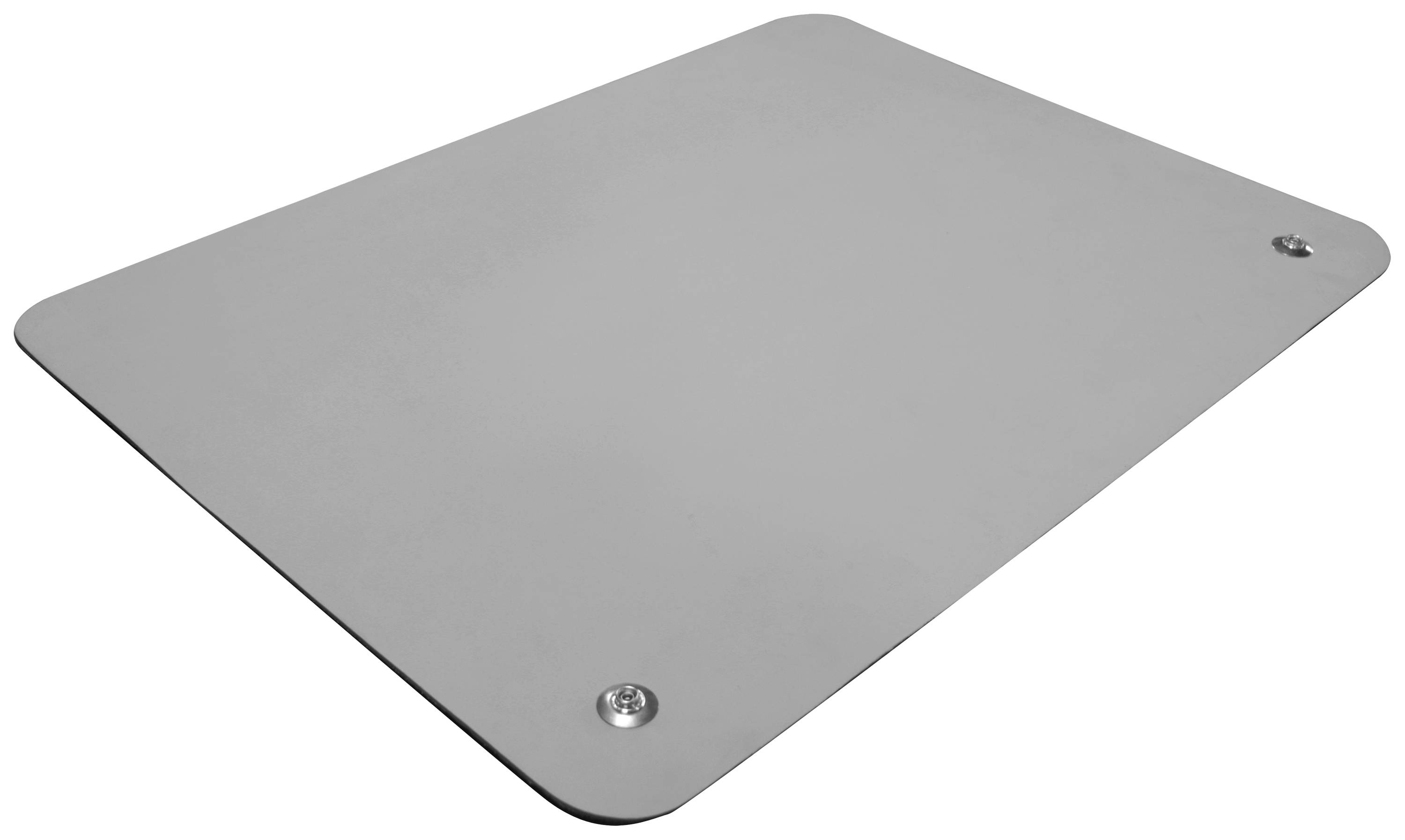

Quadrios ESD bench mat Grey (L x W) 600 mm x 400 mm heat-proof
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Unit Price
Package size (plus VAT.)
1
1 M2 = € 112.00
€ 26.88
3
1 M2 = € 107.13
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (1 m2 = € 112.00)
€ 26.88
plus VAT.
14-day return policy included
Highlights & Details
ESD-work surface 60 x 40 cm
- High quality ESD work surface with two push button connections
- Meets the requirements of the "ESD Standard" DIN EN 61340-5-1
- Smooth, low-reflection surface for fatigue-free working
Technical specifications
- Product type
ESD bench mat
- Factory colour
Grey
- Connection
10 mm stud and socket
- Type
conductive
- Features
heat-proof
- Material
Vinyl
- Leak resistance
10 MΩ
- Length
600 mm
- Width
400 mm
- Dim
(L x W) 600 mm x 400 mm
- Range of use
ESD
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3019885 Quadrios ESD bench mat Grey (L x W) 600 mm x 400 mm heat-proof
User & Safety Instructions
User & Safety Instructions 3019885 Quadrios ESD bench mat Grey (L x W) 600 mm x 400 mm heat-proof
Description
In today's world of electronics and technology there is inevitably a conflict with the phenomenon of "ESD" (electrostatic discharge). Many components, modules, plug-in cards etc. are highly sensitive to the electrical discharges in a daily routine which often happens unnoticed.
This professional vinyl-coated working place is specially developed for handling ESD-sensitive components and has a typical leakage resistance of 10 ^7 - 10 ^9 ohms. It is also resistant to abrasion and has a certain basic resistance against heat, such as dripping solder. In the upper left and right corners a 10 mm push button is fitted and can therefore be used without problems for left-handers and right-handers. The mat is designed for existing work places or as a spare part for worn documents and can be easily integrated in the system with the help of the push-button connections.
This text is machine translated.
This professional vinyl-coated working place is specially developed for handling ESD-sensitive components and has a typical leakage resistance of 10 ^7 - 10 ^9 ohms. It is also resistant to abrasion and has a certain basic resistance against heat, such as dripping solder. In the upper left and right corners a 10 mm push button is fitted and can therefore be used without problems for left-handers and right-handers. The mat is designed for existing work places or as a spare part for worn documents and can be easily integrated in the system with the help of the push-button connections.
This text is machine translated.
Scope of delivery
- 1x ESD-work surface with push button terminals
