Buy Quadrios LED set Multi-coloured Circular 3 mm 20 mA 2 V, 3 V Box

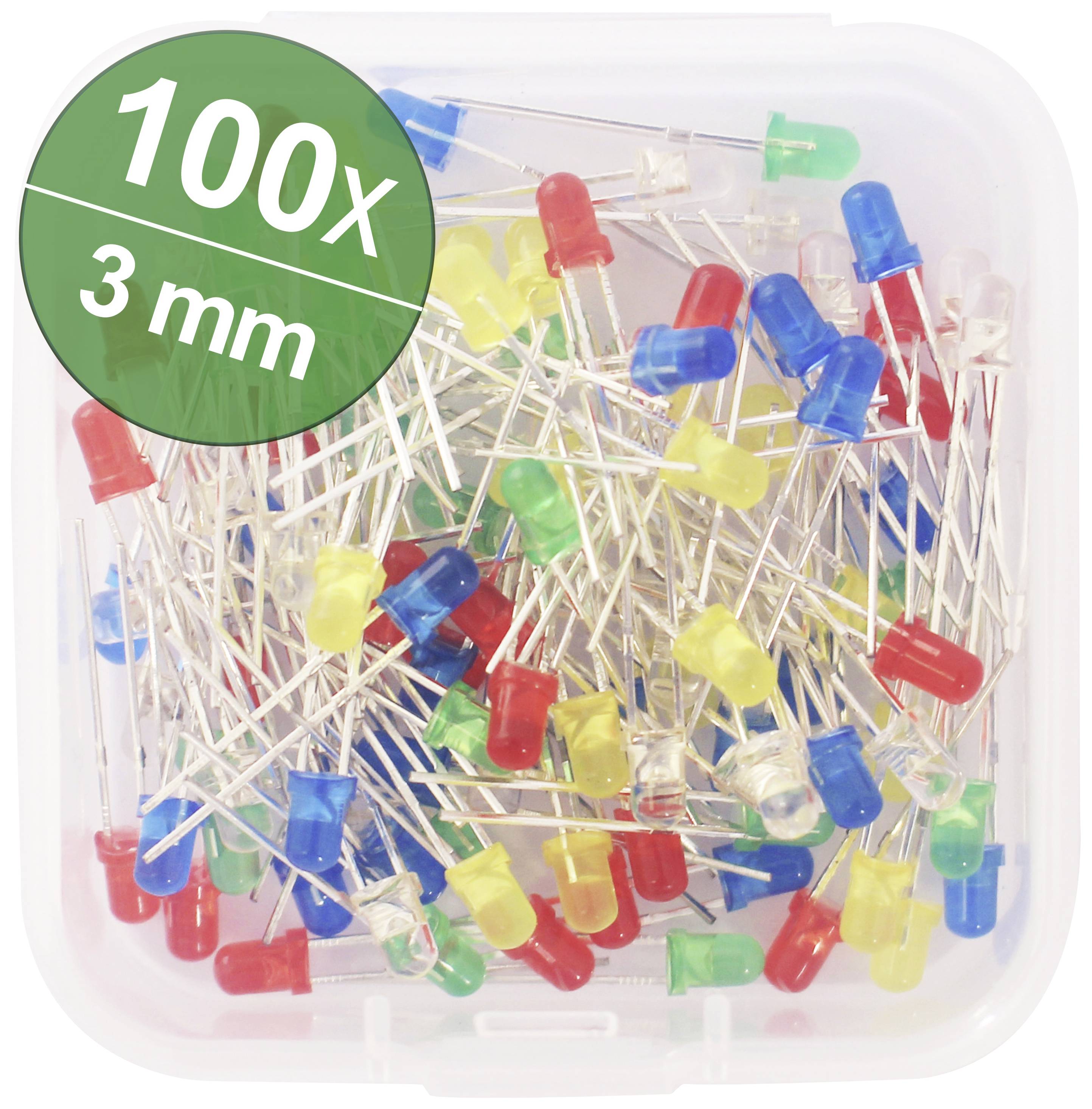

'100x 3 mm' LEDs in red, yellow, green, blue in a plastic box.

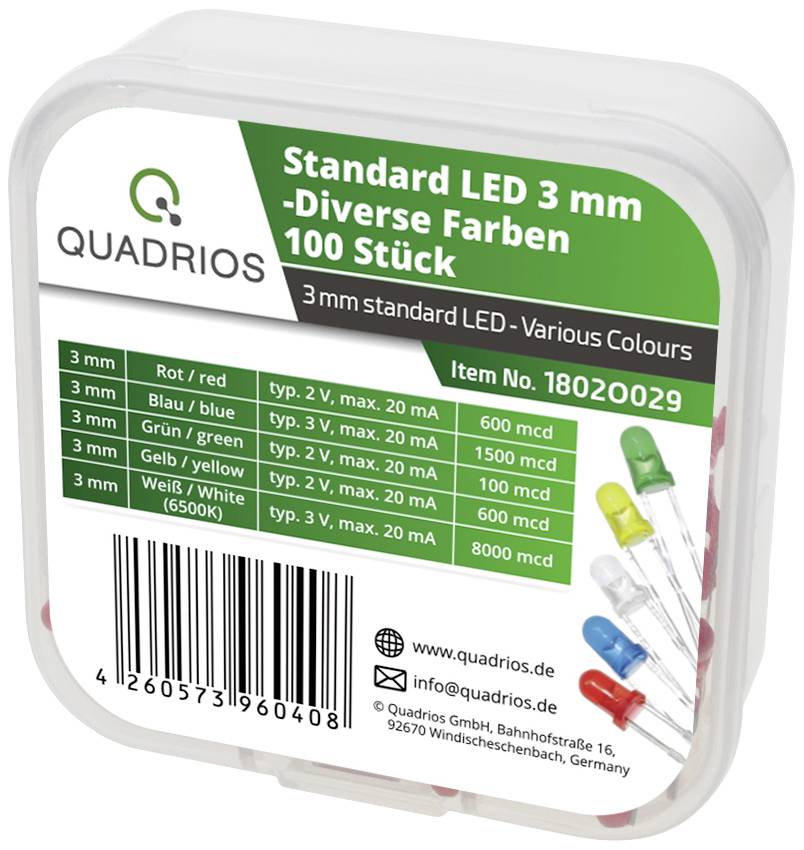

Packaging containing 100 LEDs in various colours (Red, Blue, Green, Yellow, White), 3 mm size, each with technical specifications.

Circuit diagram for calculating the series resistor for LEDs, showing two example circuits with voltage, current, and formulas.

1/3

Packaging type

Box

Product type

LED set

Forward voltage U(F)

2 V

3 V

Forward current I(F)

20 mA

Casing

3 mm

Datasheet (PDF)

Fast track dispatch on Mon, 12 Oct

24 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 100 Parts)

Set(s)

Total (€ 5.45 / piece)

€ 5.45

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Standard-LED-set colored 3 mm 100 PCs.

High quality light emitting diodes 3 mm in red, blue, green, yellow and warm white
Total content of 100 parts

Our service for you

Technical specifications

Colour: Coloured
Housing: 3mm
Design: Radially wired
Lens shape: Round
Material: Red - gap, blue - InGaAIP, green - InGaAIP, yellow - gap, warm-white - InGaAIP
Forward voltage U(F): Red – 2.0 V, blue – 3.0 V, green – 2.0 V, yellow – 2.0 V, warm white – 3.0 V
Forward current I(F): Red – 20 mA, blue – 20 mA, green – 20 mA, yellow – 20 mA, warm white – 20 mA
Light intensity I(V): Red – 600 mcd, blue – 1500 mcd, green – 100 mcd, yellow – 600 mcd, warm white – 9000 mcd
Wavelength/color temperature: Red – 625-635nm, blue – 460-465nm, green – 568-572nm, yellow – 587-590nm, cold white – 8000-9000K, Warm white - 3000-3200K
Angle of radiation: Red - 30°, blue - 30°, green - 30°, yellow - 30°, warm white - 25°
Housing color/design: Red - diffused, blue - diffuse, green - diffuse, yellow - diffuse, warm-white - clear
Temperature range: -25 °C – 80 °C

Packaging type: Box

Product type: LED set

Factory colour: Multi-coloured

Forward voltage U(F): 2 V
3 V

Forward current I(F): 20 mA

Operating current: 20 mA

Casing: 3 mm

Type: Radial lead

Type (LEDs): Diffused

Technology: GaP
InGaAIP

Lens type: Circular

Dim: (Ø) 3 mm

Min. temperature: -25 °C

Max. temperature: 80 °C

(Ø): 3 mm

RoHS-compliant: Yes

Content: 100 Parts

Documents & Downloads

Datasheet

Datasheet 2899405 Quadrios LED set Multi-coloured Circular 3 mm 20 mA 2 V, 3 V Box

User & Safety Instructions

User & Safety Instructions 2899405 Quadrios LED set Multi-coloured Circular 3 mm 20 mA 2 V, 3 V Box

Description

This experimental and practical assortment with wired standard LEDs diameter 3 mm in red, blue, green, yellow and warm white is ideally suited for immediate start in experiments with semiconductor light.
The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that, for example, the LEDs can be operated in their specific parameters because the components are clearly specified. Please note that LEDs must always be current-limited by a series resistor or a constant current source!
Delivery: Blister pack, 3 mm LEDs (each 20 pieces) in the colors red (IV 600 mcd/ beam angle 30°), blue (IV 1500 mcd/ beam angle 30°), green (IV 100 mcd/ beam angle 30°), yellow (IV 600 mcd/ beam angle 30°), warm-white (IV 9000 mcd/ beam angle 25°).

This text is machine translated.
