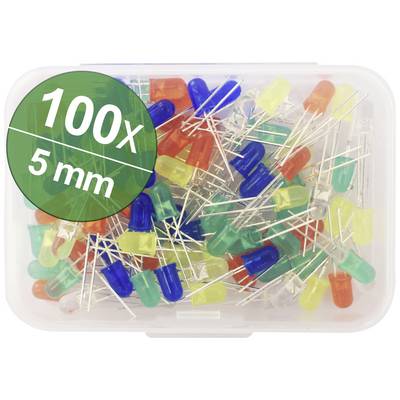

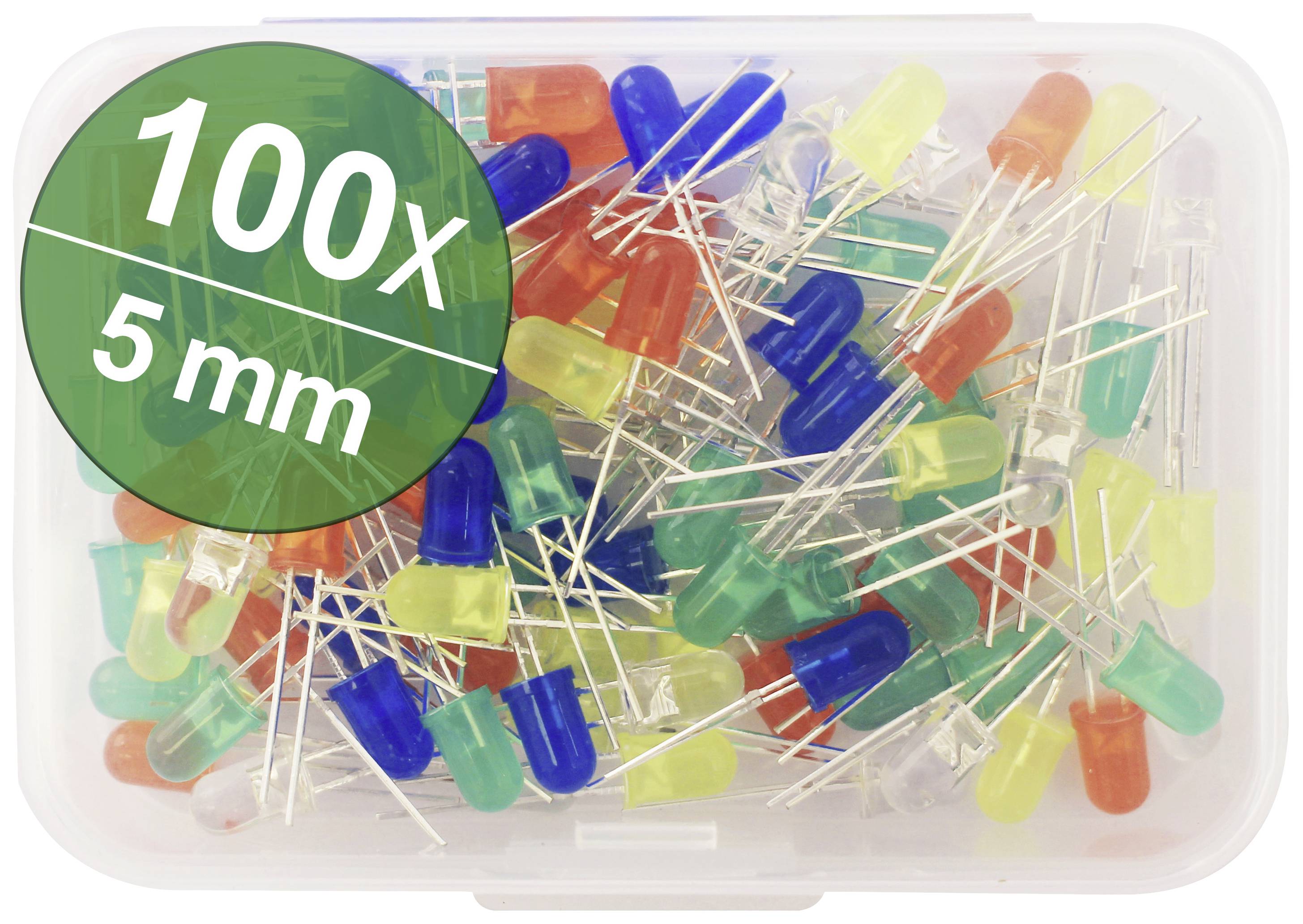

A box of 100 coloured LEDs, 5 mm in size, in various colours.

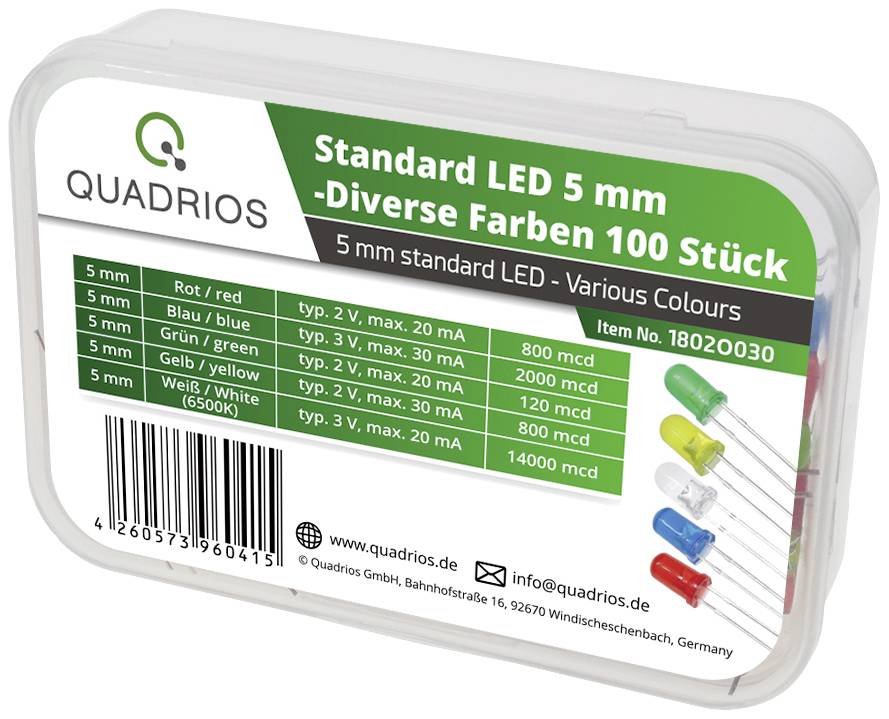

'Standard LED 5 mm, various colours, 100 pieces: Red, Blue, Green, Yellow, White. Types 2, 3, 4 with different mcd values.'

Circuit diagram for calculating the series resistor for LEDs, showing two example circuits with voltage, current, and formulas.

1/3

Product type

LED set

Forward voltage U(F)

2 V

3 V

Forward current I(F)

20 mA

30 mA

Casing

5 mm

Type

Radial lead

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

89 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 100 Parts)

Set(s)

Total (€ 6.29 / piece)

€ 6.29

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Standard-LED-set colored 5 mm 100 PCs.

Light diodes 5 mm in red, blue, green, yellow, warm white
Total content of 100 parts

Our service for you

Technical specifications

Colour: Coloured
Casing: 5 mm
Design: Radially wired
Lens shape: Round
Material: Red - gap, blue - InGaAIP, green - InGaAIP, yellow - gap, warm-white - InGaAIP
Forward voltage U(F): Red – 2.0 V, blue – 3.0 V, green – 3.0 V, yellow – 2.0 V, warm white – 3.0 V
Forward current I(F): Red – 20 mA, blue – 30 mA, green – 20 mA, yellow – 30 mA, warm white – 20 mA
Light intensity I(V): Red – 800 mcd, blue – 2000 mcd, green – 120 mcd, yellow – 800 mcd, warm white – 20000 mcd
Wavelength/color temperature: Red – 625-635nm, blue – 460-470nm, green – 568-572nm, yellow – 587-590nm, warm white – 2500-2700K
Angle of radiation: Red - 35°, blue - 35°, green - 35°, yellow - 35°, warm white - 30°
Housing color/design: Red - diffused, blue - diffuse, green - diffuse, yellow - diffuse, warm-white - clear
Temperature range: -25 °C – 80 °C

Product type: LED set

Factory colour: Multi-coloured

Forward voltage U(F): 2 V
3 V

Forward current I(F): 20 mA
30 mA

Operating voltage: 3 V

Operating current: 20 mA

Casing: 5 mm

Type: Radial lead

Light intensity I(V): 20000 mcd

Radiation angle: 35°

Type (LEDs): Diffused

Technology: GaP
InGaAIP

Lens type: Circular

Dim: (Ø) 5 mm

Min. temperature: -25 °C

Max. temperature: 80 °C

(Ø): 5 mm

RoHS-compliant: Yes

Content: 100 Parts

Documents & Downloads

Datasheet

Datasheet 2899406 Quadrios LED set Multi-coloured Circular 5 mm 20000 mcd 35 ° 20 mA, 30 mA 2 V, 3 V

User & Safety Instructions

User & Safety Instructions 2899406 Quadrios LED set Multi-coloured Circular 5 mm 20000 mcd 35 ° 20 mA, 30 mA 2 V, 3 V

Description

This experimental and practical assortment with wired standard LEDs diameter 5 mm in red, blue, green, yellow and warm white is ideally suited for immediate start in experiments with semiconductor light.
The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that, for example, the LEDs can be operated in their specific parameters because the components are clearly specified. Please note that LEDs must always be current-limited by a series resistor or a constant current source!
Delivery: Blister pack, 5 mm LEDs (each 20 pieces) in the colors red (IV 800 mcd/ beam angle 35°), blue (IV 2000 mcd/ beam angle 35°), green (IV 120 mcd/ beam angle 35°), yellow (IV 800 mcd/ beam angle 35°), warm-white (IV 20,000 mcd/ beam angle 30°).
