Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 3 mm 20 mA 3.0 V Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
LED set
Forward voltage U(F)
3.0 V
Forward current I(F)
20 mA
Casing
3 mm
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 280 Parts)
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details
LED set 3 mm with resistors, sockets, 280 pcs.
- Super bright light diodes 3 mm in red/green/yellow/blue/warm white/cool white
- Series resistors in common values & LED sockets
- Total content of 280 parts
- Well arranged, with technical data
Our service for you
Technical specifications
- Manufacturer color: Red, green, yellow, blue, cold white Warm white
- Housing: 3mm
- Design: Radially wired
- Lens shape: Round
- Material: Red - gap, blue - InGaAIP, green - InGaAIP, yellow - Gap, cold white - InGaAIP, Warm white - InGaAIP
- Forward voltage U(F): Red - 2.0 V, blue - 3.0 V, green - 2.0 V, yellow - 2.0 V, cold-white - 3.0 V, warm-white - 3.0 V
- Forward current I(F) 20 mA
- Light intensity I(V): Red – 800 mcd, blue – 2000 mcd, green – 120 mcd, yellow – 800 mcd, cold white – 14000 mcd, warm white – 20000 mcd
- Wavelength/color temperature: Red – 625-635nm, blue – 460-470nm, green – 568-572nm, yellow – 587-590nm, warm white – 2500-2700K
- Angle of radiation: Red - 30°, blue - 30°, green - 30°, yellow - 30°, cold-white - 30°, Warm-white - 25°
- Housing color/design: Red - diffused, blue - diffuse, green - diffuse, yellow - diffuse, cold-white - clear, Warm white - clear
- Temperature range: -25 °C – 80 °C
- Packaging type
Package
- Product type
LED set
- Factory colour
Red
Green
Yellow
Blue
Cold white
Warm white
- Forward voltage U(F)
3.0 V
- Forward current I(F)
20 mA
- Operating current
20 mA
- Casing
3 mm
- Type
Radial lead
- Technology
GaP
InGaAIP
- Lens type
Circular
- Dim
(Ø) 3 mm
- Min. temperature
-25 °C
- Max. temperature
80 °C
- (Ø)
3 mm
- RoHS-compliant
Yes
- Content
280 Parts
Documents & Downloads
Datasheet
Datasheet 2899383 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 3 mm 20 mA 3.0 V Package
User & Safety Instructions
User & Safety Instructions 2899383 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 3 mm 20 mA 3.0 V Package
Description

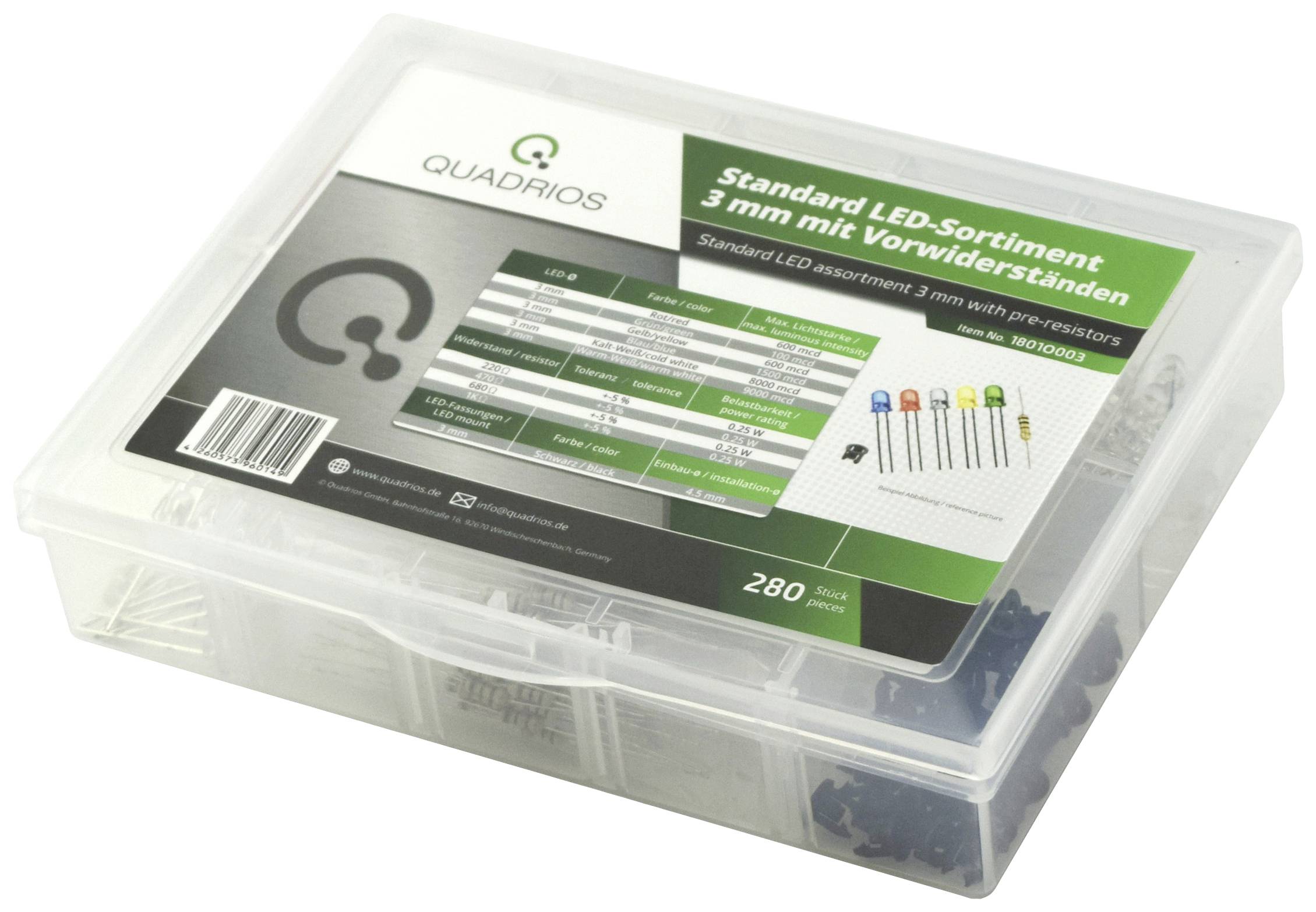

This experimental and practical assortment with super-bright standard LEDs in 3 mm diameter as well as various pre-resistors is ideally suited for immediate start in experiments with semiconductor light. Through resistor combinations of parallel or Series connection or varying the supply voltage allow different operating currents (brightness) to be realized. A short description of the components included is clearly printed on the inside of the lid. The data sheet in the download area contains useful information about the assortment - as also important technical details about the contained components. This is the only way to ensure that the LEDs can be operated in their specific operating parameters because the components are clearly specified.
Please note that LEDs must always be operated with current limitation, WAS can be developed with the help of this set in practice.
This text is machine translated.
Please note that LEDs must always be operated with current limitation, WAS can be developed with the help of this set in practice.
This text is machine translated.

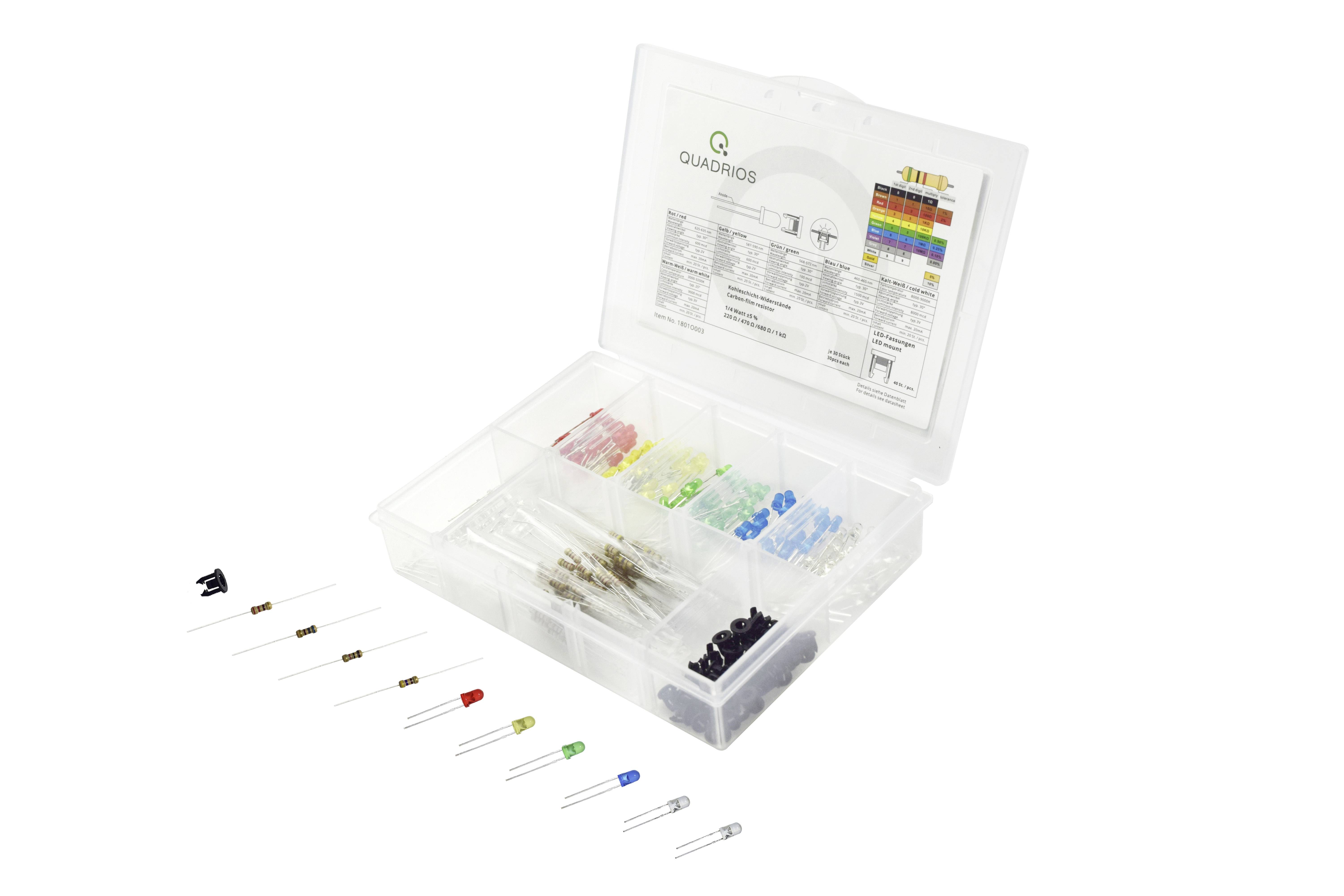

Scope of delivery
- 20x 3 mm LEDs (depending on color: Red/green/yellow/blue/warm-white/cold-white)
- 30x carbon film resistances 0.25 W/ 5 % (each value of 220/470/680 Ohm as well as 1K Ohm)
- 40x 3 mm LED sockets
- 1x assortment box
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
