Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 3 mm, 5 mm 20 mA 2.0 V
EAN:
Part number:
Item no:
Product type
LED set
Forward voltage U(F)
2.0 V
Forward current I(F)
20 mA
Casing
3 mm
5 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 560 Parts)
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 2 Set(s) available
Highlights & Details

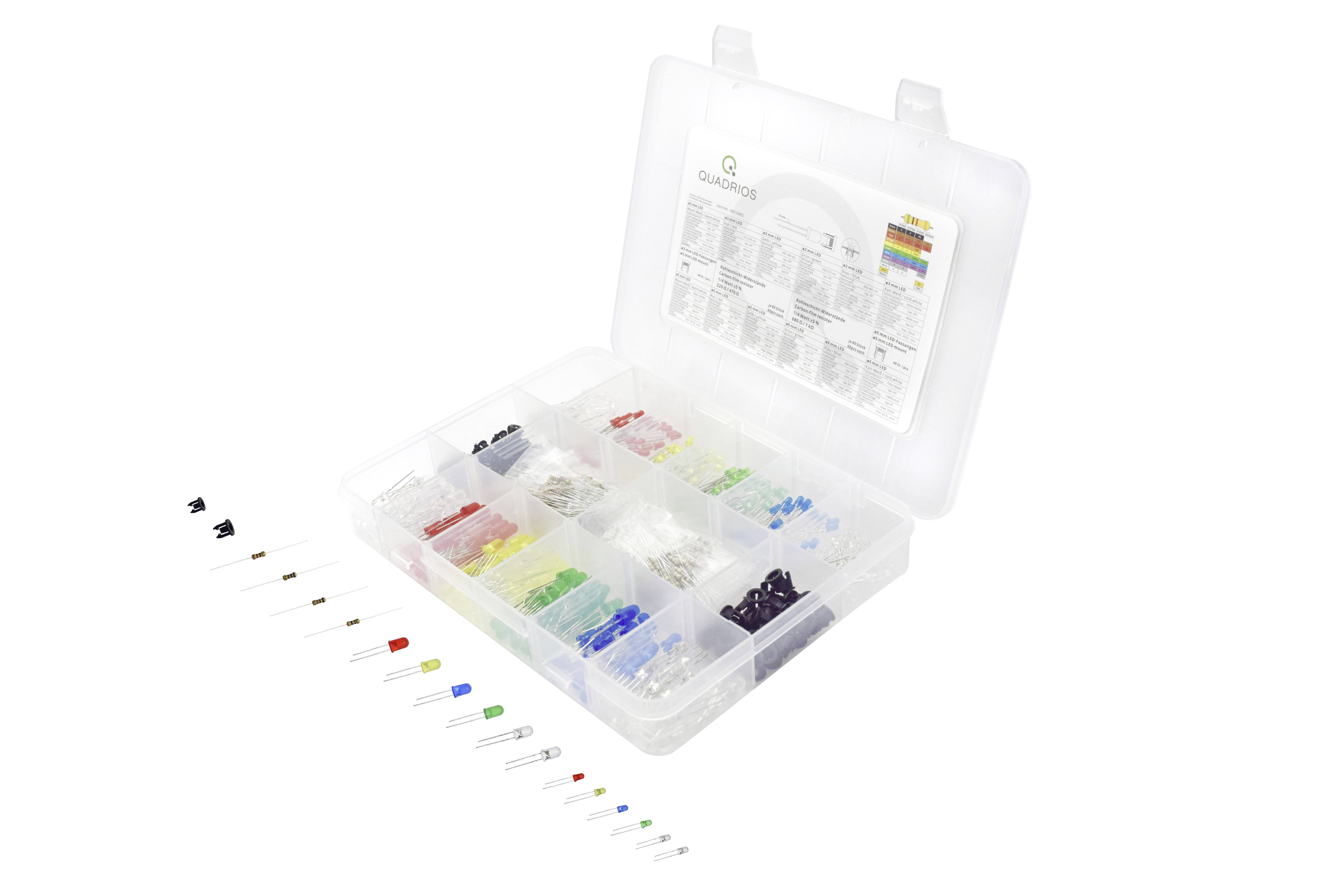

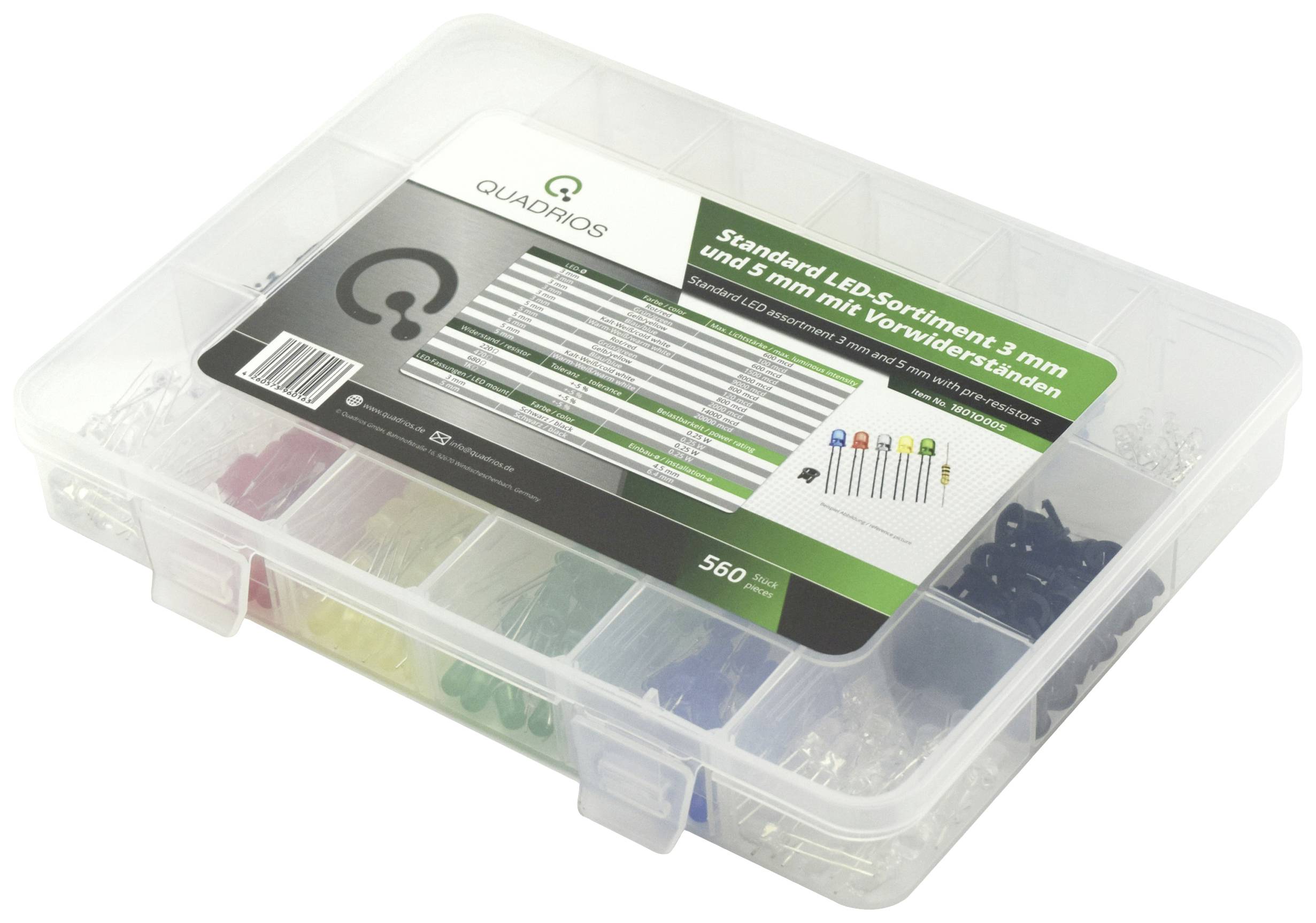

LED-assortment 3 mm & 5 mm m. Accessories 560 piece
- Super-bright light diodes 3 mm and 5 mm in red/green/yellow/blue/warm-white/cold-white
- Series resistors in common values & LED sockets
- Total content of 560 parts
- Well arranged, with technical data
Our service for you
Technical specifications
- Manufacturer color: Red, green, yellow, blue, cold white Warm white
- Housing 3/5 mm
- Design: Radially wired
- Lens shape: Round
- Material: Red - gap, blue - InGaAIP, green - InGaAIP, yellow - Gap, cold white - InGaAIP, Warm white - InGaAIP
- Forward voltage U(F): Design - 3 mm:, Red - 2.0 V, Blue - 3.0 V, Green - 2.0 V, Yellow - 2.0 V, Cold White - 3.0 V, Warm White - 3.0 V, +, Design - 5 mm:, Red - 2.0 V, Blue - 3.0 V, Green - 3.0 V, Yellow - 2.0 V, Cold white - 3.0 V, warm white - 3.0 V
- Forward current I(F) 20 mA
- Light intensity I(V): Design - 3mm:, red - 600 mcd, blue - 1500 mcd, green - 100 mcd, yellow - 600 mcd, cold white - 8000 mcd, warm white - 9000 mcd, +, design - 5mm:, red - 800 mcd, blue 2000 mcd, green 120 mcd, yellow 800 mcd, cold white 14000 mcd, Warm white 20000 mcd
- Wavelength/color temperature: Design - 3 mm:, red - 625-635nm, blue - 460-465nm, green - 568-572nm, yellow - 587-590nm, Cold white - 8000-9000K, warm white - 3000-3200K, +, design - 5mm:, red - 620-625nm, Blue - 460-470nm, Green - 568-572nm, Yellow - 587-590nm, Cool White - 7000-9000K, Warm White - 2800-3200K
- Radiation angle: Design - 3 mm:, Red - 30°, Blue - 30°, Green - 30°, Yellow - 30°, Cold-white - 30°, warm-white - 25°, +, design - 5mm:, red - 35°, Blue - 35°, Green - 35°, Yellow - 35°, Cold-White - 20°, Warm White - 25°
- Housing color/design: Red - diffused, blue - diffuse, green - diffuse, yellow - diffuse, cold-white - clear, Warm white - clear
- Temperature range: -25 °C – 80 °C
- Product type
LED set
- Factory colour
Red
Green
Yellow
Blue
Cold white
Warm white
- Forward voltage U(F)
2.0 V
- Forward current I(F)
20 mA
- Operating current
20 mA
- Casing
3 mm
5 mm
- Type
Radial lead
- LED features
LED 3 mm
- Technology
GaP
InGaAIP
- Lens type
Circular
- Min. temperature
-25 °C
- Max. temperature
80 °C
- RoHS-compliant
Yes
- Content
560 Parts
Documents & Downloads
Datasheet
Datasheet 2899385 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 3 mm, 5 mm 20 mA 2.0 V
User & Safety Instructions
User & Safety Instructions 2899385 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 3 mm, 5 mm 20 mA 2.0 V
Description
This experimental and practical assortment with super-bright standard LEDs with 3 mm and 5 mm diameter as well as various pre-resistors is ideally suited for immediate start in experiments with semiconductor light. Through resistor combinations of parallel or Series connection or varying the supply voltage allow different operating currents (brightness) to be realized. A short description of the components included is clearly printed on the inside of the lid. The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that the LEDs can be operated in their specific parameters because the components are clearly specified.
Please note that LEDs must always be operated with current limitation, WAS can be developed with the help of this set in practice.
This text is machine translated.
Please note that LEDs must always be operated with current limitation, WAS can be developed with the help of this set in practice.
This text is machine translated.
Scope of delivery
- 20x 3 mm LEDs (depending on color: Red/green/yellow/blue/ warm-white/cold white)
- 20x 5 mm LEDs (depending on color: Red/green/yellow/blue/ warm-white/cold white)
- 60x carbon film resistors 0.25 W/ 5 % (each value 220/470/680 ohms and 1K ohm)
- 40x 3 mm LED sockets
- 40x 5 mm LED sockets
- 1x assortment box
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
