Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 5 mm 20 mA 3.0 V
EAN:
Part number:
Item no:
Product type
LED set
Forward voltage U(F)
3.0 V
Forward current I(F)
20 mA
Casing
5 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 1.09
€ 24.11
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 160 Parts)
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Only 6 Set(s) available
Highlights & Details

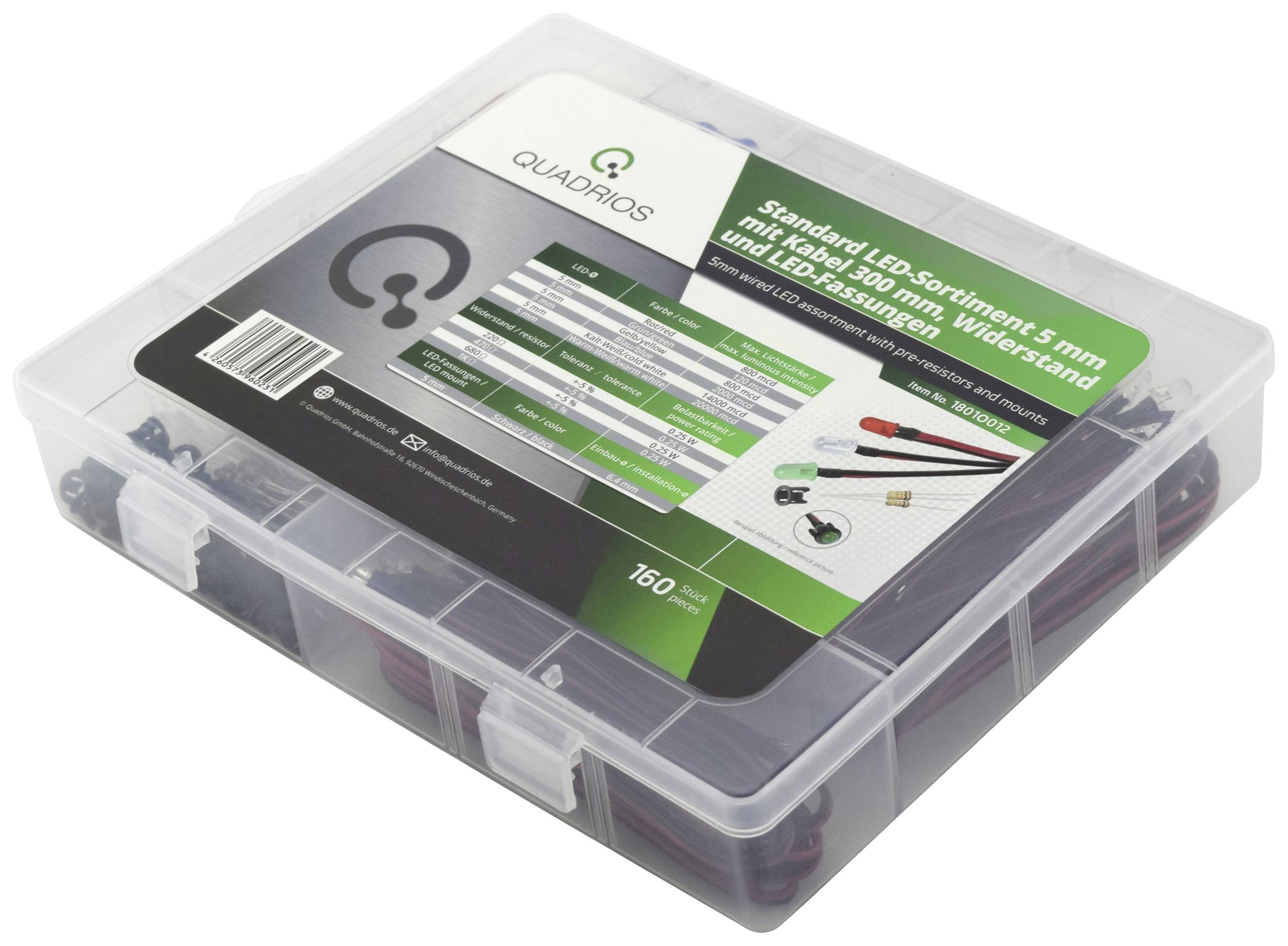

LED set 5 mm with 30 cm strands, holders, 160 pcs.
- Super bright light diodes 5 mm in red/green/yellow/blue/warm white/cool white
- LEDs on 30 cm flexible leads, series resistors in common values
- Incl. 5 mm LED-sockets, Total of 160 parts contents
- Well arranged, with technical data
Our service for you
Technical specifications
- Manufacturer color: Red, green, yellow, blue, cold white Warm white
- Casing: 5 mm
- Design: Radially wired
- Lens shape: Round
- Material: Red - gap, blue - InGaAIP, green - InGaAIP, yellow - Gap, cold white - InGaAIP, Warm white - InGaAIP
- Forward voltage U(F): Red - 2.0 V, blue - 3.0 V, green - 2.0 V, yellow - 2.0 V, cold-white - 3.0 V, warm-white - 3.0 V
- Forward current I(F) 20 mA
- Light intensity I(V): Red – 600 mcd, blue – 1500 mcd, green – 100 mcd, yellow – 600 mcd, cold white – 8000 mcd, warm white – 9000 mcd
- Wavelength/color temperature: Red – 625-635nm, blue – 460-465nm, green – 568-572nm, yellow – 587-590nm, cold white – 8000-9000K, Warm white - 3000-3200K
- Angle of radiation: Red - 30°, blue - 30°, green - 30°, yellow - 30°, cold-white - 30°, Warm-white - 25°
- Housing color/design: Red - diffused, blue - diffuse, green - diffuse, yellow - diffuse, cold-white - clear, Warm white - clear
- Temperature range: -25 °C – 80 °C
- Product type
LED set
- Factory colour
Red
Green
Yellow
Blue
Cold white
Warm white
- Forward voltage U(F)
3.0 V
- Forward current I(F)
20 mA
- Operating current
20 mA
- Casing
5 mm
- Type
Radial lead
- Type (LEDs)
Diffused
- LED features
LED 5 mm
- Technology
GaP
InGaAIP
- Lens type
Circular
- Dim
(Ø) 5 mm
- Min. temperature
-25 °C
- Max. temperature
80 °C
- (Ø)
5 mm
- RoHS-compliant
Yes
- Content
160 Parts
Documents & Downloads
Datasheet
Datasheet 2899391 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 5 mm 20 mA 3.0 V
User & Safety Instructions
User & Safety Instructions 2899391 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 5 mm 20 mA 3.0 V
Description

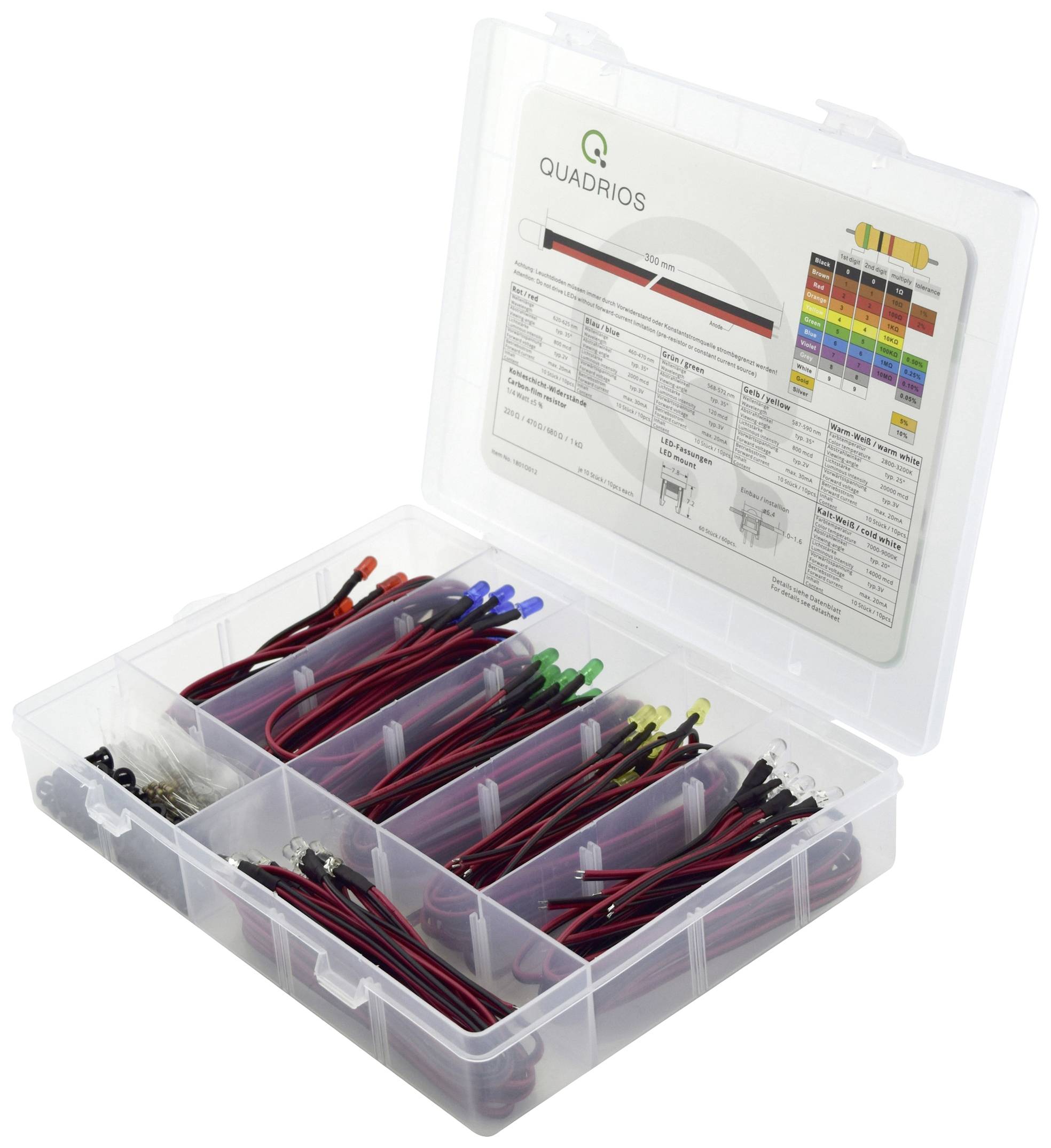

In this large experimental and practical assortment, super bright LEDs (5 mm diameter) are fully soldered at approx. 30 cm flexible wires. Through the included series resistors as well as the associated LED sockets it is optimally suitable for the immediate start in experiments with semiconductor light. A short description of the components included is clearly printed on the inside of the lid. The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that the LEDs can be operated in their specific parameters because the components are clearly specified
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10x 5 mm LEDs (depending on color: Red/green/yellow/blue/warm-white/cold-white) with flexible cords (approx. 30 cm)
- 10x carbon film resistors 0.25 W/ 5 % (each value 220/470/680 Ohm as well as 1k Ohm)
- 60x 5 mm LED sockets
- 1x assortment box
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
