Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 5 mm 20 mA, 30 mA 2 V, 3 V
EAN:
Part number:
Item no:
Product type
LED set
Forward voltage U(F)
2 V
3 V
Forward current I(F)
20 mA
30 mA
Casing
5 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 130 Parts)
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
14-day return policy included
Highlights & Details
Standard LED-SET 5 mm, Diffus, Clear, 130 pcs.
- Super-bright light emitting diodes 5 mm in red/green/yellow/blue/warm-white/cold-white
- Standard resistors

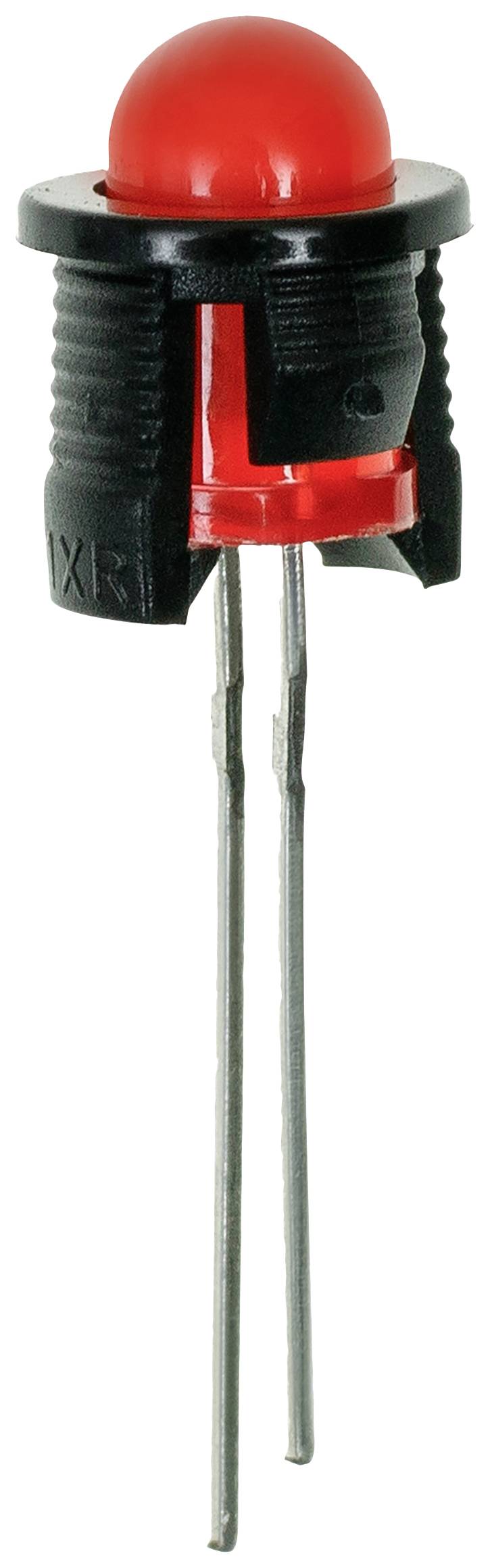

- 5 mm LED-sockets included
- At least 130 parts content
- Well arranged, with technical data
Our service for you
Technical specifications
- Manufacturer color: Red, green, yellow, blue, cold white Warm white
- Casing: 5 mm
- Design: Radially wired
- Lens shape: Round
- Material: Red - gap, blue - InGaAIP, green - InGaAIP, yellow - Gap, cold white - InGaAIP, Warm white - InGaAIP
- Forward voltage U(F): Red - 2.0 V, blue - 3.0 V, green - 3.0 V, yellow - 2.0 V, cold-white - 3.0 V, warm-white - 3.0 V
- Forward current I(F): Red – 20 mA, blue – 30 mA, green – 20 mA, yellow – 30 mA, cold white – 20 mA, warm white – 20 mA
- Light intensity I(V): Red – 800 mcd, blue – 2000 mcd, green – 120 mcd, yellow – 800 mcd, cold white – 14000 mcd, warm white – 20000 mcd
- Wavelength/color temperature: Red – 620-625nm, blue – 460-470nm, green – 568-572nm, yellow – 587-590nm, cold white – 7000-9000K, Warm white - 2800-3200K
- Angle of radiation: Red - 35°, blue - 35°, green - 35°, yellow - 35°, cold-white - 20°, Warm-white - 25°
- Housing color/design: Red - diffused, blue - diffuse, green - diffuse, yellow - diffuse, cold-white - clear, Warm white - clear
- Temperature range: -25 °C – 80 °C
- Product type
LED set
- Factory colour
Red
Green
Yellow
Blue
Cold white
Warm white
- Forward voltage U(F)
2 V
3 V
- Forward current I(F)
20 mA
30 mA
- Casing
5 mm
- Type
Radial lead
- Technology
GaP
InGaAIP
- Lens type
Circular
- Dim
(Ø) 5 mm
- Min. temperature
-25 °C
- Max. temperature
80 °C
- (Ø)
5 mm
- RoHS-compliant
Yes
- Content
130 Parts
Documents & Downloads
Datasheet
Datasheet 2899407 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 5 mm 20 mA, 30 mA 2 V, 3 V
User & Safety Instructions
User & Safety Instructions 2899407 Quadrios LED set Red, Green, Yellow, Blue, Cold white, Warm white Circular 5 mm 20 mA, 30 mA 2 V, 3 V
Description

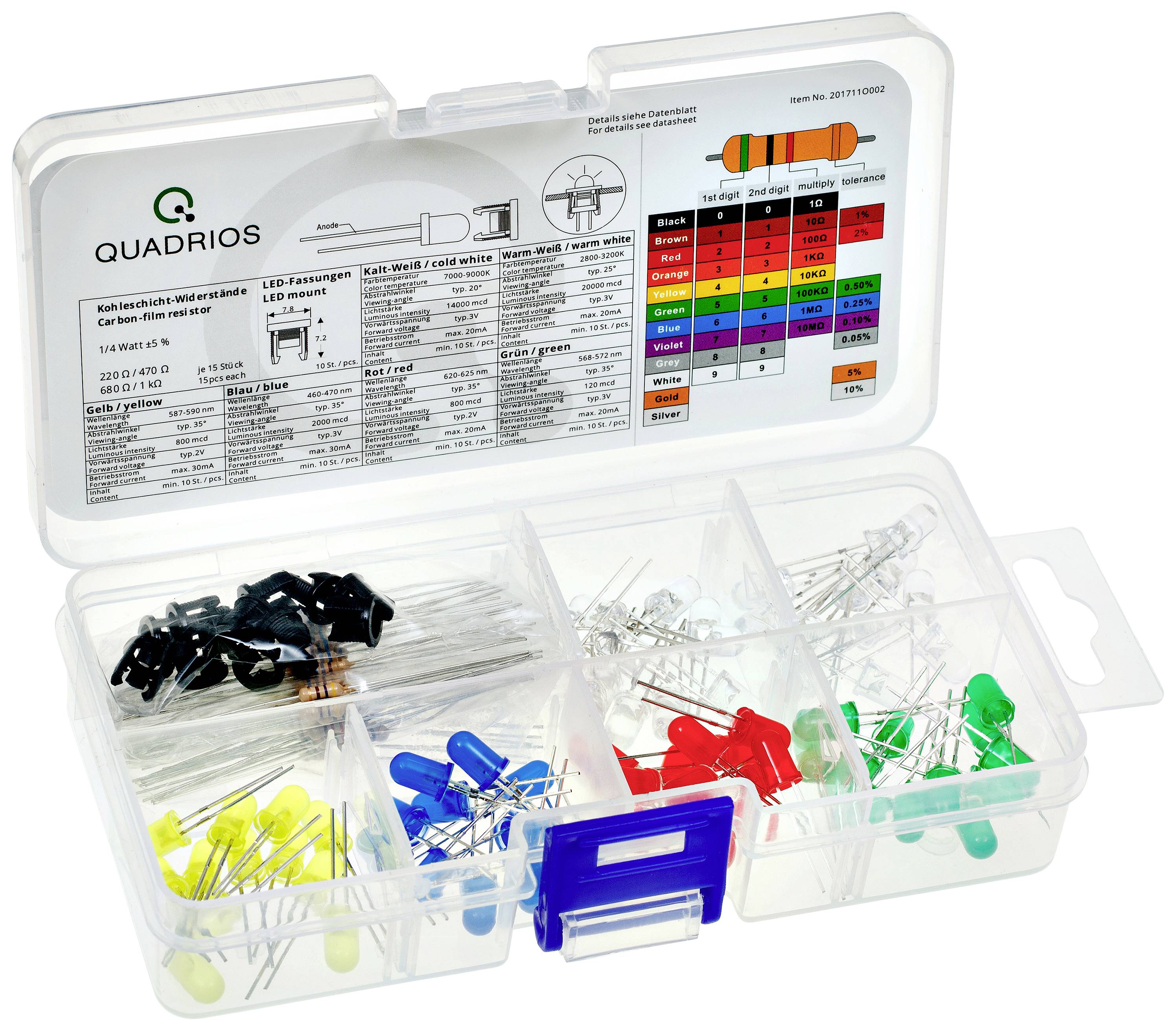

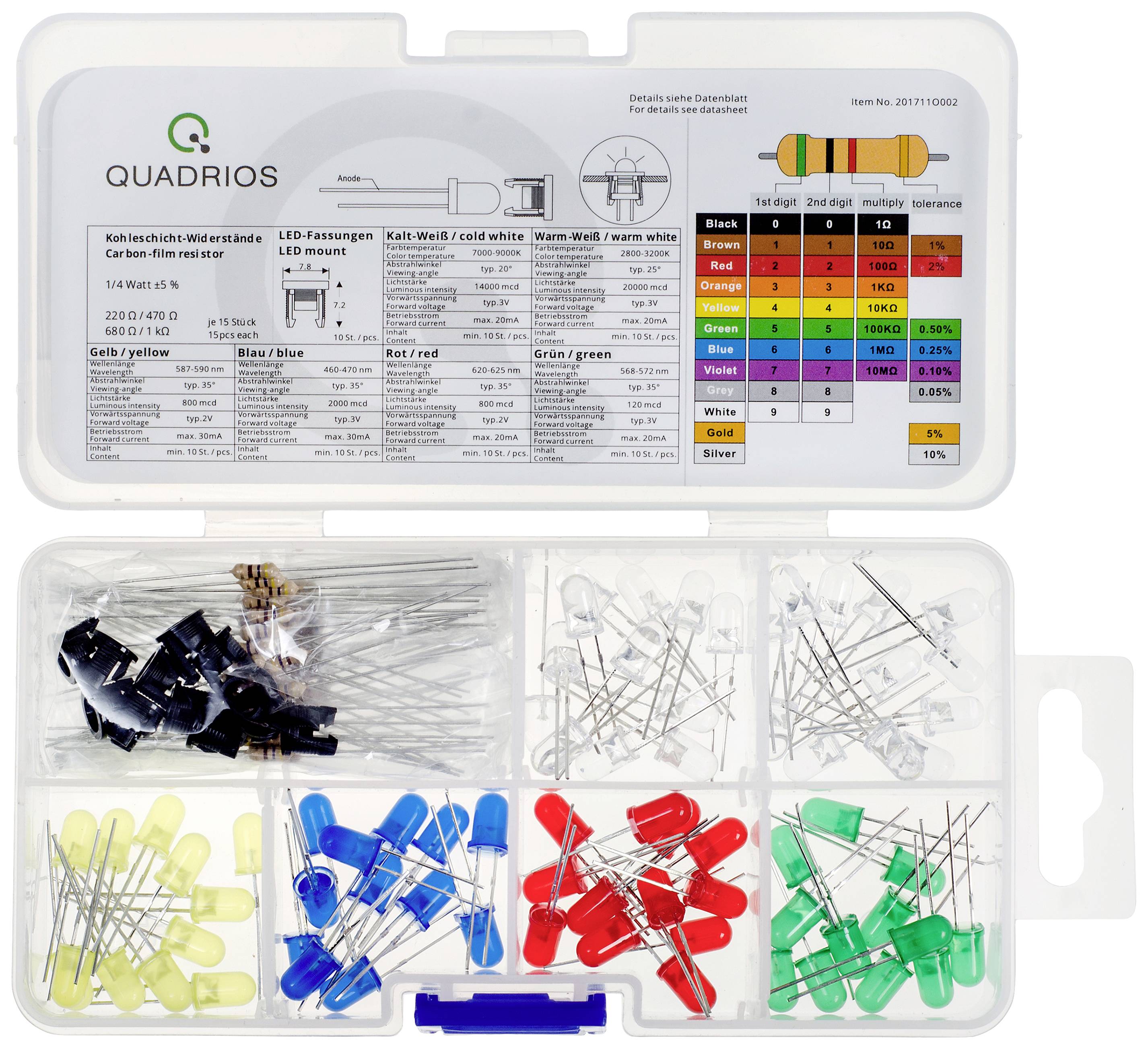

This experimental and practical assortment with super-bright standard LEDs with 5 mm diameter as well as various pre-resistors is ideally suited for immediate start in experiments with semiconductor light. Through resistor combinations of parallel or Series connection or varying the supply voltage allow different operating currents (brightness) to be realized. A short description of the components included is clearly printed on the inside of the lid. The data sheet in the download area contains useful information about the assortment - as also important technical details about the contained components. This is the only way to ensure that, for example, the LEDs can be operated in their specific parameters because the components are clearly specified. Please note that LEDs must always be operated with current limitation, WAS can be developed with the help of this set in practice.
This text is machine translated.
This text is machine translated.

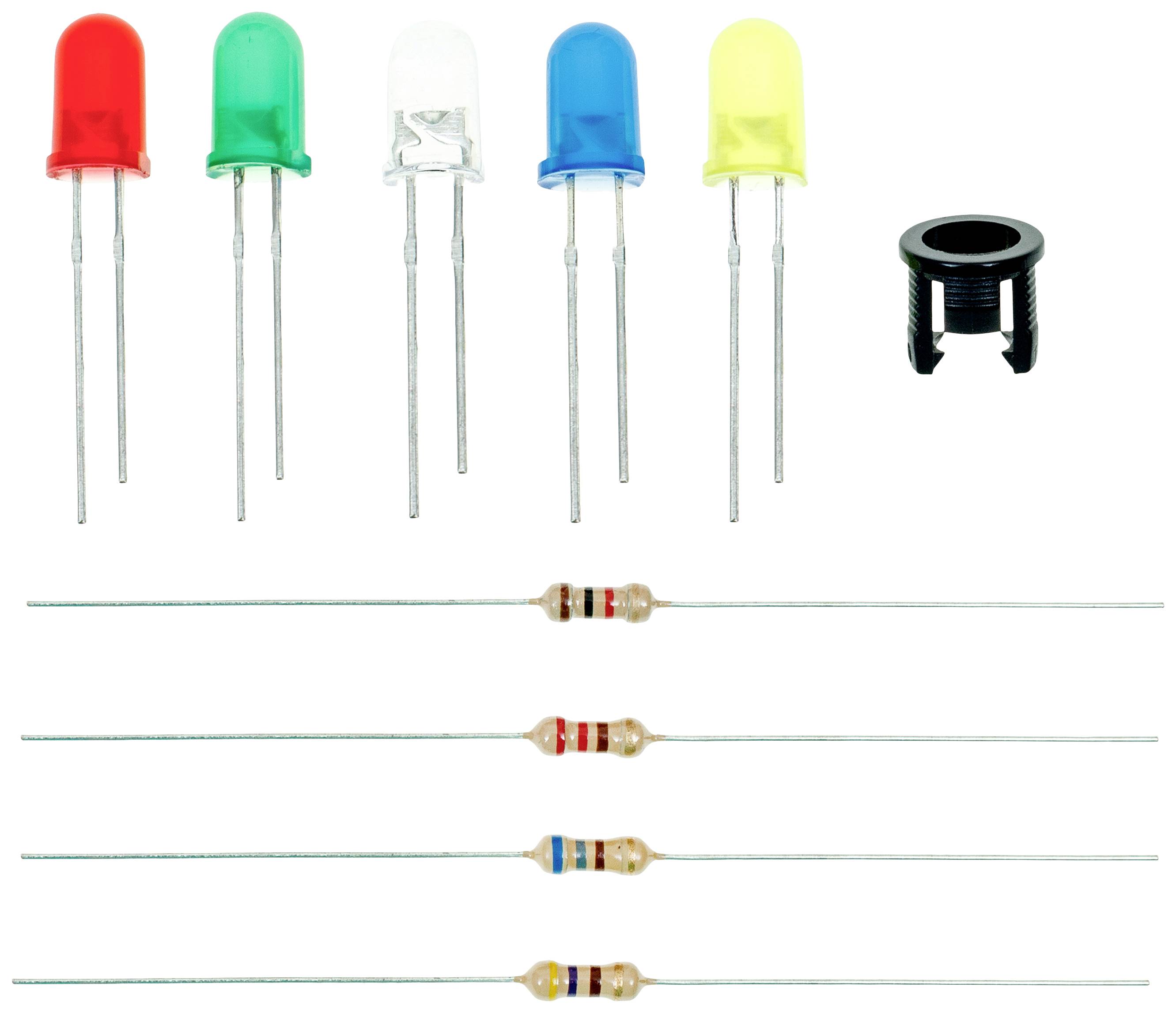

Scope of delivery
- 10x 5 mm LEDs (depending on color: Red/green/yellow/blue/warm-white/cool white)
- 15x carbon film resistors 0.25 W/ 5 % (each value 220/470/680 Ω as well as 1 kΩ)
- 10x 5 mm LED-sockets

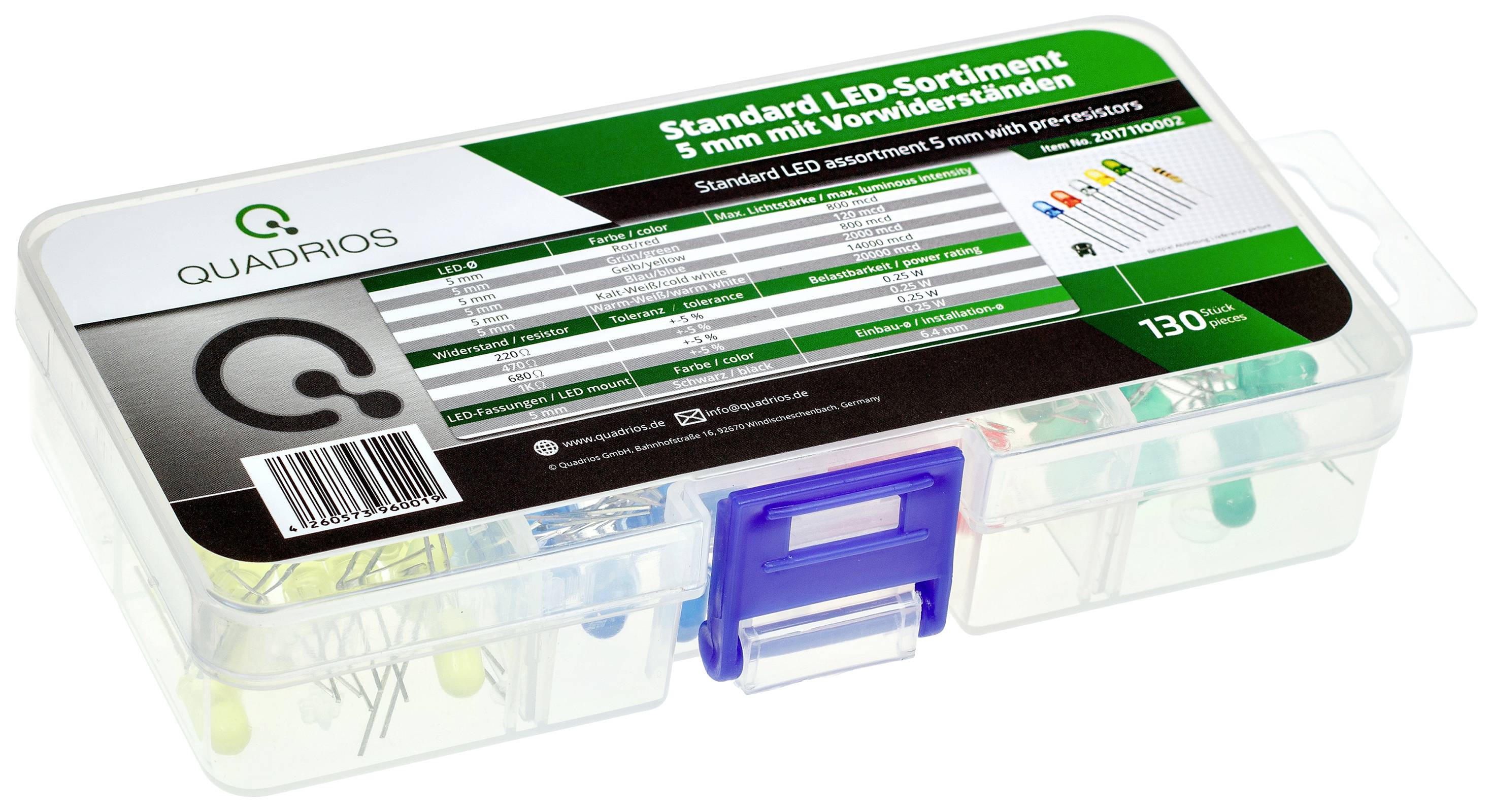

- 1x assortment box
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
