Quadrios LED set Red, Green, Yellow, Blue, White, Amber 120 ° 20 mA 3.0 V
EAN:
Part number:
Item no:
Product type
LED set
Forward voltage U(F)
3.0 V
Forward current I(F)
20 mA
Type
Radial lead
Radiation angle
120 °
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 30 Parts)
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 3 Set(s) available
Highlights & Details
SMD-LED design 0603 with 30 cm strands 30 pcs.
- Super bright light emitting diodes SMD 0603 (very small)
- Soldered wire strands for immediate further processing
- Optimum for model trains and models
- Well arranged, with technical data
Our service for you
Technical specifications
- Colour: Red, green, yellow, blue, white, Amber colors
- Design 0603
- Design: Radially wired
- Lens shape SMD - 603
- Dim. (LxWxH) 1.6 x 0.8 x 0.4 mm
- Forward voltage U(F): Red - 2.0 V, blue - 3.0 V, green - 2.0 V, yellow - 2.0 V, Bernstein - 2.0 V, cold-white - 3.0 V,
- Forward current I(F) 20 mA
- Brightness I(V): Red – 100 mcd, blue – 50 mcd, green – 250nm, yellow – 100nm, Bernstein – 300 mcd, cold white – 300 mcd,
- Wavelength/color temperature: Red – 620-625nm, blue – 460-465nm, green – 520-525nm, yellow – 590-595nm, Bernstein – 600-610nm, Cold white - 7000-8000k,
- Beam angle: 120°
- Temperature range: -25 °C – 80 °C
- Product type
LED set
- Factory colour
Red
Green
Yellow
Blue
White
Amber
- Forward voltage U(F)
3.0 V
- Forward current I(F)
20 mA
- Operating current
20 mA
- Type
Radial lead
- Radiation angle
120°
- Dim
(L x W x H) 1.6 x 0.8 x 0.4 mm
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
1.6 mm
- Width
0.8 mm
- Height
0.4 mm
- RoHS-compliant
Yes
- Content
30 Parts
- Type
0603
Documents & Downloads
Datasheet
Datasheet 2899386 Quadrios LED set Red, Green, Yellow, Blue, White, Amber 120 ° 20 mA 3.0 V
User & Safety Instructions
User & Safety Instructions 2899386 Quadrios LED set Red, Green, Yellow, Blue, White, Amber 120 ° 20 mA 3.0 V
Description

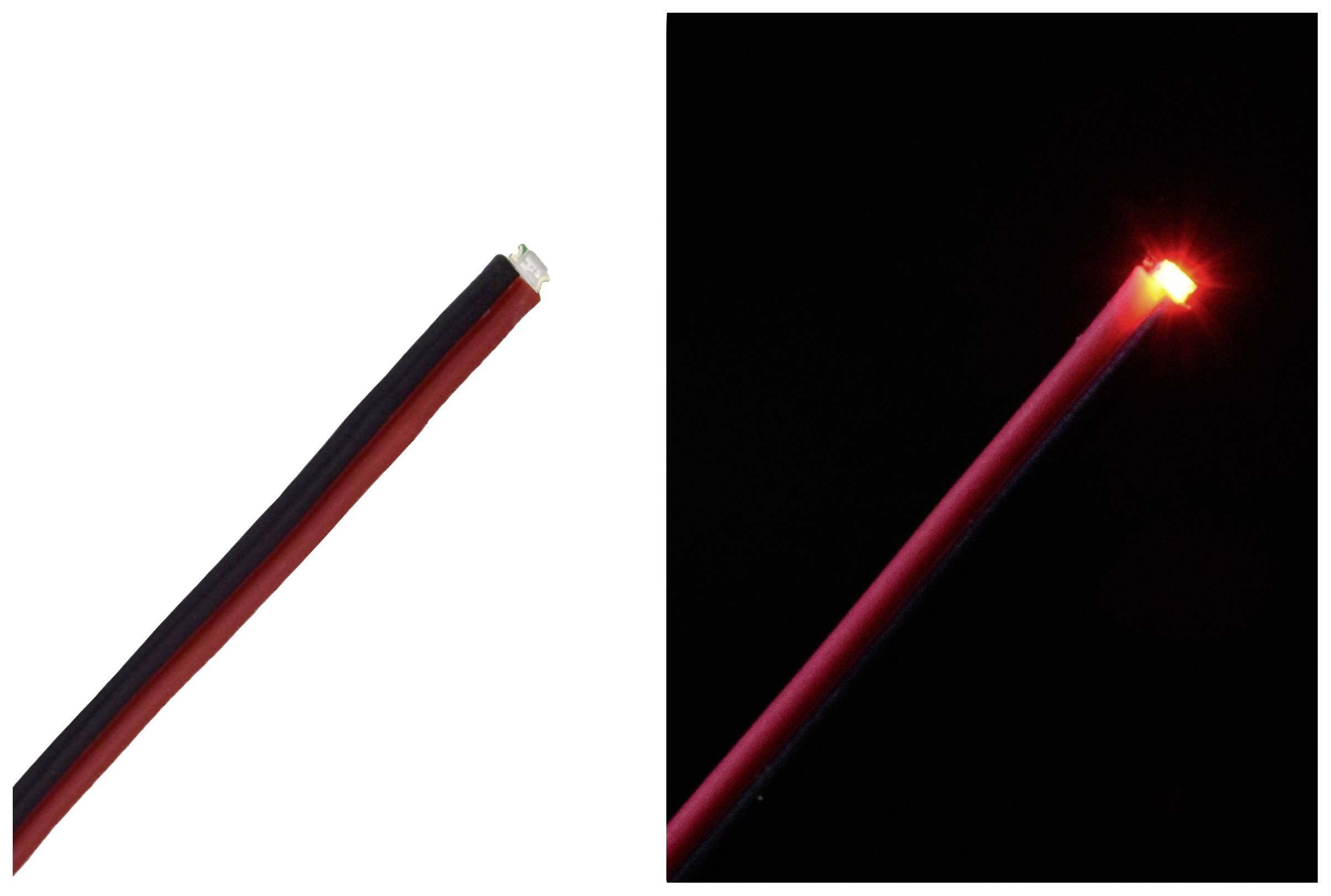

This SMD-LED sortiment with very bright surface mounting LEDs of frame size 0603 offers much color selection and is clearly sorted. As these light-emitting diodes are very small at approx. 1.6 x 0.8 x 0.4 mm, individual manual processing can become difficult - mechanical damages or heat death are often companions.
Therefore, small 30 cm long strands at the anode and cathode are pre-mounted professionally. Thus the advantages of SMD-LEDs as well as those of the wired versions are combined with each other. Exceptionally good for model railway, model building (airplane models, RC boats and cars), signal lights and indicators, or any other application, in which small light emitting diodes are to be used.
As with all standard LED chips, please note that a current limiter with a series resistor or a constant power source is to be used to operate the high-quality LED in the permissible working range.
The red cable designates the anode (+) and the black cable is the cathode (-).
A short description of the components included is clearly printed on the inside of the lid.
The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that, for example, the LEDs can be operated within their specific parameters because the components are clearly specified.
This text is machine translated.
Therefore, small 30 cm long strands at the anode and cathode are pre-mounted professionally. Thus the advantages of SMD-LEDs as well as those of the wired versions are combined with each other. Exceptionally good for model railway, model building (airplane models, RC boats and cars), signal lights and indicators, or any other application, in which small light emitting diodes are to be used.
As with all standard LED chips, please note that a current limiter with a series resistor or a constant power source is to be used to operate the high-quality LED in the permissible working range.
The red cable designates the anode (+) and the black cable is the cathode (-).
A short description of the components included is clearly printed on the inside of the lid.
The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that, for example, the LEDs can be operated within their specific parameters because the components are clearly specified.
This text is machine translated.
Scope of delivery

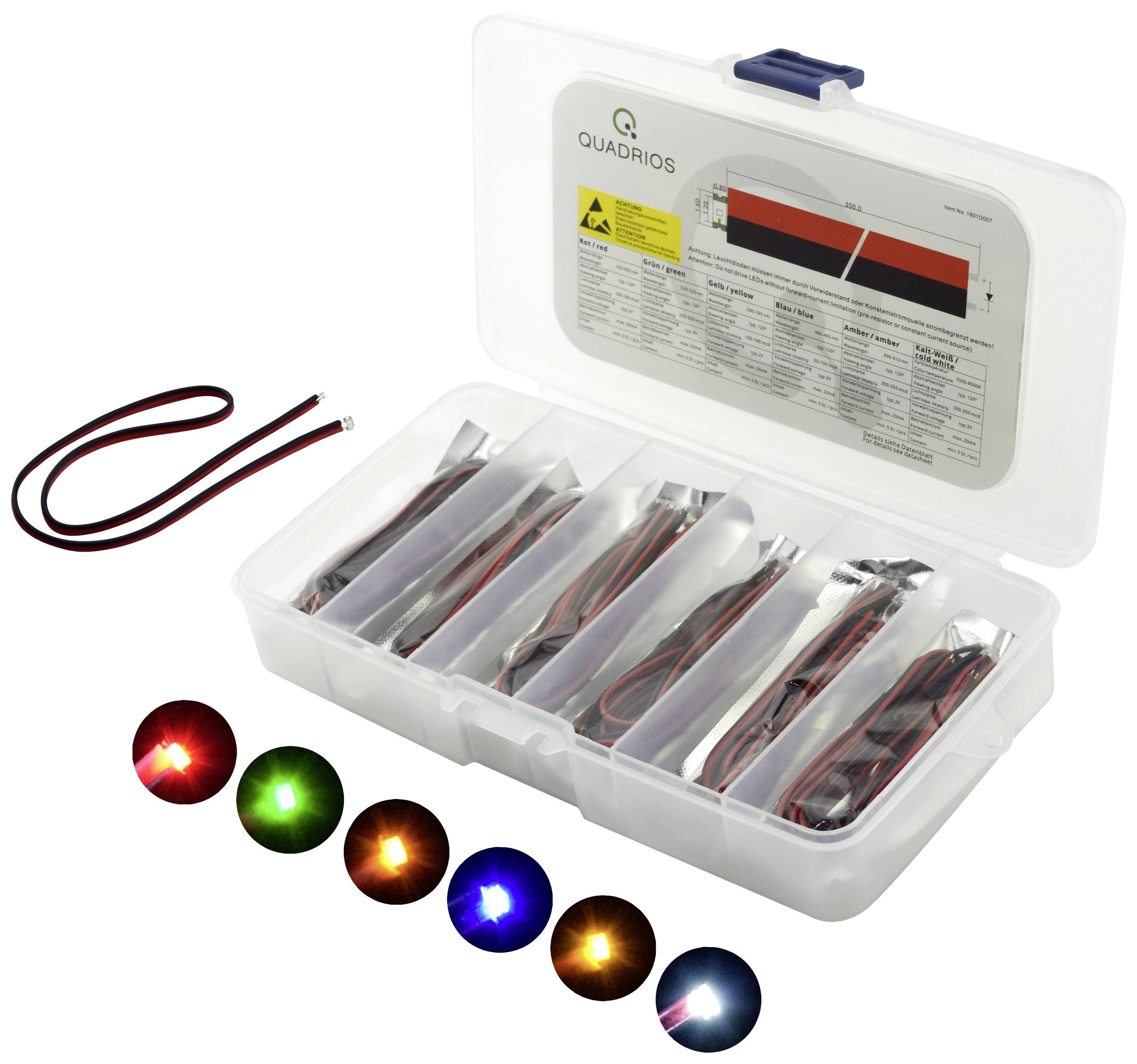

- 5x SMD 0603 LEDs with approx. 30cm cable (each color red/green/yellow/blue/white/amber colors)

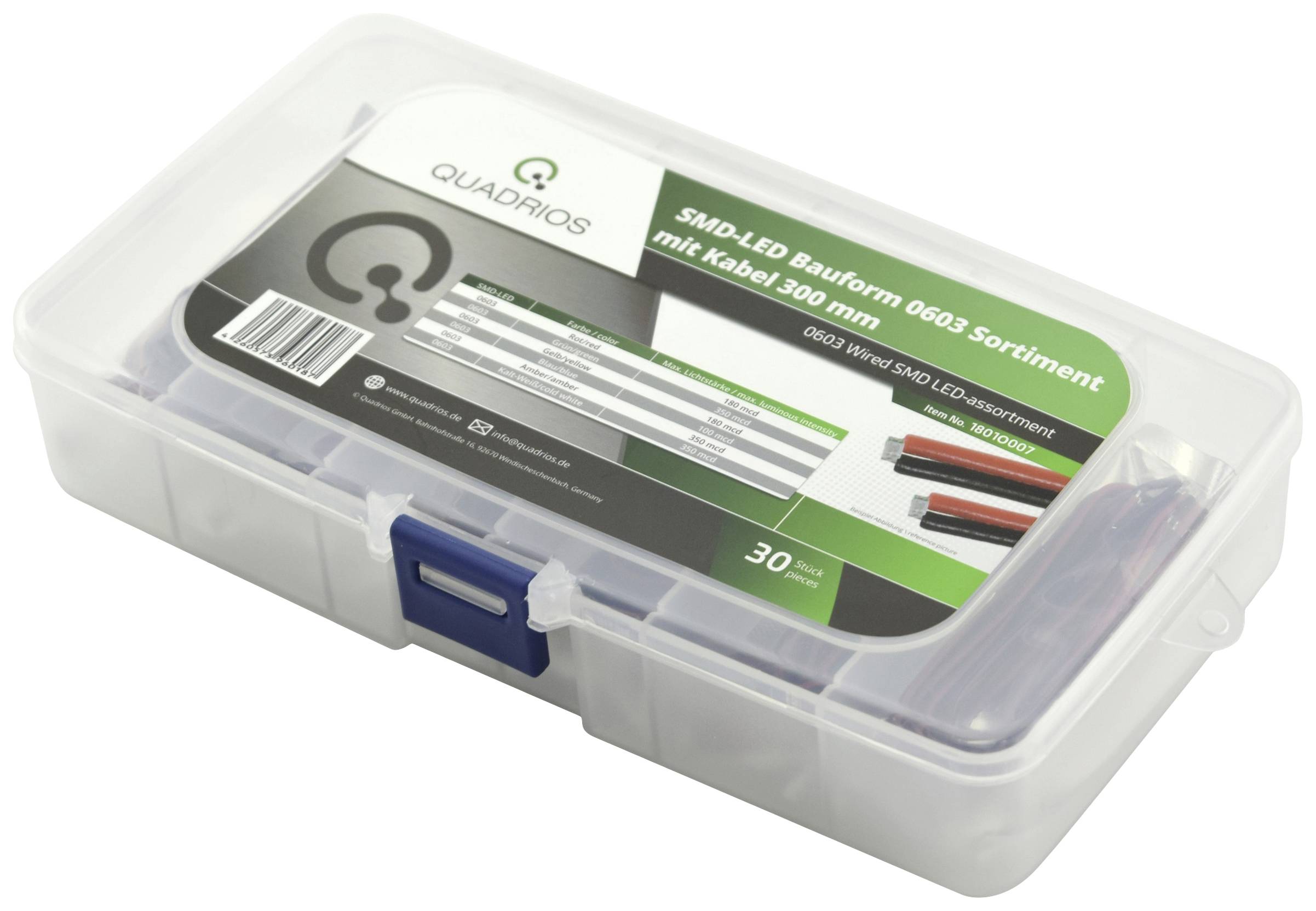

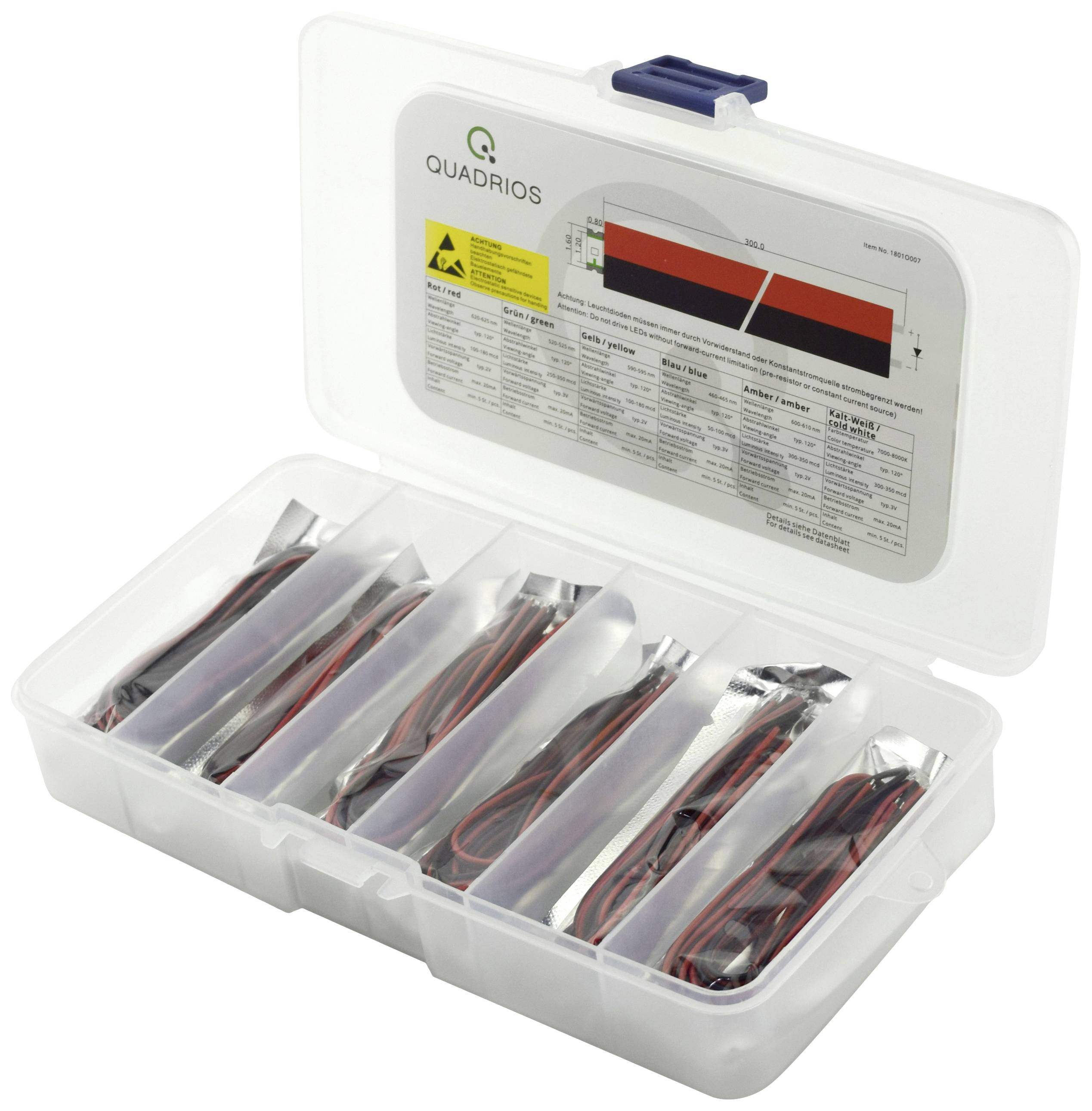

- 1x assortment box
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
