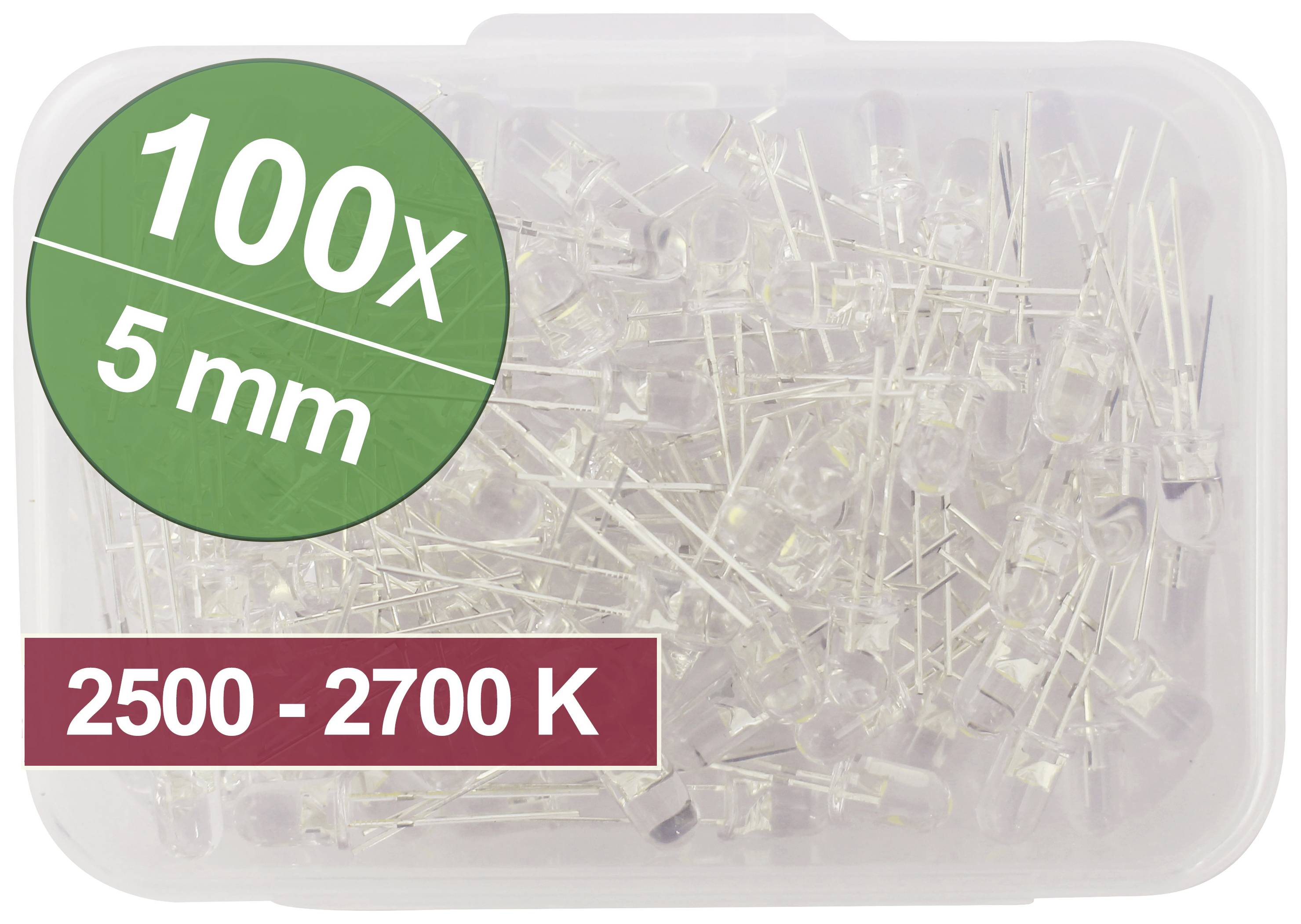

Plastic box containing 100 transparent LEDs, 5 mm in diameter, colour temperature 2500 to 2700 K, set against a white background.

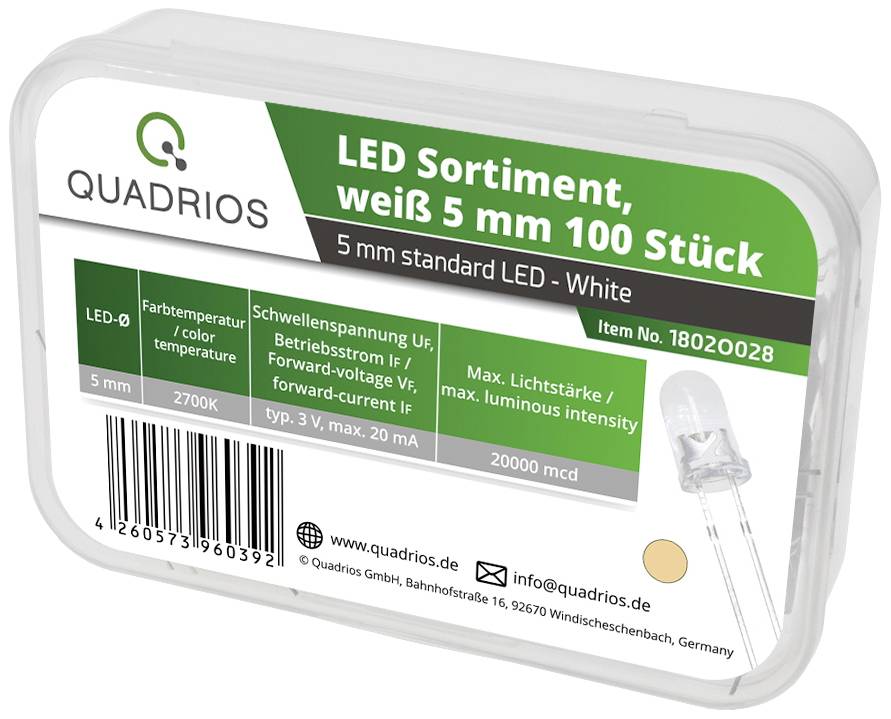

'LED Assortment, White, 5 mm, 100 Pieces' from QUADRIOS. Contains white 5 mm LEDs with various technical specifications.

Circuit diagram for calculating the series resistor for LEDs, showing two example circuits with voltage, current, and formulas.

1/3

Packaging type

Box

Product type

LED set

Forward voltage U(F)

3.0 V

Forward current I(F)

20 mA

Casing

5 mm

Datasheet (PDF)

Fast track dispatch on Fri, 2 Oct

43 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number (Package size 100 Parts)

Set(s)

Total (€ 6.29 / piece)

€ 6.29

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Standard LED set warm-white 5 mm 100-pieces.

High-quality warm white light emitting diodes 5 mm
Brightness 20000 mcd, angle of radiation 30°
Lens clear
Total content of 100 parts

Our service for you

Technical specifications

Manufacturer color: Warm white
Casing: 5 mm
Design: Radially wired
Lens shape: Round
Material: InGaAIP
FORWARD VOLTAGE U(F):3.0 V
Forward current I(F) 20 mA
Light intensity I(V) 20000 mcd
Wavelength/color temperature: 2500-2700K
Beam angle: 30°
Casing color/design: Clear
Temperature range: -25 °C – 80 °C

Packaging type: Box

Product type: LED set

Factory colour: Warm white

Forward voltage U(F): 3.0 V

Forward current I(F): 20 mA

Operating voltage: 3.0 V

Operating current: 20 mA

Casing: 5 mm

Type: Radial lead

Light intensity I(V): 20000 mcd

Type (LEDs): Water clear

Technology: InGaAIP

Lens type: Circular

Dim: (Ø) 5 mm

Min. temperature: -25 °C

Max. temperature: 80 °C

(Ø): 5 mm

RoHS-compliant: Yes

Content: 100 Parts

Documents & Downloads

Datasheet

Datasheet 2899404 Quadrios LED set Warm white Circular 5 mm 20000 mcd 20 mA 3.0 V Box

User & Safety Instructions

User & Safety Instructions 2899404 Quadrios LED set Warm white Circular 5 mm 20000 mcd 20 mA 3.0 V Box

Description

This experimental and practical assortment with wired standard LEDs is ideally suited for immediate start in applications with semiconductor lights. The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that the LEDs can be operated within their operating parameters because the components are clearly specified. Please note that LEDs must always be current-limited by a series resistor or a constant current source!
Delivery: Blister pack, 5 mm LEDs (100 pieces), operating current type. 20 mA · Forward voltage 3.0 V, brightness: 20000 mcd, beam angle: 30°, operating temperature -25 °C ... +80 °C.
