Quadrios LED set Warm white, Cold white Circular 5 mm 20000 mcd 25 ° 20 mA 3.0 V
EAN:
Part number:
Item no:
Product type
LED set
Forward voltage U(F)
3.0 V
Forward current I(F)
20 mA
Casing
5 mm
Type
Radial lead
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 170 Parts)
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Only 8 Set(s) available
Highlights & Details

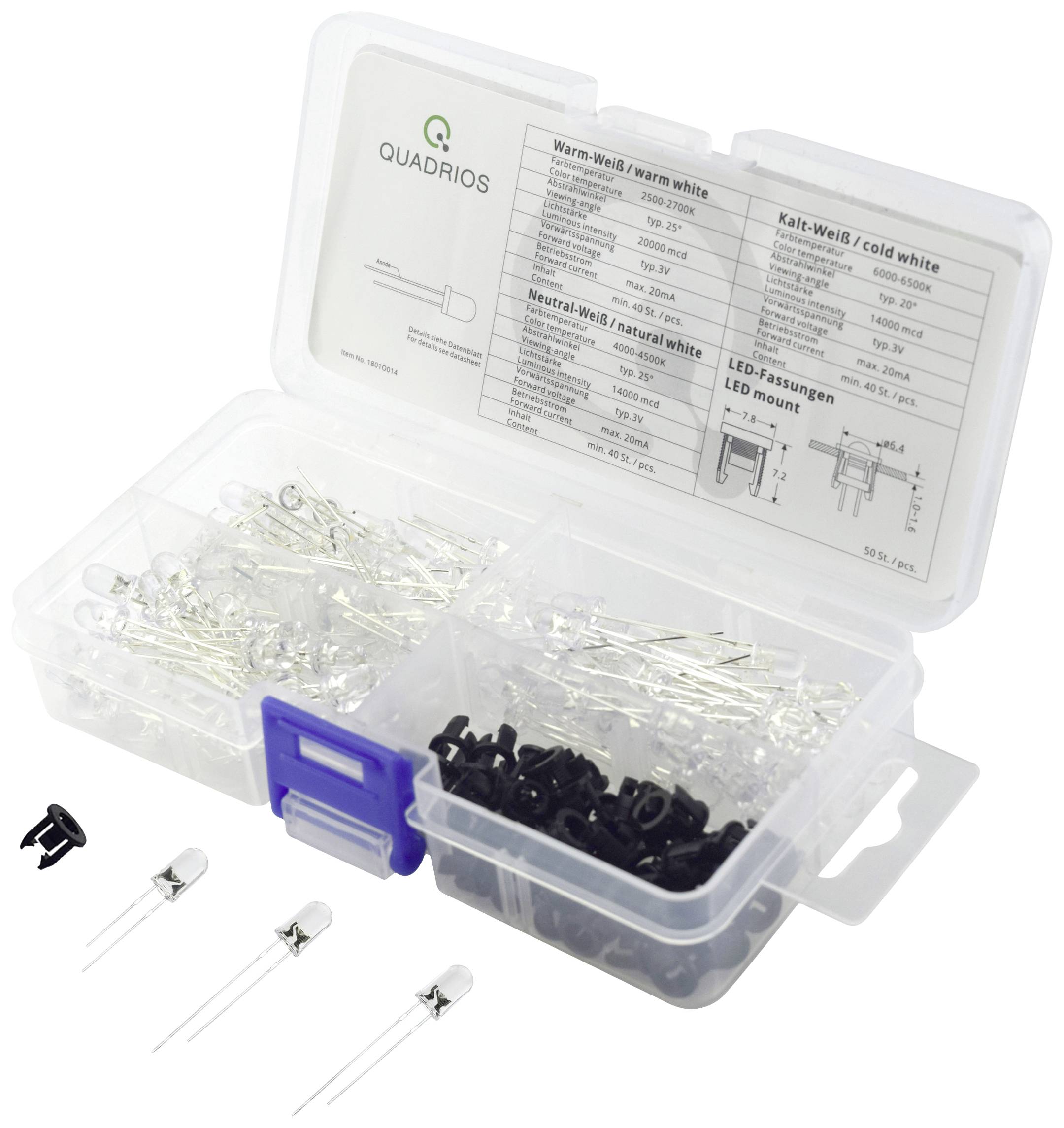

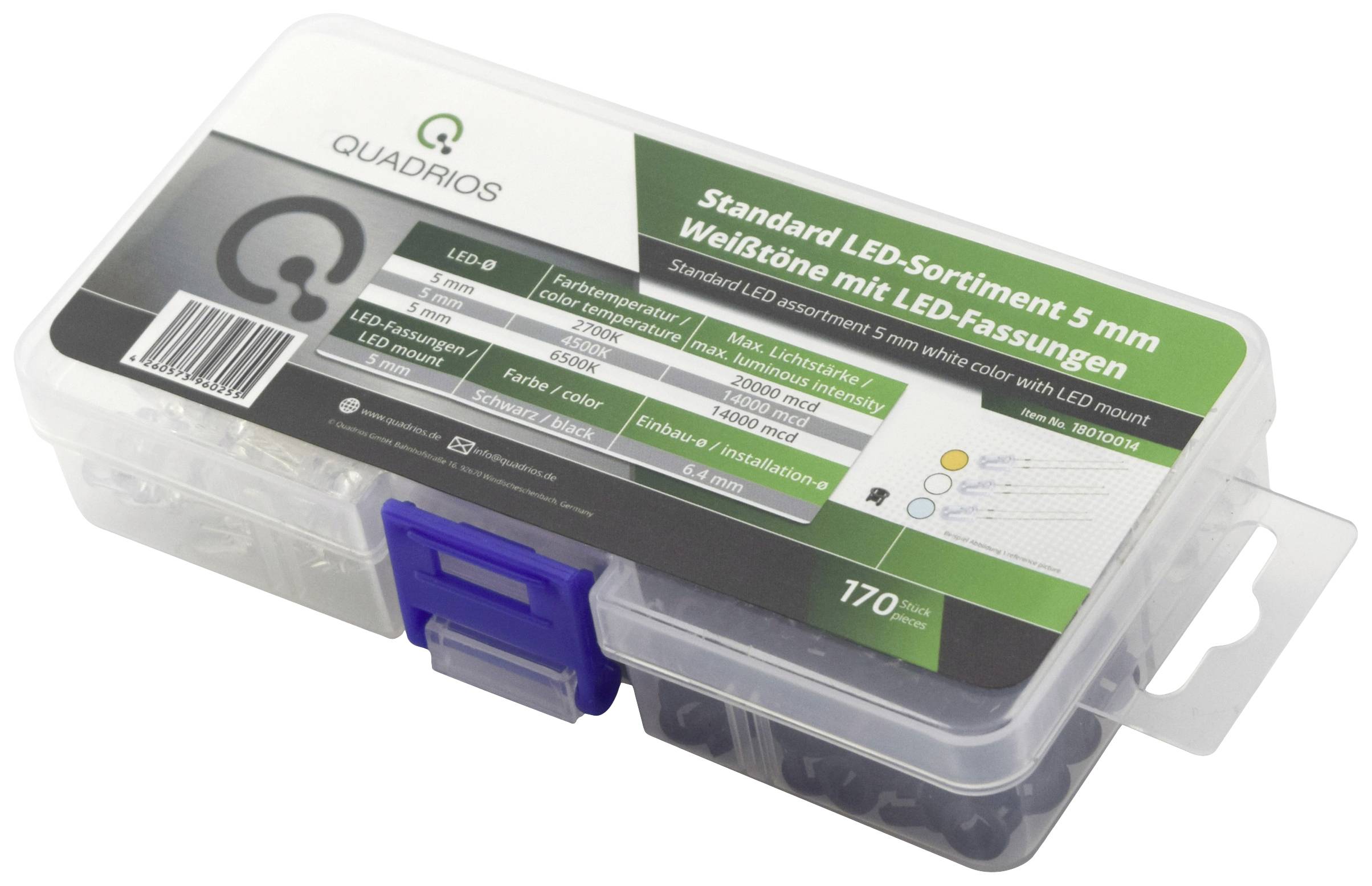

LED set 5 mm white tones with LED holders 170 pieces.
- Light diodes 5 mm from warm white to cool white including LED sockets
- Total content of 170 parts
- Well arranged, with technical data
Our service for you
Technical specifications
- Manufacturer color: Warm white, cold white
- Casing: 5 mm
- Design: Radially wired
- Lens shape: Round
- Material: InGaAIP
- FORWARD VOLTAGE U(F):3.0 V
- Forward current I(F) 20 mA
- Light intensity I(V): Warm white - 20000 mcd, natural white - 14000 mcd, cold white - 14000 mcd,
- Wavelength/color temperature: Warm white – 2500-2700K, natural white – 4000-4500K, cool white – 6000-6500K,
- Angle of radiation: Warm white - 25°, natural white - 25°, cold white - 20°,
- Casing color/design: Clear
- Temperature range: -25 °C – 80 °C
- Product type
LED set
- Factory colour
Warm white
Cold white
- Forward voltage U(F)
3.0 V
- Forward current I(F)
20 mA
- Operating voltage
3.0 V
- Operating current
20 mA
- Casing
5 mm
- Type
Radial lead
- Light intensity I(V)
20000 mcd
- Radiation angle
25°
- Type (LEDs)
Water clear
- LED features
Current limiter
- Technology
InGaAIP
- Lens type
Circular
- Dim
(Ø) 5 mm
- Min. temperature
-25 °C
- Max. temperature
80 °C
- (Ø)
5 mm
- RoHS-compliant
Yes
- Content
170 Parts
Documents & Downloads
Datasheet
Datasheet 2899393 Quadrios LED set Warm white, Cold white Circular 5 mm 20000 mcd 25 ° 20 mA 3.0 V
User & Safety Instructions
User & Safety Instructions 2899393 Quadrios LED set Warm white, Cold white Circular 5 mm 20000 mcd 25 ° 20 mA 3.0 V
Description
This experimental and practical assortment contains high-quality 5 mm LEDs in different shades of white and is ideal for immediate start in experiments with semiconductor light. A short description of the components included is clearly printed on the inside of the lid. The data sheet in contains useful information about the range - as well as important technical details about the included components. This is the only way to ensure that the LEDs can be operated in their specific parameters because the components are clearly specified. Please note that LEDs must always be operated with current limitation, WAS can be developed with the help of this set in practice.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 40x 5 mm LEDs from warm-white to cool-white (depending on color temperature 2700 K / 4800 K / 6500 K)
- 50x 5 mm LED sockets
- 1x assortment box
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
