Quadrios LED set White 120 ° 150 mA 3.3 V
EAN:
Part number:
Item no:
Product type
LED set
Forward voltage U(F)
3.3 V
Forward current I(F)
150 mA
Type
Radial lead
Radiation angle
120 °
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 40 Parts)
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 3 Set(s) available
Highlights & Details
SMD-LED design 2835 white with 30 cm strands 40 pcs.
- SMD LED design 2835 warm white to cool white with flexible wires (ready to solder)
- Colour temperatures 2700/3500/4850/6500 K
- Total content of 40 parts
- Well arranged, with technical data
Our service for you
Technical specifications
- Manufacturer color: White
- Design 2835
- Design: Radially wired
- Lens shape SMD - 2835
- Dim. (LxWxH): 3.5x2.8x0.75 mm
- FORWARD VOLTAGE U(F):3.3 V
- Forward current I(F) 150 mA
- Light intensity I(V): Warm white - 47-50lm, cool white - 50-55lm,
- Wavelength/color temperature: Warm white – 2500-2700K, warm white – 3300-3500K, natural white – 4500-4800K, cool white – 6000-6500K,
- Beam angle: 120°
- Temperature range: -25 °C – 80 °C
- Product type
LED set
- Factory colour
White
- Forward voltage U(F)
3.3 V
- Forward current I(F)
150 mA
- Operating voltage
3.3 V
- Operating current
150 mA
- Type
Radial lead
- Luminous flux (Φ)
55 lm
- Radiation angle
120°
- Type (LEDs)
White
- LED features
pliable
- Dim
(L x W x H) 3.5 x 2.8 x 0.75 mm
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
3.5 mm
- Width
2.8 mm
- Height
0.75 mm
- RoHS-compliant
Yes
- Content
40 Parts
- Type
2835
Documents & Downloads
Datasheet
Datasheet 2899389 Quadrios LED set White 120 ° 150 mA 3.3 V
User & Safety Instructions
User & Safety Instructions 2899389 Quadrios LED set White 120 ° 150 mA 3.3 V
Description
Experimenting and practical SMD-LED assortment in the single-chip design 2835 with a light yield of up to 55 lumen (color temperature dependent) as well as 30 cm flexible braids (ready-soldered). The 2835 is the new, trendy LED design for general lighting. This series is clearly Heller and even more efficient than the 3528 and 5050 designs, because a better heat dissipation in the SMD housing keeps the chip temperature down. This allows higher current to flow through the SMD LEDs at the same chip size without the chip temperature exceeding the critical limit. In order to achieve maximum light yield, the operating current may be up to 150 mA, to ensure WAS by current limitation measures (series resistor/constant current source).

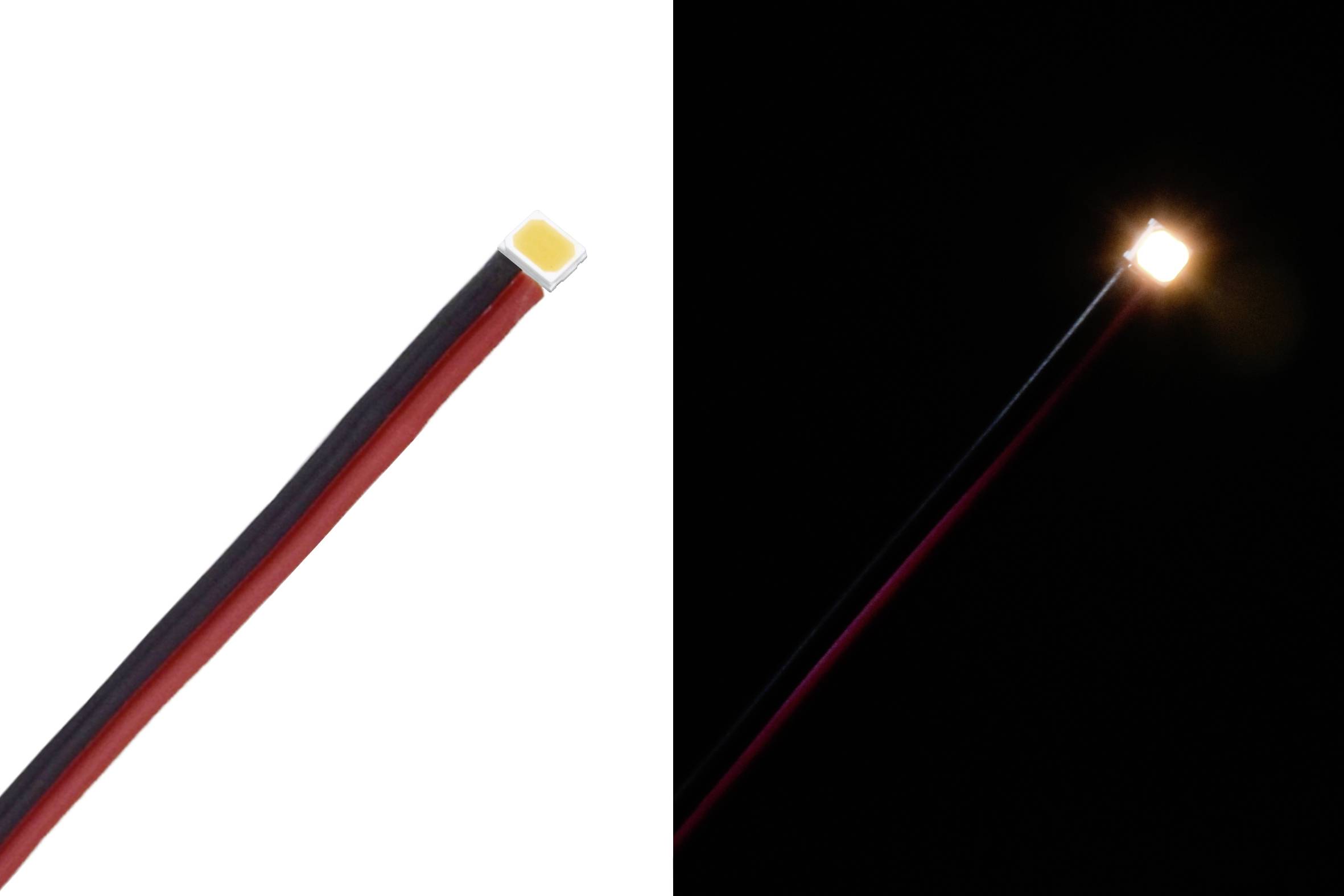

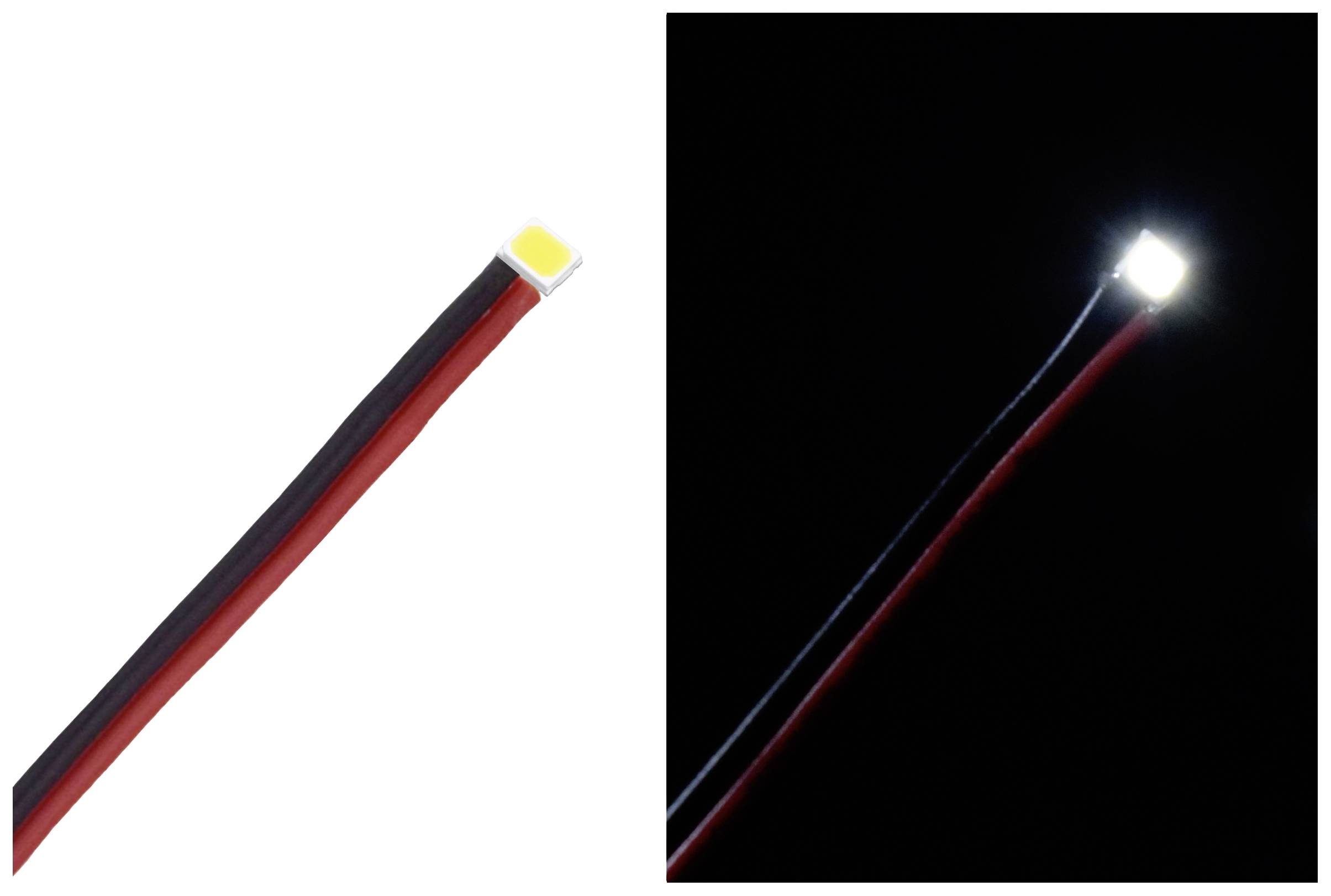

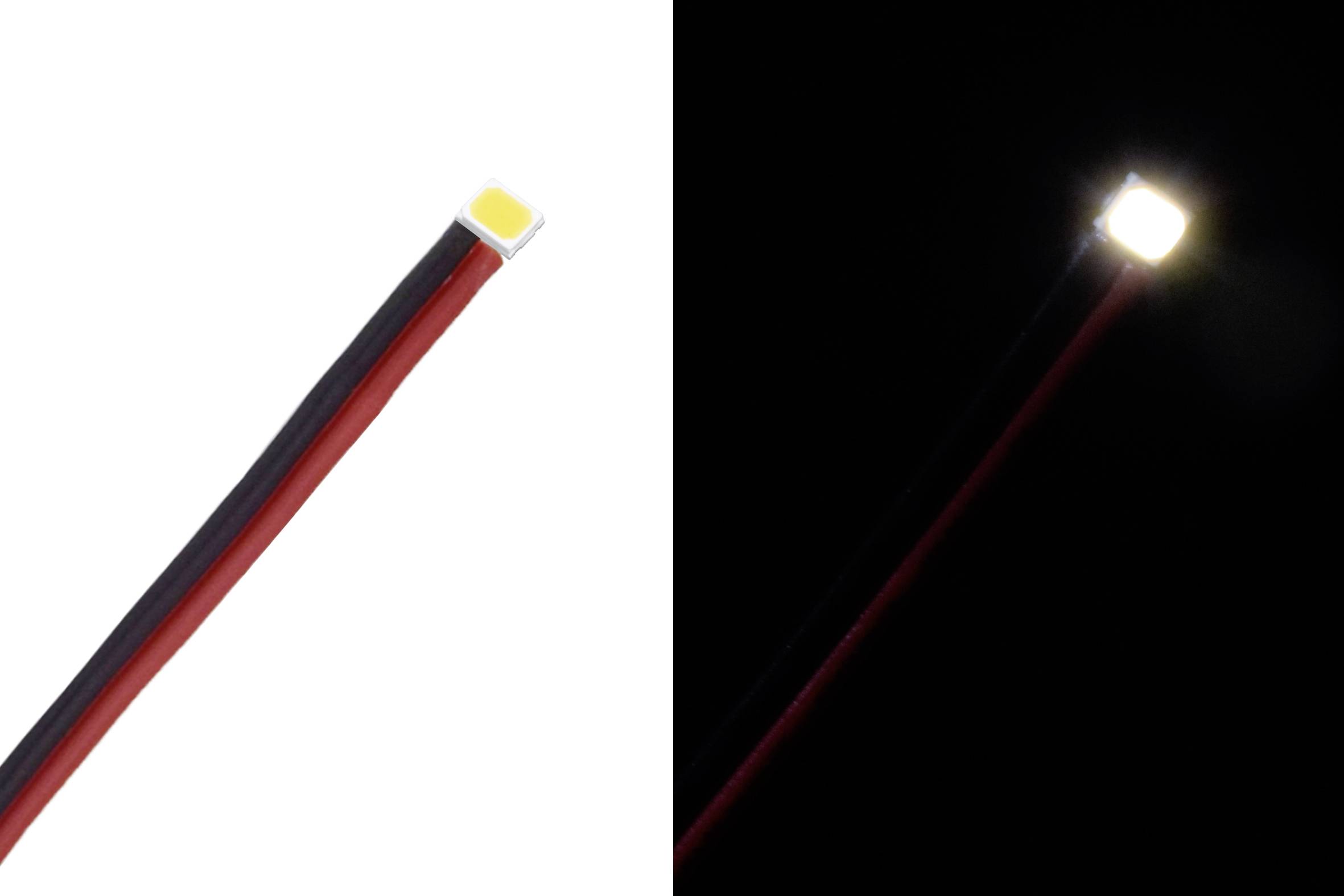

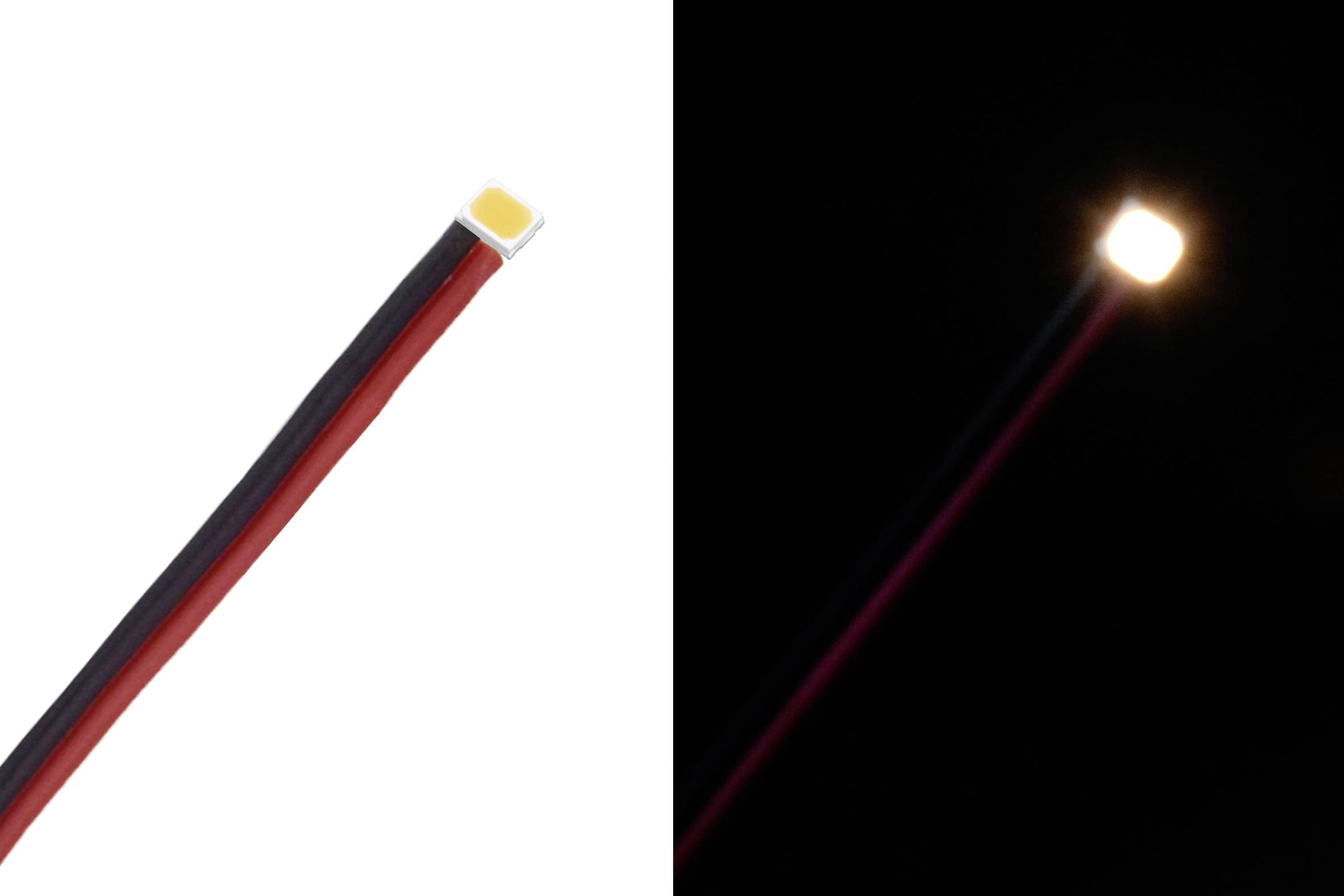

The red cable designates the anode (+) and the black cable is the cathode (-).

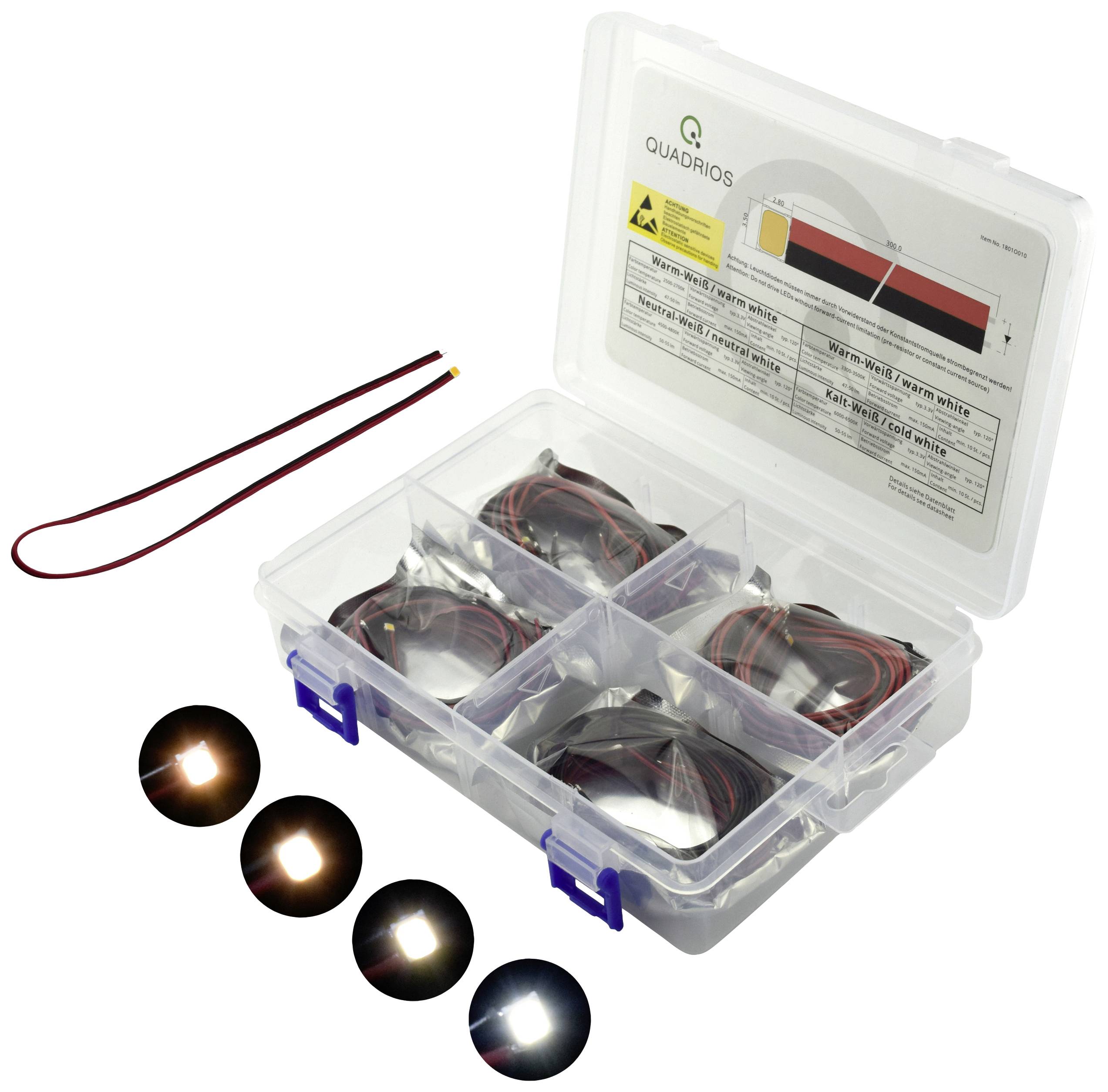

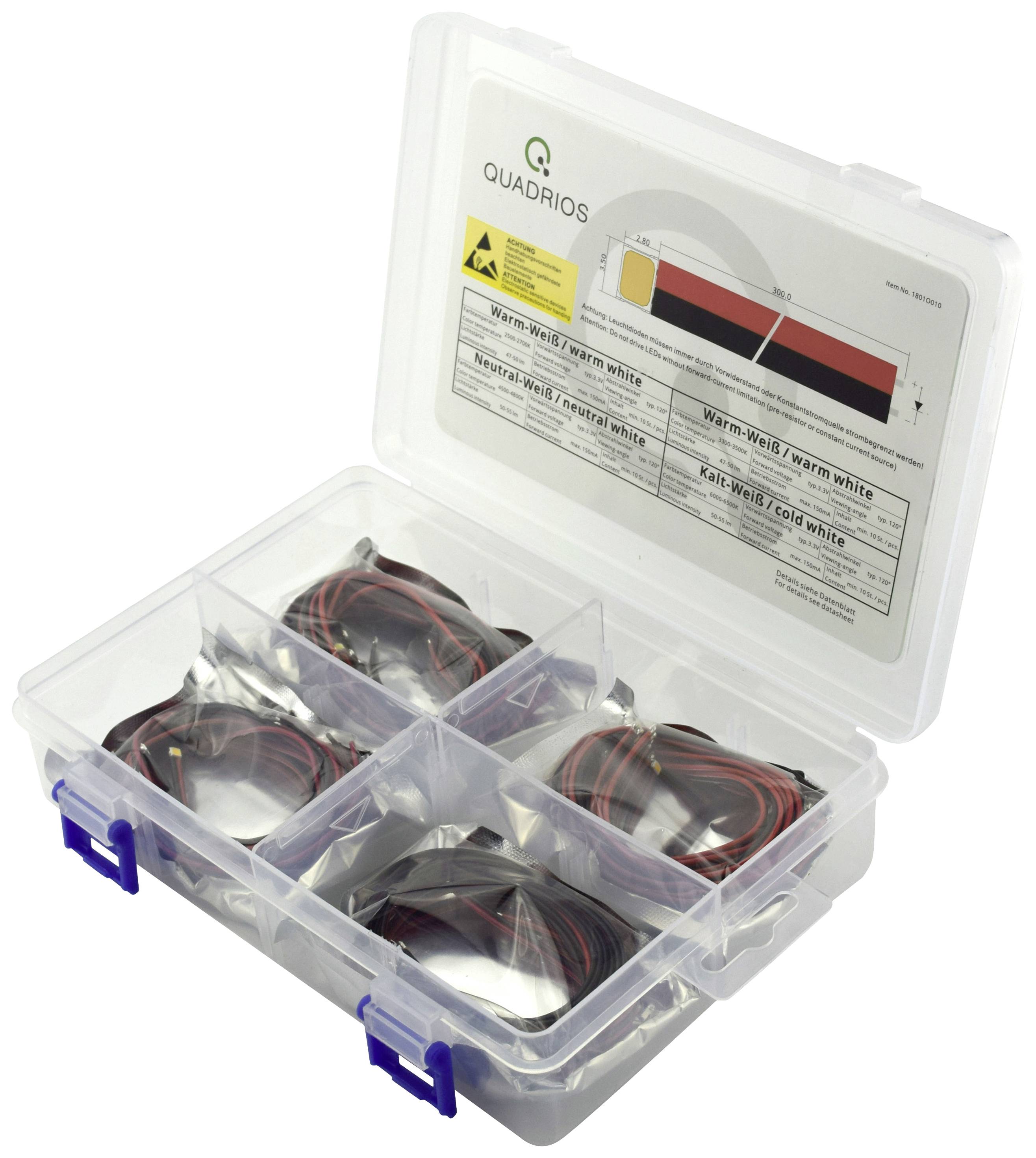

A short description of the components included is clearly printed on the inside of the lid. The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that the SMD LEDs can be operated in their specific parameters because the components are clearly specified.
This text is machine translated.
The red cable designates the anode (+) and the black cable is the cathode (-).
A short description of the components included is clearly printed on the inside of the lid. The data sheet contains useful information about the assortment - as well as important technical details about the contained components. This is the only way to ensure that the SMD LEDs can be operated in their specific parameters because the components are clearly specified.
This text is machine translated.
Scope of delivery
- 10x SMD 2835 LEDs with approx. 30cm cable color white (color temperatures 2700/3500/4850/6500 K)

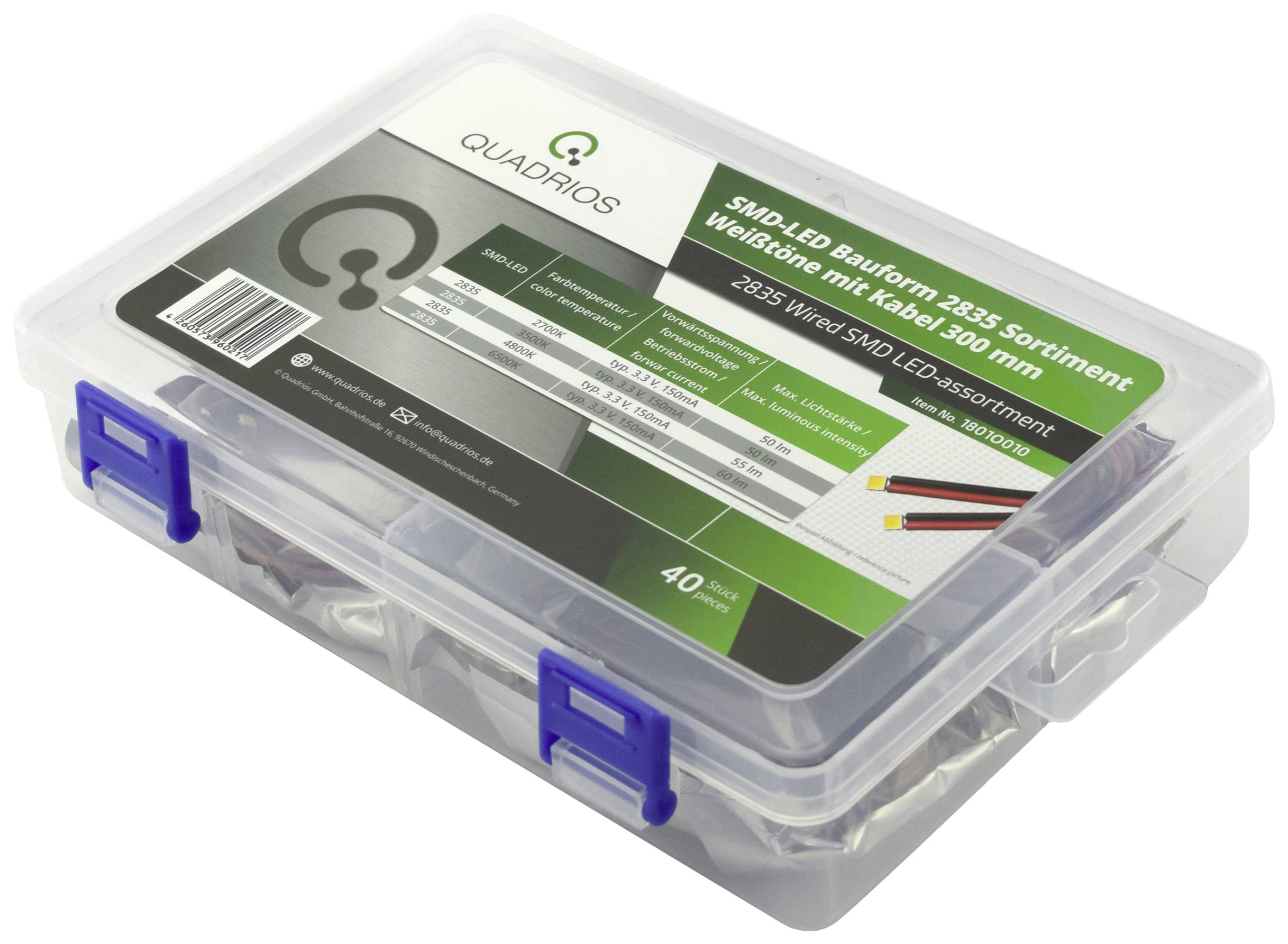

- 1x assortment box
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
