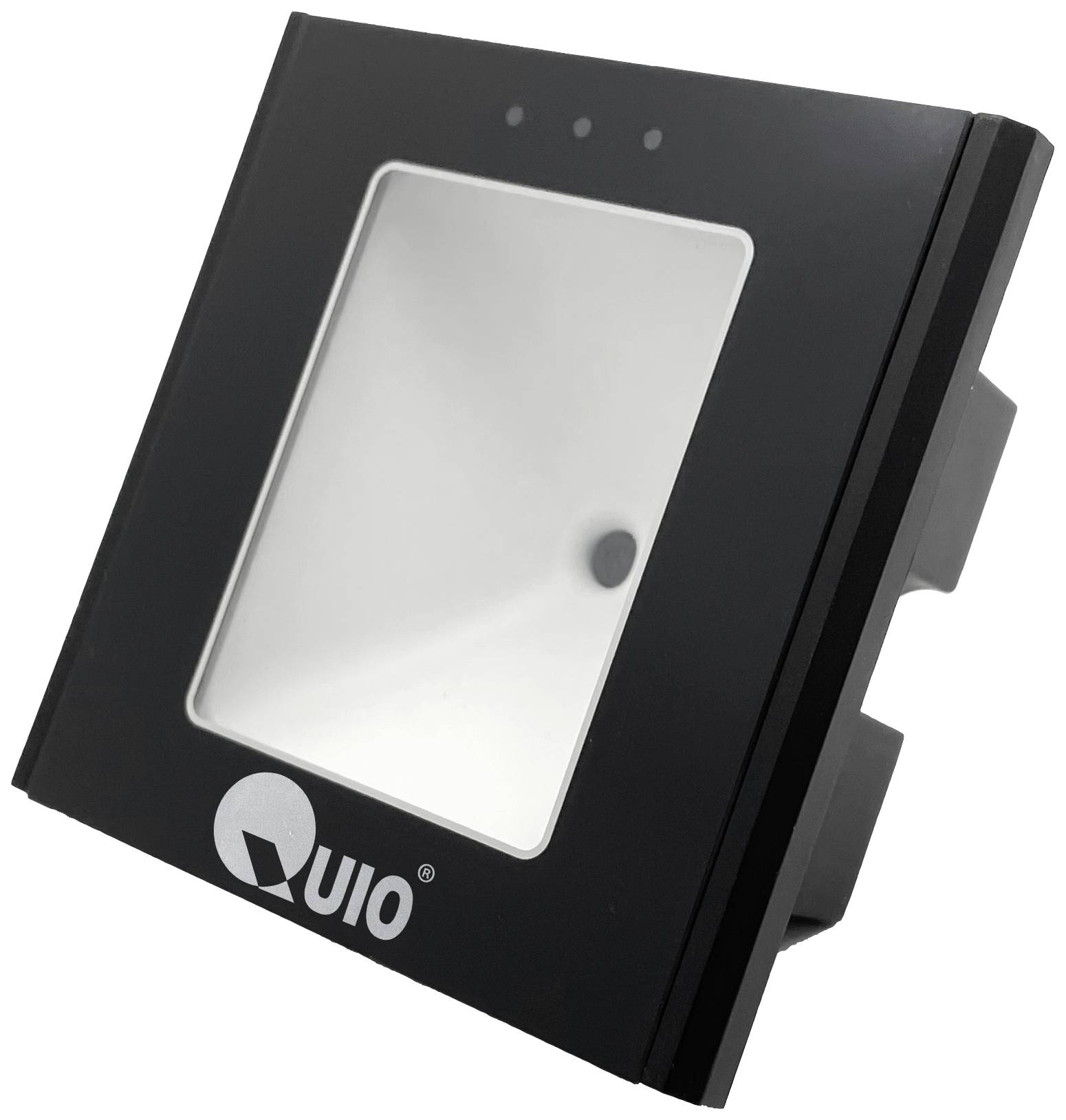

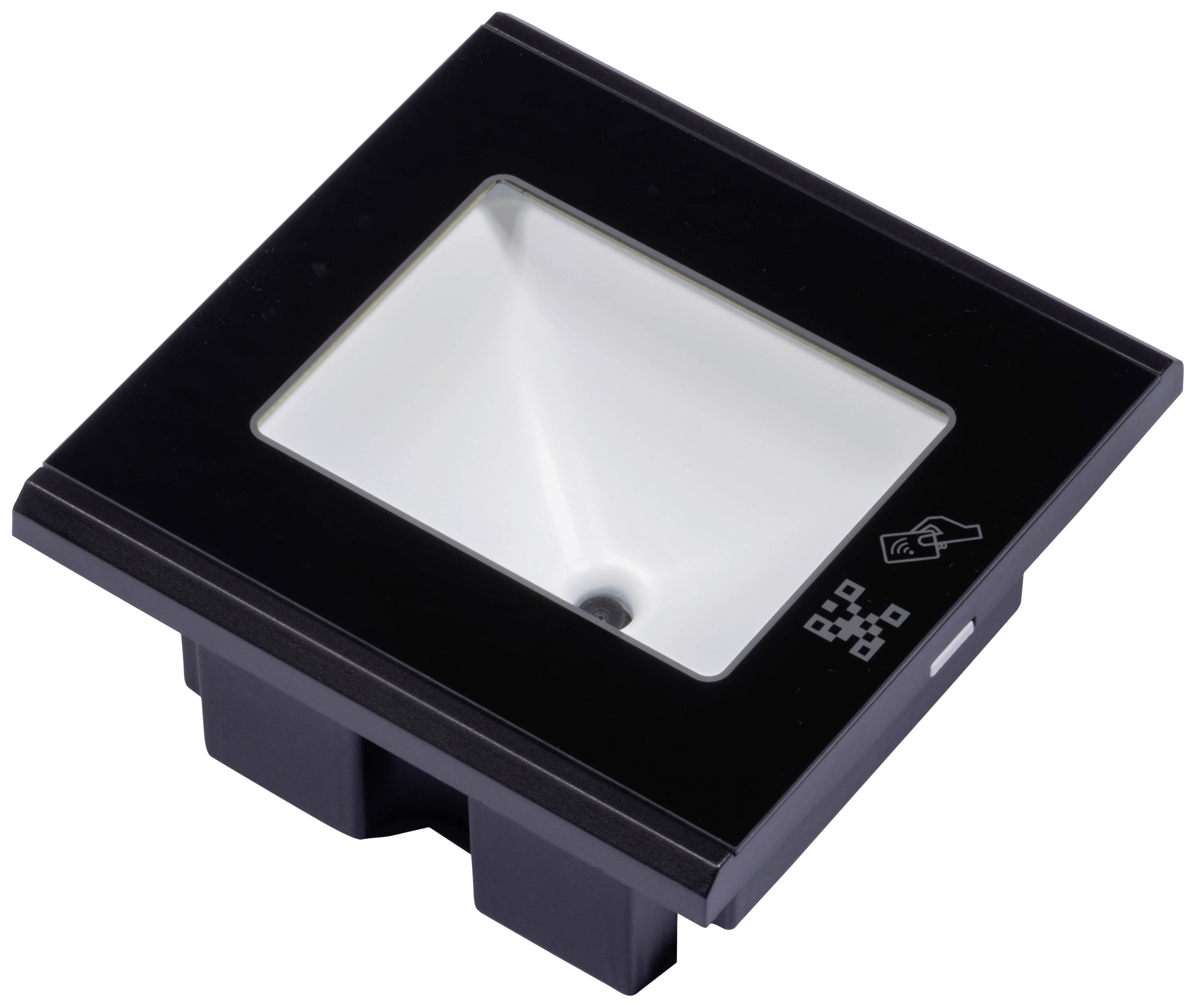

QUIO QU-ER-80-2 Chip card reader
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details
Desktop HF reader USBVCOM
- Desktop Reader
- 13.56MHz
- UPS COM
- This text is machine translated.
Technical specifications
- OPERATING VOLTAGE 4 V 15 V/DC
- Reading distance: 0 cm - 20 cm (bar code)
- 3 cm (RFID)
- Read speed 200 ms
- Confirmation note: Beeper, indicator LED
- Read direction: Camera-centered 45°
- Light source: With LED illumination
- Operating current 800 mA
- Operating temperature: -20°C to + +70°C.
- Permitted humidity: 10% – 90% rel. Air humidity
- Product type
Chip card reader
- Range of uses
Embedded Use
Access management

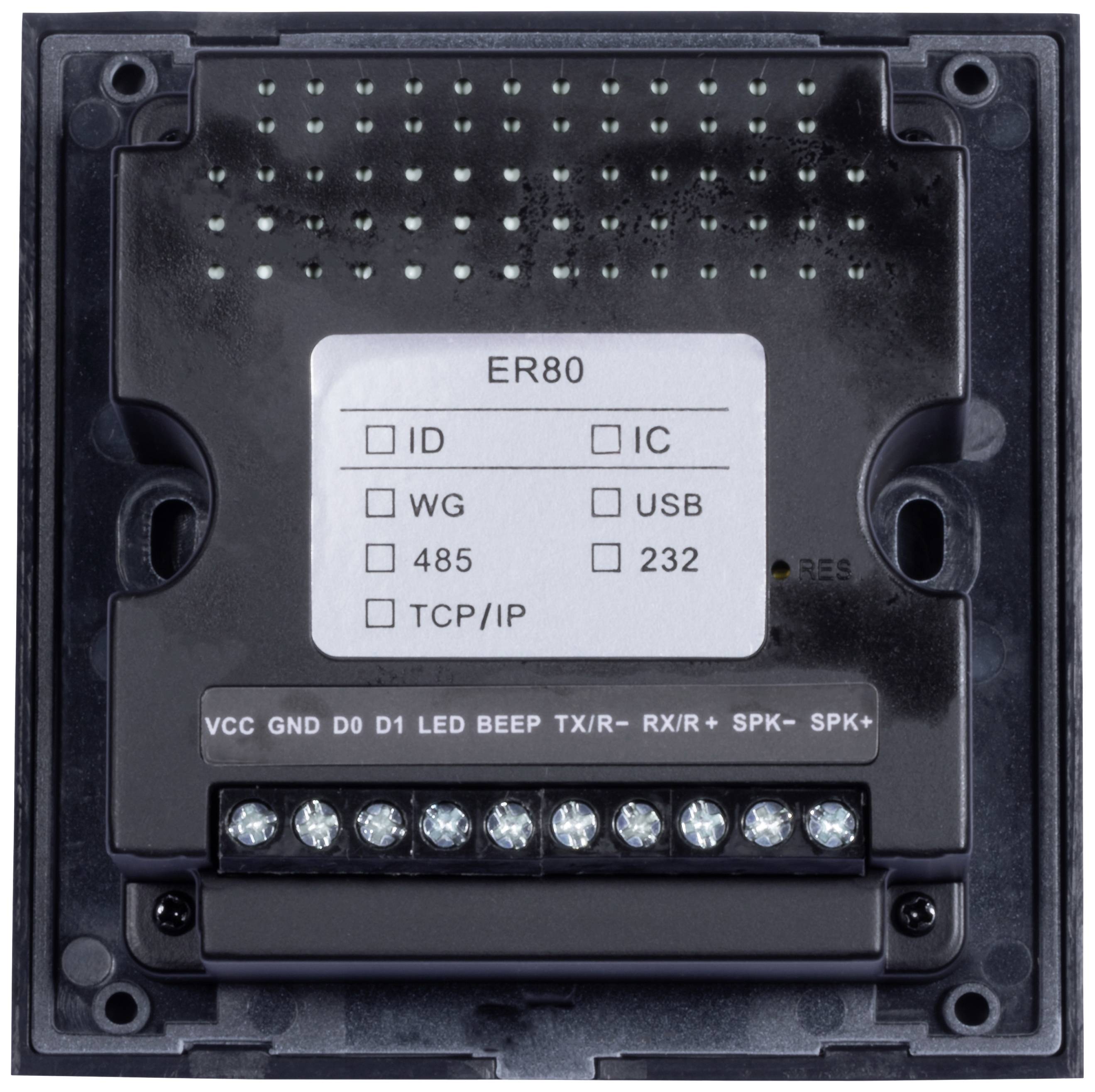

- Interfaces
RS232
Wiegand26/34
USB
TCP/IP
- Weight
200 g
- Length
86 mm
- Height
86 mm
- Width
42 mm
Documents & Downloads
Datasheet
Datasheet 2904956 QUIO QU-ER-80-2 Chip card reader
User & Safety Instructions
User & Safety Instructions 2904956 QUIO QU-ER-80-2 Chip card reader
Download
Download 2904956 QUIO QU-ER-80-2 Chip card reader
Description
Features
- Tri-color LED
- ISO14443A, ISO14443B, ISO15693
- Build in buzzer
- Plug & Play
Scope of delivery
- Reader
- USB cable
System requirements
- Windows, iOS, Android
