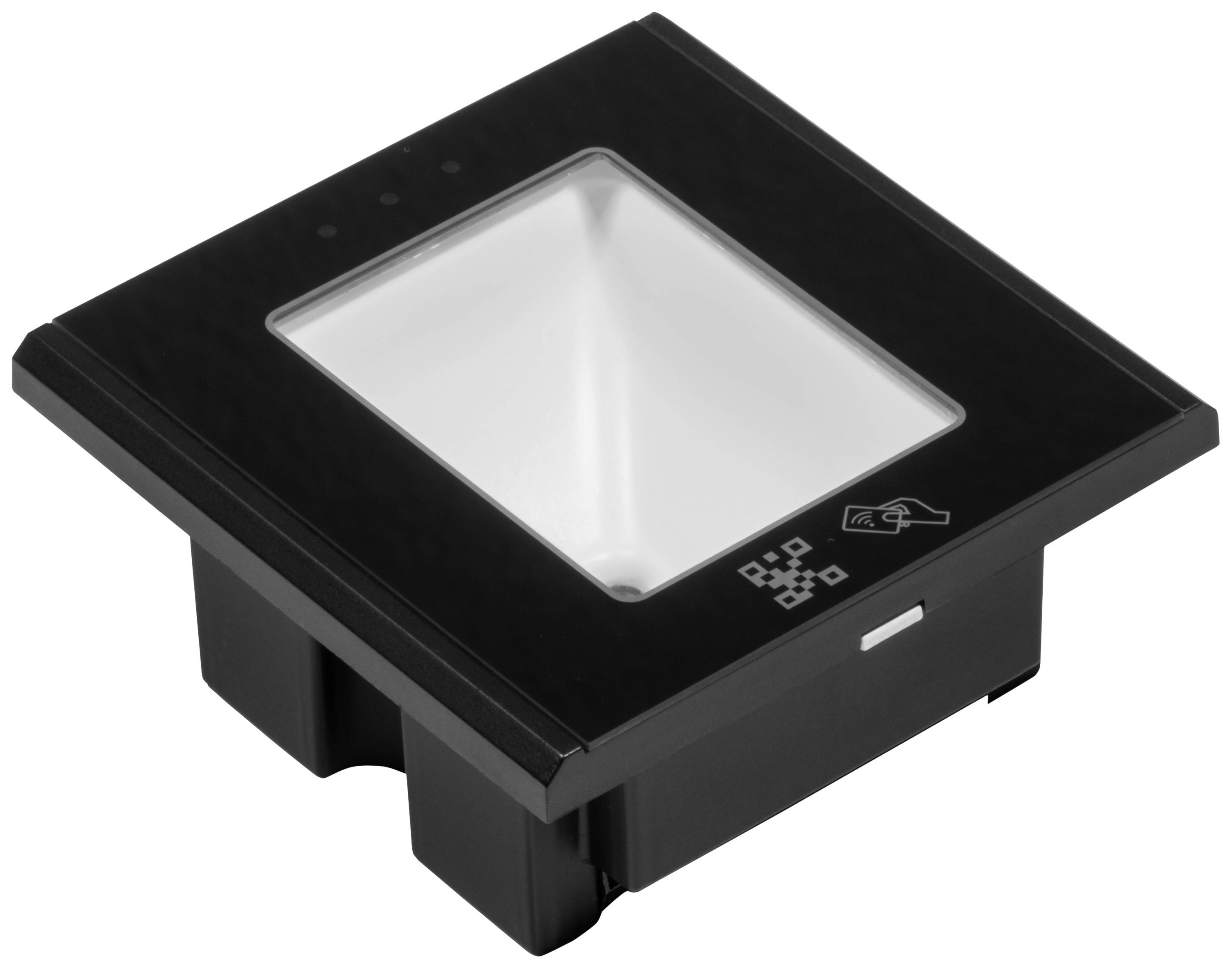

QUIO QU-ER-80-4 Chip card reader
EAN:
Part number:
Item no:
Number
Total (€ 134.45 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details
QR code reader access control RS232, RS485
- 1D & 2D barcode reader office access control, tourism, management, smart home
Technical specifications
- OPERATING VOLTAGE 4 V 15 V/DC
- Reading distance: 15 cm - 20 cm (bar code)
- 3 cm (RFID)
- Read speed 200 ms
- Confirmation note: Beeper, indicator LED
- Read direction: Camera-centered 45°
- Light source: With LED illumination
- Operating current 800 mA
- Operating temperature: -20°C to + +70°C.
- Permitted humidity: 10% – 90% rel. Air humidity
- Product type
Chip card reader
- Range of uses
Embedded Use
Access management

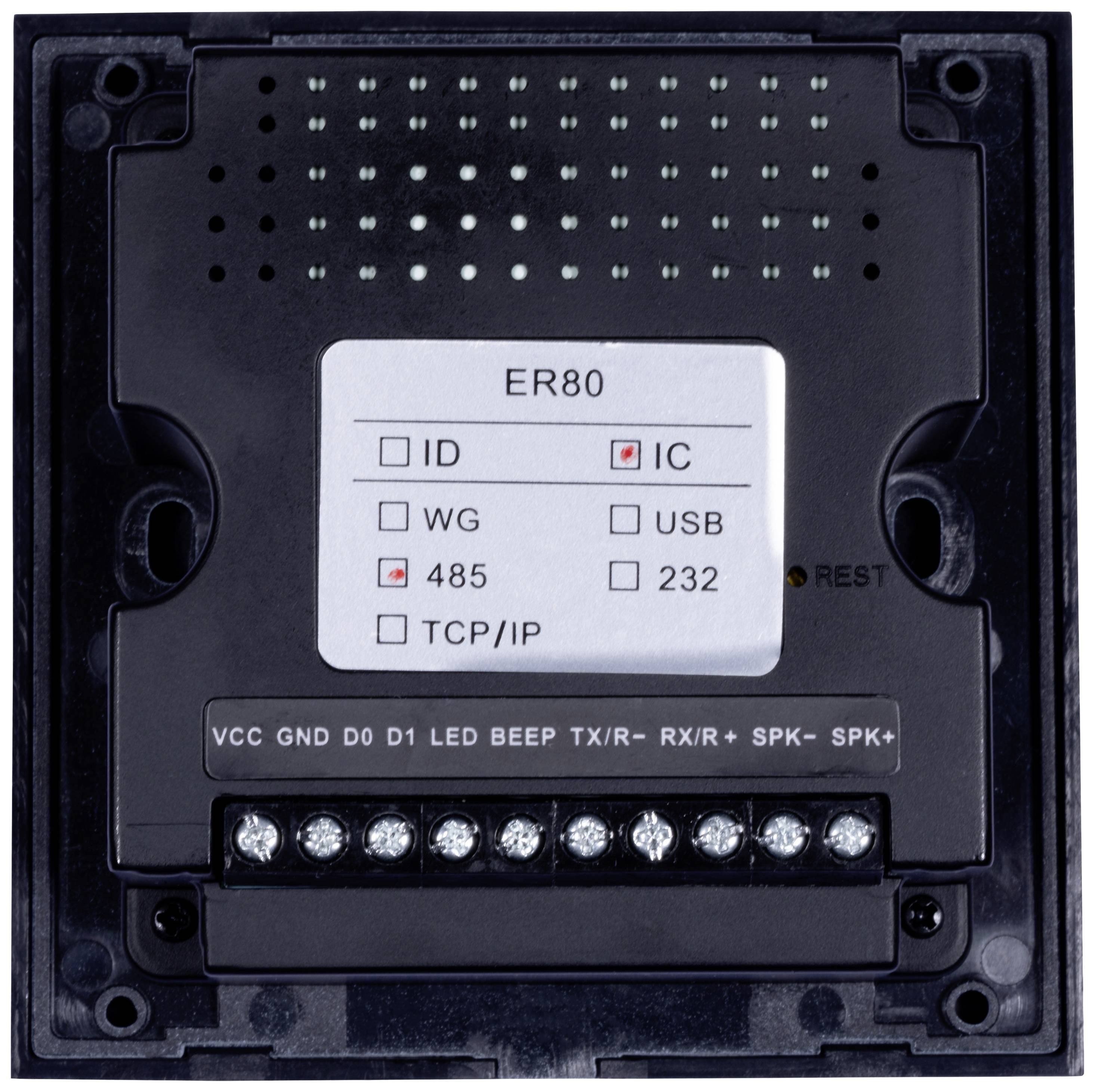

- Interfaces
RS232
Wiegand26/34
USB
TCP/IP
- Weight
200 g
- Length
86 mm
- Height
86 mm
- Width
42 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2904952 QUIO QU-ER-80-4 Chip card reader
User & Safety Instructions 2904952 QUIO QU-ER-80-4 Chip card reader
User & Safety Instructions 2904952 QUIO QU-ER-80-4 Chip card reader
Download
Download 2904952 QUIO QU-ER-80-4 Chip card reader
Description
1D & 2D QR Code Access card reader The model can be connected with every Wiegang input controller.
This text is machine translated.
This text is machine translated.
Features
- Material: Polycarbonate
