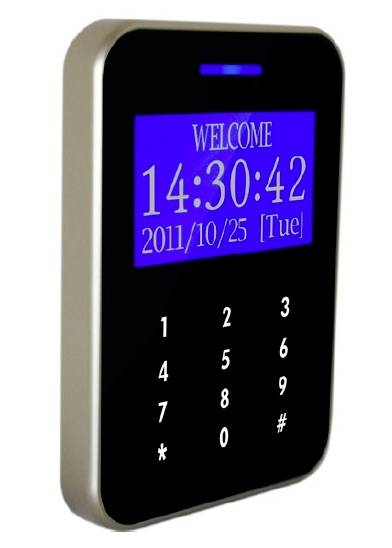

Digital door lock with blue display. Shows 'WELCOME', time 14:30:42, date 25.10.2011, day of week 'Tue'. Keypad below.

Digital door lock with blue display. Shows 'WELCOME', time 14:30:42, date 25.10.2011, day of week 'Tue'. Keypad below.

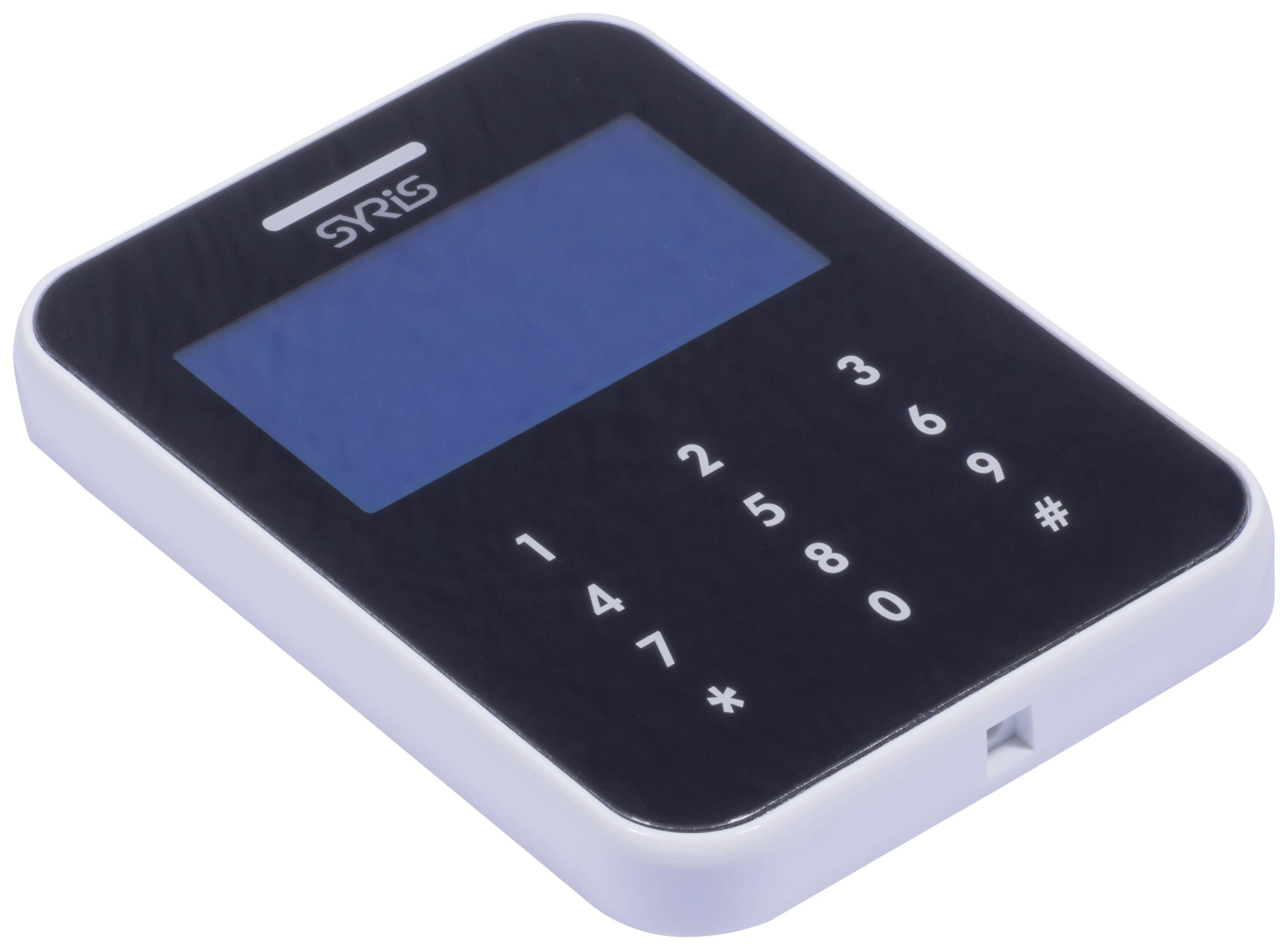

A black calculator with a blue digital display, white keys, and a white casing, marked with 'SYRG' at the top.

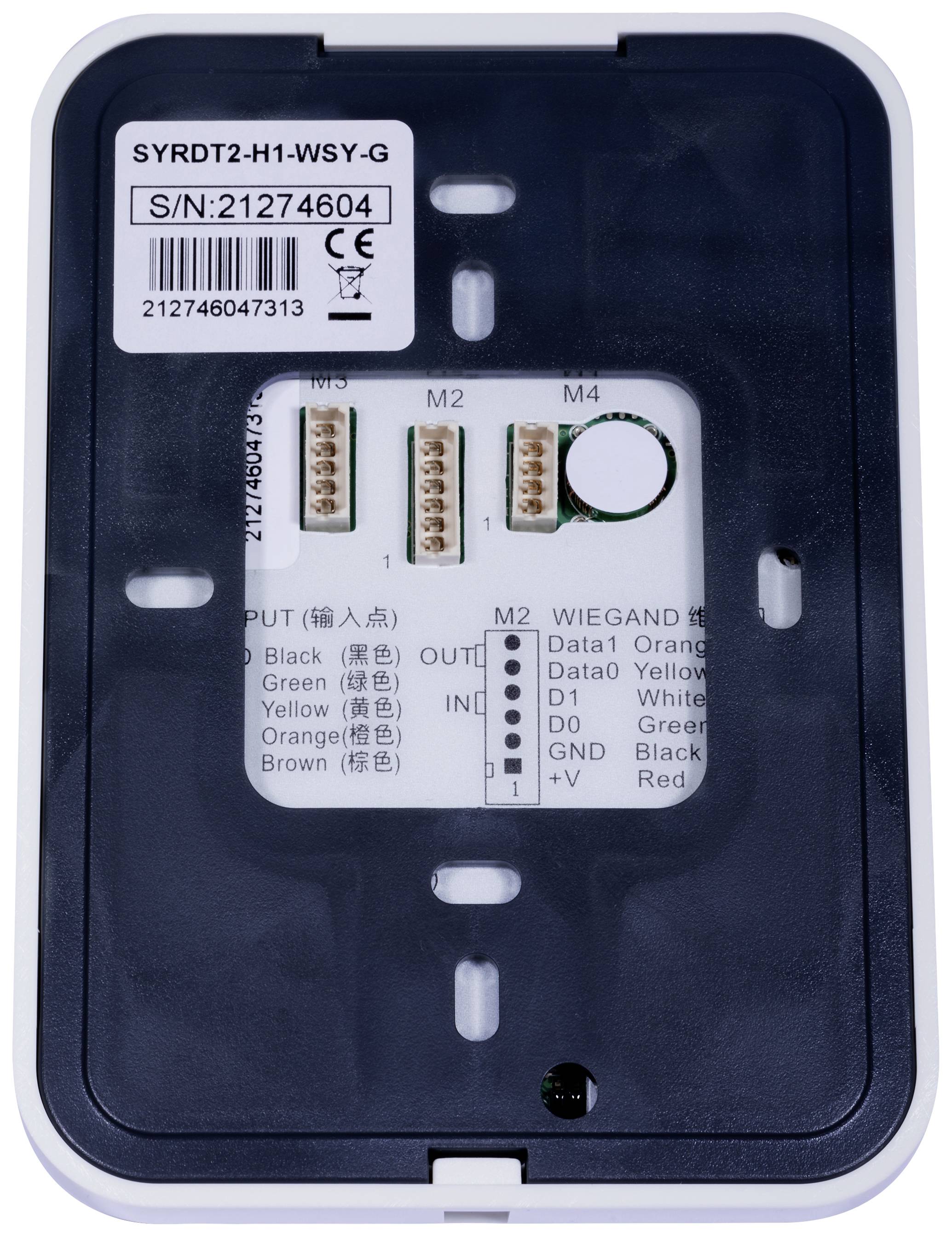

Back of a device with serial number '21274604'. Visible connections and colour-coded cable connections for data transmission.

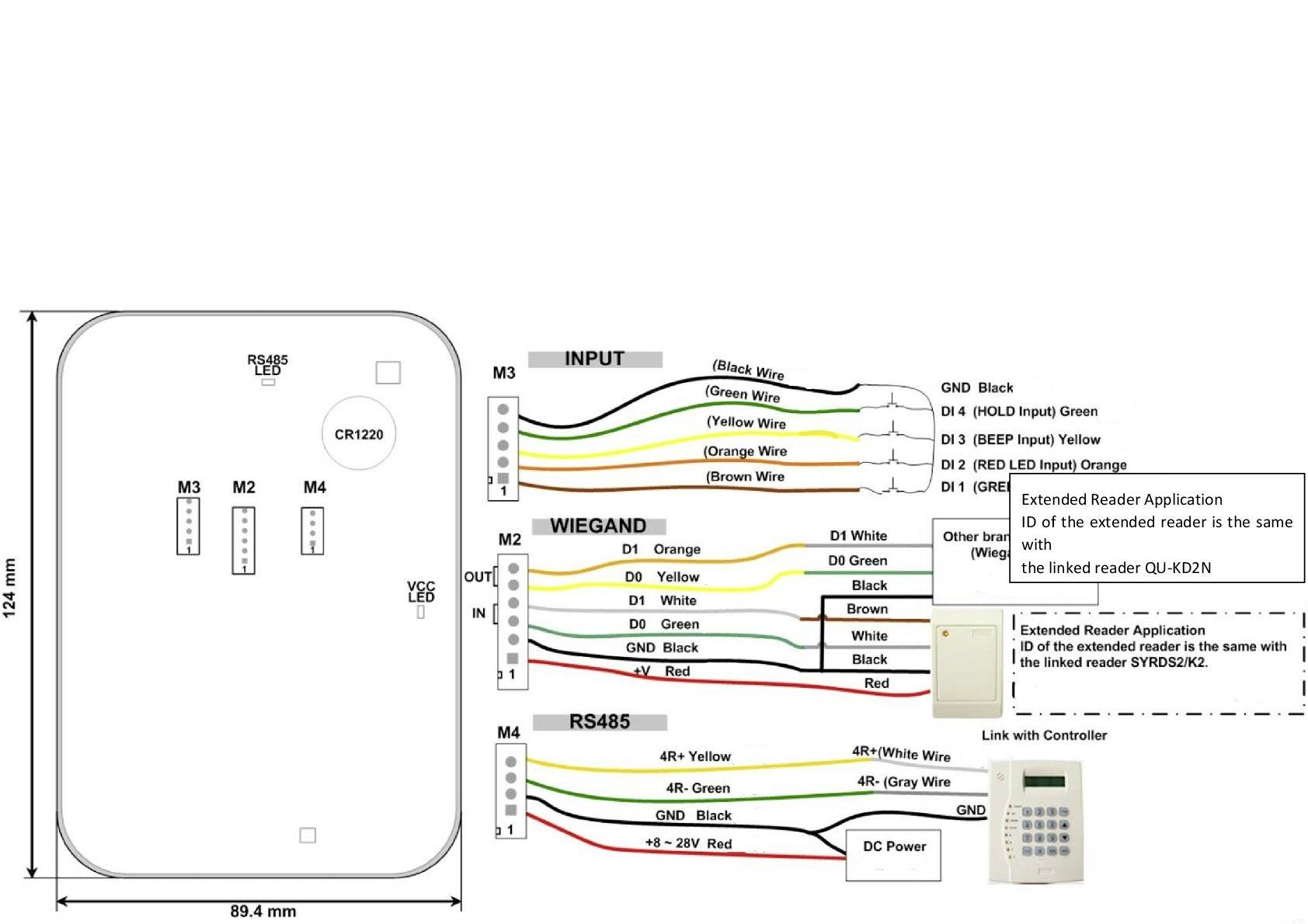

'Diagram of an Access Control Device: Connection Options for Input, Wiegand, RS485 with Colour-Coded Wires.'

1/4

QUIO

Datasheet (PDF)

English

Dispatches on Thu, 22 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 210.08 / piece)

€ 210.08

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

HF LCD reader

LCD Display Reader
Touch keypad
Anti-TAMPER
Beep
LCD with backlight
Buzzer
This text is machine translated.

Technical specifications

Operating temperature: -10 °C to + +60 °C.
Voltage 8 – 28 V/DC

Product type: Chip card reader

Range of uses: Access multifunction reader

Interfaces: RS485

Display size: 128x64 LCD

Weight: 300 g

Length: 12 mm

Height: 124 mm

Width: 89.40 mm

Documents & Downloads

Datasheet

English

Datasheet 2904942 QUIO QU-RDT2-HF Chip card reader

User & Safety Instructions

English

User & Safety Instructions 2904942 QUIO QU-RDT2-HF Chip card reader

Description

Features

3 LED (RGB)
128x64 dots LCD display
Anti-tamper
Beeper
RS485
Wiegand interface

Scope of delivery

Reader
Cable
Manual

Hints

Support ISO15693 / ISO14443A (Mifare) / ISO14443B / DESFire / NTAG203

System requirements

Windows, iOS, Android
